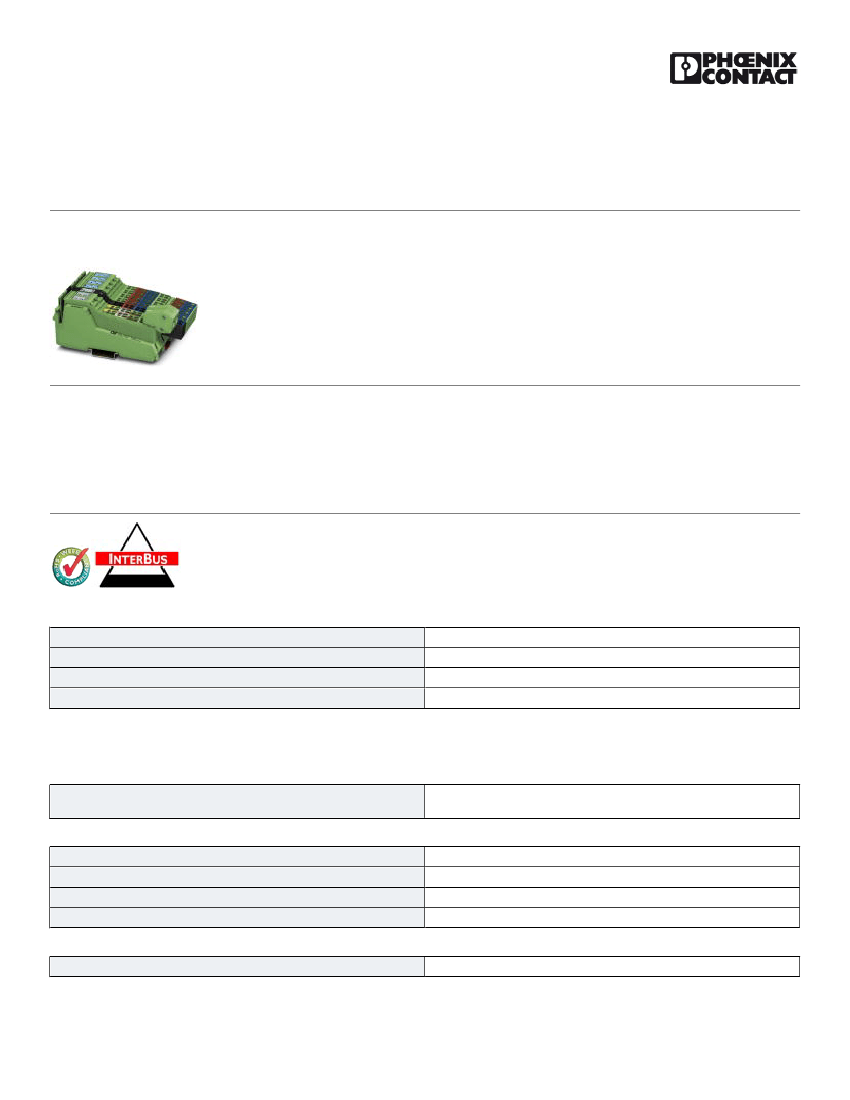

I/O module - ILB IB 24 DI16 - 2862330
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Inline Block I/O digital input module, INTERBUS, 16 inputs, 24 V DC, 2, 3-wire connection technology
Product Features
■
■
■
■
16 digital inputs
Connection of sensors in 2 and 3-wire technology
Maximum permissible load current per sensor: 125 mA
Diagnostic and status indicators
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
353.4 g
85389091
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
Note on dimensions
95 mm
141 mm
57 mm
Specfications with connectors
Ambient conditions
Ambient temperature (operation)
-25 °C ... 60 °C
04/24/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/2862330
I/O module - ILB IB 24 DI16 - 2862330
Technical data
Ambient conditions
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
-25 °C ... 85 °C
max. 85 % ((non-condensing))
95 % (non-condensing)
80 kPa ... 108 kPa (up to 2000 m above mean sea level)
66 kPa ... 108 kPa (up to 3500 m above mean sea level)
IP20
General
Mounting type
Net weight
Note on weight specifications
DIN rail
300 g
with connectors
Interfaces
Fieldbus system
Designation
Connection method
Transmission speed
INTERBUS
INTERBUS
Inline shield connector
500 kBit/s
Power supply for module electronics
Supply voltage
Supply voltage range
Supply current
Current consumption
24 V DC
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
80 mA
approx. 80 mA
Digital inputs
Input name
Description of the input
Connection method
Number of inputs
Typical response time
Protective circuit
Input voltage
Input voltage range "0" signal
Input voltage range "1" signal
Nominal input current at U
IN
Digital inputs
EN 61131-2 type 1
Spring-cage connection
3-conductor
16
approx. 500 µs
Short-circuit protection, overload protection of the sensor supply
24 V DC
-30 V DC ... 5 V DC
15 V DC ... 30 V DC
5 mA
Standards and Regulations
Conformity with EMC directives
Test section
EN55022:1998+A1:2000 Class B
I/Os / incoming remote bus 500 V AC 50 Hz 1 min.
04/24/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/2862330
I/O module - ILB IB 24 DI16 - 2862330
Technical data
Standards and Regulations
I/Os / outgoing remote bus 500 V AC 50 Hz 1 min.
I/O area / FE 500 V AC 50 Hz 1 min.
Incoming remote bus / FE 500 V AC 50 Hz 1 min.
Outgoing remote bus / FE 500 V AC 50 Hz 1 min.
Incoming remote bus / outgoing remote bus 500 V AC 50 Hz 1 min.
Noise emission
Mechanical tests
Connection in acc. with standard
Protection class
Class B (residential)
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 25g
CUL
III, IEC 61140, EN 61140, VDE 0140-1
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27250302
27250302
27250302
27242604
27242604
27242604
27242604
27242604
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001430
EC001599
EC001599
EC001599
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
Approvals
Approvals
04/24/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/2862330
I/O module - ILB IB 24 DI16 - 2862330
Approvals
Approvals
UL Recognized / cUL Recognized / INTERBUS CLUB / cULus Recognized
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approvals submitted
Approval details
UL Recognized
cUL Recognized
INTERBUS CLUB
cULus Recognized
Accessories
Accessories
End block
End clamp - CLIPFIX 35-5 - 3022276
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for
FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
04/24/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/2862330
I/O module - ILB IB 24 DI16 - 2862330
Accessories
Labeling panel
Labeling field - IB IL FIELD 2 - 2727501
Labeling field, width: 12.2 mm
Plug
Inline connector - IB IL SCN-PWR IN-CP - 2727637
Connector, colored, for Inline power and segment terminal blocks
Inline connector - IB IL SCN-12-ICP - 2727611
Connector, color coded, for digital 4, or 16-channel Inline input terminals
Inline shield connector - IB IL SCN-6 SHIELD-CP - 2863151
Shield connector, for INTERBUS connection
Terminal marking
04/24/2016 Page 5 / 6
