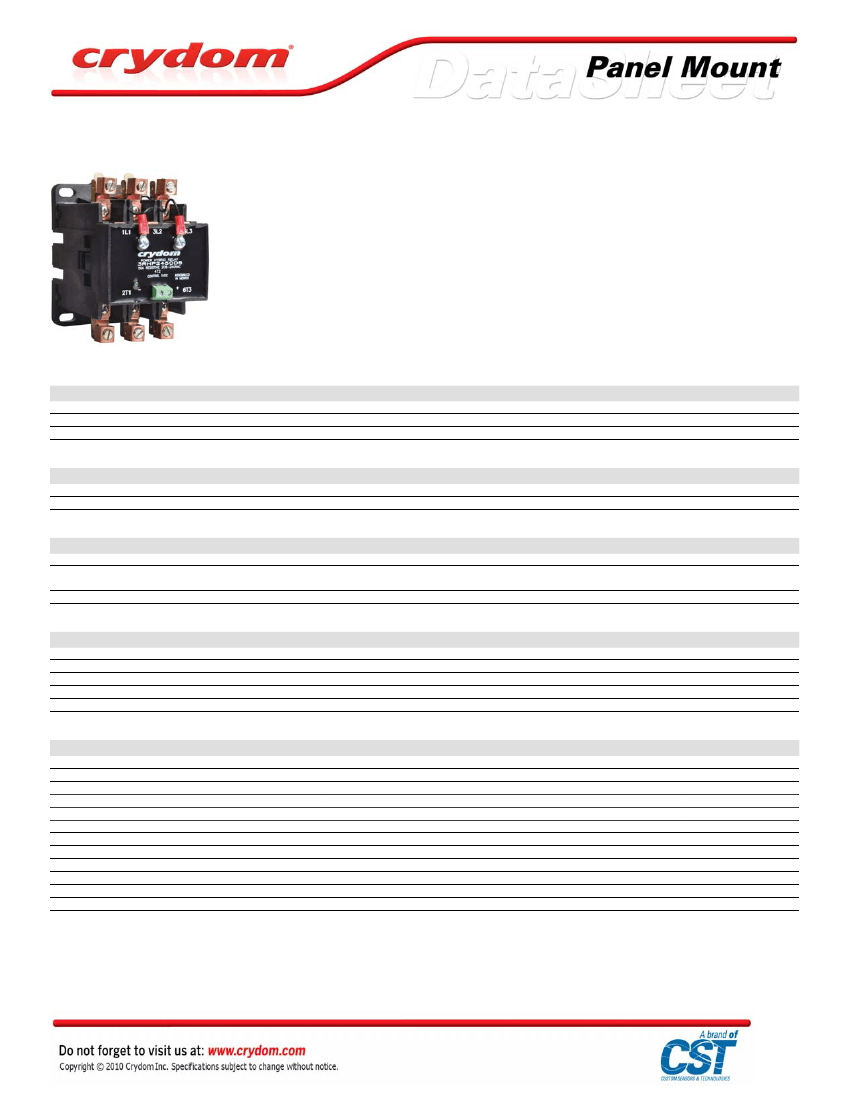

3RHP Series DC Control
• 100K-cycle UL508 Endurance Rating for Enhanced Reliability
• 40 and 50A output
• Voltage ratings to 240 VAC
• Lifetime 2 million operations at full load
• LED input status indicator
• Wire, lug or quick connect termination
• Industry Standard DP contactor mounting
PRODUCT SELECTION (by control voltage and output rating)
Control Voltage
4.5-5.5 VDC
10-15 VDC
22-27 VDC
40A 120 VAC
3RHP1240D5
3RHP1240D12
3RHP1240D24
OUTPUT SPECIFICATIONS (voltage)
Description
Operating Voltage (47-63Hz) [Vrms]
Maximum Off-State Leakage Current per channel
120 VAC
100-120
0.05 mA @ 120 VAC
OUTPUT SPECIFICATIONS (current)
Description
Maximum Load Current per phase @ 40°C [Arms] (1)
40A Resistive
Power terminals
1/4" Quick Connect and 10x32 binder
head screws
Wire Size
8-14 AWG
INPUT SPECIFICATIONS
Description
Coil Voltage
Max. Reverse Voltage
Input Current
Min. Turn-On Voltage
Min. Turn-Off Voltage
bs
SUFIX D5
4.5-5.5 VDC
-5.5 VDC
12mA @ 5 VDC
4.5 VDC
1 VDC
ol
40A
50A
6-14 AWG
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input to Output
Dielectric Strength, Input/Output to ground
Contacts (2)
Ambient Operating Temperature Range (3)
Ambient Storage Temperature Range
Max. Turn-On Time 50/60 Hz
Max. Turn-Off Time 50/60Hz
Maximum Number of Operations
Lifetime Number of Operations @ Rated Current (4)
Weight (typical)
Screw Torque (input/Output) 40A
Screw Torque (input/Output) 50A
O
et
e
50A 120 VAC
3RHP1250D5
3RHP1250D12
3RHP1250D24
40A 240 VAC
3RHP2440D5
3RHP2440D12
3RHP2440D24
50A 240 VAC
3RHP2450D5
3RHP2450D12
3RHP2450D24
240 VAC
208-240
0.06 mA @ 240 VAC
50A Resistive
1/4" Quick Connect and box lugs
SUFIX D12
10-15 VDC
-15.5 VDC
12mA @ 12 VDC
9.5 VDC
2 VDC
SUFIX D24
22-27 VDC
-27.5 VDC
12mA @ 24 VDC
9.5 VDC
2 VDC
Parameters
4000 Vrms
2500 Vrms
Three Normally Open
-20 to 75 °C
-40 to 100 °C
20 ms / 16.6 ms
40 ms / 32 ms
30 per Minute
> 2 Million
1.19 lbs (540 g)
4.4-5 in lb (0.5-0.6 Nm) / 15-18 in lb (1.7-2.1 Nm)
4.4-5 in lb (0.5-0.6 Nm) / 20-25 in lb (2.2-2.9 Nm)
GENERAL NOTES
(1)
(2)
(3)
(4)
See Derating curves for additional operating conditions.
The RHP includes a Solid State Relay, therefore electrical isolation is not provided.
The RHP includes over temperature protection for the solid state relay.
40°C ambient temperature, 30 operations/min, maximum voltage control.

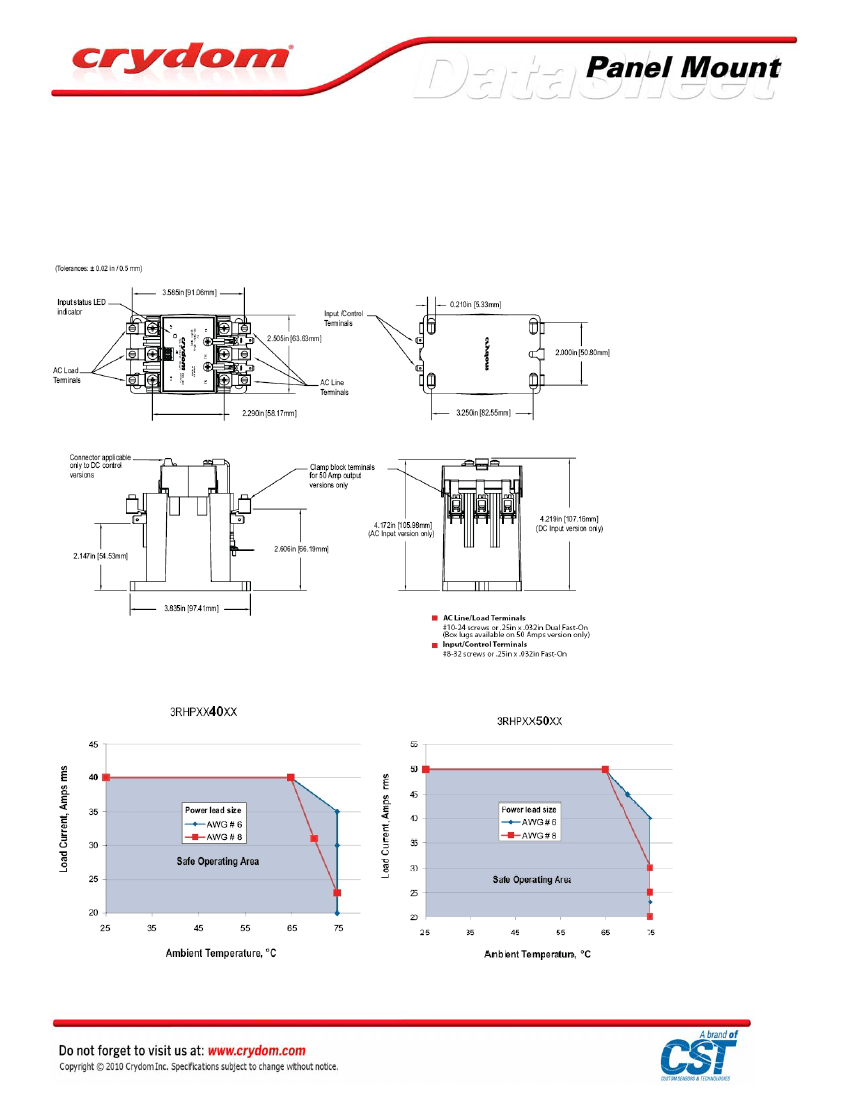

MECHANICAL SPECIFICATIONS
THERMAL DERATE INFORMATION
O
bs
ol
et
e
