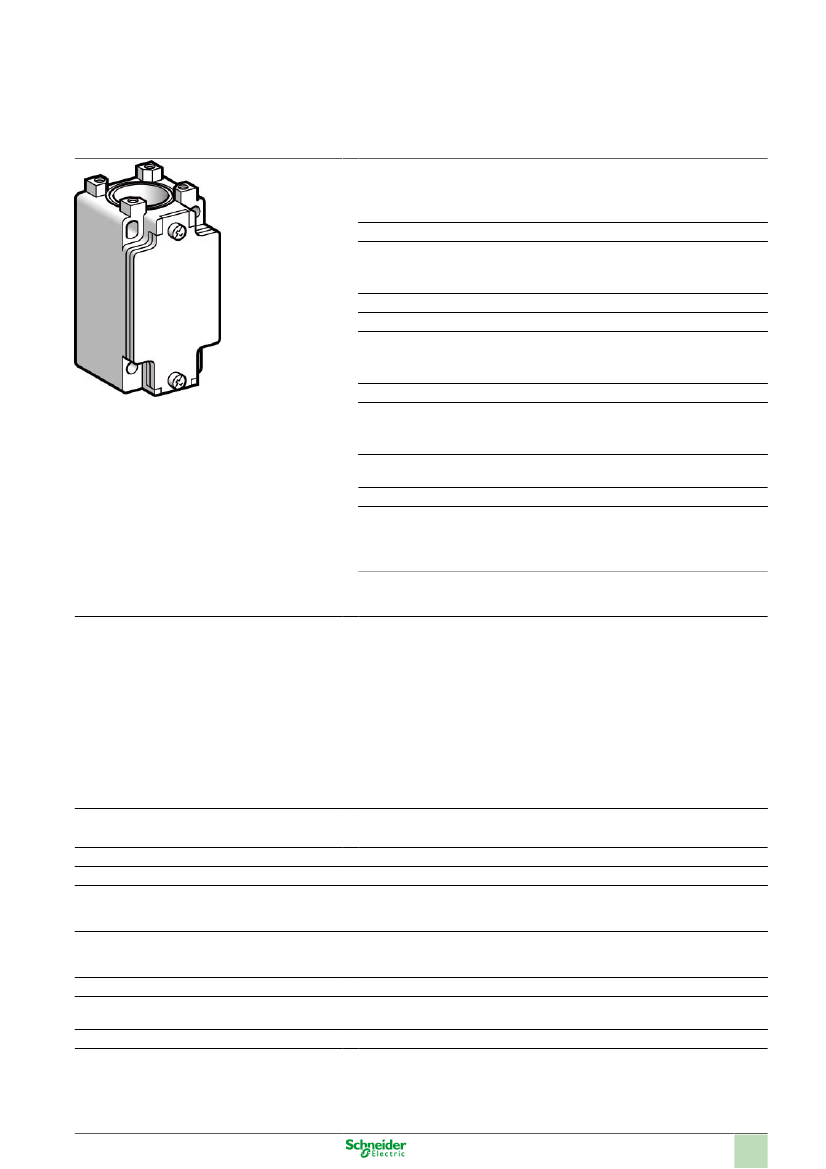

Product data sheet
Characteristics
ZCKJ25
limit switch body ZCKJ - fixed - w/o display -
2C/O - snap action - Pg13
Main
Range of product
Series name
Product or component
type
Device short name
Body type
Product compatibility
Local display
Electrical connection
Cable entry
Number of poles
Contacts type and com-
position
Contacts operation
Positive opening
Ambient air tempera-
ture for operation
Environmental charac-
teristic
OsiSense XC
Standard format
Limit switch body
ZCKJ
Fixed
XCKJ
Without
Screw-clamp terminals , clamping capacity: 1 x
0.75...2 x 1.5 mm²
1 entry tapped for Pg 13.5 cable gland
2 C/O
Snap action
Snap action, simultaneous
Without
20...120 °C for high temperature
High temperature
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
2
Complementary
Associated head
ZCKE05
ZCKE06
ZCKE08
ZCKE21
ZCKE23
ZCKE61
ZCKE619
ZCKE62
ZCKE629
ZCKE63
ZCKE64
ZCKE65
ZCKE66
ZCKE67
Metal
1
Silver plated contacts
0.01 m/min
A300 , AC-15 (Ue = 240 V , Ie = 3 A), Ithe = 10 A conforming to EN/IEC
60947-5-1 appendix A
Q300 , DC-13 (Ue = 250 V conforming to EN/IEC 60947-5-1 appendix A
300 V conforming to UL 508 contact block
300 V conforming to CSA 22-2 No 14 contact block
500 V degree of pollution 3 conforming to IEC 60947-1 contact block
0.25 mOhm conforming to IEC 60255-7 category 3
6 kV conforming to IEC 60947-1
6 kV conforming to IEC 60664
10 A by gG cartridge fuse
Body material
Number of steps
Contacts material
Minimum actuation speed
Contact code designation
[Ui] rated insulation voltage
Resistance across terminals
[Uimp] rated impulse withstand voltage
Short circuit protection
Jan 6, 2017
1
Electrical durability
5000000 cycles , DC-13 (Uc = 48 V), 7 W , load factor: 0.5 , operating rate: < 60
cyc/mn conforming to IEC 60947-5-1 appendix C
5000000 cycles , DC-13 (Uc = 120 V), 4 W , load factor: 0.5 , operating rate: < 60
cyc/mn conforming to IEC 60947-5-1 appendix C
5000000 cycles , DC-13 (Uc = 24 V), 10 W , load factor: 0.5 , operating rate: < 60
cyc/mn conforming to IEC 60947-5-1 appendix C
Environment
IP degree of protection
IK degree of protection
Ambient air temperature for storage
RoHS EUR conformity date
RoHS EUR status
IP65
IK08
-40...70 °C
4Q2009
Will be compliant
