Technical Data
November 2014
3M
™
Bumpon
™
Protective Products
Molded Shapes - Quiet Clear
SJ6500 Series
Product Description
3M™ Bumpon™ Protective Product Quiet Clear SJ6500 Series are molded cushioning products that utilize a special,
soft polyurethane formulation and synthetic rubber adhesive. This unique construction provides an excellent cushioning
stop, spacer or non-skid foot solution, with enhanced sound damping characteristics. The 3M high tack, pressure-
sensitive adhesive is protected with a polyester release liner, making individual Bumpon removal and application
quick and easy.
Product Construction
Backing
Polyurethane
Adhesive
Synthetic Rubber
Color
Transparent

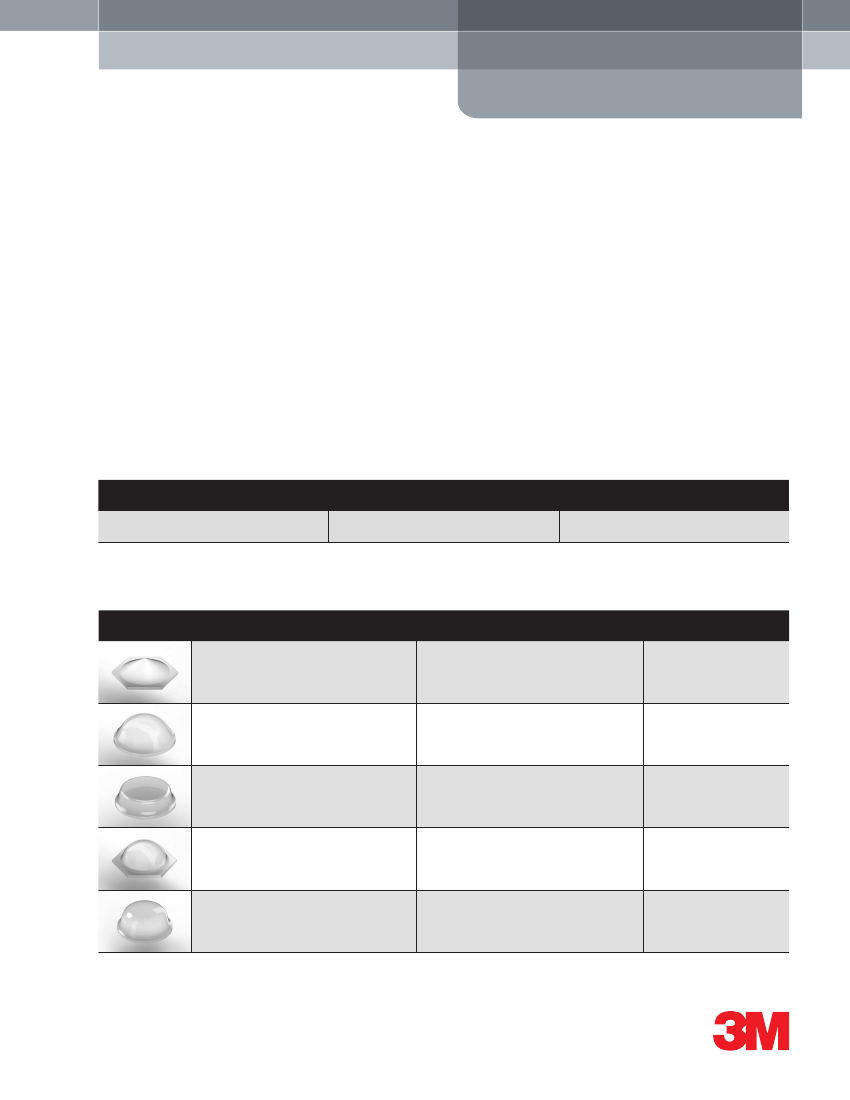

Specifications
Shape
3M™ Bumpon™ Protective
Product Quiet Clear SJ6553*
Hexagonal Cone
3M™ Bumpon™ Protective
Product Quiet Clear SJ6506
Hemispherical
3M™ Bumpon™ Protective
Product Quiet Clear SJ6512
Cylindrical
3M™ Bumpon™ Protective
Product Quiet Clear SJ6561*
Hexagonal Hemisphere
3M™ Bumpon™ Protective
Product Quiet Clear SJ6503
Hemispherical
Dimensions
Height: 0.120 in. (3.05 mm)
Length: 0.433 in. (11.0 mm)
Height: 0.150 in. (3.8 mm)
Diameter: 0.375 in. (9.5 mm)
Height: 0.140 in. (3.5 mm)
Diameter: 0.500 in. (12.7 mm)
Height: 0.150 in. (3.8 mm)
Length: 0.433 in. (11.0 mm)
Height: 0.20 in. (5.0 mm)
Diameter: 0.44 in. (11.1 mm)
Pad Format
11 x 12 matrix
132 per pad
12 x 8 matrix
96 per pad
8 x 7 matrix
56 per pad
11 x 12 matrix
132 per pad
8 x 7 matrix
56 per pad
*
These unique molded shapes were specifically created to incorporate optimized top shapes for sound damping, combined with a base design (hexagon)
popular in the cabinet industry.
Note:
All dimensions ± 0.02 inches or ± 0.05 mm measured without the adhesive liner.
3M
™
Bumpon
™
Protective Products Molded Shapes - Quiet Clear SJ6500 Series
Features and Applications
All 3M™ Bumpon™ Protective Products feature a plasticizer-free, urethane composition which exhibits:
• Excellent skid resistance
• Long aging resiliency – resistant to cracking and hardening
• Abrasion resistance
• Resistance to marring and staining
3M™ Bumpon™ Protective Products Quiet Clear utilize a special, softer polyurethane formulation than standard series
3M™ Bumpons™:
• Provides excellent sound damping and noise reduction characteristics
• The transparent polyurethane allows the customer to match a variety of surface colors and finishes
• Optimal shapes to reduce slamming noise on custom wood and other cabinetry applications
• Use as cushioning stops on cabinet doors, lids and drawers
• Work well as spacers to help provide alignment, or as an aid in assembly
• Used as non-skid feet, applied to bottom of small, desktop or hand-held electronics, computers, office accessories
• Act as protectors to help prevent surfaces from touching in shipping, or other applications where adjacent surfaces
need protection
3M™ Bumpon™ Protective Products Quiet Clear utilize 3M synthetic rubber adhesive
• Provides quick bond to variety of surfaces, including low surface energy materials like polypropylene, powdercoats
and wood stains/finishes
• Fast initial adhesion for parts going through assembly lines to help reduce dislodged parts
Solvent and Fuel Resistance
(3M 24 Hour Immersion Test)
Solvent/Fuel
5% Detergent in Water:
25% Ammonia in Water:
Bleach:
1N Hydrochloric Acid:
Kerosene:
Result
No apparent effect
No apparent effect
No apparent effect
No apparent effect
No apparent effect
Solvent/Fuel
Auto Oil:
Mineral Spirits:
Heptane:
Isopropyl Alcohol:
Toluene:
Result
No apparent effect
No apparent effect
No apparent effect
Slight to moderate swelling
Considerable swelling
(2)
3M
™
Bumpon
™
Protective Products Molded Shapes - Quiet Clear SJ6500 Series
Typical Physical Properties
Note:
The following technical information and data should be considered representative or typical only, and should not
be used for specification purposes.
Property
Hardness, Shore M:
Resilience, %:
Kinetic Coefficient of Friction:
Stainless Steel
Glass
Formica
®
laminate
Wood
Abrasion Resistance:
G/1000 cycles
Tabor H18, 1 kg
Tensile Strength, lbs/in
2
:
Elongation, %:
Stain Resistance:
Test Results
56
55
2.8
2.8
1.8
2.3
C-501
0.03
270
170
None Observed
D-412
D-412
3M Test
(24 hrs. @ 70°C (158°F) against white
white paint, 7 days exposed to UV)
ASTM Test Method
D-2240
D-2632 (0.125 in. sample)
D-1894
General Technical Information
Application Temperature:
5°C (40°F) to 52°C (125°F)
UL Flammability:
Not rated
Service Temperature:
-34°C (-30°F) to 66°C (150°F)
Suggested for indoor applications only. Not intended for outdoor use. When exposed to UV light and humidity for extended
periods, some discoloration or softening of the 3M™ Bumpon™ Protective Product construction may occur
.
Storage
Store in original cartons at 16° to 27°C (60° to 80°F) and 40 to 50% relative humidity.
Shelf Life
To obtain best performance, use this product within 18 months from date of manufacture.
(3)
3M
™
Bumpon
™
Protective Products Molded Shapes - Quiet Clear SJ6500 Series
Regulatory
For regulatory information about this product, contact your 3M representative.
Technical Information
The technical information, recommendations and other statements contained in this document are based upon tests
or experience that 3M believes are reliable, but the accuracy or completeness of such information is not guaranteed.
Product Use
Many factors beyond 3M’s control and uniquely within user’s knowledge and control can affect the use and performance
of a 3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M
product, user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose
and suitable for user’s method of application.
Warranty, Limited Remedy, and Disclaimer
Unless an additional warranty is specifically stated on the applicable 3M product packaging or product literature,
3M warrants that each 3M product meets the applicable 3M product specification at the time 3M ships the product.
3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED
WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. If the 3M product
does not conform to this warranty, then the sole and exclusive remedy is, at 3M’s option, replacement of the 3M product
or refund of the purchase price.
Limitation of Liability
Except where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M product, whether
direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract,
negligence or strict liability.
Electronics Materials Solutions Division
3M Center, Building 225-3S-06
St. Paul, MN 55144-1000
1-800-251-8634 phone
651-778-4244 fax
www.3M.com/electronics
3M and Bumpon are trademarks of
3M Company.
Formica is a registered trademark of
the Formica Corporation.
Please recycle.
© 3M 2014. All rights reserved.
60-5002-0553-3
