PRELIMINARY
45
Features
•
•
•
•
•
•
•
EMI filtering-Class B
Transient protection
Low profile mounting options
10 and 20 Ampere versions
UL, CSA, EN compliance
Mini-size package
Inrush current limiting
Data Sheet
FIAM
TM
Filter Input Attenuator Module

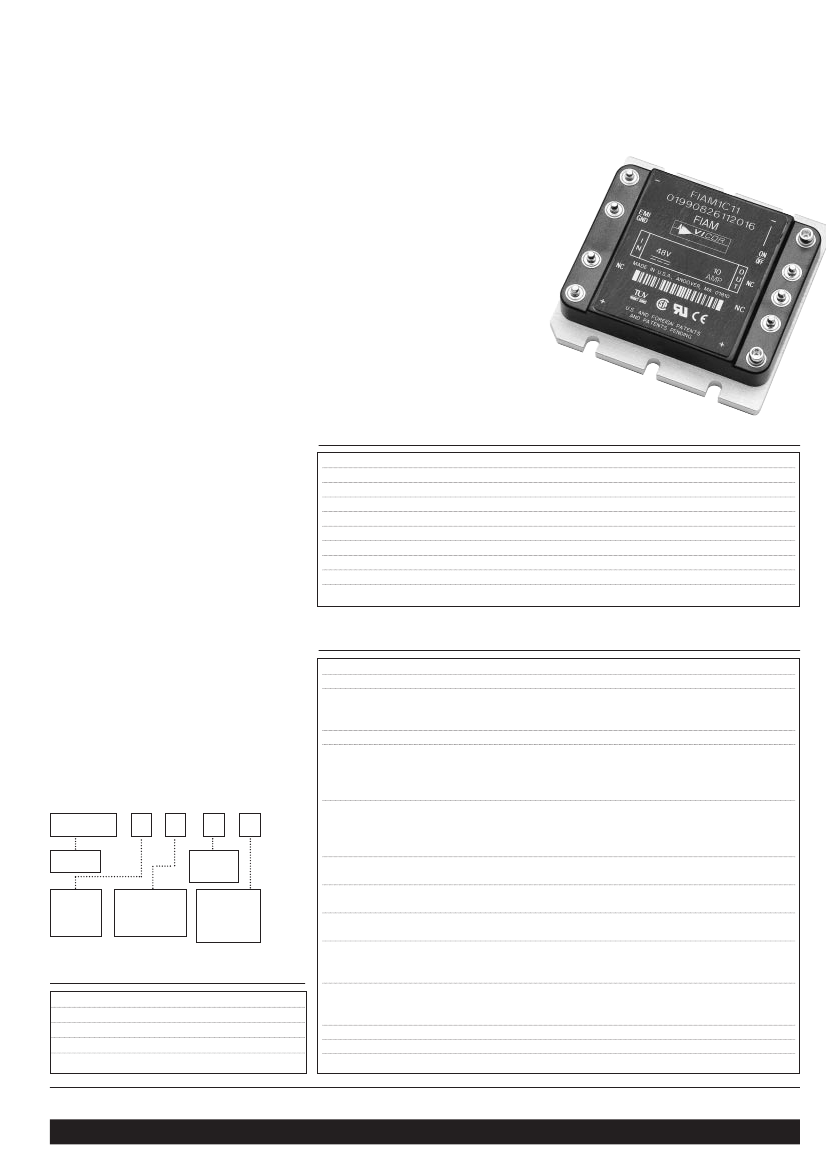

Shown actual size:
2.28 x 2.2 x 0.5 in
57,9 x 55,9 x 12,7 mm
Product Highlights
The FIAM is a DC front-end module
providing transient protection, inrush current
limiting and Class B EMI filtering in a Mini-
size package. The FIAM enables designers
using Vicor 2nd Generation, 48Vin DC-DC
converters to meet the transient immunity
and EMI requirements of Bellcore, FCC,
ETSI and European Norms while protecting
system hardware from inrush current. The
FIAM accepts an input voltage of 36-76Vdc,
is available in 10 or 20A versions and
provides reverse polarity protection and
remote on/off.
FIAM is housed in an industry standard "half
brick" module measuring 2.28" x 2.2" x 0.5"
and depending upon model selected, may be
mounted on-board or in-board for height
critical applications.
Absolute Maximum Rating
Parameter
+In to –In
+In to –In
+Out to –Out
Mounting torque
Pin Soldering temperature
Pin Soldering temperature
Storage temperature C–, T–Grade
Operating temperature C–Grade
Operating temperature T–Grade
Rating
80
100
75
5(0.57)
500 (260)
750 (390)
-40 to +125
-20 to +100
-40 to +100
Unit
Vdc
V
Vdc
in-lbs
°F(°C)
°F(°C)
°C
°C
°C
Notes
Continuous
100ms
Continuous
6 each, #4-40 or M3
<5 sec; wave solder
<7 sec; hand solder
Baseplate
Baseplate
Specifications
(typical at TBP = 25C, nominal line, 75% load, unless otherwise specified)
Compatible Products
• 2nd Generation 48V Input
DC-DC converters
Parameter
Min
Input voltage
36Vdc
Output current
FIAM1xxx
FIAM2xxx
Inrush limiting
Transient immunity
Bellcore TR-NWT-000499
ETS 300 386-1 Class 2
EMI
Bellcore GR-001089-Core
EN 55022
FCC Part 15
Dielectric withstand
Efficiency
Reverse polarity protection
ON/OFF control
Enable (ON)
Disable (OFF)
External capacitance
FIAM1xxx
FIAM2xxx
Safety approvals
Weight
Warranty
96
Typ
48Vdc
Max
76Vdc
10A
20A
.014A/µF
200V
200V
250V
Remarks
Continuous
1µsec duration
5.0µsec rise time, 50µsec duration surge
1-100nsec burst
When used with Vicor 2nd Generation
48Vin DC-DC converters
Part Number Format
FIAM
Product
1 C
1
Pin Style
1 = Short
2 = Long
1
Type
1 = 10A
2 = 20A
Product Grade
C = –20 to +100
T = –40 to +100
Baseplate
1 = Slotted
2 = Threaded
3 = Thru-hole
Issue 2
Level B
Level B
1,500Vrms
2,121Vdc
97.5
Input/Output to Base
Input/Output to Base
Internal voltage drop is 1.4 max.
@ 20A, 100°C baseplate
No damage to module,
external fuse required
1.0Vdc
5.0Vdc
Referenced to –Vout.
100kΩ internal pull-up resistor
See illustration on page 2.
100V
100V
Thermal Resistance
Parameter
Typ
Baseplate to sink; flat, greased surface
0.16°C/Watt
Baseplate to sink; thermal pad (P/N 20264) 0.1°C/Watt
Baseplate to ambient
7.9°C/Watt
Baseplate to sink; 1000 LFM
2.2°C/Watt
0.0Vdc
3.5Vdc
10µF
150µF
100µF
330µF
UL 1950, CSA 22.2-950, EN 60950
3.1 (88)
4 (113)
ounces (grams)
2
years
Vicor Corp.
Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715
FIAM, Filter Input Attenuator Module
Rev. 1.1
Page 1 of 4
Set your site on VICOR at www.vicorpower.com
PRELIMINARY

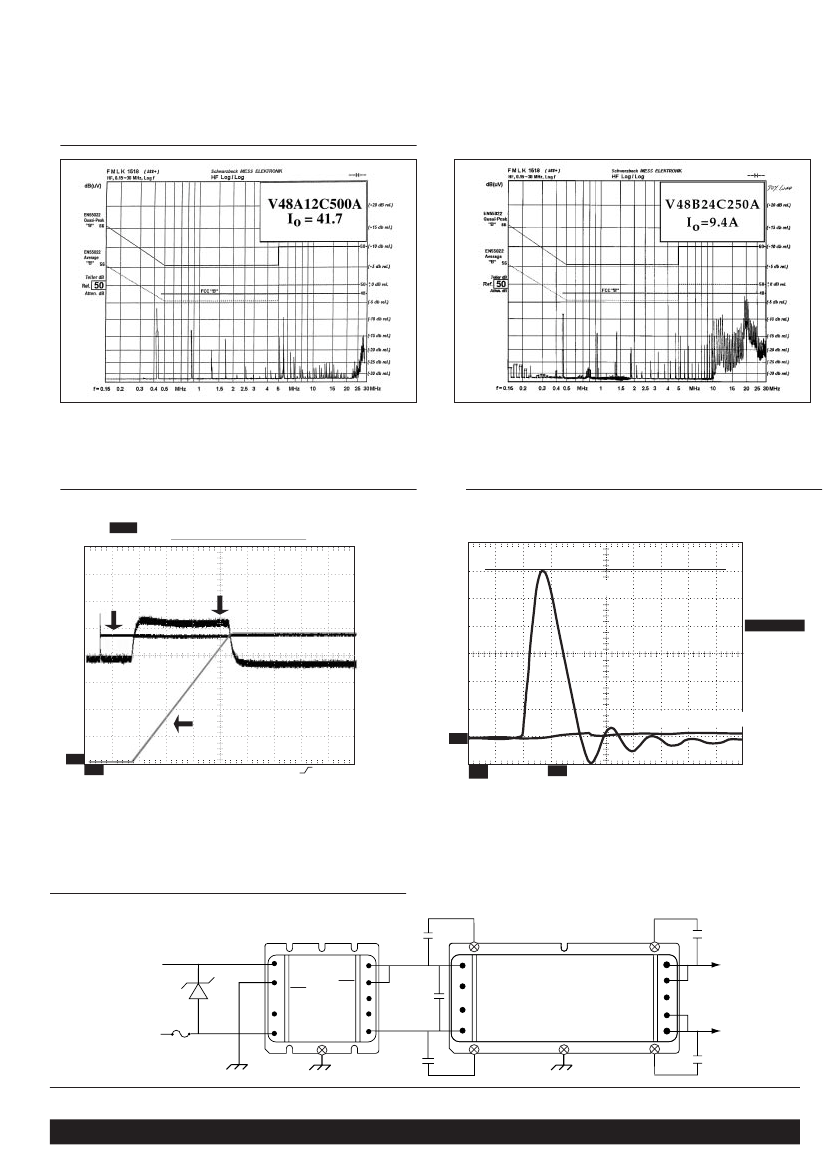

Conducted Noise
Figure 1—FIAM
and Model V48A12C500A DC-DC converter.
Figure 2—FIAM
and Model V48B24C250A DC-DC converter.
Inrush Limiting
Transient Immunity
Tek
Stop:
Single Seq. 5.00MS/s
[
T
Ch1 Zoom:
]
Tek Run: 10.0MS/s
1.0X Vert 0.005X Horz
@ 200.0V
INPUT CURRENT
INPUT VOLTAGE
Ch1=Vdc in
Ch2=Vdc out
Ch3=Idc in
@0.2A/mV
©
INPUT TRANSIENT
Ch1=Input
Ch2=Output
4
©
©
OUTPUT VOLTAGE
2
©
2
©
Ch1
10.0 V
Ch2
Ch4
10.0 V
M2.00ms
10.0mVΩ
Ch1
31.8 V
OUTPUT VOLTAGE
48V offset
Ch1
25.0V
Ch2
25.0V
M5.00µs Ch4
8.2A
Figure 3—Inrush
Limiting:
Inrush current with 330µF
external capacitance.
Figure 4—Transient
Immunity:
FIAM output response to an
input transient.
Transient and Surge Protection
Note:
The FIAM is shown in the on state. To disable,
open the connection between ON/OFF and –Out.
–IN
–IN
EMI
GND
–OUT
ON
OFF
–IN
PR
–OUT
TRANSORB P/N
20461-120
+IN
FIAM
NC
+IN
NC
NC
+OUT
PC
+IN
2nd Generation
48Vdc Input
DC-DC Converters
–S
SC
+S
+OUT
Vicor Corp.
Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715
FIAM, Filter Input Attenuator Module
Rev. 1.1
Page 2 of 4
Set your site on VICOR at www.vicorpower.com

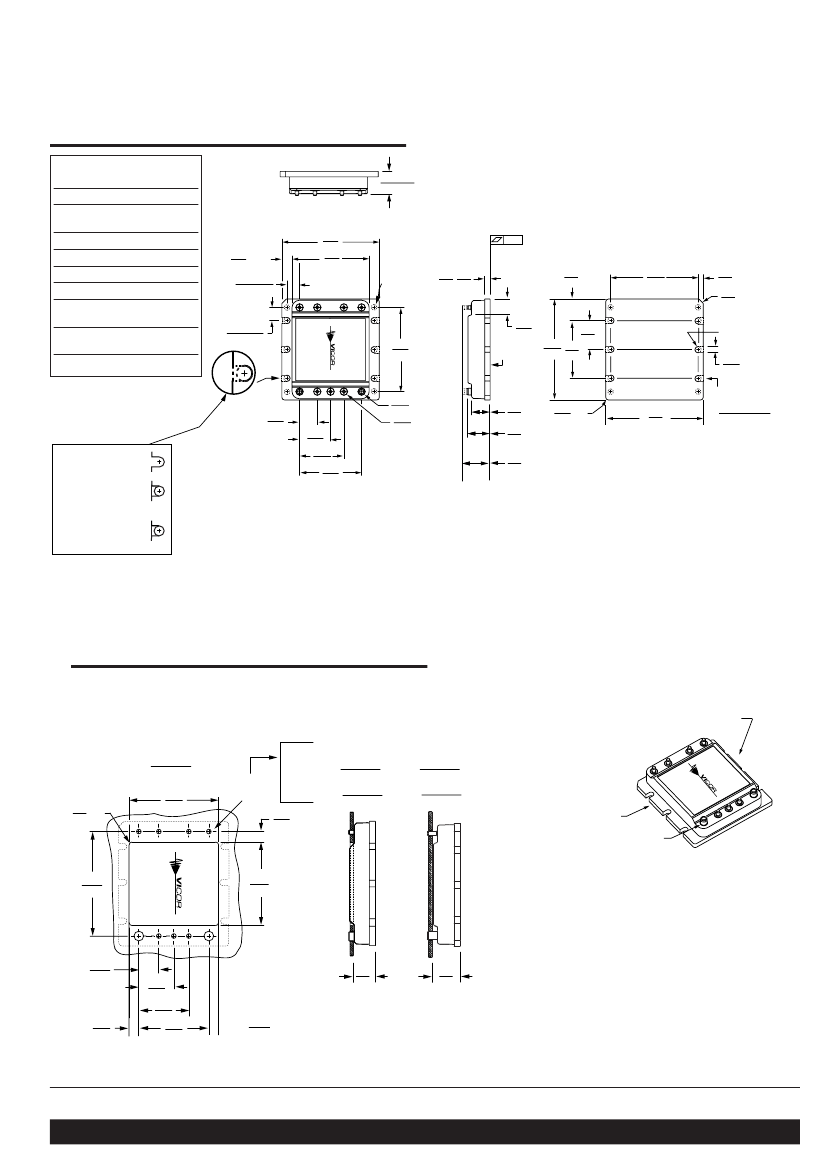

Vicor’s comprehensive line of power solutions includes modular, high
density DC-DC converters and accessory components, configurable power
supplies, and custom power systems.
Information furnished by Vicor is believed to be accurate and reliable. However, no responsibility is
assumed by Vicor for its use. No license is granted by implication or otherwise under any patent or patent
rights of Vicor. Vicor components are not designed to be used in applications, such as life support systems,
wherein a failure or malfunction could result in injury or death. All sales are subject to Vicor’s Terms and
Conditions of Sale, which are available upon request.
Specifications are subject to change without notice.
Component Solutions
for Your Power System
Vicor Corporation
25 Frontage Road
Andover, MA, USA 01810
Tel: 800-735-6200
978-470-2900
Fax: 978-475-6715
Email
Vicor Express: vicorexp@vicr.com
Technical Support: apps@vicr.com
Vicor Corp.
Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715
FIAM, Filter Input Attenuator Module
P/N 22502
Rev. 1.1
1/02/10M
Set your site on VICOR at www.vicorpower.com
