Series YB2
Toggles
Panel Seal Pushbuttons
General
Specifications
Electrical Capacity (Resistive Load)
Power Level (silver):
Logic Level (gold):
3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Pushbuttons
Rockers
Other Ratings
Programmable
Illuminated PB
D
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Contact Timing:
Travel:
Keylocks
50 milliohms maximum for silver; 100 milliohms maximum for gold
200 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
1,000,000 operations minimum for momentary circuit
200,000 operations minimum for maintained circuit
100,000 operations minimum
Single pole: 1.5N
Double pole: 3.0N
Nonshorting (break-before-make)
Pretravel .059” (1.5mm); Overtravel .059” (1.5mm); Total Travel .118” (3.0mm)
Materials & Finishes
Rotaries
Bezel:
Housing:
Base:
Movable Contactor:
Movable Contacts:
Stationary Contacts:
Switch Terminals:
Lamp Terminals:
Black: Glass fiber reinforced polyamide (UL94V-0);
Chrome plated: Chrome plating over ABS resin (UL94V-2)
Glass fiber reinforced polyamide (UL94V-0)
Glass fiber reinforced polyamide (UL94V-0)
Phosphor bronze with silver or gold plating
Silver alloy or copper with gold plating
Silver alloy or copper with gold plating
Phosphor bronze with tin plating
Phosphor bronze with tin plating
Tactiles
Slides
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
Sealing:
–25°C through +50°C (–13°F through +122°F) for Illuminated
–25°C through +70°C (–13°F through +158°F) for Nonilluminated
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
IP65 of IEC60529 standard
Touch
Tilt
Installation
Indicators
Mounting Torque:
Soldering Time & Temperature:
0.785Nm (6.95 lb
•
in) maximum
Manual Soldering: See Profile A in Supplement section.
Standards & Certifications
Supplement
Accessories
Flammability Standards:
UL:
UL94V-0 housing, base & black bezel
File No. E44145 - Recognized only when ordered with marking on switch.
Add “/CUL” before first dash in part number to order cULus marking on switch.
All solder lug models recognized at 3A @ 125/250V AC or 0.4VA @ 28V AC/DC maximum.
D118
www.nkkswitches.com
Panel Seal Pushbuttons
Series YB2
Toggles
Distinctive
Characteristics

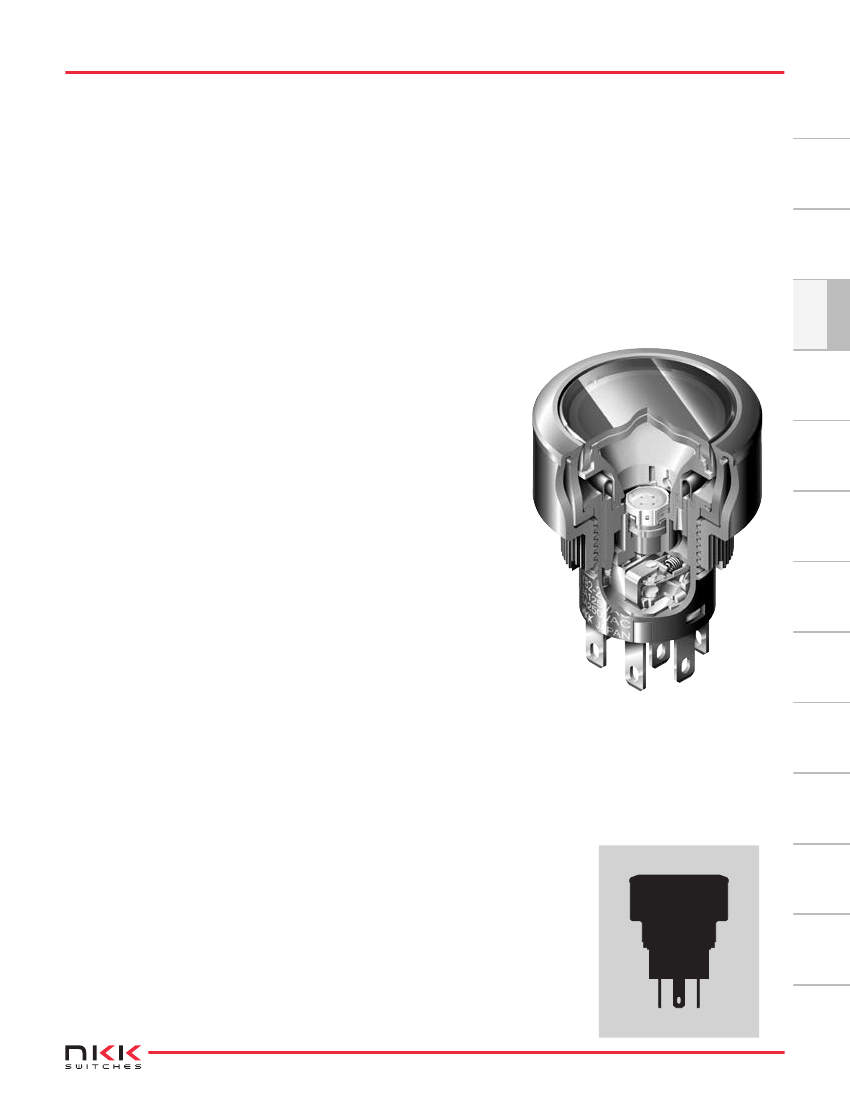

24mm square and 25mm diameter pushbuttons with the shortest above-panel
dimension (1.8mm) in the industry for splashproof design.
Meets IP65 of IEC60529 standards (similar to NEMA 4 and 13), providing
dust tight and splashproof panel seal protection.
Tamper resistant 18mm square and 19mm diameter actuators.
Short body of .965” (24.5mm) conserves behind-panel space.
Distinctive long stroke and light touch actuation for clear
indication of circuit status.
Choice of cap colors includes clear, brushed chrome, red,
green, or yellow, for enhanced panel appearance. Metallic
silver cap option has bright ring illumination (round only).
Unbrushed chrome has the look of stainless steel when non-
illuminated, and LED color or legends when illuminated.
Brilliant illumination with multiple LED colors.
Bezel color options in black or brushed chrome.
Brushed chrome option is lighter weight than actual
metal switches due to metal plating on resin.
Available in momentary and alternate action with latchdown.
Crisp actuation and clear circuit status provided by snap-action
contact mechanism. Arc barrier protects against crossover.
Combination solder lug and .110” quick connect terminals. Terminals
are epoxy sealed to lock out flux, dust, solvents, and other contaminants,
as well as to secure terminals and improve contact stability.
Custom legends on actuator or inserts.
Actual Size (Round)
D
www.nkkswitches.com
D119
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable
Illuminated PB
Pushbuttons
Rockers
Series YB2
Toggles
Panel Seal Pushbuttons
TYPICAL SWITCH
YB2
Poles
1
SPDT
DPDT
1
5
Contact Point
C
C
W
C
Shape
K
W
01
Pushbuttons
Rockers
Terminals
01
Solder Lug/.110”
(2.8mm) Quick Connect
Programmable
Illuminated PB
D
2
Normally Open and
Normally Closed
C
S
Round
Square
Keylocks
Circuits
5
6
ON
ON
(ON)
ON
W
( ) = Momentary
Alternate Action
with Latchdown
Panel Seal
With Panel Seal
K
P
Bezel
Black
Brushed Chrome
W
G
Contact Materials
& Ratings
Silver
Rated 3A @ 125V AC
Gold
Rated 0.4VA maximum @
28V AC/DC maximum
Slides
Rotaries
IMPORTANT:
Switches are supplied without cULus marking unless specified.
cULus recognized only when ordered with marking on the switch.
Specific models, ratings, and ordering instructions are noted on
General Specifications page.
Tilt
Tactiles
Touch
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
YB215CWCKW01-6B-JB
White, Super Bright LED
Black Bezel
Round Black Housing
SPDT
ON-(ON) Circuit
LED Cap with Clear Lens
& White Diffuser
With Panel Seal
Silver Contacts with
3 Amp Rating
Solder Lug/.110” (2.8mm)
Quick Connect Terminals
Supplement
Accessories
Indicators
D120
www.nkkswitches.com
Panel Seal Pushbuttons
ORDERING EXAMPLE
Series YB2
JB
Cap Types & Colors
Lens/Diffuser Colors
JB
JS
CB
EB
FB
HB
Clear/White
Metallic Silver Cap/Clear Ring
(Round only)
Red/White
Yellow/White
Green/White
Unbrushed Chrome/White
Round or Square Cap with Legend
001
002
START
003
STANDBY
004
STOP
005
Contact factory for custom options.
Toggles
6 B
LEDS
Bright LED
LED Colors
5C
5D
5F
Red
Amber
Green
No
Code
05
12
24
Resistor
No Resistor
(not for
Green)
5-volt
12-volt
24-volt
D
LED and cap need to be the same color.
Yellow cap pairs with amber LED to achieve
amber illumination. Codes JB and JS (Round
only) may be combined with all LED colors.
Super Bright LED
6B
6F
6G
White
Green
Blue
JB
JS
HB
Lens/Diffuser Cap Colors
Clear/White
Metallic Silver Cap/Clear Ring
(Round only)
Unbrushed Chrome/White
Cap Color
JB
CB
EB
FB
HB
P
Clear/White
Red/White
Yellow/White
Green/White
Unbrushed Chrome/White
Brushed Chrome
Round or Square Cap with Legend
001
002
START
004
STOP
005
Contact factory for custom options.
Nonilluminated
N
No Lamp
Part Numbers for Unbrushed Chrome Caps with Legends
Round Cap for Bright LED
AT3017HB-001
AT3017HB-002
AT3017HB-003
AT3017HB-004
AT3017HB-005
Round Cap for Super Bright LED
AT3018HB-001
AT3018HB-002
AT3018HB-003
AT3018HB-004
AT3018HB-005
AT3025HB-001
AT3025HB-002
AT3025HB-003
AT3025HB-004
AT3025HB-005
Refer to Ordering Table for legend that corresponds with last 3 digits of part number.
www.nkkswitches.com
D121
Supplement
Accessories
Indicators
Square Cap for Bright
or Super Bright LED
Touch
Tilt
Tactiles
003
STANDBY
Slides
Rotaries
Keylocks
Programmable
Illuminated PB
Pushbuttons
Rockers
Series YB2
Toggles
Panel Seal Pushbuttons

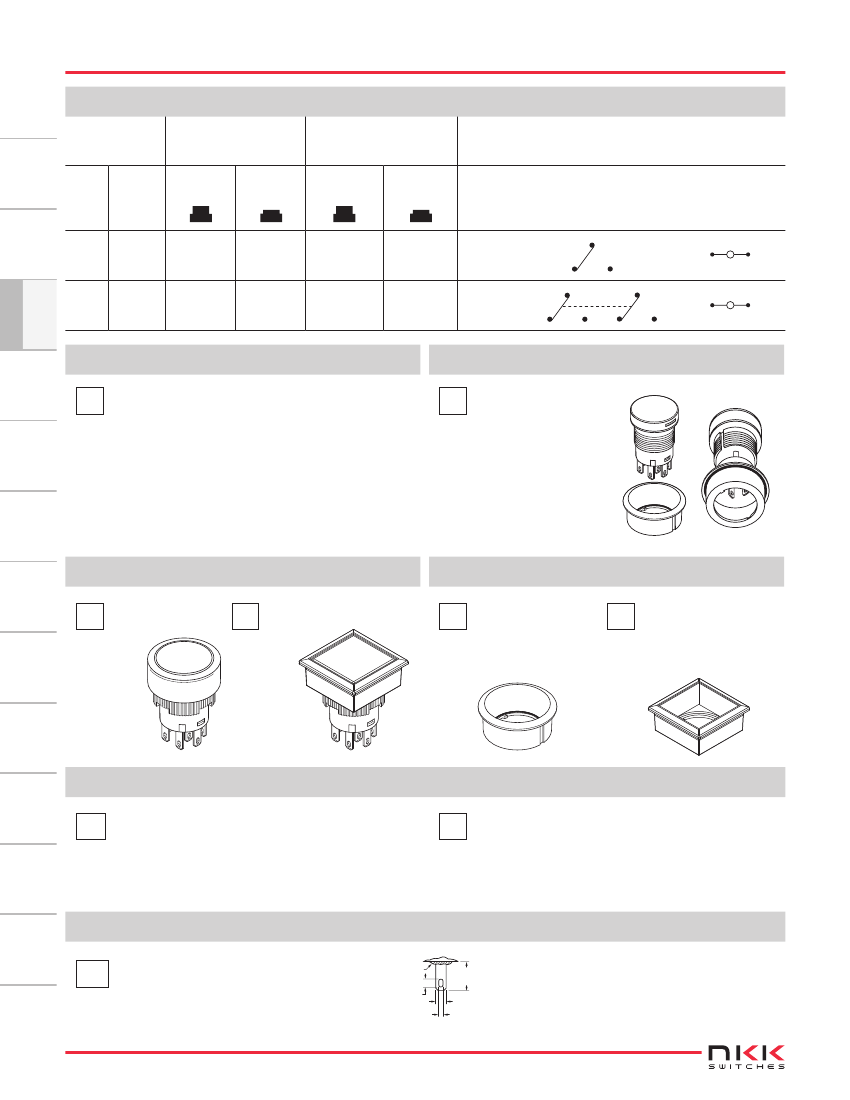

POLES & CIRCUITS
Rockers
Plunger Position
( ) = Momentary
Normal
Down
Connected Terminals
Normal
Down
Throw & Switch/Lamp Schematics
Notes: Switch is marked with NC, NO, COM, L+, L–.
Lamp circuit is isolated and requires an
external power source.
1 (COM)
Pole
Model
Pushbuttons
SP
YB215
YB216
YB225
YB226
ON
ON
ON
ON
(ON)
ON
(ON)
ON
1-3
1-2
SPDT
L (+)
3 NC
1
3 NC
2 NO
(COM)
6 NC
2 NO
4
L (+)
5 NO
(-) L
Programmable
Illuminated PB
D
DP
1-3 4-6
1-2 4-5
DPDT
(-) L
CONTACT POINT
C
Normally Open and Normally Closed
Contact points are both Normally Open and
Normally Closed.
PANEL SEAL
W
Panel Seal
(Round and Square)
Two o-rings provide
panel seal protection
meeting IP65 of
IEC60529 standards.
Rotaries
Keylocks
SHAPE
Slides
BEZEL
Square
C
Round
S
K
Black
P
Brushed Chrome
Tactiles
For Round or Square
Tilt
CONTACT MATERIALS & RATINGS
Touch
W
Silver Contacts
Power Level: 3A @ 125/250V AC
Switch base is black
G
Gold Contacts
Logic Level: 0.4VA max. @ 28V AC/DC max.
Switch base is ivory
Indicators
Accessories
TERMINALS
01
Solder Lug/
.110” (2.8mm) Quick Connect
Epoxy Seal
(7.3)
.288
Supplement
(2.0)
(2.8)
.079
.110
(1.2)
.047
Thk = (0.5)
.020
D122
www.nkkswitches.com
