2400-0-15-15-47-27-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 2400-0-15-15-47-27-04-0

Preview

2400-0-15-15-47-27-04-0: DescriptionTactile Switches 12x12mm Std Ht 4.3 High-force 260g; CategoryThe connector terminals; File Size852KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

2400-0-15-15-47-27-04-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2400-0-15-15-47-27-04-0	-	-	View	Buy Now

2400-0-15-15-47-27-04-0 Overview

Tactile Switches 12x12mm Std Ht 4.3 High-force 260g

2400-0-15-15-47-27-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

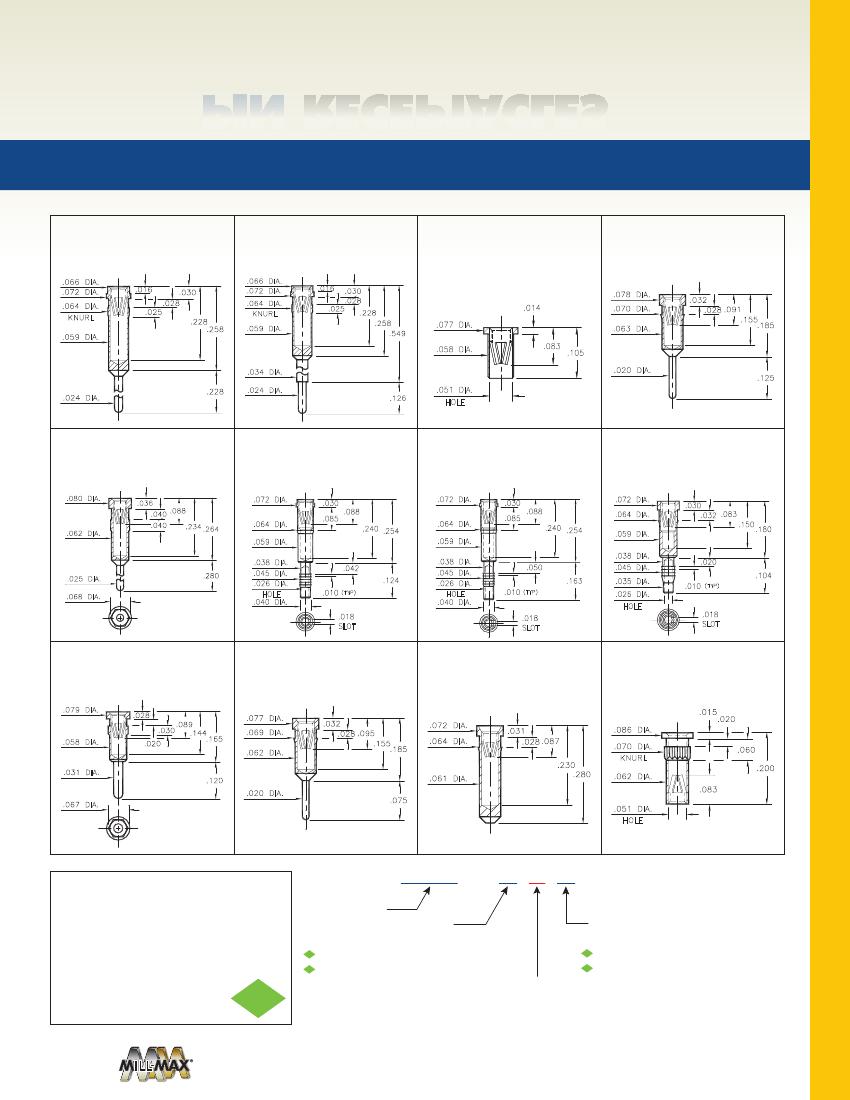

RECEPTACLES

FOR .025” - .037” DIAMETER PINS AND .025” SQUARE PINS

1305

.066 DIA.

.072 DIA.

.064 DIA.

KNURL

.059 DIA.

1305-0-15-XX-47-XX-04-0

Press-fit in .061 mounting hole

.016

.030

1306

.066 DIA.

.072 DIA.

.064 DIA.

KNURL

.059 DIA.

1306-0-15-XX-47-XX-04-0

Press-fit in .061 mounting hole

.016

.030

.028

.025

.228

.258

.549

7305

7305-0-15-XX-47-XX-10-0

.014

.077 DIA.

.058 DIA.

0400

.078 DIA.

.070 DIA.

.063 DIA.

Solder mount in .060 min. mounting hole

Also available on 8mm wide carrier tape:

6,000 parts per 13” reel

Order as: 7305-0-57-XX-47-XX-10-0

0400-0-15-XX-47-XX-04-0

Press-fit in .067 mounting hole

.028

.025

.228

.258

.032

.028 .091

.155

.185

.083

.105

.020 DIA.

.125

.034 DIA.

.024 DIA.

.228

.024 DIA.

.126

.051 DIA.

HOLE

0335

.080 DIA.

0335-0-15-XX-47-XX-04-0

Hex press-fit in .064 plated through-hole

.036

.040

.062 DIA.

4614

.072 DIA.

4614-0-31-XX-47-XX-04-0

4615

.072 DIA.

Compliant press-fit in .040 ± .003 plated

hole. For .060”

g.100”

thick board

.030

.085

.088

.240 .254

4615-0-31-XX-47-XX-04-0

7614

.072 DIA.

.064 DIA.

Compliant press-fit in .040 ± .003 plated

hole. For .090”

g.130”

thick board

.030

.085

.088

.240 .254

7614-0-31-XX-47-XX-04-0

Compliant press-fit in .040 ± .003 plated

hole. For .060”

g.100”

thick board

.030

.032 .083

.150

.059 DIA.

.038 DIA.

.180

.088

.234 .264

.064 DIA.

.059 DIA.

.038 DIA.

.064 DIA.

.059 DIA.

.038 DIA.

.025 DIA.

.068 DIA.

.280

.045 DIA.

.026 DIA.

HOLE

.040 DIA.

.042

.124

.010

.018

SLOT

.045 DIA.

.026 DIA.

HOLE

.040 DIA.

.050

.163

.010

.018

SLOT

.045 DIA.

.035 DIA.

.026 DIA.

HOLE

.020

.104

.010

.018

SLOT

8401

.079 DIA.

8401-0-15-XX-47-XX-04-0

Hex press-fit in .063 plated through-hole

.028

.089

.030

.144

.165

.020

2400

.077 DIA.

.069 DIA.

.062 DIA.

2400-0-15-XX-47-XX-04-0

Press-fit in .066 mounting hole

6857

.072 DIA.

.064 DIA.

6857-0-15-XX-47-XX-10-0

Press-fit in .062 mounting hole

9393

9393-0-15-XX-47-XX-10-0

Press-fit in .067 mounting hole

.015

.020

.058 DIA.

.032

.028 .095

.155

.185

.031

.028 .087

.230

.280

.086 DIA.

.070 DIA.

KNURL

.062 DIA.

.083

.060

.200

.031 DIA.

.120

.061 DIA.

.020 DIA.

.075

.067 DIA.

.051 DIA.

HOLE

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

47

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

27

30

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#47

CONTACT (DATA ON PAGE 256)

(For alternate contact choices, see group D on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 179 | PIN RECEPTACLES
