MJTP2205D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> MJTP2205D

MJTP2205D: DescriptionTactile Switches SPST DUAL 0.05A 12VDC; CategoryMechanical and electronic products switch; File Size301KB，5 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

MJTP2205D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MJTP2205D	-	-	View	Buy Now

MJTP2205D Overview

Tactile Switches SPST DUAL 0.05A 12VDC

MJTP2205D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	BLACK
Actuator material	THERMOPLASTIC
Actuator type	PLUNGER TYPE
body width	8.4 mm
Body color	BLACK
body height	22.6 mm
Body length or diameter	10.55 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Circuit configuration	2X1
Maximum contact bounce time	10 ms
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	100000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switches	2
Maximum operating force	1.86 N
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	8
method of packing	BULK
seal	MOLDED
Solderability	WAVE
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Silver (Ag)
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

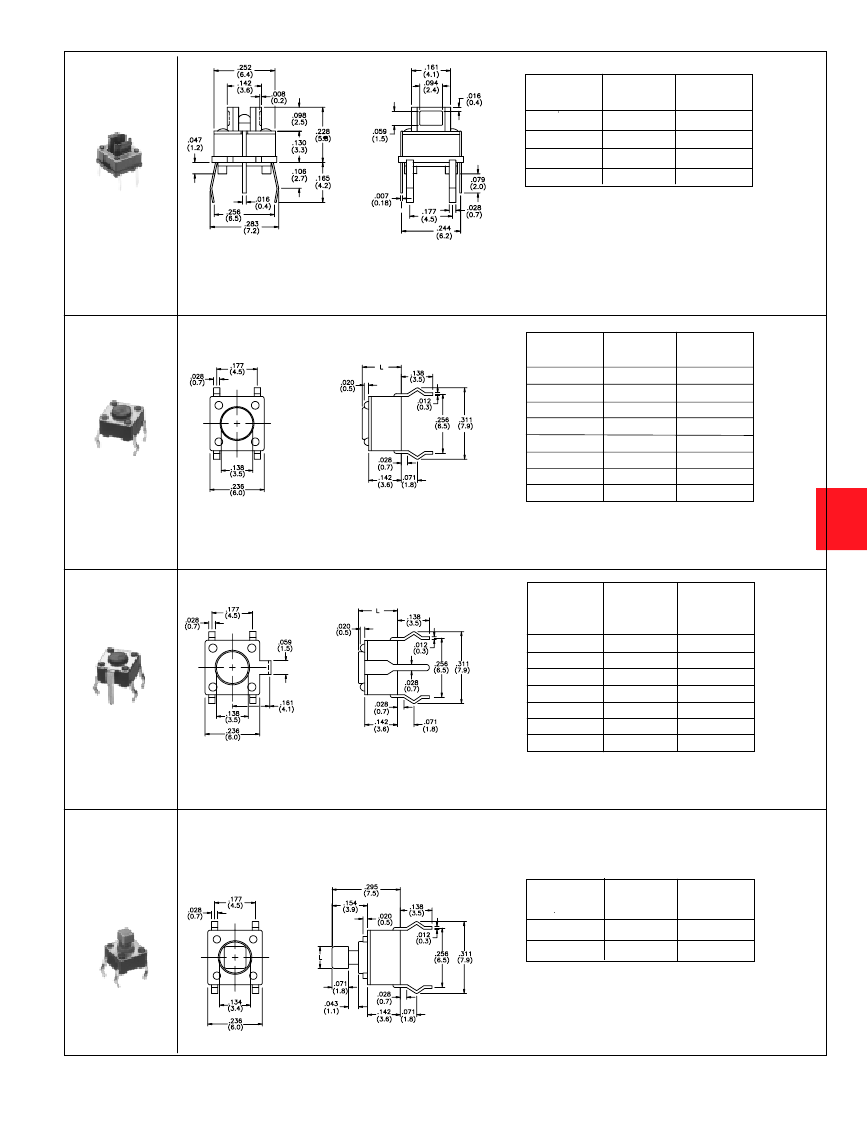

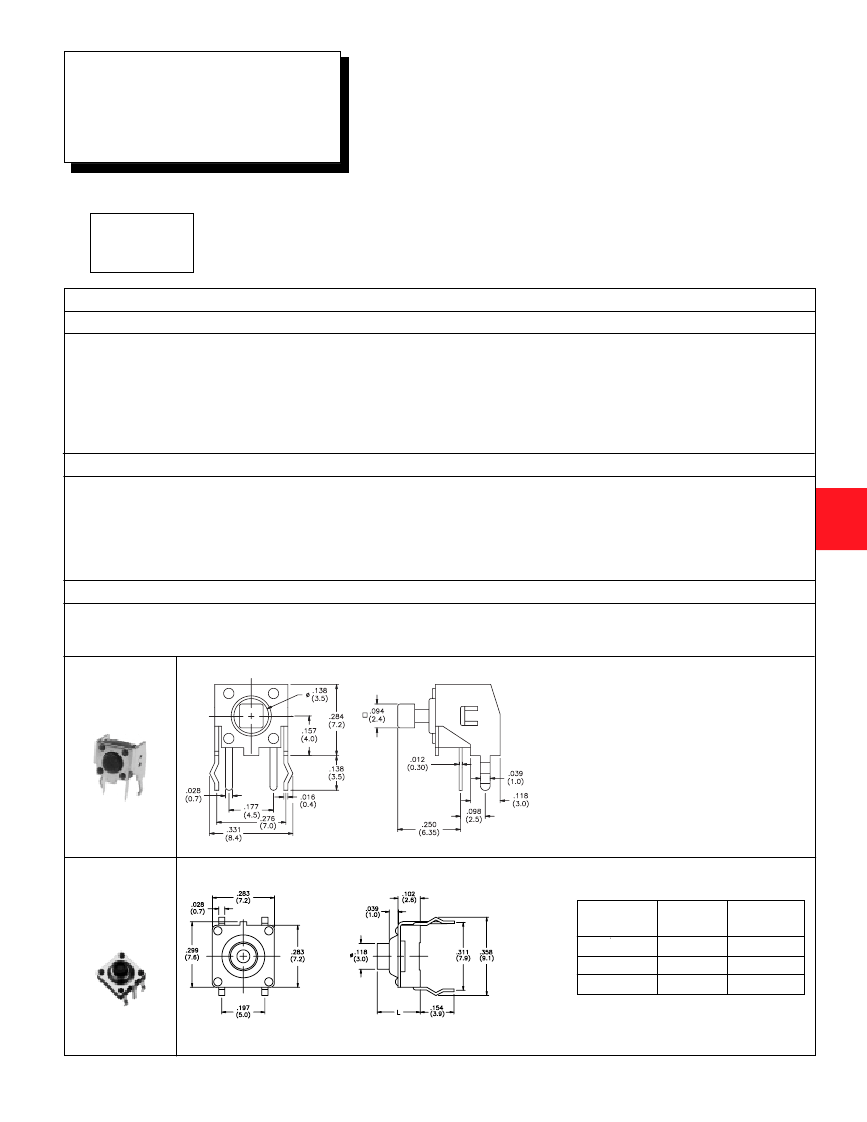

MJTP SERIES 6MM

THRU-HOLE MTG.

TACT SWITCHES

MATERIALS

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES

Numerous single pole-single throw momentary configurations.

Excellent tactile feed-back (Snap dome).

Ultra-compact size.

Long operating life for high reliability.

Molded-in terminals minimize wicking of flux or solder.

Gold plating avail-

able on contacts &

terminals

- consult factory.

Case:

Thermoplastic, color black. UL94HB Standard.

Actuator:

Thermoplastic

Cover/Bracket: PET film, tin plated brass or stainless steel.

Terminals:

Silver plated brass.

Shorting Contact: Phosphor bronze or stainless steel with silver plating.

L.E.D. rating:

Forward voltage- 2.1 V (3.0 V Max.). Cont. fwd. current 20mA max.@ 25°C.

GENERAL SPECIFICATIONS

ELECTRICALS

Contact rating:

Insulation resistance:

Dielectric withstanding voltage:

Contact resistance:

Electrical life:

Contact bounce:

50 mA @ 12 VDC

100 megohms min. (100 VDC)

250 VAC for 1 minute

100 milliohms max. @ 5 VDC, 10 mA

100,000 cycles min. (except models MJTP1243 & 1250- 50,000 cycles)

1,000,000 cycles available - consult factory

less than 10 msec.

MECHANICALS, THERMALS, ENVIRONMENTALS

Plunger travel:

.010"+ .008", - .004" (0,25 +0,2, -0,1 mm)

Actuation force:

160 grams ±30 grams

Operating temperature range:

-20°C to +70°C

Storage temperature range:

-30°C to +80°C for 96 hours

Shock resistance:

30G per method 213, MIL-STD-202

Vibration resistance:

passes method 201, MIL-STD-202

SOLDERING

(note - non-washable except for models indicated 'process compatible' below).

IR reflow soldering:

240°C max. for 20 seconds max.

Wave soldering:

255°C max. for 5 seconds max.

Hand soldering:

320°C max. for 3.5 seconds max. (40 watt iron max.)

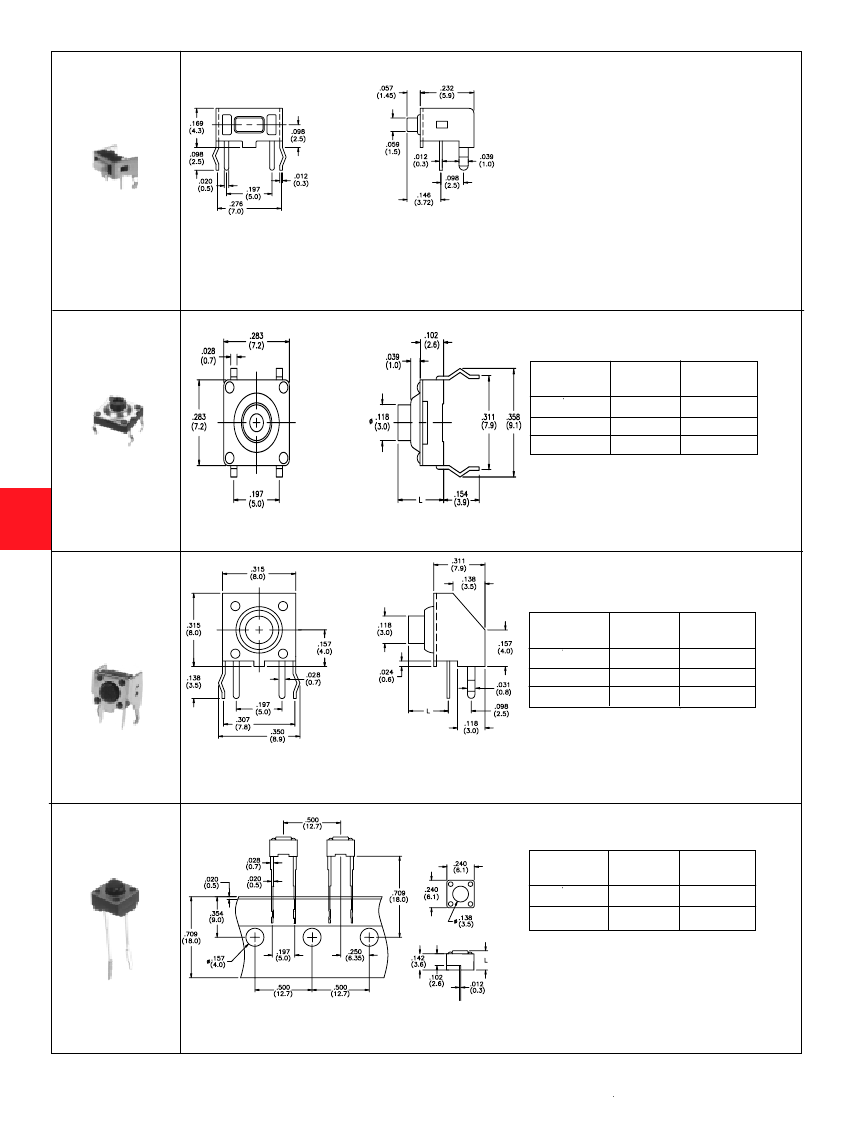

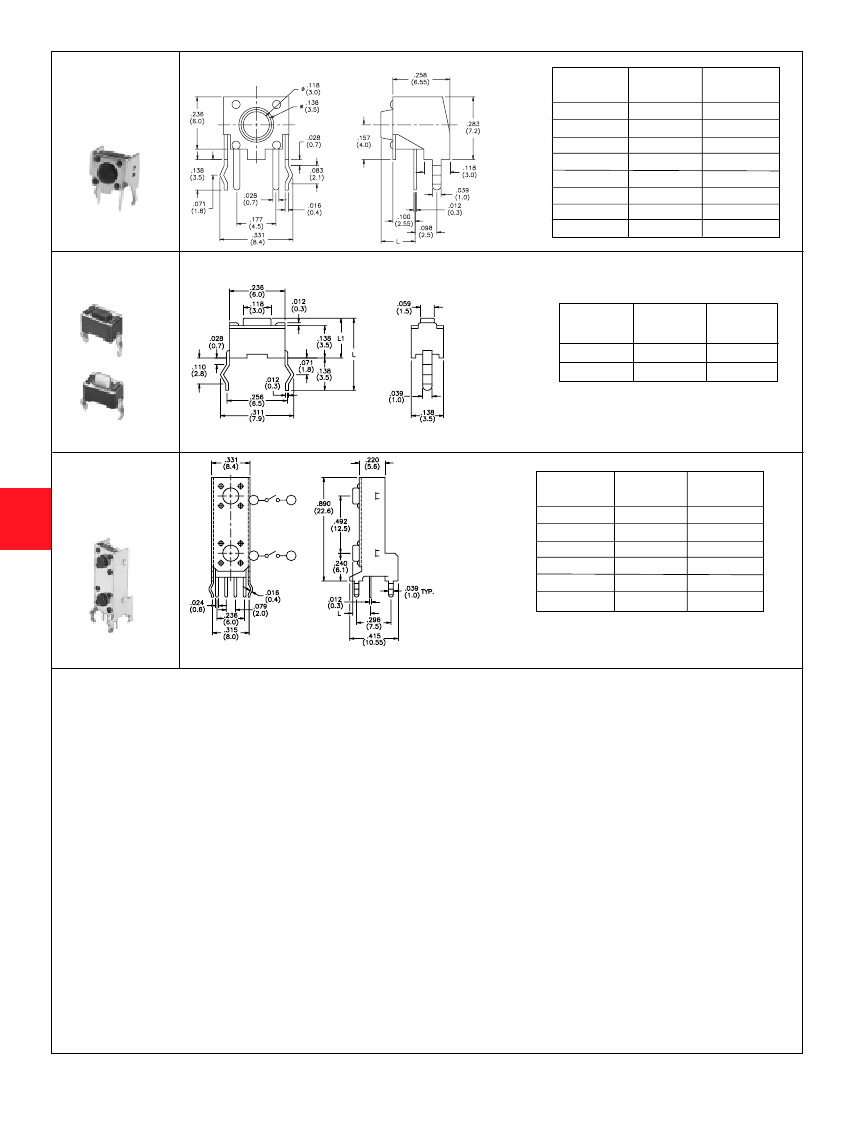

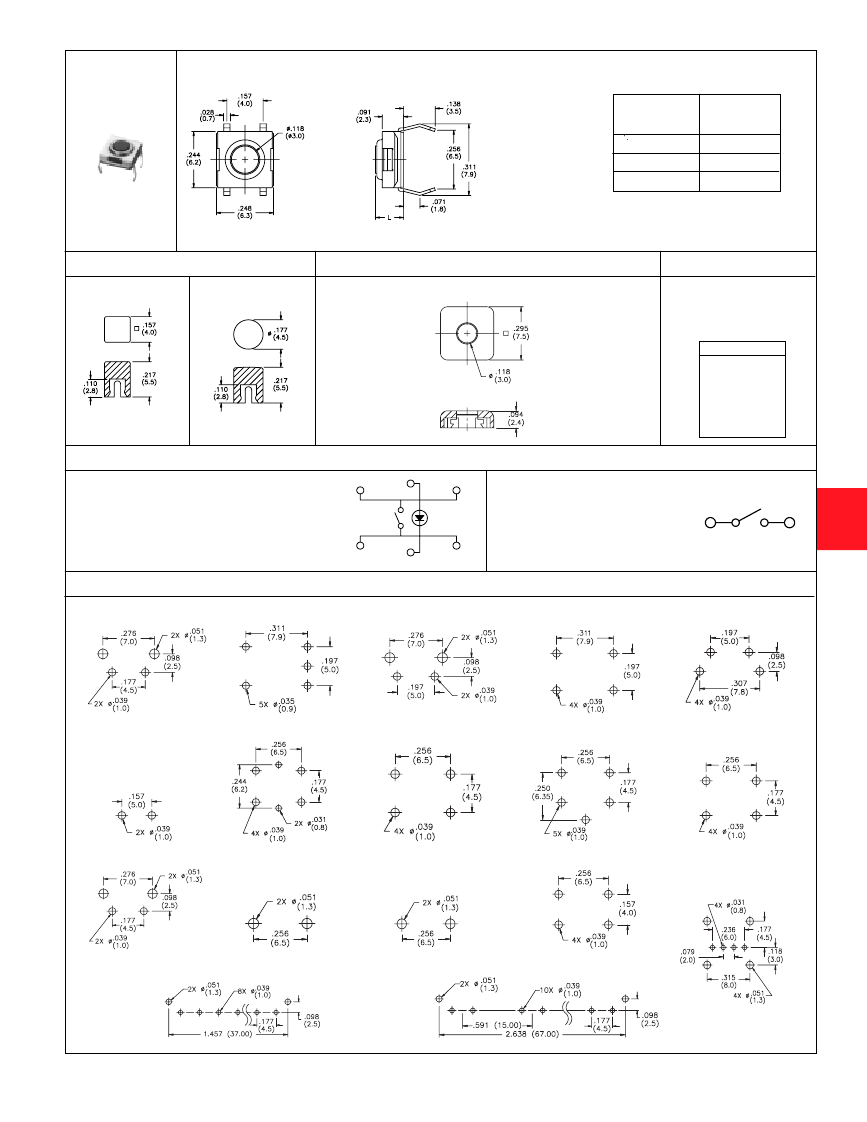

MJTP1105T

Right angle,

grounding

Caps available -

see end of section.

Bulk packaged.

US # MJTP1109

EU # PHAP3350

Process

compatible,

grounding

US Model

No.

Dim.

EU Model

(In./mm)

No.

MJTP1109

.197 (5.0)

PHAP3350

MJTP1109A

.354 (9.0)

PHAP3350A

MJTP1109B

.512 (13.0)

PHAP3350B

Bulk packaged.

APEM

, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
