DH4C-C6AA

Description
Basic / Snap Action Switches SPDT BTN 140g LEFT 5-50mA @ 30VDC
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size65KB,2 Pages
ManufacturerCHERRY
Websitehttp://www.cherry-semi.com
Download Datasheet Parametric View All

DH4C-C6AA Online Shopping

Suppliers Part Number Price MOQ In stock
DH4C-C6AA - - View Buy Now

DH4C-C6AA Overview

Basic / Snap Action Switches SPDT BTN 140g LEFT 5-50mA @ 30VDC

DH4C-C6AA Parametric

Parameter NameAttribute value
Product CategoryBasic / Snap Action Switches
ManufacturerCHERRY
RoHSDetails
TypeMiniature
Contact FormSPDT
Switch FunctionON - (OFF), OFF - (ON)
ActuatorButton
Current Rating50 mA
Voltage Rating DC30 VDC
Operating Force0.9 N
Termination StyleSolder Pin
MountingPanel
Contact MaterialBrass
IlluminatedNon-Illuminated

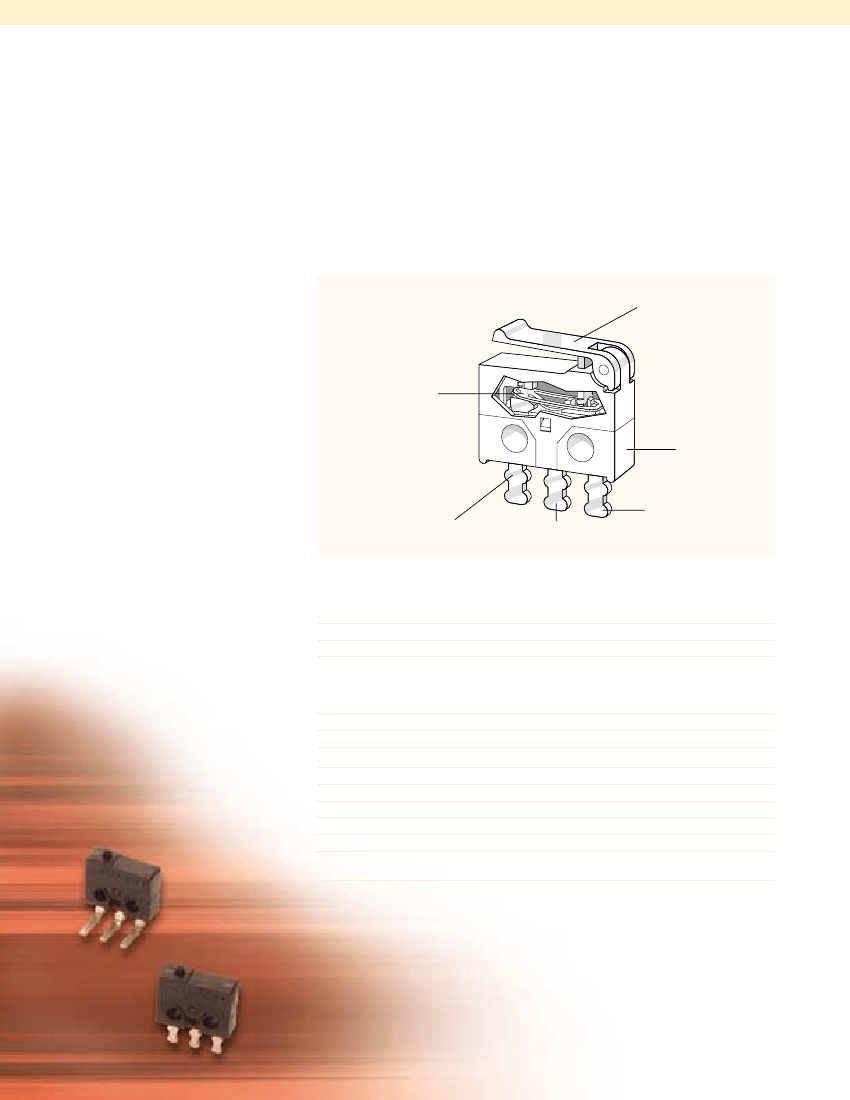

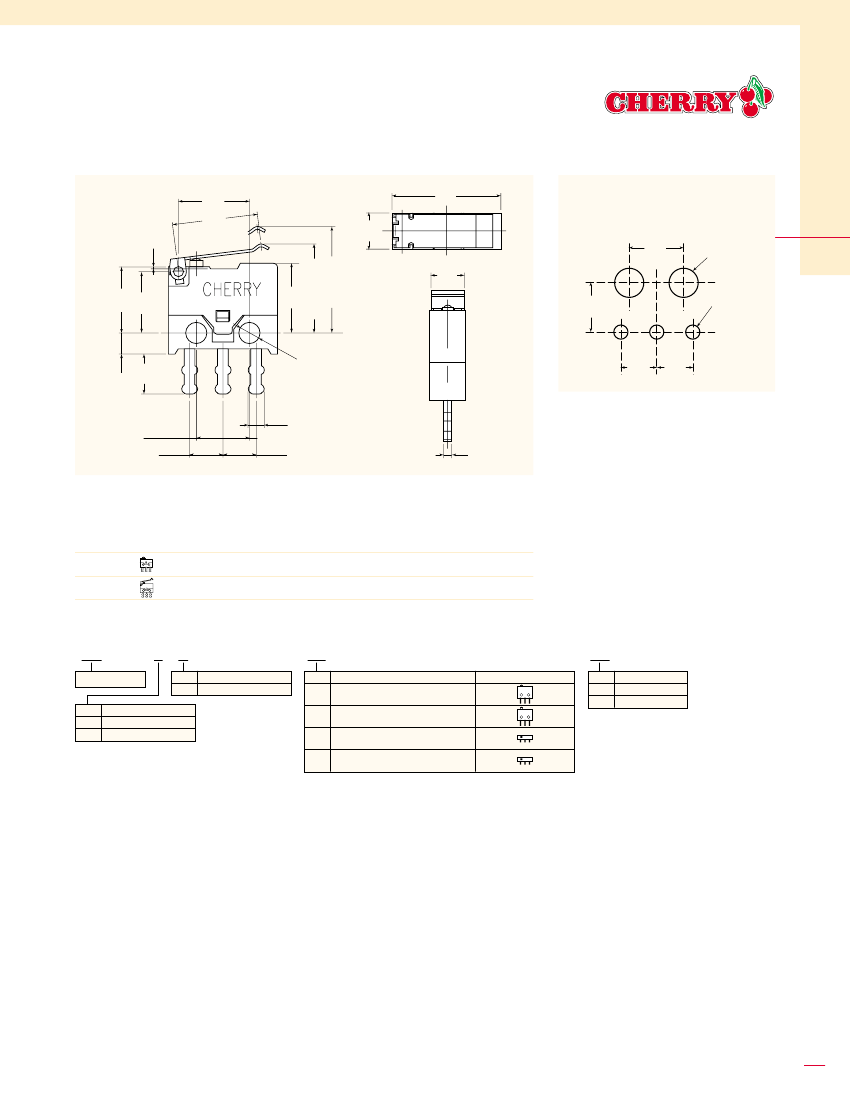

SUBMINIATURE
DH Series
Features
q
Ultraminiature dimensions,
just 0.323″ x 0.106″ x 0.244″
(8.2mm x 2.7mm x 6.2mm)
Specially designed for low switching
currents and voltages
Available with or without integrated
auxiliary actuator
Can be fitted to circuit boards in
upright position or horizontally
with formed terminals
Gold-plated
silver alloy contacts
Stainless steel
q
q
q
Thermoplastic
polyester base
Common terminal
NC terminal
NO terminal
Electrical Ratings
Switch
Series
Electrical Rating
DH3
DH4
50 to 300mA@30VDC
5 to 50mA@30VDC
Specifications
Electrical
Temperature Rating:
Flammability Rating:
Materials
-25°C to +70°C
UL94V-O
PPS
PBT
PBT
Stainless Steel
Silver-Plated Brass
Silver-Plated Brass
(DH3)
Gold-Plated Brass
(DH4)
Base:
Button:
Cover:
Auxiliary Actuator:
Terminals:
Contacts:
PBT = Polybutyleneterephthalate • PPS = Polyphenylene Sulphide
