TE122206-1

Description
Speakers u0026 Transducers Electro-Mechanical Transducer
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size555KB,1 Pages
ManufacturerDB Unlimited
Download Datasheet Parametric Compare View All

TE122206-1 Online Shopping

Suppliers Part Number Price MOQ In stock
TE122206-1 - - View Buy Now

TE122206-1 Overview

Speakers u0026 Transducers Electro-Mechanical Transducer

TE122206-1 Parametric

Parameter NameAttribute value
Product CategorySpeakers & Transducers
ManufacturerDB Unlimited
RoHSDetails
ProductTransducers
TypeElectromagnetic
Frequency2.2 kHz
Sound Pressure Level85 dBA
Impedance50 Ohms
ShapeRound
Termination StyleSolder Pin
Diameter12 mm
Current Rating40 mA
Height9.5 mm
Height - in0.374 in
Height - mm9.5 mm
MountingThrough Hole
Operating Temperature Range- 40 C to + 85 C
PackagingBulk
Factory Pack Quantity5000
Voltage Rating6 V
Insert Graphics
Specifications
Description
Technology
Resonant Frequency
Rated Voltage
SPL @ 10cm
Coil Resistance
Mount Type
Voltage Range
Max Rated Current
Housing Material
Operating Temperature
Storage Temperature
Weight
Value
Electro-Mechanical
2,400
5
87
47
Surface Mount
3~8
40
PPS
-30 ~ +70
-30 ~ +70
2
Unit
(Hz)
(V)
(dBA)
(ohm)
(V)
(mA)
Notes
1) All dimensions are in mm unless otherwise noted
2) All parts meet RoHS
Revision History
Version
1
Description
Released from Engineering
Date
10/21/2013
Approved
J.S
Drawn by
°C
°C
(g)
A.B.
Date
10/21/2013
Checked by
C.E.
Date
10/21/2013
Approved by
J.S
Date
10/21/2013

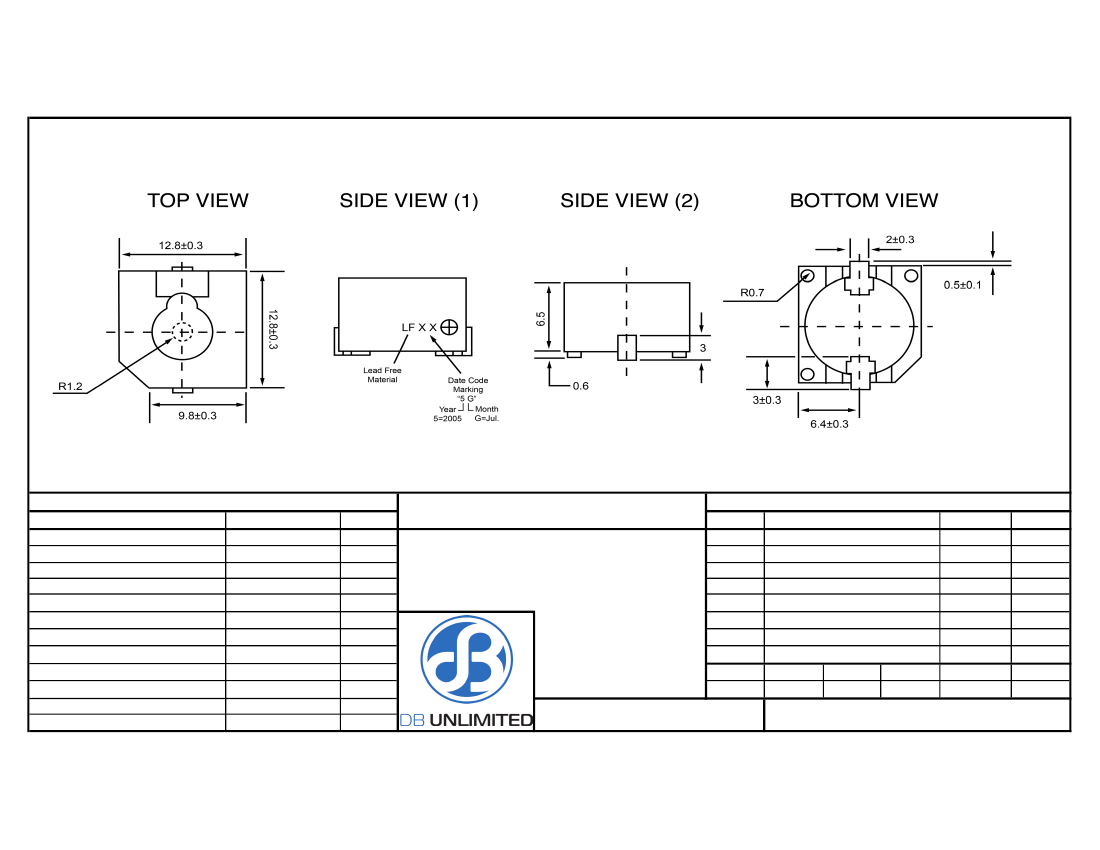

Electro-Mechanical Transducer
TE122005-1
Sheet
1 of 1
sales@dbunlimitedco.com | www.dbunlimitedco.com
©2013, DB Unlimited

TE122206-1 Related Products

TE122206-1 TE062603-1
Description Speakers u0026 Transducers Electro-Mechanical Transducer Speakers u0026 Transducers Electro-Mechanical Transducer
Product Category Speakers & Transducers Speakers & Transducers
Manufacturer DB Unlimited DB Unlimited
RoHS Details Details
Product Transducers Transducers
Type Electromagnetic Electromagnetic
Frequency 2.2 kHz 2.67 kHz
Sound Pressure Level 85 dBA 90 dBA
Impedance 50 Ohms 16 Ohms
Shape Round Round
Termination Style Solder Pin Gullwing Lead
Diameter 12 mm 6.6 mm
Current Rating 40 mA 80 mA
Height 9.5 mm 3.2 mm
Height - in 0.374 in 0.126 in
Height - mm 9.5 mm 3.2 mm
Mounting Through Hole SMD/SMT
Operating Temperature Range - 40 C to + 85 C - 30 C to + 70 C
Packaging Bulk Bulk
Factory Pack Quantity 5000 10000
Voltage Rating 6 V 3.6 V
