EG2315A94V0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> EG2315A94V0

EG2315A94V0: DescriptionSlide Switches PC Mount Slide Switch; CategoryMechanical and electronic products switch; File Size72KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

EG2315A94V0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EG2315A94V0	-	-	View	Buy Now

EG2315A94V0 Overview

Slide Switches PC Mount Slide Switch

EG2315A94V0 Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.236 inch
Actuator type	SLIDE
body width	4.699 mm
body height	6.8072 mm
Body length or diameter	12.5984 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Maximum contact current (DC)	0.2 A
Contact (DC) maximum rated R load	0.2A@30VDC
Contact resistance	0.02 mΩ
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	500VAC V
End contact material	COPPER ALLOY
End contact plating	SILVER
Insulation resistance	100000000 Ω
Manufacturer's serial number	EG
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	10
surface mount	NO
switch function	DP3T
Terminal length	0.122 inch
Termination type	SOLDER

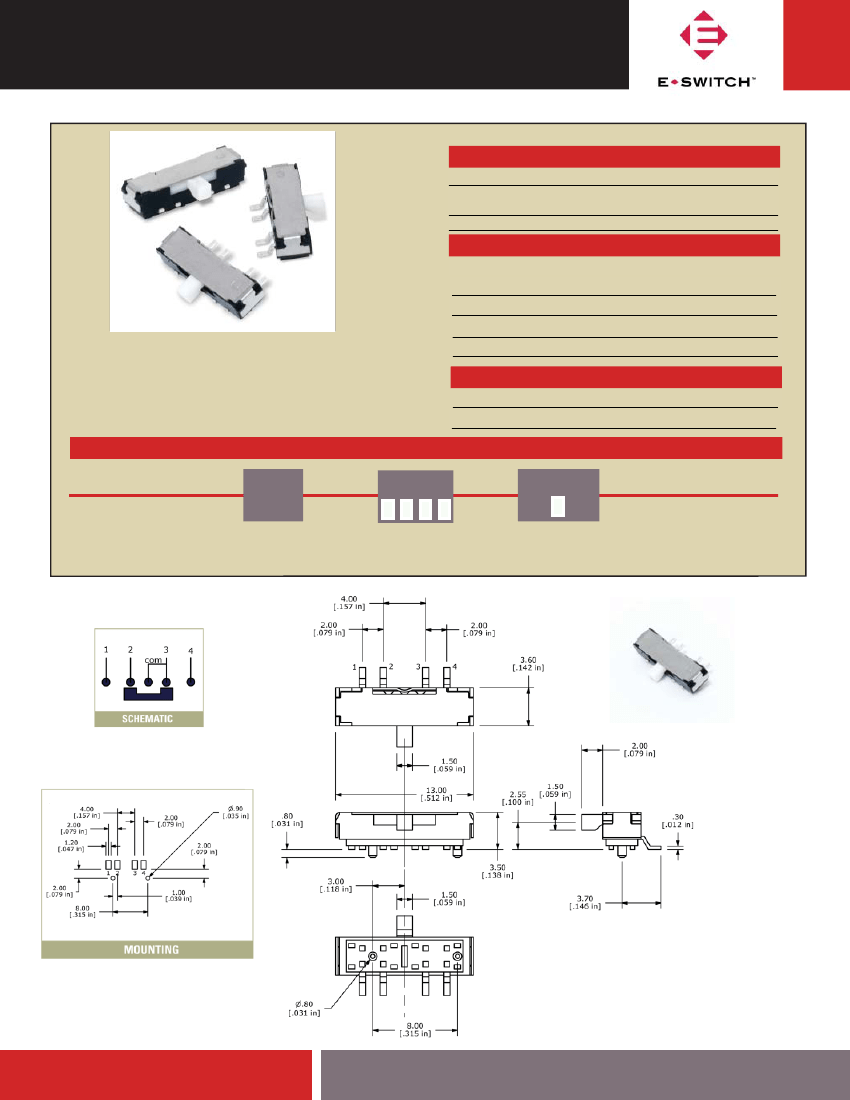

Preview

Download Datasheet

View All

SERIES EG1380 SWITCHES

SLIDE SWITCHES

MECHANICAL SPECIFICATIONS

Mechanical Life:

Force:

Travel:

10,000 cycles

250 +/- 100 gf to center position

300 +/-150 gf from center position

2.0 +/- 0.1mm each position

ELECTRICAL SPECIFICATIONS

Electrical Life:

Contact Rating:

Contact Resistance:

Insulation Resistance:

10,000 cycles

300mA @ 6VDC

70mΩ (initial max)

100MΩ (Min @ 500VDC)

500VAC

FEATURES & BENEFITS

Tape & Reel Packaging

3-position

Surface Mount

Sub-miniature

APPLICATIONS / MARKETS

Computer Servers/peripherals

Consumer electronics

Instrumentation

Test & measurement

Dielectric Strength:

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature:

Storage Temperature:

-10ºC to +60ºC

-20ºC to +70ºC

HOW TO ORDER:

SERIES

MODEL

ACTUATOR

1380

A = 2.0mm

www.e-switch.com

email: info@e-switch.com

7153 NORTHLAND DRIVE NORTH

MINNEAPOLIS, MN 55428

PHONE: 800-867-2717

FAX: 763-531-8235
