513-1409-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 513-1409-001

513-1409-001: DescriptionPushbutton Switches M/F BC SW 5131401604; CategoryMechanical and electronic products switch; File Size29KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

513-1409-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	513-1409-001	-	-	View	Buy Now

513-1409-001 Overview

Pushbutton Switches M/F BC SW 5131401604

513-1409-001 Parametric

Parameter Name	Attribute value
Maker	DIALIGHT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	23.47 mm
body height	46.23 mm
Body length or diameter	42.65 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@30VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	30 V
Manufacturer's serial number	513
Installation features	PANEL MOUNT
surface mount	NO
Switch action	ALTERNATE
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

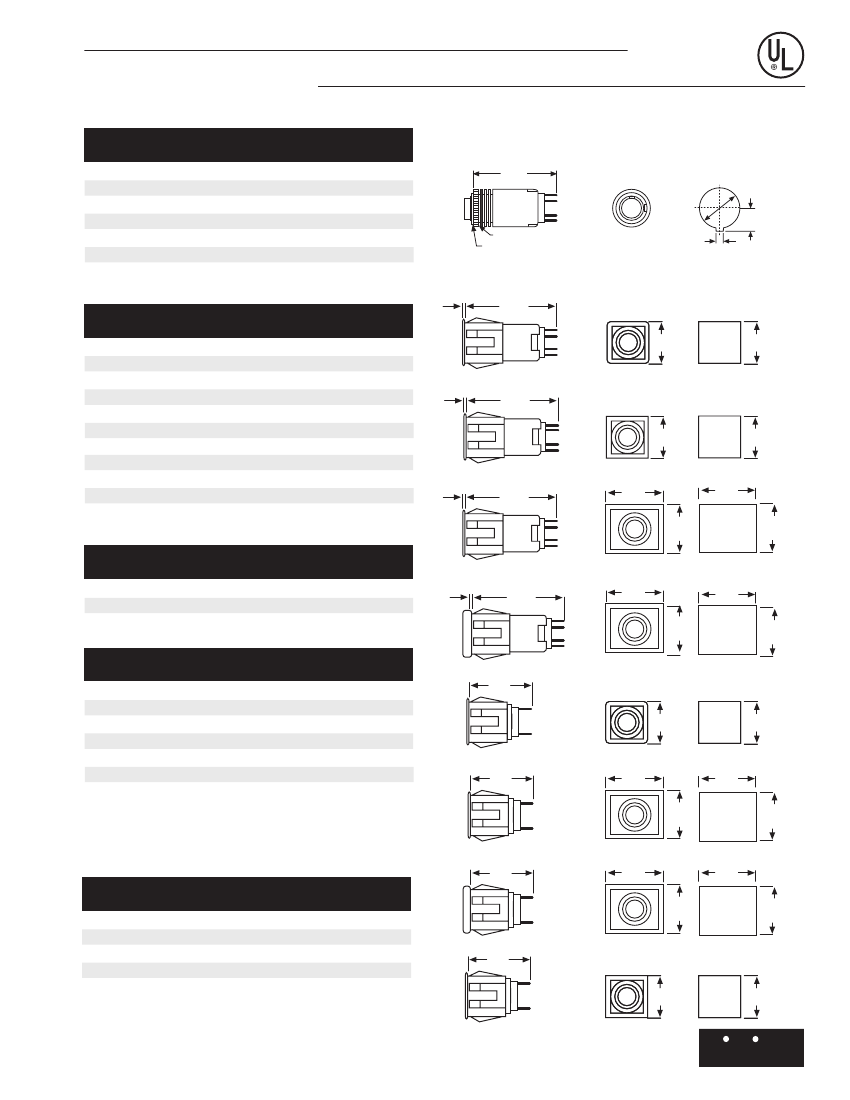

ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS

513 SERIES SWITCHES

MOMENTARY, SNAP ACTION

5 AMP-RESISTIVE; 2 AMP-INDUCTIVE; 125VAC/30VDC

Caps Ordered Separately See Page 24.

Uses:

T-1 3/4 MIDGET

FLANGE BASE

INCANDESCENT LAMP

PART NO.

513-1601-604

513-1606-001

513-1611-001

513-1701-604

513-1706-001

513-1711-001

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" SQ.

ALL

5/8" SQ.

3/4" SQ.

CONTACT

CIRCUIT

SPDT

TWO CIRCUIT

FIG

SIDE VIEW

37.28

[1.468]

FRONT VIEW

MOUNTING HOLE

[.501]

[.505]

DIA

7.16

[.282]

12.70 [.500] 32NS-2A THD.

KNURLED FLANGED NUT

2.39 [.094] x 12.93 [.509] MAX O.D.

REAR PANEL MOUNT BASE

1.96

[.077]

FIG 1

MOMENTARY ACTION

3 AMP; 125VAC/30VDC; GOLD PLATED CONTACT

1.14

[.045]

PART NO.

513-0101-604

513-0106-001

513-0109-001

513-0110-001

513-0111-001

513-0301-604

513-0306-001

513-0309-001

513-0310-001

513-0311-001

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" X 1"

3/4" SQ.

ALL

5/8" SQ.

3/4" X 1"

3/4" SQ.

CONTACT

CIRCUIT

SPST N.O.

TWO CIRCUIT

46.23

[1.820]

MAX

20.65

[.813]

SQ.

19.25

±13

[.758±.005]

SQ.

FIG

1.14

[.045]

FIG 2

46.23

[1.820]

MAX

23.83

[.938]

SQ.

22.45

±.13

[.883±.005]

SQ.

FIG 3

1.14

[.045]

46.23

[1.820]

MAX

29.57

[1.16]

28.19

±.13

[1.110

.005]

MOMENTARY ACTION

5 TO 100 mA; 3 TO 12VDC; HEAVY GOLD PLATING

23.47

[.924]

22.10

±.13

[.870

±.005]

PART NO.

513-0601-604

513-0606-001

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

CONTACT

CIRCUIT

TWO CIRCUIT

FIG

FIG 4

5.94

[.234]

46.23

[1.820]

MAX

29.57

[1.16]

28.19

±.13

[1.110

.005]

ALTERNATE ACTION

5 AMP-RESISTIVE; 2 AMP-INDUCTIVE; 125VAC/30VDC

23.47

[.924]

22.10

±.13

[.870

±.005]

PART NO.

513-1401-604*

513-1406-001**

513-1409-001**

513-1411-001**

513-1501-604*

513-1506-001**

513-1511-001**

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" X 1"

3/4" SQ.

ALL

5/8" SQ.

3/4" SQ.

CONTACT

CIRCUIT

SPDT

TWO CIRCUIT

FIG

FIG 5

27.43

[1.08]

MAX

20.65

[.813]

SQ.

19.25

±13

[.758±.005]

SQ.

Fig. 6

27.43

[1.08]

MAX

29.57

[1.16]

28.19

±.13

[1.110

.005]

* Add 12.7 (.500) to length dimension

** Add 13.08 (.515) to length dimension

23.47

[.924]

22.10

±.13

[.870

±.005]

533 SERIES INDICATORS

PART NO.

533-0601

533-0901

533-1001 (w/built-in barrier)

533-1101

Fig. 7

27.43

[1.08]

MAX

29.57

[1.16]

28.19

±.13

[1.110

.005]

ACCEPTS

CAP SIZE

5/8" SQ.

3/4" X 1"

3/4" SQ.

FIG

Fig. 8

23.47

[.924]

22.10

±.13

[.870

±.005]

27.43

[1.08]

MAX

Material & Finish: Base, Clear anodized aluminum;

Bezel, Heat resistant black plastic.

Neon and incandescent lamp information on Pages 35 and 36.

Dimensions in mm [inches]

Fig. 9

23.83

[.938]

SQ.

22.43

±.13

[.883

±.005]

SQ.

Dialight

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com

513-1409-001 Related Products

	513-1409-001	513-0311-001	533-0901	513-1611-001
Description	Pushbutton Switches M/F BC SW 5131401604	Pushbutton Switches M/F BC SW 513301604	Industrial Panel Mount Indicators / Switch Indicators INDICATOR WITH BEZEL	Pushbutton Switches M/F BC SW 5131601604
Maker	DIALIGHT	DIALIGHT	-	DIALIGHT
Reach Compliance Code	compliant	unknown	-	compliant
ECCN code	EAR99	EAR99	-	EAR99
body width	23.47 mm	23.83 mm	-	23.83 mm
body height	46.23 mm	46.23 mm	-	46.23 mm
Body length or diameter	42.65 mm	23.83 mm	-	23.83 mm
Contact (AC) maximum rated R load	5A@125VAC	3A@125VAC	-	5A@125VAC
Maximum contact current (AC)	5 A	3 A	-	5 A
Maximum contact current (DC)	5 A	3 A	-	5 A
Contact (DC) maximum rated R load	5A@30VDC	3A@30VDC	-	5A@30VDC
Maximum contact voltage (AC)	125 V	125 V	-	125 V
Maximum contact voltage (DC)	30 V	30 V	-	30 V
Installation features	PANEL MOUNT	PANEL MOUNT	-	PANEL MOUNT
surface mount	NO	NO	-	NO
Switch action	ALTERNATE	MOMENTARY	-	MOMENTARY
switch function	SPDT	SPDT	-	SPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	-	PUSHBUTTON SWITCH
Termination type	SOLDER	SOLDER	-	SOLDER
