Product data sheet
Characteristics

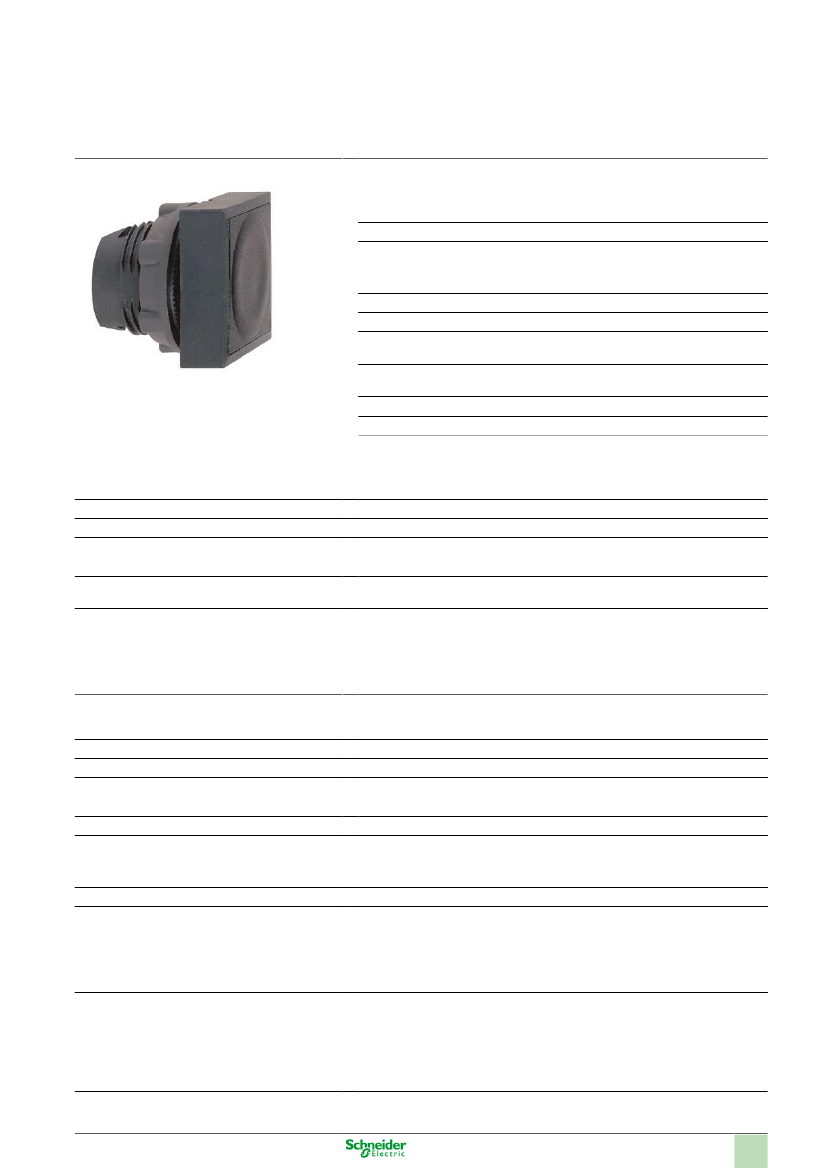

ZB5CA2
black square flush pushbutton head Ø22 spring
return unmarked
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Product or component
type
Device short name
Bezel material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator
Operator profile
Commercialised
Harmony XB5
Head for non-illuminated pushbutton
ZB5
Plastic
0.87 in (22 mm)
1
Square
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Spring return
Black flush unmarked
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
Mechanical durability
Station name
Electrical composition code
1.18 in (30 mm)
1.18 in (30 mm)
1.1 in (28 mm)
0.04 lb(US) (0.019 kg)
5000000 cycles
XALK 2...5 cut-outs
XALD 1...5 cut-outs
SR1 for <= 3 contacts using single blocks in rear mounting
SF1 for <= 3 contacts using single blocks in front mounting
C15 for 1 contacts using single blocks in front mounting
C11 for <= 3 contacts using single blocks in front mounting
C2 for <= 9 contacts using single and double blocks in front mounting
C1 for <= 9 contacts using single blocks in front mounting
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
Resistance to high pressure washer
IK degree of protection
Standards
TH
-40...158 °F (-40...70 °C)
-13...158 °F (-25...70 °C)
Class II conforming to IEC 60536
IP66 conforming to IEC 60529
NEMA 4X
NEMA 13
1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m
IK03 conforming to IEC 50102
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
CSA C22.2 No 14
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
Product certifications
Feb 28, 2016
1
Shock resistance
Vibration resistance
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
22467 - PUSHBUTTONS,22MM(PLASTIC) NEW
CS2
00785901388401
1
0.10
Non-Stock - Not normally stocked in distribution facility
N
FR
Contractual warranty
Period
18 months
2
