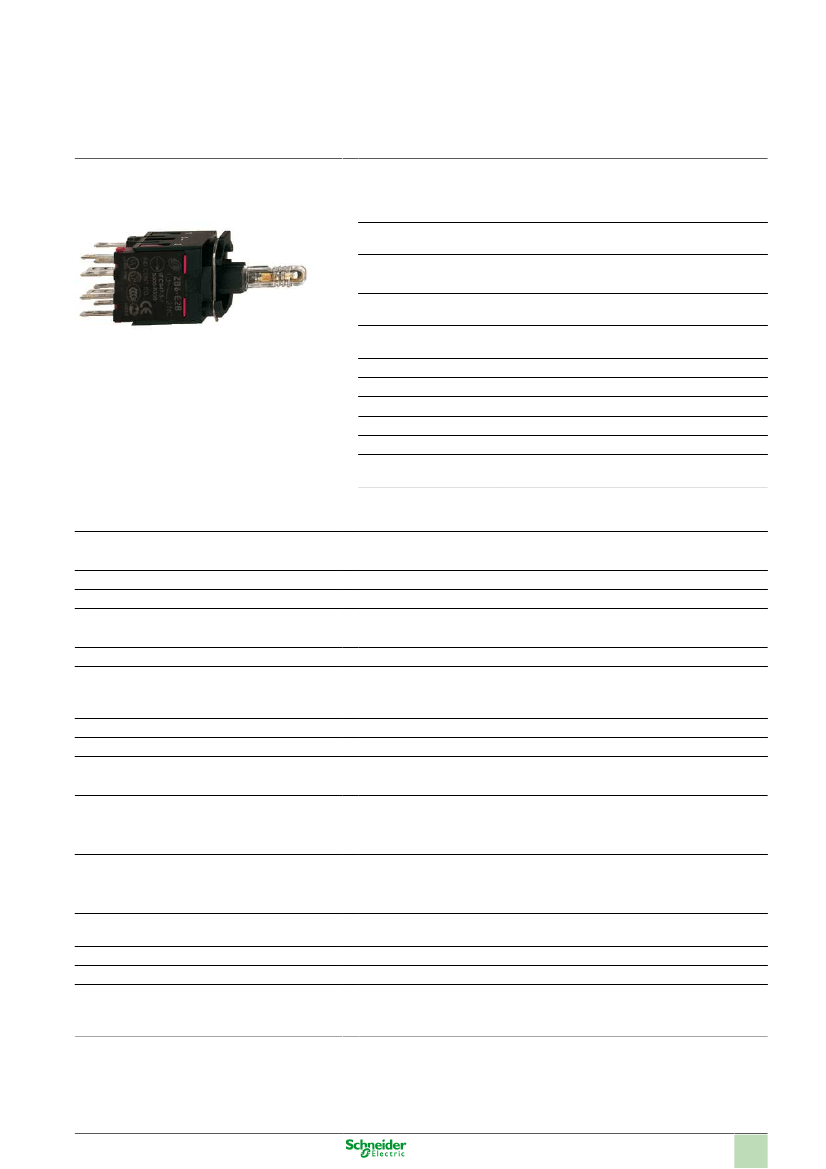

Product data sheet
Characteristics
ZB6ZB52B
yellow light block with body/fixing collar with
integral LED 12...24V 1NC
Main
Range of product
Product or component
type
Device short name
Fixing collar material
Sale per indivisible
quantity
Contacts type and com-
position
Contacts operation
Connections - terminals
Light source
Bulb base
Light source colour
[Us] rated supply volt-
age
Harmony XB6
Complete body for illuminated push-button
ZB6
Plastic
1
1 NC
Slow-break
Faston connector(2.8 x 0.5 mm)
Integral LED
Yellow
12...24 V AC/DC
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
LED
Complementary
CAD overall width
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Contacts usage
Positive opening
Operating travel
Operating force
Contacts material
Short circuit protection
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
[Ie] rated operational current
24 mm
18 mm
51 mm
(11-12)NC
0.006 kg
Standard
With positive opening conforming to EN/IEC 60947-5-1 appendix K
4.3 mm (total travel)
1 mm (NC changing electrical state)
2.5 N (NC changing electrical state)
Silver alloy (Ag/Ni)
6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
4 kV conforming to EN/IEC 60947-1
0.22 A at 125 V, DC-13, R300
0.1 A at 250 V, DC-13, R300
1.5 A at 240 V, AC-15, B300
3 A at 120 V, AC-15, B300
1000000 cycles, DC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
Λ = 10exp(-8) at 5 V, 1 mA with confidence level of 90 % conforming to EN/IEC
60947-5-4
Steady
6...30 V AC/DC
15 mA
2 kV in free air conforming to IEC 61000-4-5
1 kV direct contact conforming to IEC 61000-4-5
Electrical durability
Electrical reliability IEC 60947-5-4
Signalling type
Supply voltage limits
Current consumption
Surge withstand
Dec 24, 2017
1
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
Standards
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 61140
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
CCC
CSA
GOST
UL
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
+/- 3 mm (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC
60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC
60068-2-27
2 kV conforming to IEC 61000-4-4
10 V/m conforming to IEC 61000-4-3
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
6 kV on contact (on metal parts) conforming to IEC 61000-2-6
Class B conforming to IEC 55011
Product certifications
Vibration resistance
Shock resistance
Resistance to fast transients
Resistance to electromagnetic fields
Resistance to electrostatic discharge
Electromagnetic emission
