5739-0-18-15-12-14-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 5739-0-18-15-12-14-10-0

5739-0-18-15-12-14-10-0: DescriptionCircuit Board Hardware - PCB; CategoryThe connector terminals; File Size791KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

5739-0-18-15-12-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5739-0-18-15-12-14-10-0	-	-	View	Buy Now

5739-0-18-15-12-14-10-0 Overview

Circuit Board Hardware - PCB

5739-0-18-15-12-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	5739-0-18-15-12-14-10-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

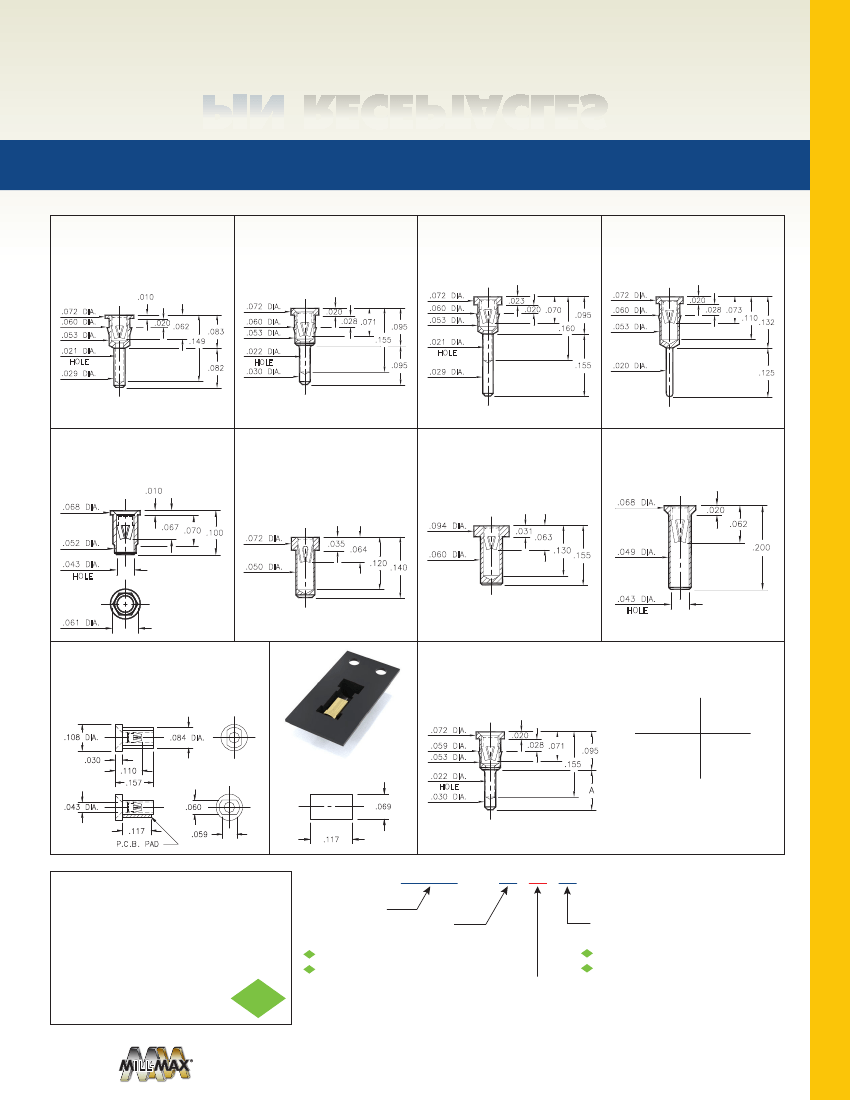

RECEPTACLES

FOR .015” - .022” DIAMETER PINS

0512

0512-0-15-XX-12-XX-04-0

Press-fit in .057 mounting hole

0703

0703-0-15-XX-12-XX-04-0

Press-fit in .057 mounting hole

0574

.072 DIA.

0574-0-15-XX-12-XX-04-0

Press-fit in .057 mounting hole

0468

.072 DIA.

0468-0-15-XX-12-XX-04-0

Press-fit in .057 mounting hole

.010

.072 DIA.

.060 DIA.

.053 DIA.

.021 DIA.

HOLE

.029 DIA.

.082

.072 DIA.

.020

.062

.149

.060 DIA.

.083

.020

.028 .071

.060 DIA.

.095

.023

.020 .070

.053 DIA.

.021 DIA.

HOLE

.095

.060 DIA.

.053 DIA.

.020

.028 .073

.110

.053 DIA.

.022 DIA.

HOLE

.030 DIA.

.160

.132

.155

.095

.029 DIA.

.155

.020 DIA.

.125

8894

.068 DIA.

8894-0-15-XX-12-XX-10-0

Hex press-fit in .059 plated through-hole

.010

0550

0550-0-15-XX-22-XX-10-0

0671

Solder mount in .052 min. mounting hole

Also available on 16mm wide carrier tape:

1,700 parts per 13” reel

Order as: 0550-0-57-XX-22-XX-10-0

0671-0-15-XX-12-XX-10-0

Solder mount in .063 min. mounting hole

0707

.068 DIA.

0707-0-15-XX-12-XX-10-0

Solder mount in .051 min. mounting hole

.020

.062

.067 .070

.100

.052 DIA.

.043 DIA.

HOLE

.094 DIA.

.072 DIA.

.035

.064

.120

.140

.031

.063

.130

.155

.060 DIA.

.049 DIA.

.200

.050 DIA.

.043 DIA.

HOLE

.061 DIA.

5739

5739-0-18-XX-12-XX-10-0

1534

Surface mount

Also available on 16mm wide carrier tape:

3,000 parts per 13” reel

Order as: 5739-0-58-XX-12-XX-10-0

.108 DIA.

.030

.110

.157

.043 DIA.

.117

P.C.B. PAD

.060

.069

1534-X-15-XX-12-XX-04-0

Press-fit in .056 mounting hole

.084 DIA.

.072 DIA.

.059 DIA.

.053 DIA.

Basic Part

Number

.020

.028 .071

.155

.095

Length

P.C.B. Layout

.022 DIA.

HOLE

.030 DIA.

1534-0

1534-1

.095

.125

.059

.117

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

100

μ”

TIN/LEAD OVER NICKEL

100

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#12 or #22

CONTACT (DATA ON PAGE 252)

(Contact may be interchanged with group B or C contact on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 161 | PIN RECEPTACLES
