Product data sheet
Characteristics

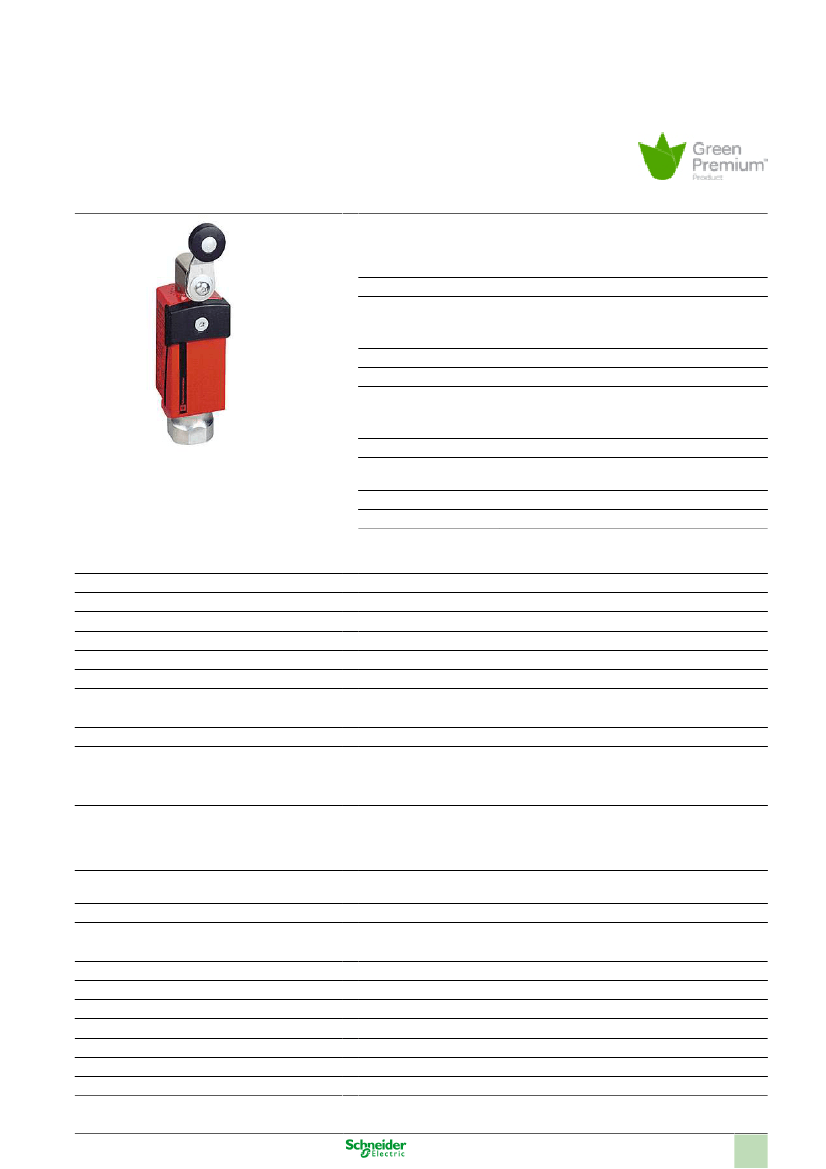

XCSD3718P20
safety limit switch - metal - rotary lever - 2NC
+1NO - 1 entry tapped M20 x 1.5
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Product or component
type
Component name
Design
Material
Head type
Protection technology
Type of operator
Contacts type and
composition
Contacts operation
Cable entry
Commercialised
Preventa Safety detection
Safety limit switch
XCSD
Compact
Metal
Rotary head
Plastic protective cover, secured by 5-lobe socket
head safety screw
Thermoplastic roller lever
1 NC + 1 NC + 1 NO
Slow-break, break before make
1 entry tapped M20 x 1.5
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Complementary
Electrical connection
Clamping connection capacity
Switch actuation
Number of poles
Positive opening
Mechanical durability
Minimum torque for tripping
Positive opening minimum torque
Maximum actuation speed
Contact code designation
Terminal
1 x 0.34...2 x 0.75 mm²
By 30° cam
3
With NC contact
10000000 cycles
0.88 lbf.in (0.1 N.m)
2.21 lbf.in (0.25 N.m)
4.92 ft/s (1.5 m/s)
R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix
A
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix
A
6A
300 V conforming to CSA C22.2 No 14
400 V (degree of pollution: 3) conforming to EN/IEC 60947-1
300 V conforming to UL 508
4 kV conforming to IEC 60664
4 kV conforming to EN/IEC 60947-1
<= 25 MOhm conforming to IEC 60255-7 category 3
6 A cartridge fuse type gG (gl)
0.1 mm on tripping points, 1 million operating cycles for head with end plunger
Zamak
Zamak
Plastic
1.38 in (35 mm)
4.8 in (122 mm)
1.34 in (34 mm)
0.56 lb(US) (0.255 kg)
[Ithe] conventional enclosed thermal current
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
Resistance across terminals
Short circuit protection
Repeat accuracy
Body material
Head material
Enclosure material
Depth
Height
Width
Product weight
Mar 1, 2016
1
Environment
Standards
EN 1088/ISO 14119
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
CSA C22.2 No 14
CSA
UL
Can reach SIL 3 with the appropriate monitoring system and correctly wired
conforming to IEC 61508
Can reach PL = e with the appropriate monitoring system and correctly wired
conforming to EN/ISO 13849-1
Can reach category 4 with the appropriate monitoring system and correctly wired
conforming to EN/ISO 13849-1
B10d = 50000000 (value given for a life time of 20 years limited by mechanical or
contact wear)
TC
-13...158 °F (-25...70 °C)
-40...158 °F (-40...70 °C)
25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms conforming to IEC 60068-2-27
Conforming to NF C 20-030
Class I conforming to IEC 6140
IP67 conforming to IEC 60529
IP66 conforming to IEC 60529
IK06 conforming to EN 50102
Product certifications
Safety level
Safety reliability data
Protective treatment
Ambient air temperature for operation
Ambient air temperature for storage
Vibration resistance
Shock resistance
Class of protection against electric shock
IP degree of protection
IK degree of protection
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
22411 - LIMIT SWITCHES,IEC,XCKJ
T
003389110241051
1
0.70
Non-Stock - Not normally stocked in distribution facility
N
FR
Offer Sustainability
Sustainable offer status
RoHS
REACh
Product environmental profile
Product end of life instructions
Green Premium product
Compliant - since 1037 -
Available
Schneider Electric declaration of conformity
Reference not containing SVHC above the threshold
Download Product Environmental
Need no specific recycling operations
Contractual warranty
Period
18 months
2
