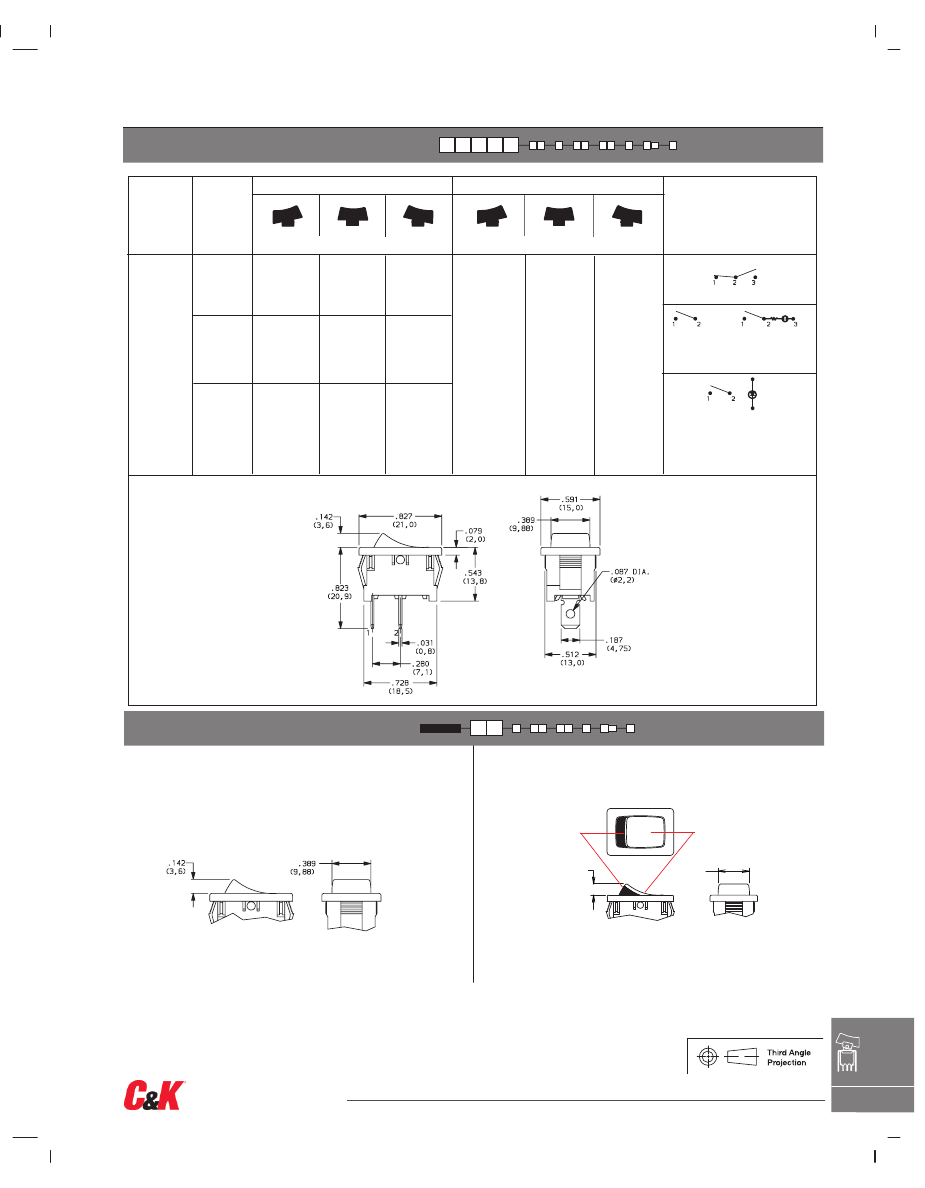

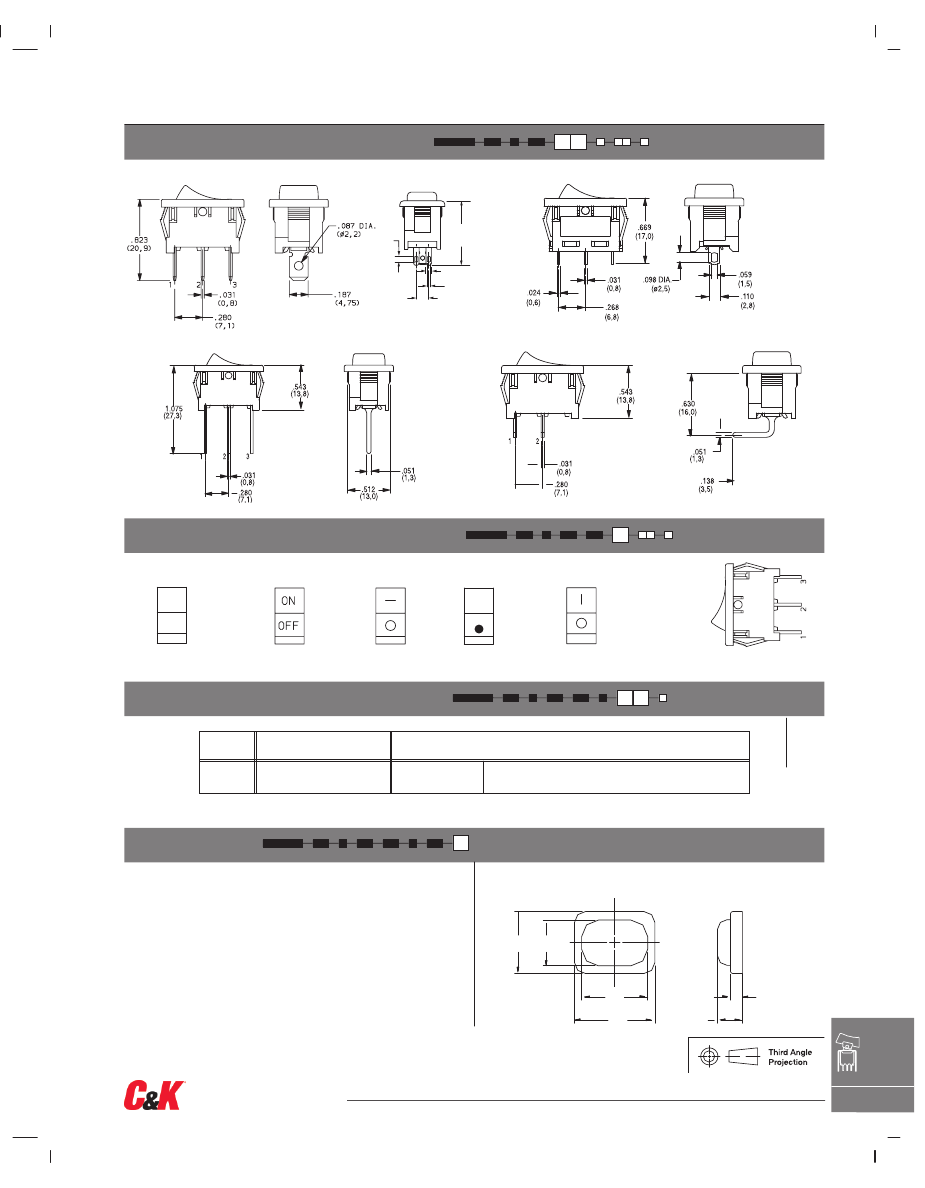

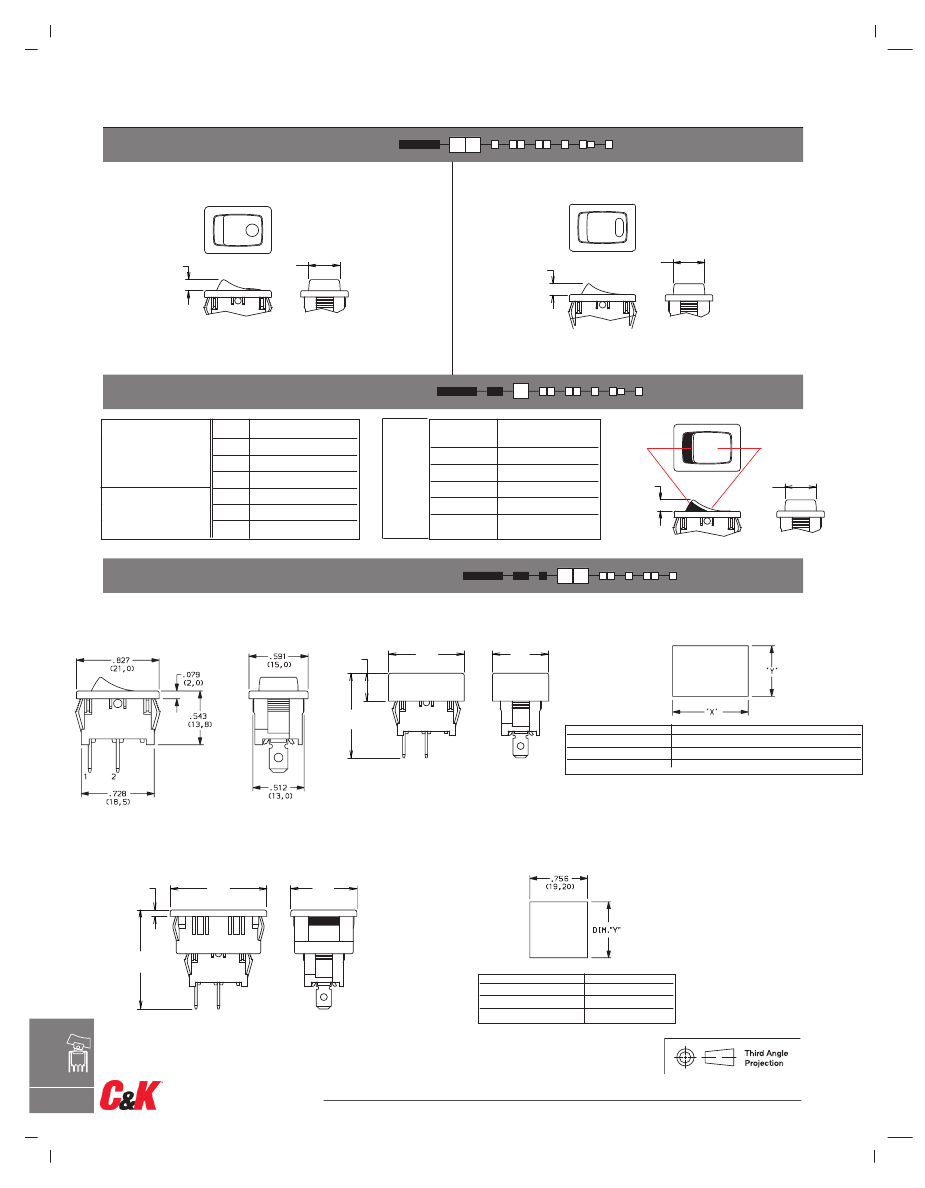

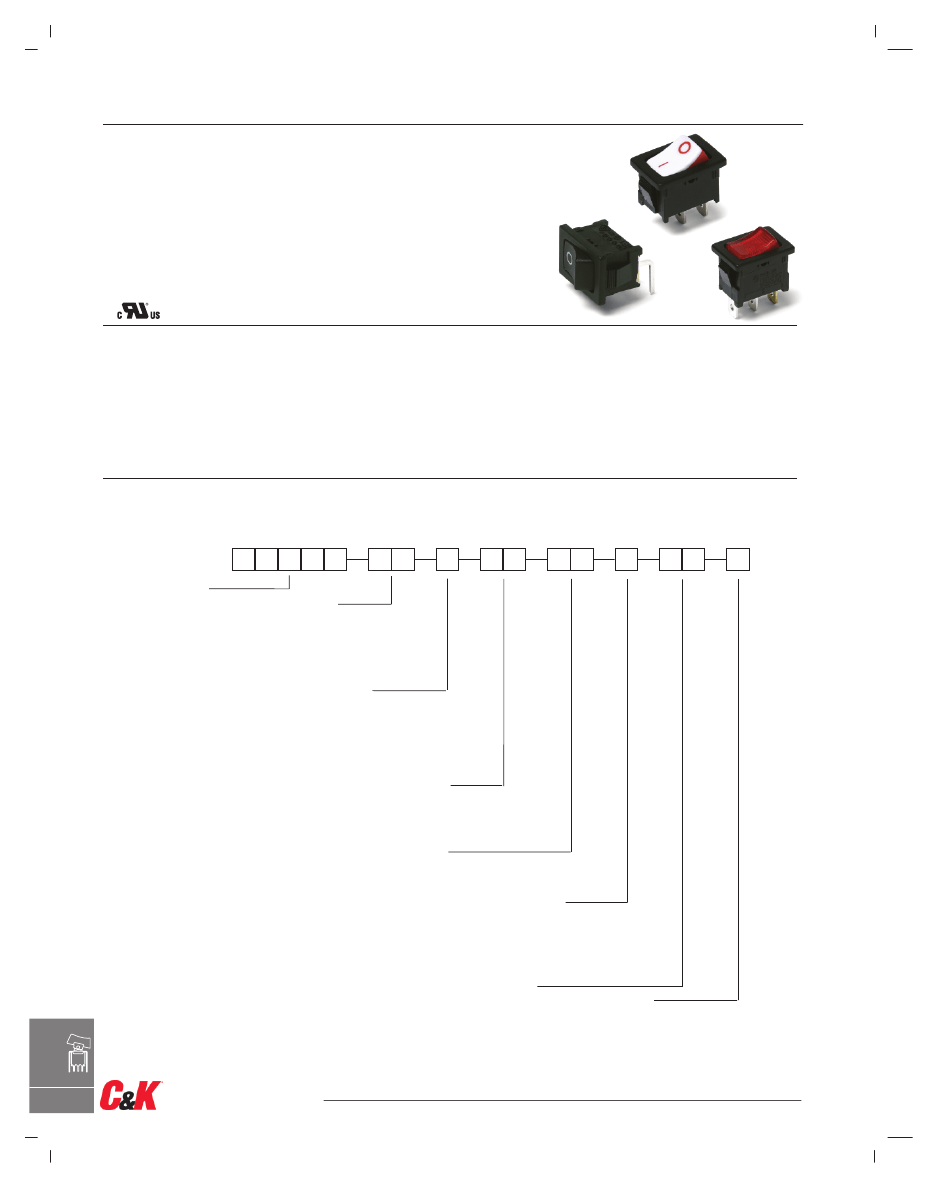

DA Series
Miniature Single Pole Rocker Switches
Features/Benefits
•
Nice actuator styling with
multiple options
•
Guards to prevent accidental
actuation
Typical Applications
•
Small appliances
•
Computers and peripherals
•
Medical instrumentation
•
Momentary and maintained functions
•
IP65 splash proof rubber boot option
•
RoHS compliant
UL 61058-1
Specifications
CONTACT RATING:
16 AMPS @ 125 VAC, 1/3 HP;
10 AMPS @ 250 VAC, 1/2 HP.
10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMPERATURE: -20ºC to +85ºC
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G-57 through G-59. For additional options not shown in catalog, consult Customer Service Center.
Switch
DA101
DA102
DA103
Function
SPDT On-None-On
SPST On-None-Off
SPDT On-Off-On
Actuator
Rocker
J1
J2
Two-tone rocker
*, **J3
Illuminated rocker
** J4
Circle, illuminated rocker
** J5
Oval, illuminated rocker
Actuator Color
1-5
See Chart on Page G-59
*R
Red, illuminated
*A
Amber, illuminated
*G
Green, illuminated
* Actuator “J3” illuminated switches are
not available with actuator markings
** Actuator “J3”, “J4” and “J5” are not
available with Termination option “17”
solder lug
Rocker
Mounting Style/Color
S2
Snap-in, black
S1
Snap-in, white
B2
Recessed snap-in bracket, black
G2
Guard, black
Termination
15
.187” quick connect
17
Solder lug
02
Thru-hole
A
Right angle
Actuator Marking
(NONE)
No marking
D
ON-OFF
H
”O l” - international ON-OFF
N
Large dot
P
”O -” international ON-OFF
Contact Rating
QF
Silver
Lamp Rating
(NONE)
No lamp
6
LED
7
125 VAC neon
8
250 VAC neon
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G
G–56
www.ck-components.com
DA Series
Miniature Single Pole Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
CONNECTED TERMINALS
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
DA101
ON
NONE
ON
SP
DA102
ON
NONE
OFF
2-3
N/A
2-1
OR
OR
For 7 & 8
For Illuminated
Illuminated Versions
Version
Only
+
DA103
ON
OFF
ON
–
For 6 Illuminated
Versions Only
Shown in Pos. 1
ACTUATOR
J1
ROCKER
*J3
ILLUMINATED ROCKER
J2
TWO-TONE ROCKER
Bottom
Top
.142
(3,6)
.389
(9,88)
Rocker
NOTE:
J3 actuator available with DA102 switch functions, 7&8 lamp ratings and not
available with O2 and A termination options.
* J3 actuator not available with markings or Termination option “17” solder lug
NOTE:
1. Available with DA102 switch function only.
2. Available with None or P actuator marking options only.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–57
www.ck-components.com
G
DA Series
Miniature Single Pole Rocker Switches
ACTUATOR
J4
CIRCLE, ILLUMINATED ROCKER
J5
OVAL, ILLUMINATED ROCKER
.142
(3,6)
.389
(9,88)
.142
(3,6)
.389
(9,88)
NOTE:
Available with DA102 switch function and
7 & 8 lamp ratings combinations only. Not available with O2 and A termination options.
* J4 actuator not available with Termination option “17” solder lug
NOTE:
Available with DA102 switch function and
6 lamp rating combinations only. Not available with O2 and A termination options.
* J5 actuator not available with Termination option “17” solder lug
ACTUATOR COLOR
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
OPTION
CODE
ACTUATOR
COLOR
TOP
BOTTOM
WHITE
WHITE
RED
BLACK
BLACK
RED
BLACK
WHITE
WHTE
RED
.142
(3,6)
.389
(9,88)
J1only
J3, J4,
J5 only
2
1
3
R
A
G
Bottom
Top
J2
only
1
2
3
4
5
MOUNTING STYLE/COLOR
S2
S1
SNAP-IN, BLACK
SNAP-IN, WHITE
.350
(8,89)
.940
(23,88)
G2
GUARD, BLACK
S2, S1 & G2 PANEL MOUNTING
.700
(17,78)
1.064
(27,03)
PANEL THICKNESS
0.030-0.049 (0,75-1,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“X”
0.756-.004 (19,2-0,1)
0.764-.004 (19,4-0,1)
0.779-.004 (19,8-0,1)
“Y”
0.512+.004 (13,0+0,1)
0.512+.004 (13,0+0,1)
0.512+.004 (13,0+0,1)
NOTE:
Available with DA10X switch functions only.
Actuator shown in Pos. 1
B2
RECESSED SNAP-IN BRACKET, BLACK
.080
(2,03)
1.200
(30,48)
.820
(20,83)
B2 PANEL MOUNTING
Rocker
1.244
(31,60)
PANEL THICKNESS
0.030-0.049 (0,75-0,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
NOTE:
Available with DA10X switch functions only.
“Y”
1.068 (27,13)
1.076 (27,33)
1.092 (27,74)
G
G–58
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
DA Series
Miniature Single Pole Rocker Switches
TERMINATION
15
.187” QUICK CONNECT
17
SOLDER LUG
0.079
(2,0)
0.870±.020
(22,10±0,5)
0.161
(4,1)
0.071
(1,8)
0.039
(1,00)
For switches with LED option
02*
THRU-HOLE
A*
RIGHT ANGLE
* NOTE - O2 and A termination options not offered with J3, J4 or J5 actuator options.
ACTUATOR MARKING
NONE
NO MARKING
D
ON-OFF
H
Ol
N
LARGE DOT
P
O-
All models shown in Pos. 1
Markings not available with J3 actuator
NOTE:
Orientation of actuator marking and terminals.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
POWER
RATINGS
16 AMPS @ 125 VAC; 1/3 HP; 10 AMPS @ 250 VAC; 1/2
QF
10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
LAMP RATING
(NONE)
NO LAMP
6
LED RATING @ 10 mA Vf=1.85V
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
216C00000
ACCESSORIES
IP65 SPLASH PROOF RUBBER BOOT
.748
(19,0)
.551
(14,0)
Rocker
.787
(20,0)
.957
(24,3)
.295
(7,5)
.142
(3,6)
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–59
www.ck-components.com
G
