D7G0603N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> D7G0603N

D7G0603N: DescriptionRotary Switches 6P 3POS 30DEG ADJ NON-SHRT SLDR LUG; CategoryMechanical and electronic products switch; File Size76KB，2 Pages; ManufacturerElectroswitch

Download Datasheet Parametric Compare View All

D7G0603N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D7G0603N	-	-	View	Buy Now

D7G0603N Overview

Rotary Switches 6P 3POS 30DEG ADJ NON-SHRT SLDR LUG

D7G0603N Parametric

Parameter Name	Attribute value
Maker	Electroswitch
Reach Compliance Code	unknown
Executor completed	SILVER
Actuator length	1.875 inch
Actuator material	BRASS
Actuator type	ROTARY
Nozzle length	0.375 inch
Casing type	3/4-32
center contact material	BRASS
Center contact plating	SILVER
Contact (AC) maximum rated R load	1A@115VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	2.25 A
Contact (DC) maximum rated R load	2.25A@28VDC
Contact resistance	0.003 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1500VAC V
Electrical life	25000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Graduation angle	30 deg
Insulation resistance	750000000000 Ω
Manufacturer's serial number	D7
Installation features	PANEL MOUNT
Number of positions	2 THRU 3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
surface mount	NO
Switch action	CIRCULAR
Switch type	ROTARY SWITCH
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

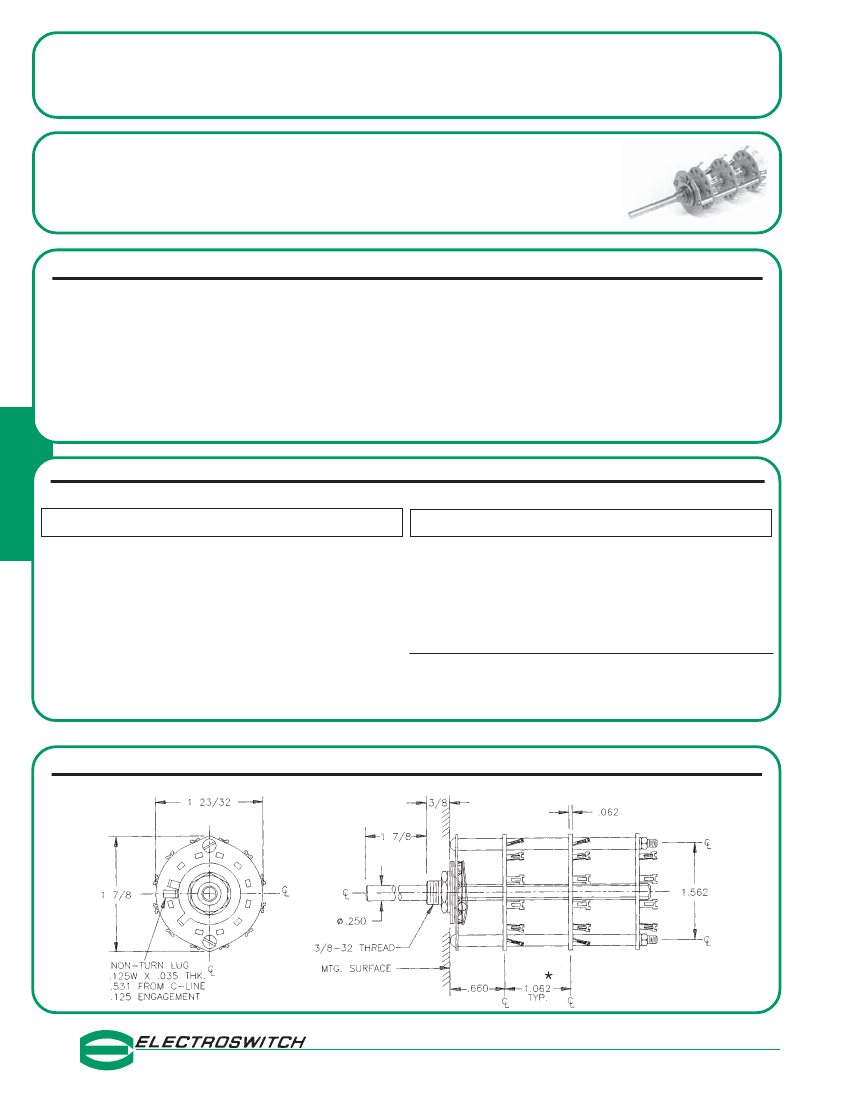

D7 - SERIES

SPECIFICATIONS AND ORDERING INFORMATION

1 7/8" DIAMETER 2.25 AMPS @ 28 VDC

The D7 Series, constructed with a dual-ball, hill and valley index, has in-

creased the physical size of the switch conductors allowing for additional

current carrying capabilities. Standard designs utilize glass epoxy or ceramic

insulations, solder lug terminals, and 30° adjustable stop indexing.

SPECIFICATIONS

ELECTRICAL

Current and Voltage Rating:

Make and break resistive load

2.25 amps @ 28 VDC; 1.0 amp @ 115 VAC.

Current Carrying Capacity:

9 amps.

Dielectric Strength:

1,500 VAC between current carrying parts and

ground.

Contact Resistance:

Average initial 3 milliohms.

Insulation Resistance:

Glass in excess of 750,000 megohms.

Ceramic in excess of 1,000,000 megohms.

Hardware:

Mounting nut and lockwasher are shipped assembled.

MECHANICAL

Materials and Finishes:

All parts utilize non-corrosive materials

as standard.

Clips and Rotors:

Brass with silver plate as standard.

Insulation:

Glass epoxy, or ceramic.

Index:

Dual-ball, hill and valley design.

Index Life:

25,000 cycles minimum.

Index Torque:

Switches have lowest practical torque consistent

with crisp detenting and smooth, reliable operation.

Index Angles:

Positive 30° standard, 60° available.

Index Stops:

Adjustable standard, fixed or continuous.

Stop Strength:

25 in. lbs. minimum.

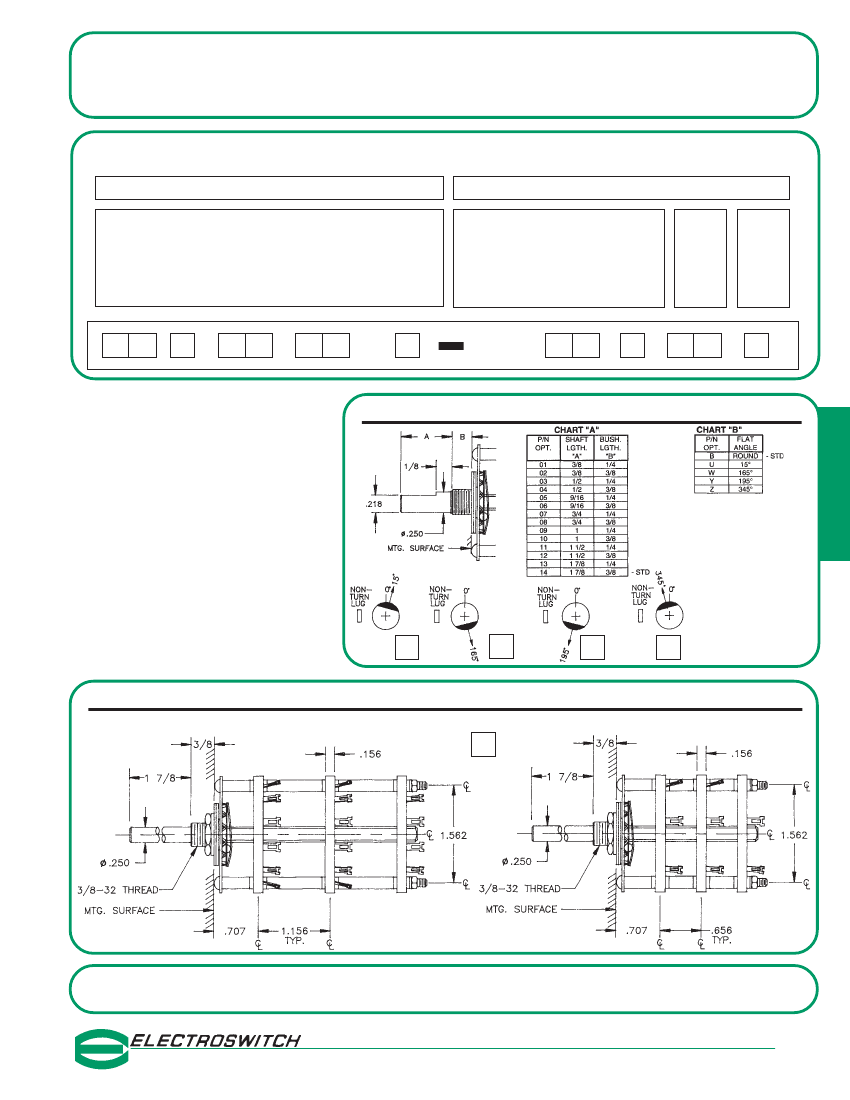

STANDARD PART NUMBER

GLASS EPOXY INSULATION

SWITCHES - 30° INDEXING

ADJUSTABLE STOPS - SOLDER LUG TERMINALS - STOPS SET @ 2 POS.

ACTIVE

POLES/

NO. OF

POLES POSITIONS SECTION SECTIONS

02-11

02-05

02-11

02-03

02-11

02-05

02-11

02-05

02-03

02-11

02-05

02-03

02-05

SHORTING

D7G0111S

D7G0211S

D7G0205S

D7G0311S

D7G0303S

D7G0411S

D7G0405S

D7G0511S

D7G0605S

D7G0603S

D7G0611S

D7G0805S

D7G0903S

D7G1005S

NON-

SHORTING

D7G0111N

D7G0211N

D7G0205N

D7G0311N

D7G0303N

D7G0411N

D7G0405N

D7G0511N

D7G0605N

D7G0603N

D7G0611N

D7G0805N

D7G0903N

D7G1005N

FIG.

CERAMIC INSULATION

SWITCHES - 30° INDEXING

ADJUSTABLE STOPS - SOLDER LUG TERMINALS - STOPS SET @ 2 POS.

ACTIVE

POLES/

NO. OF

POLES POSITIONS SECTION SECTIONS

02-11

02-05

02-11

02-03

02-05

02-03

02-06

INDEXING

SHORTING

D7C0111S

D7C0211S

D7C0205S

D7C0311S

D7C0303S

D7C0405S

D7C0605S

D7C0603S

________

NON-

SHORTING

D7C0111N

D7C0211N

D7C0205N

D7C0311N

D7C0303N

D7C0405N

D7C0605N

D7C0603N

FIG.

D7C0106N-60

D7C0206N-60

D7C0306N-60

D7C0406N-60

D7C0506N-60

* FIGURES ARE SHOWN ON PAGES 55 AND 56.

DIMENSIONS

STANDARD CONSTRUCTION

D7G

- GLASS EPOXY CONSTRUCTION

•

ELECTRONIC PRODUCTS

UNIT OF ELECTRO SWITCH CORP.

.500 FOR DESIGNS OF FIVE OR

MORE SECTIONS

2010 Yonkers Road

Raleigh, NC 27604

Telephone: (888) ROTARYS or (919) 833-0707

Fax: (800) 909-9171 or (919) 833-8016

D7G0603N Related Products

	D7G0603N	D7G0408N-9613	D7G0611N	D7G0311N	D7G0303N	D7G0805S	D7C0211S	D7C0605S
Description	Rotary Switches 6P 3POS 30DEG ADJ NON-SHRT SLDR LUG		Rotary Switches Rotary Switch 6P-11P	Rotary Switches 3P 11POS 30DEG ADJ NON-SHRT SLDR LUG	Rotary Switches 3P 3POS 30DEG ADJ NON-SHRT SLDR LUG	Rotary Switches 8P 5POS 30DEG ADJ SHORTING SOLDER LUG	Rotary Switches 2P 11POS 30DEG ADJ SHORTING SOLDER LUG	Rotary Switches 6P 5POS 30DEG ADJ SHORTING SOLDER LUG
Maker	Electroswitch	-	Electroswitch	Electroswitch	Electroswitch	Electroswitch	-	-
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown	-	-
Executor completed	SILVER	-	SILVER	SILVER	SILVER	SILVER	-	-
Actuator length	1.875 inch	-	1.875 inch	1.875 inch	1.875 inch	1.875 inch	-	-
Actuator material	BRASS	-	BRASS	BRASS	BRASS	BRASS	-	-
Actuator type	ROTARY	-	ROTARY	ROTARY	ROTARY	ROTARY	-	-
Nozzle length	0.375 inch	-	0.375 inch	0.375 inch	0.375 inch	0.375 inch	-	-
Casing type	3/4-32	-	3/4-32	3/4-32	3/4-32	3/4-32	-	-
center contact material	BRASS	-	BRASS	BRASS	BRASS	BRASS	-	-
Center contact plating	SILVER	-	SILVER	SILVER	SILVER	SILVER	-	-
Contact (AC) maximum rated R load	1A@115VAC	-	1A@115VAC	1A@115VAC	1A@115VAC	1A@115VAC	-	-
Maximum contact current (AC)	1 A	-	1 A	1 A	1 A	1 A	-	-
Maximum contact current (DC)	2.25 A	-	2.25 A	2.25 A	2.25 A	2.25 A	-	-
Contact (DC) maximum rated R load	2.25A@28VDC	-	2.25A@28VDC	2.25A@28VDC	2.25A@28VDC	2.25A@28VDC	-	-
Contact resistance	0.003 mΩ	-	0.003 mΩ	0.003 mΩ	0.003 mΩ	0.003 mΩ	-	-
contact time	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	MAKE-BEFORE-BREAK	-	-
Maximum contact voltage (AC)	115 V	-	115 V	115 V	115 V	115 V	-	-
Maximum contact voltage (DC)	28 V	-	28 V	28 V	28 V	28 V	-	-
Dielectric withstand voltage	1500VAC V	-	1500VAC V	1500VAC V	1500VAC V	1500VAC V	-	-
Electrical life	25000 Cycle(s)	-	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	-	-
End contact material	BRASS	-	BRASS	BRASS	BRASS	BRASS	-	-
End contact plating	SILVER	-	SILVER	SILVER	SILVER	SILVER	-	-
Graduation angle	30 deg	-	30 deg	30 deg	30 deg	30 deg	-	-
Insulation resistance	750000000000 Ω	-	750000000000 Ω	750000000000 Ω	750000000000 Ω	750000000000 Ω	-	-
Manufacturer's serial number	D7	-	D7	D7	D7	D7	-	-
Installation features	PANEL MOUNT	-	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	-	-
Number of positions	2 THRU 3	-	2 THRU 11	2 THRU 11	2 THRU 3	2 THRU 5	-	-
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	-	-
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C	-65 °C	-65 °C	-	-
surface mount	NO	-	NO	NO	NO	NO	-	-
Switch action	CIRCULAR	-	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	-	-
Switch type	ROTARY SWITCH	-	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH	-	-
Termination type	SOLDER LUG	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	-	-
