70-402-1 Socket/10
Amp Rating, 300 Volts
SECTION 2
Printed Circuit
Board Mounting
BOLD-FACED PART NUMBERS ARE NORMALLY STOCKED
Standard Part Number
Description
UL Recognized
File No. E70550
Certified
97899
70-402-1
(UL 508)
Units
Value
8
300
10
1500
1500
- 40 to + 80
- 40 to+ 105
Copper Alloy, Zinc Plated
Copper Alloy, Zinc Plated
Printed Circuit
Solder
94V-0
Light Gray
UL, CSA
CE, RoHS
6.5

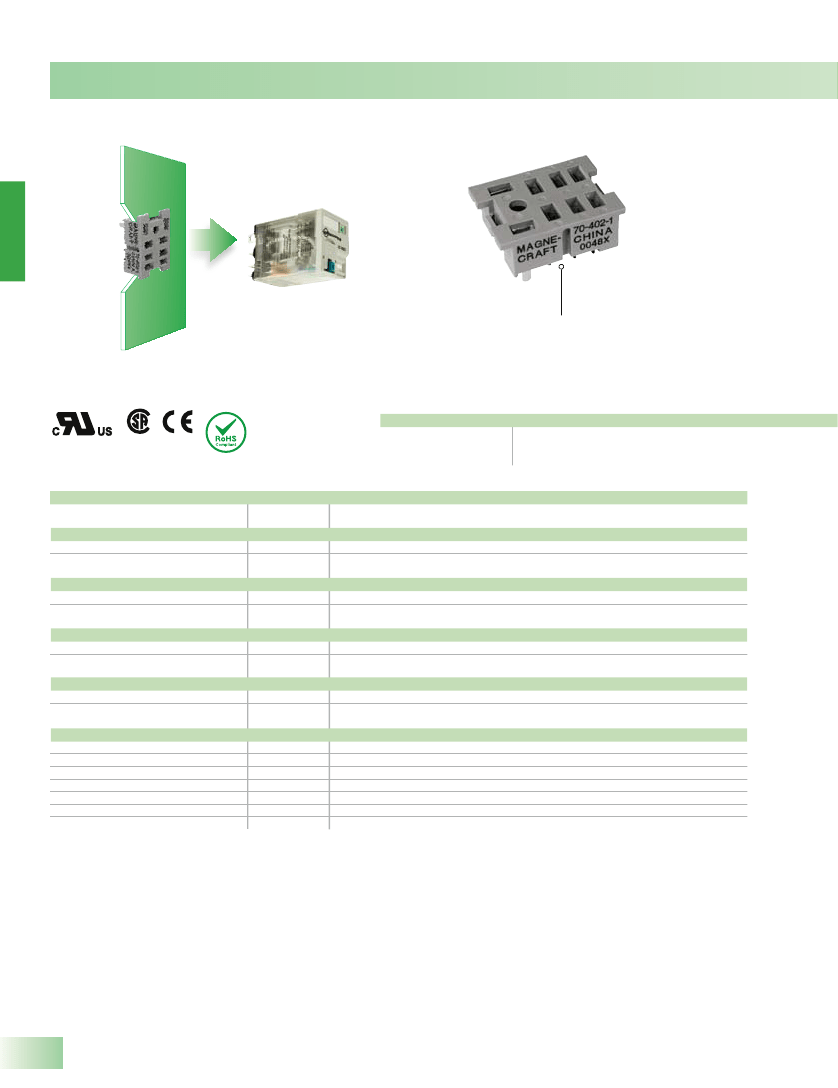

8-Pin, Printed Circuit Terminals
General Specifications
WHITE
Characteristics
Number of Terminals
Electrical Rating
Nominal Voltage Rating
Nominal Current Rating
Dielectric Strength
Output to Input Terminals
Output to Adjacent Output Terminals
Temperature
Operating Range:
Storage Range:
Construction
Internal Metal Tracks
Terminals
Miscellaneous
Socket Mounting:
Connection Method
Flamability Rating
Body Color
Product Certification
Conformance
Weight
Volts
Amps
V rms
V rms
°C
°C
Class
grams
2/54
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
www.magnecraft.com
847-441-2540
Optional Mating Accessories
SECTION 2
782 Relays
16-1324
16-1342
Standard Part Number
782XAX, XBX
16-1324
16-1342
Description
Relay
Metal Hold-Down Clip, Front to Back, 782 Plain Cover Relay Only
Metal Hold-Down Clip, Side Mount
Catalog Location
Section 1 p.12-13
Section 3 p.8-11
Section 3 p.8-11
16-1342
Metal Hold-Down Clip
See Section 3 p.8-11
.440
(11.1)
.075
(1.90)
.390
(9.90)
.833
(21.1)
.036
(0.91)
1.14
(29.1)
.078
(1.98)
.180
(4.57)
.078
(1.98)
0.27
(7)
2.01
(51)
.150
(3.81)
1
12
5
14
4
42
8
44
12
41
13
A1
N.C.
N.O.
COM
INPUT
.086 (2.18) DIA.
8 PLACES
RECOMMENDED

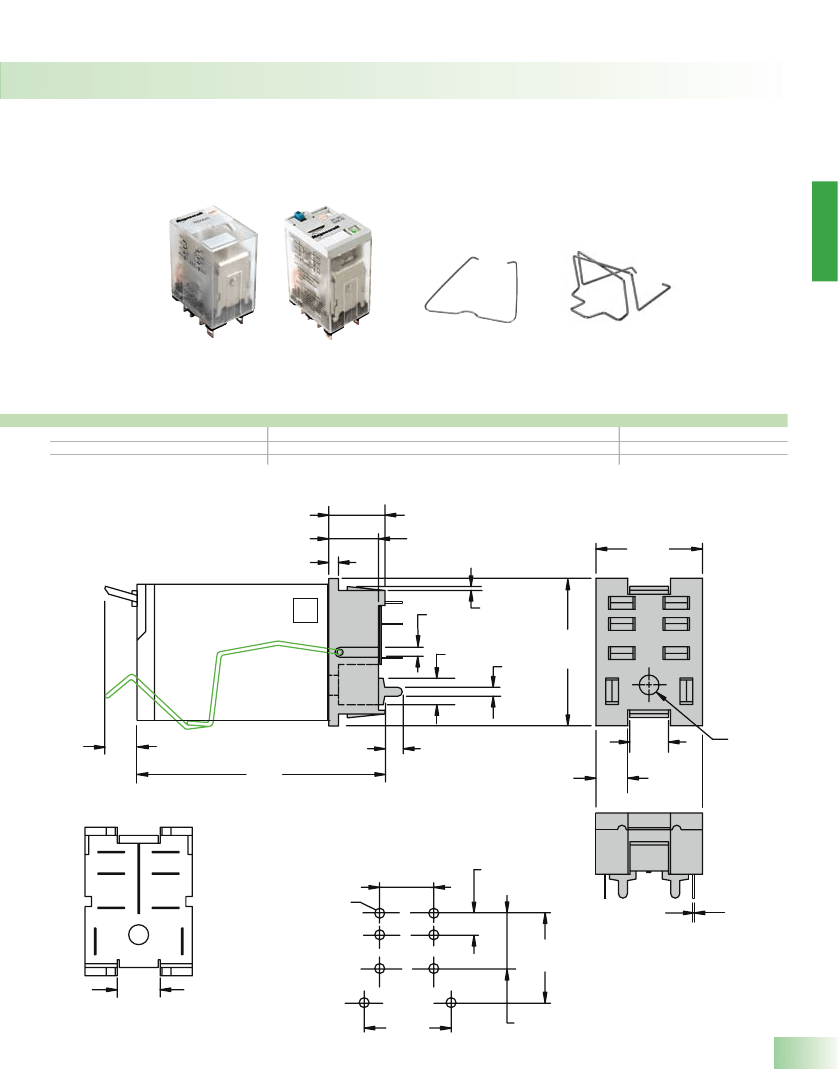

CIRCUIT BOARD LAYOUT
TOP VIEW
.394
(10.0)
.185
(4.699)
.243
(6.17)
(4)
.300
(7.62)
(2)
.155 DIA.
(3.93)
NEMA
IEC
9
11
14
A2
.015
(0.381)
(8)
.672
(17.06)
.340
(8.63)
Wiring Diagram
Bottom View
Magnecra f t So l u t io n Gu i de 1 0 5 A
.620
(15.74)
.417
(10.59)
2/55
