HRPG-AD1659F

Description
Encoders RPG Detent 16CPR
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size312KB,9 Pages
ManufacturerBroadcom
Download Datasheet Parametric View All

HRPG-AD1659F Online Shopping

Suppliers Part Number Price MOQ In stock
HRPG-AD1659F - - View Buy Now

HRPG-AD1659F Overview

Encoders RPG Detent 16CPR

HRPG-AD1659F Parametric

Parameter NameAttribute value
Product CategoryEncoders
ManufacturerBroadcom
RoHSDetails
Mounting StylePanel Mount
ProductOptical
TypeIncremental
Resolution16 PPR
TechnologyRotary
Number of Detents16 Detent
Number of Channels2 Channel
Termination StylePin
Output TypeQuadrature
Shaft Diameter6 mm
Shaft TypeFlatted
With SwitchNo Switch
Operating Supply Voltage5 VDC
PackagingTray
Bushing MaterialPlastic
Bushing Size3/8 in x 0.23 in
Bushing Thread3/8-32 UNEF
Operating Temperature Range0 C to + 70 C
Size / Dimension6 mm
Factory Pack Quantity50
HRPG Series
Miniature Panel Mount Optical Encoders
Data Sheet
Description

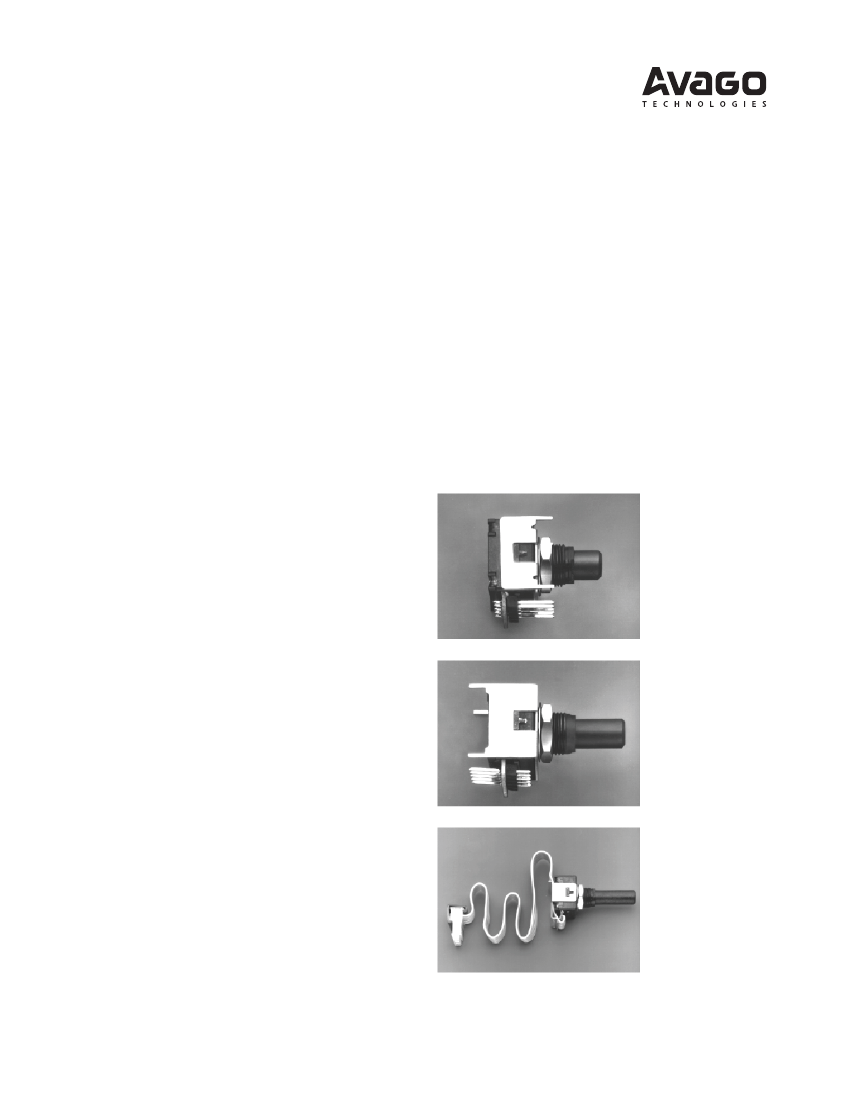

The HRPG series is a family of miniature panel mount
optical encoders, also known as Rotary Pulse Gen-
erators (RPG) and digital potentiometers. The HRPG is
designed to be mounted on a front panel and used as
a rotary, data-entry device. The HRPG is very flexible
for numerous applications due to the many configura-
tion options available. These options include detents or
smooth, multiple terminations, versatile mounting capa-
bilities, and different shaft configurations.
The HRPG uses optical reflective technology providing
accuracy and reliability to the encoder. An LED emits
a beam of light onto the specular codewheel surface.
When the light strikes the surface, it projects the image
of the codewheel back on the photodetector, causing
the output to change. The entire detector circuit is on
one IC, thus the part is less sensitive to temperature
and other environmental variations.
Features

Miniature size

Smooth turning and detented options

Multiple mounting bracket options

Uses optical reflective technology

Quadrature digital output

Small footprint for versatile mounting

TTL compatible
Applications
Typical applications for the Rotary Pulse Generator include
front panel instruments, audio/visual boards, and other
devices requiring digital output from a turning knob.
Note: Avago Technologies encoders are not recom-
mended for use in safety critical applications. Eg. ABS
braking systems, power steering, life support systems
and critical care medical equipment. Please contact sales
representative if more clarification is needed.
