Suppression Chokes
https://www.schurter.com /PG81_82

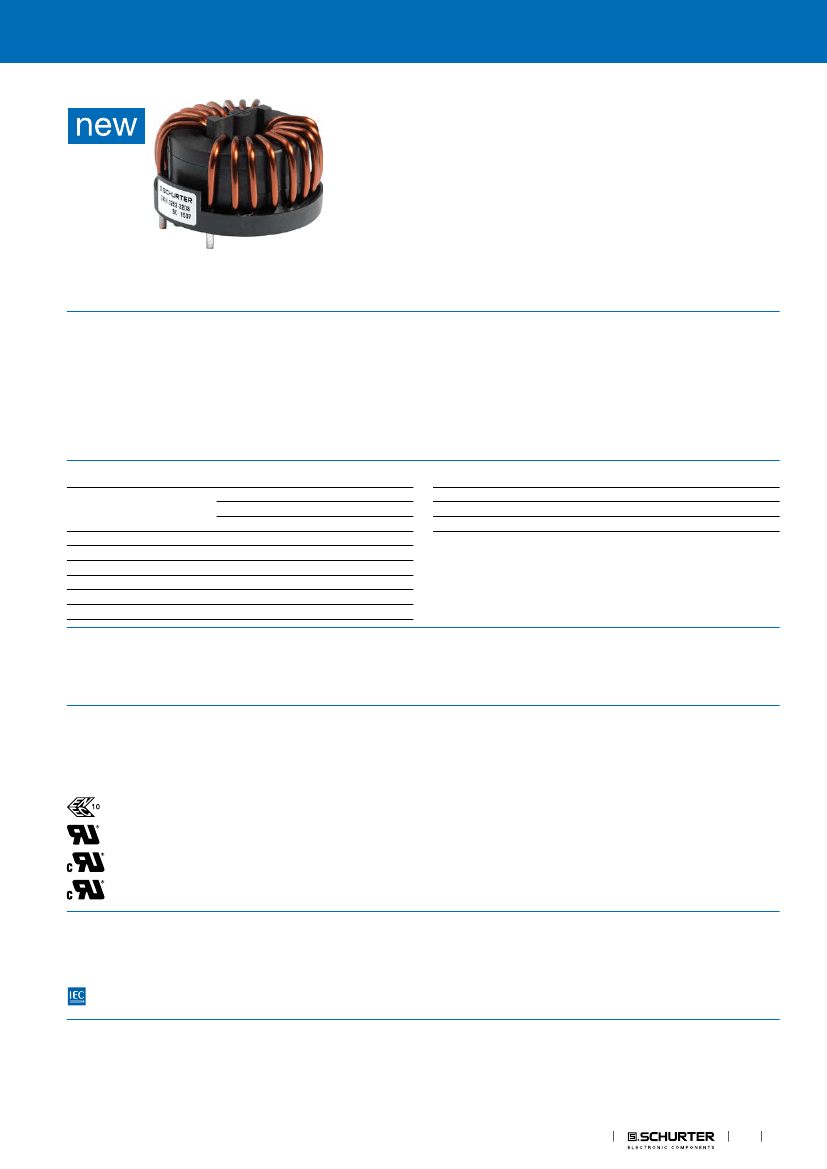

DKIH-1
Compensated High Current Choke, 1-phase
Approvals and Compliances
Description
-
-
-
-
-
-
-
-
Current compensated choke
1-phase choke
THT-terminals
Flange for mounting onto printed circuit board
Compact size and light weight
Open design for optimal cooling
Nanocrystalline or ferrite ring cores
Customer specific pin outs available
Applications
-
-
-
-
Frequency converter
Charge stations
UPS-systems
Switching power supplies
Unique Selling Proposition
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, SPICE Library
Technical Data
Rated voltage
␣
␣
Rated Current
Rated inductance
Power Operating Frequency
Terminal Type
Weight
Material: Housing
IEC, UL: 300 VAC
CSA: 250 VAC
max. 425 VDC
10 - 50 A @ Ta 40 °C
0.15 - 6.9 mH, Tol. -30% +50%
0 - 400 Hz
THT
30 - 115 g
UL 94V-0
Test Voltage
Climatic Category
Allowable Operation Temp.
2500 VDC, 2 sec, winding to winding
40/100/21 acc. to IEC 60068-1
-40 °C to 100 °C
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: DKIH-1
Approval Logo
Certificates
VDE Approvals
UL Approvals
Approvals
Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40043700
UL File Number: E72928
UL File Number: DKIH-1
UL File Number: DKIH-1
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
EMC Products
1
DKIH-1
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
https://www.schurter.com /PG81_82
Suppression Chokes
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

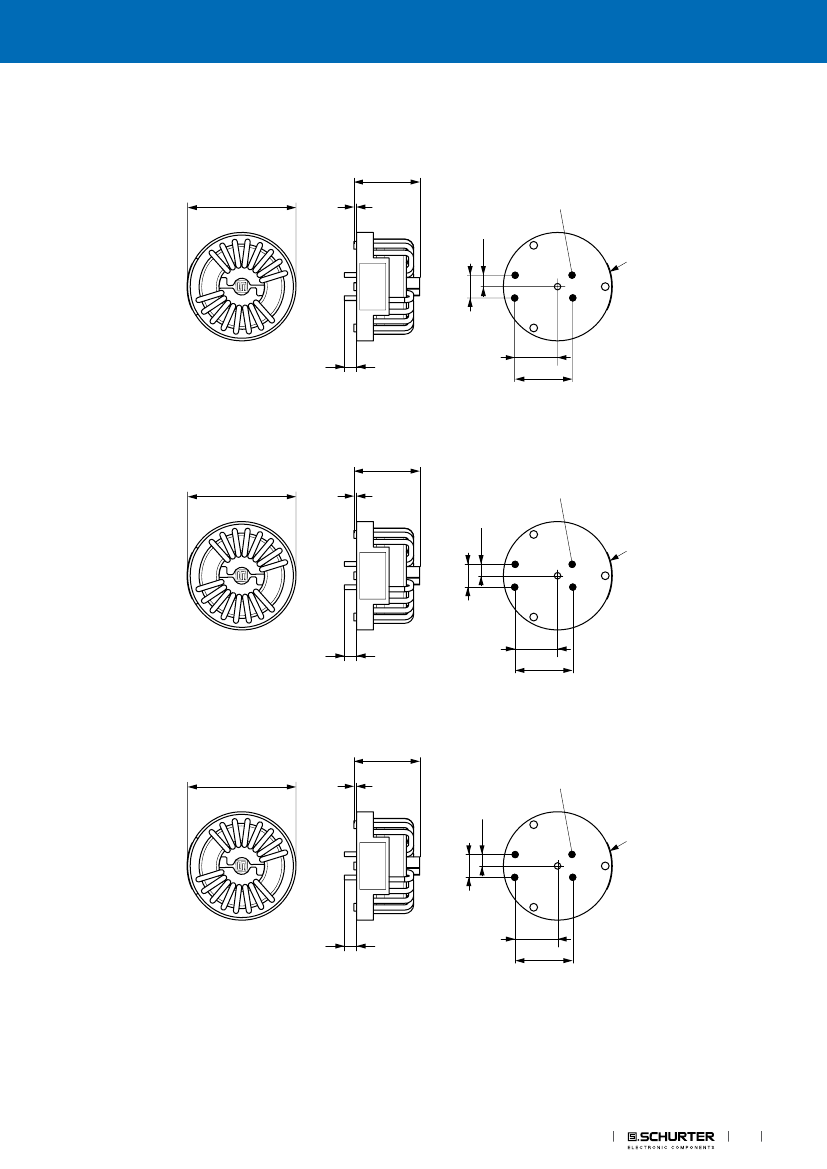

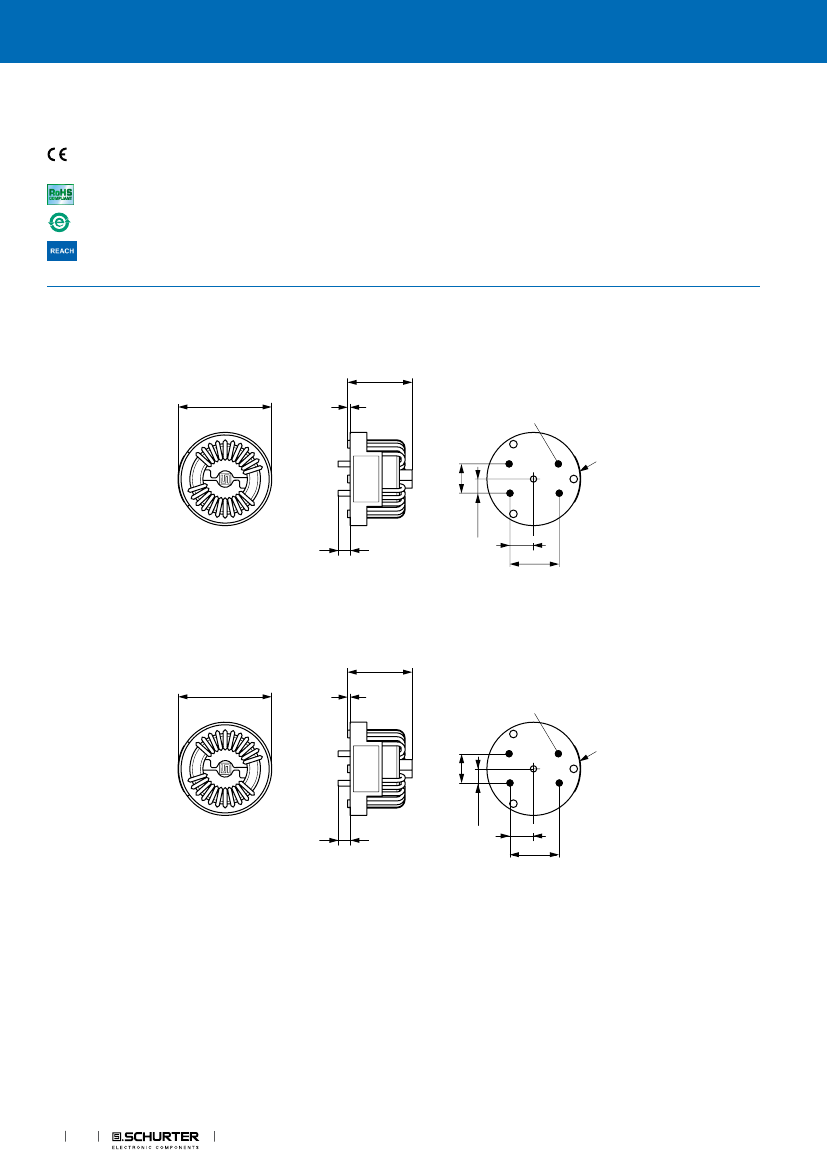

Dimension [mm]
37-10
max. 26
max. 37
1
(4x) Terminal ø1.25+0.3/-0
13.6
±0.1
2
4
6.8
±0.1
1
3
Label
5
+1
-0.5
11.5
±0.1
23
±0.1

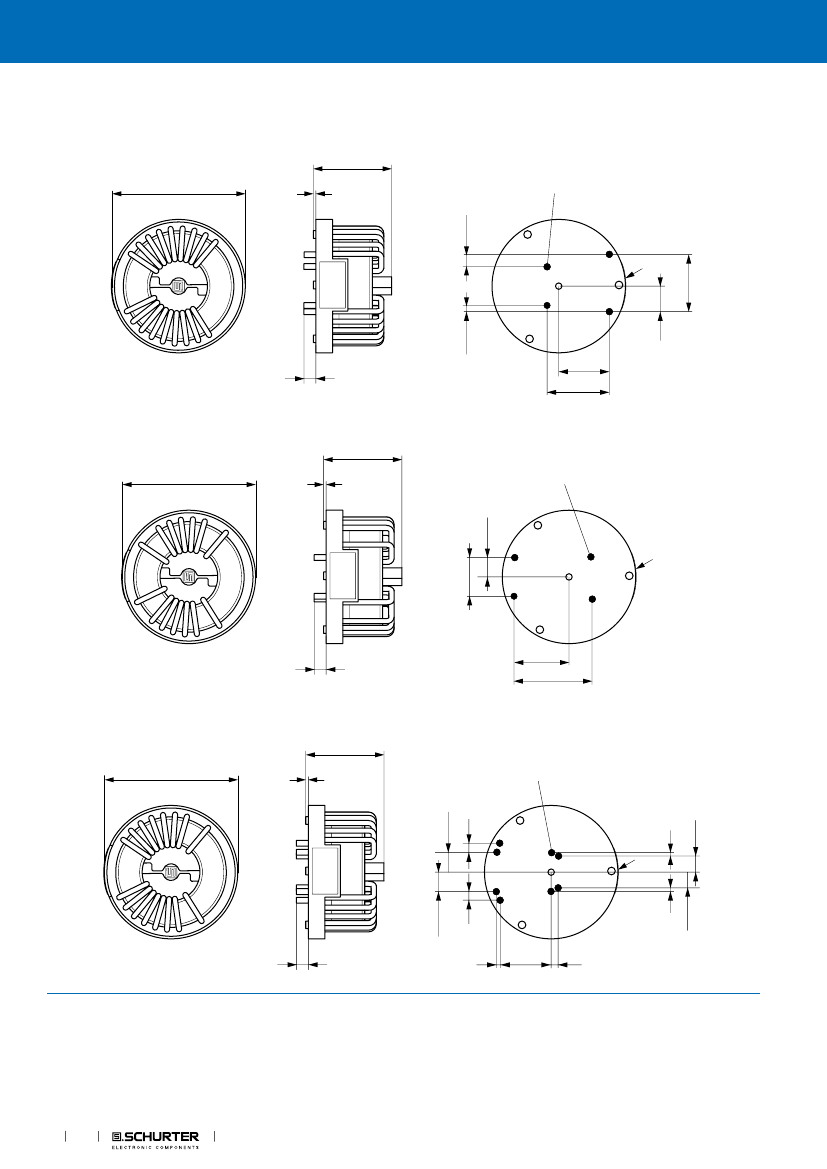

37-12
max. 26
max. 37
1
(4x) Terminal ø1.5+0.3/-0
13.6
±0.1
2
4
6.8
±0.1
1
3
Label
5
-0.5
+1
11.5
±0.1
23
±0.1
2
EMC Products
