MBH12282C-101MA=P3: DescriptionOperational Amplifiers - Op Amps Sgl-Sply Op Amp MicroAmp(TM) Series; CategoryPassive components inductor; File Size288KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MBH12282C-101MA=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBH12282C-101MA=P3	-	-	View	Buy Now

MBH12282C-101MA=P3 Overview

Operational Amplifiers - Op Amps Sgl-Sply Op Amp MicroAmp(TM) Series

MBH12282C-101MA=P3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks 1 day
core material	FERRITE
DC Resistance	0.132 Ω
Nominal inductance(L)	100 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.9 A
Guideline	AEC-Q200
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

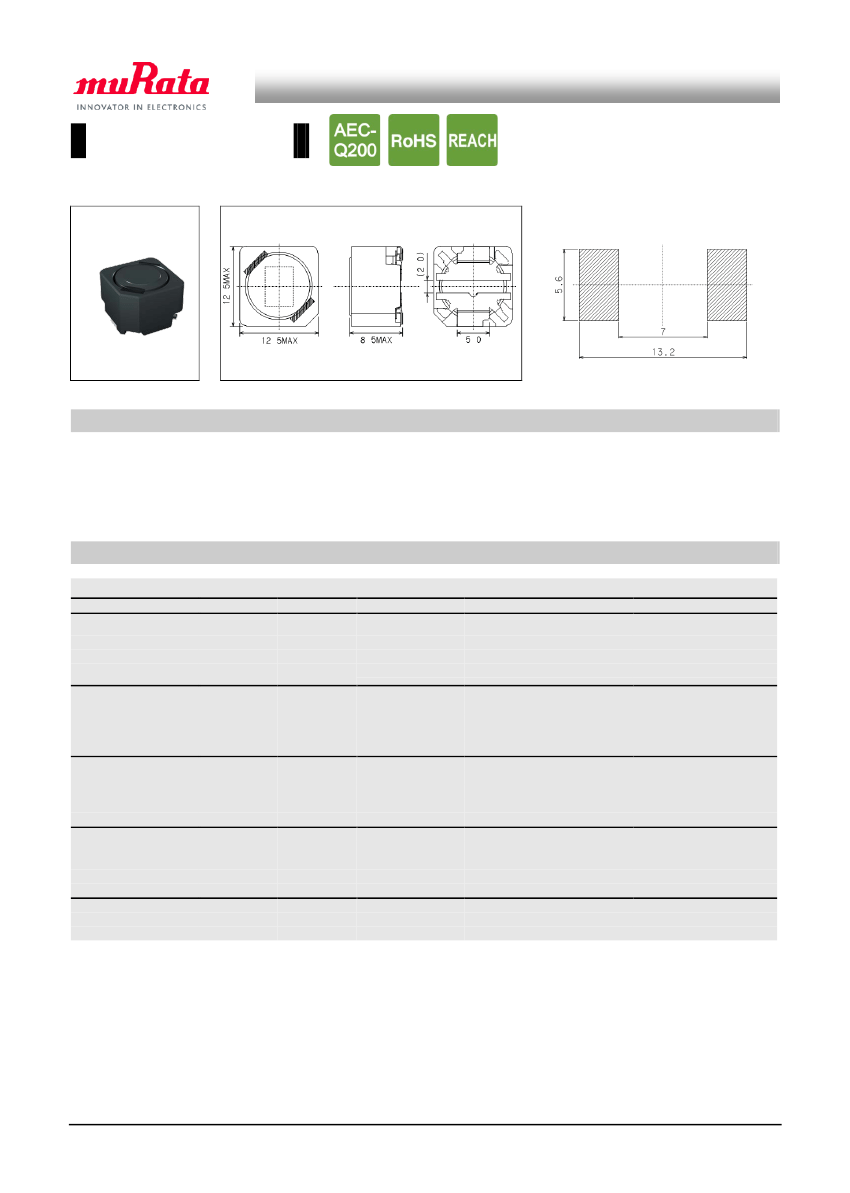

Ferrite Inductors

铁氧½功率电感器

MBH12282C

Inductance Range:

2.0~1000µH

Recommended patterns

推荐焊盘尺寸

(Unit: mm)

FEATURES

•

特点

•

符合AEC-Q200

•

最大12.5×12.5毫米的平面，最大高度8.5毫米

•

磁性屏½结构

•

½用温度范围：-40½+150°C

AEC-Q200 Compliant.

12.5× 12.5mm Max. square, 8.5mm Max. height.

Magnetically shielded.

Operating temperature : -40½+150°C

STANDARD PART NUMBERS

标准零件号码

TYPE MBH12282C (Quantity/reel; 300 PCS)

零件号码

Part

Number

* MBH12282C-2R0NA=P3

* MBH12282C-3R9NA=P3

* MBH12282C-4R7NA=P3

MBH12282C-6R8NA=P3

MBH12282C-100MA=P3

* MBH12282C-150MA=P3

* MBH12282C-220MA=P3

* MBH12282C-330MA=P3

MBH12282C-470MA=P3

MBH12282C-680MA=P3

MBH12282C-820MA=P3

MBH12282C-101MA=P3

* MBH12282C-151MA=P3

* MBH12282C-221MA=P3

MBH12282C-331MA=P3

* MBH12282C-471MA=P3

* MBH12282C-681MA=P3

MBH12282C-102MA=P3

电感值

(1)

Inductance

(1)

(µH)

2.0

3.9

4.7

6.8

10

15

22

33

47

68

82

100

150

220

330

470

680

1000

公差

Tolerance

(%)

±30

±20

最大直流电阻

(2)

(典型)

DC

Resistance

(2)

(mΩ)

Tolerance

±20%

9.1

12

13

15

18

21

29

47

66

83

91

110

160

250

350

460

720

1050

最大电感值减小电流

(3)

(典型)

Inductance

Decrease Current

(3)

(A) Max.(Typ.)

ΔL/L=10%

13 (18)

9.1 (13)

7.9 (11)

7.0 (10)

5.7 (8.2)

4.4 (6.3)

3.8 (5.5)

3.0 (4.3)

2.5 (3.6)

2.1 (3.0)

1.9 (2.8)

1.7 (2.5)

1.4 (2.0)

1.1 (1.6)

0.9 (1.3)

0.84 (1.2)

0.66 (0.95)

0.56 (0.81)

最大温度上升电流

(3)

(典型)

Temperature

Rise Current

(3)

∆T=40°C

(A) Max. (Typ.)

7.3 (9.2)

6.2 (7.8)

5.9 (7.4)

5.7 (7.2)

5.3 (6.3)

4.7 (5.6)

4.0 (4.8)

3.0 (3.6)

2.6 (3.1)

2.2 (2.7)

2.2 (2.6)

1.9 (2.3)

1.6 (1.9)

1.2 (1.5)

1.1 (1.3)

0.93 (1.1)

0.76 (0.90)

0.59 (0.70)

* Under development

1) Inductance is measured with a LCR meter 4284A(Agilent

Technologies) or equivalent. Test frequency at 100kHz

(2) DC resistance is measured with 34420A (Agilent Technologies) or

3541(HIOKI). (Reference ambient temperature 25°C)

(3) Maximum allowable DC current is that which causes a 10%

inductance reduction from the initial value, coil temperature to rise

by 40°C, whichever is smaller.

(Reference ambient temperature 25°C)

(1) LCR仪表4284A (Agilent技术)或者功½相同的仪器在100kHz下测

试电感值。

(2)

通过数码万用表34420A（Agilent技术）或者3541(HIOKI)测试直

流电阻。（环境温度为25°C）

(3)

允许最大直流电的范围是以下两者中比较小的一个：引起电感值

从最初值降½10%，或者线圈温度升高40°C。

（参考周围环境温度25°C）。

MBH12282C-101MA=P3 Related Products
