TWW3J2R7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> TWW3J2R7

TWW3J2R7: DescriptionWirewound Resistors - Through Hole 3watt 2.7ohm 5% Vertical Mount; CategoryPassive components The resistor; File Size436KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com

Download Datasheet Parametric View All

TWW3J2R7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TWW3J2R7	-	-	View	Buy Now

TWW3J2R7 Overview

Wirewound Resistors - Through Hole 3watt 2.7ohm 5% Vertical Mount

TWW3J2R7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Ohmite
package instruction	Radial, 4914
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	VERTICAL
structure	Vertical Mount
Lead diameter	0.813 mm
Lead length	3.5 mm
lead spacing	5 mm
Number of terminals	2
Package height	25 mm
Package length	12.5 mm
Package form	Radial
Package width	3.5 mm
Rated power dissipation(P)	3 W
resistance	2.7 Ω
Resistor type	FIXED RESISTOR
size code	4914
technology	WIRE WOUND
Tolerance	5%

Preview

Download Datasheet

View All

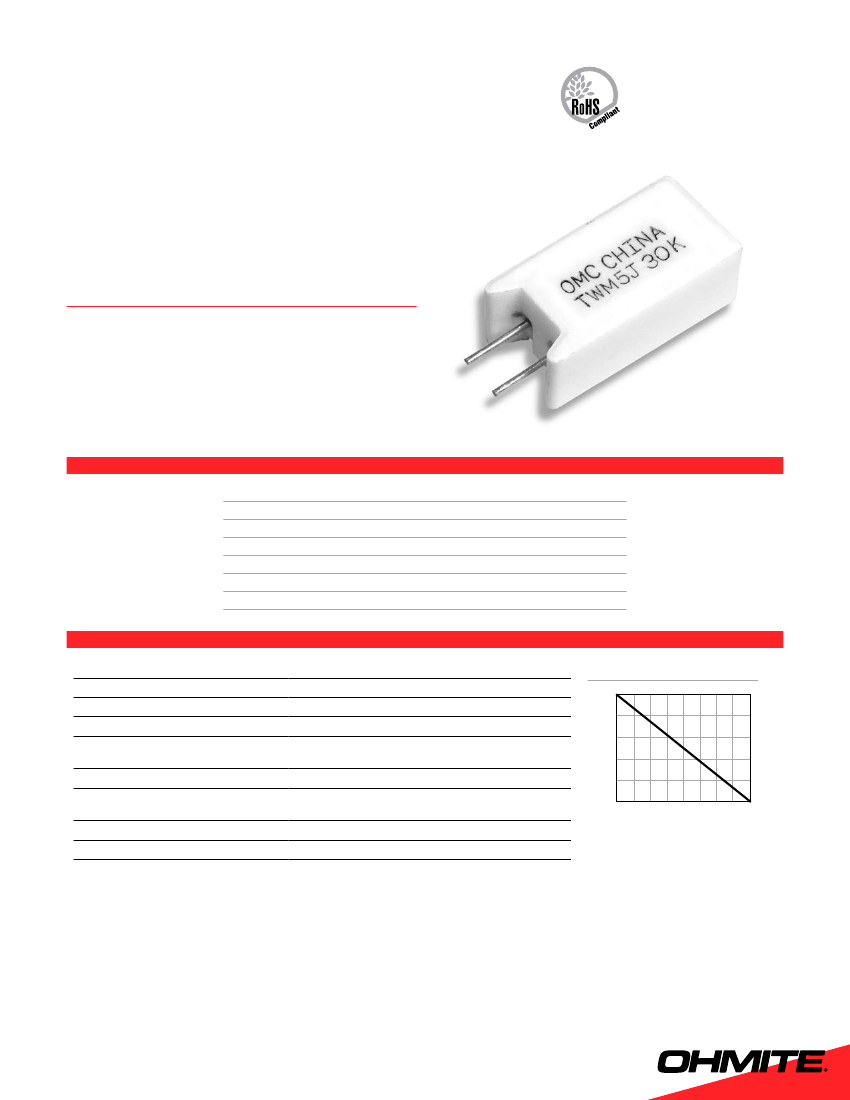

TWM/TWW Series

Ceramic Housed Radial Terminal Power

The TWM/TWW series radial terminal power resis-

tors offer significant board space savings over axial

terminal products. Generated heat is also kept away

from the circuit board.

They are recommended for commercial applica-

tions requiring low cost.

F e aT u r e S

• Economical Commercial Grade for general purpose

use

• Wirewound and Metal Oxide construction

• Wide resistance range

• Flameproof inorganic construction

S e r I e S S P e C I F I C aT I O N S

Series

TWW3

TWW5

TWW10

TWM3

TWM5

TWM10

Wattage

Resistance

0.01-39Ω

0.01-47Ω

0.04-990Ω

43-50KΩ

51-50KΩ

1000-50KΩ

Voltage

250

350

750

250

350

750

Element

Wire

Metal oxide

CharaCTerISTICS

Housing

Ceramic

Core

Fiberglass

Filling

Cement based

Tolerance

5% standard

Temperature coeffIicient

0.01-20Ω ±400ppm/°C;

20-10Ω ±350ppm/°C

Dielectric withstanding voltage

1,000VAC

Short time overload

TWW: 10x rated power for 5 sec.;

TWM: 5x rated power for 5 sec.

Operating Temperature

-55°C to 275°C

Storage Temperature

6°C to 36°C

Derating

100

Percent Rated Watts

70 100

150

200

250 275

Ambient Temperature, C

(continued)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
