RF Components
DEA102700LT-6307A2
ELECTRICAL CHARACTERISTICS
Item
Frequency Range
(MHz)
2400 to 2500
2500 to 2700
2400 to 2500
2500 to 2700
2400 to 2700
4800 to 5400
7200 to 8100
Min.
—
—
—
—
11.73
21
21
Typ.
0.33
0.40
—
—
20.3
26.0
24.2
50 (Nominal)
Max.
0.45
0.60
0.55 (–40 to +85°C)
0.70 (–40 to +85°C)
—
—
—
Insertion Loss (dB)
Return Loss (dB)
Attenuation (dB)
Characteristic Impedance (:)
・Ta:
+25±5°C
TEMPERATURE RANGE
Operating temperature
(°C)
–40 to +85
Storage temperature
(°C)
–40 to +85
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150601 / rf_lpf_dea102700lt-6307a2_en.fm
RF Components
DEA102700LT-6307A2

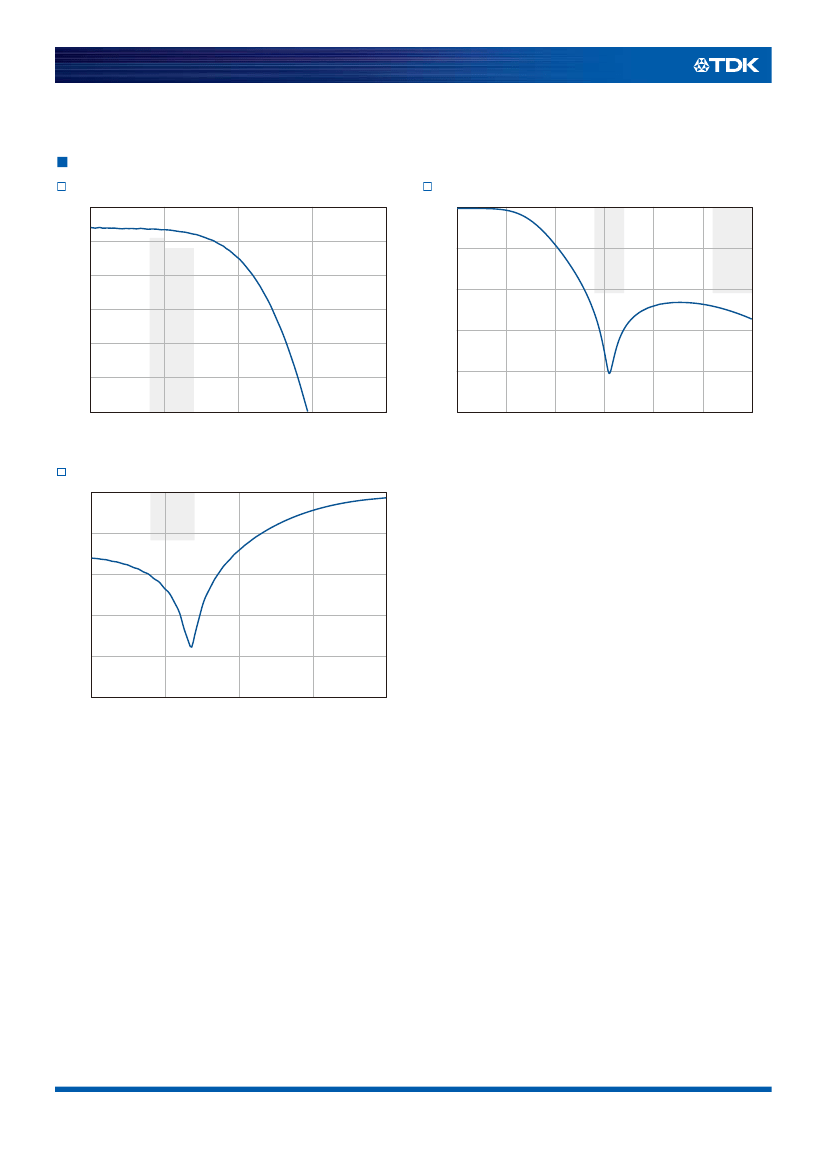

FREQUENCY CHARACTERISTICS
INSERTION LOSS
0.0
ATTENUATION
0
0.5
10
Insertion Loss(dB)
1.0
Attenuation(dB)
2500
3000
Frequency(MHz)
3500
4000
20
1.5
30
2.0
40
2.5
3.0
2000
50
2000
3000
4000
5000
Frequency(MHz)
6000
7000
8000
RETURN LOSS
0
10
Return Loss(dB)
20
30
40
50
2000
2500
3000
Frequency(MHz)
3500
4000
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150601 / rf_lpf_dea102700lt-6307a2_en.fm
RF Components
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Peak
T4
T:
Temperature
3°C/sec
or lower
6°C/sec
or lower
T3
T3
T2
T1
t1
t3
t2
t:
Time
Preheating
Temp.
T1
150°C
t3
T2
200°C
Time
t1
60 to 120sec
Soldering
Critical zone (T3 to T4)
Temp.
Time
T3
t2
217°C
60 to 120sec
Peak
Temp.
T4
240 to 260°C
Time
t3
30sec max.
: Time within 5°C of actual peak temperature
The maximum number of reflow is 3.
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
