7B32700038 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> 7B32700038

Preview

7B32700038: DescriptionCrystals 32 MHz 10pF -20C +85C; CategoryPassive components Crystal/resonator; File Size286KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric View All

7B32700038 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7B32700038	-	-	View	Buy Now

7B32700038 Overview

Crystals 32 MHz 10pF -20C +85C

7B32700038 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	32.768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
physical size	L5.0XB3.2XH0.9 (mm)/L0.197XB0.126XH0.035 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

Quartz Crystals

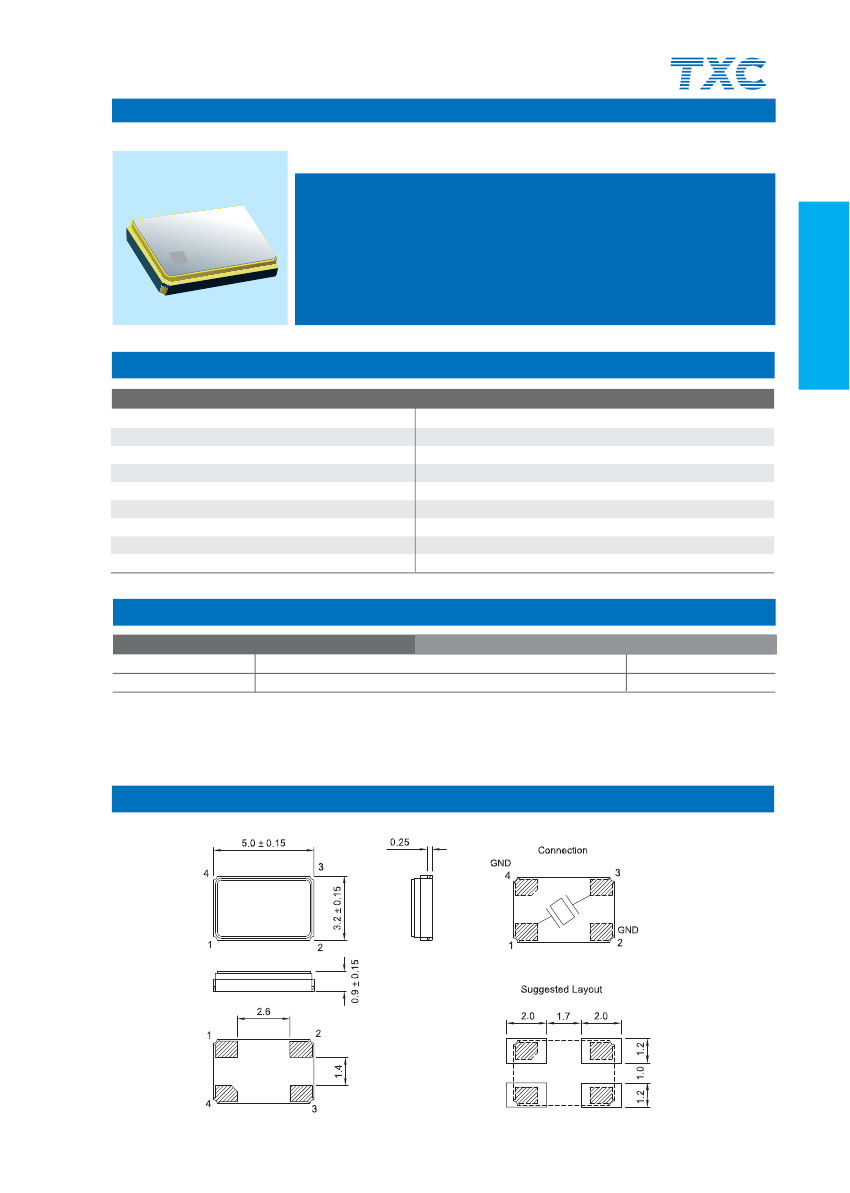

5 x 3.2 mm SMD SEAM CRYSTAL

7B SERIES

Features

>

Ultra small SMD type crystal units..

4

. 0

T

X

C 2 O

A

E

Q

>

High precision characteristics covering up to wide frequency range.

>

Higher frequency stability and reliability.

>

Excellent for reducing EMI effect.

>

The best choice of Bluetooth, wireless communication set, DSC, PDA,mobile phone

and USB interface card.

Quartz Crystals

>

RoHS Compliant / Pb Free

Electrical Specifications

Item / Type

Frequency Range

Frequency Tolerance (at 25 ºC)

Frequency Stability Over Operating Temperature Range

Operating Temperature Range

Shunt Capacitance (C0)

Drive Level

Load Capacitance

Aging (at 25 ºC)

Storage Temperature Range

7B

8 ~ 100 MHz

± 30 ppm, or specify

± 30 ppm (-20 ~ +70 ºC), or specify

- 40 ~ + 85 ºC

5 pF Max. (2 pF typical)

1 ~ 100 μW (10 μW typical)

18 pF, or specify

± 3 ppm / year Max.

- 55 ~ + 125 ºC

Equivalent Series Resistance(ESR)

Fundamental

8 ~ 12 MHz

12 ~ 48 MHz

100 Ω Max.

40 Ω Max.

3rd Overtone

40 ~ 60 MHz

60 ~ 100 MHz

120 Ω Max.

80 Ω Max.

Dimensions

Units:mm

Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
