B1047AS-2R7N=P3 Overview

Development Boards u0026 Kits - ARM I.MX 7 SABRE Board

B1047AS-2R7N=P3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 2929
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
core material	FERRITE
DC Resistance	0.018 Ω
Nominal inductance(L)	2.7 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	5.1 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

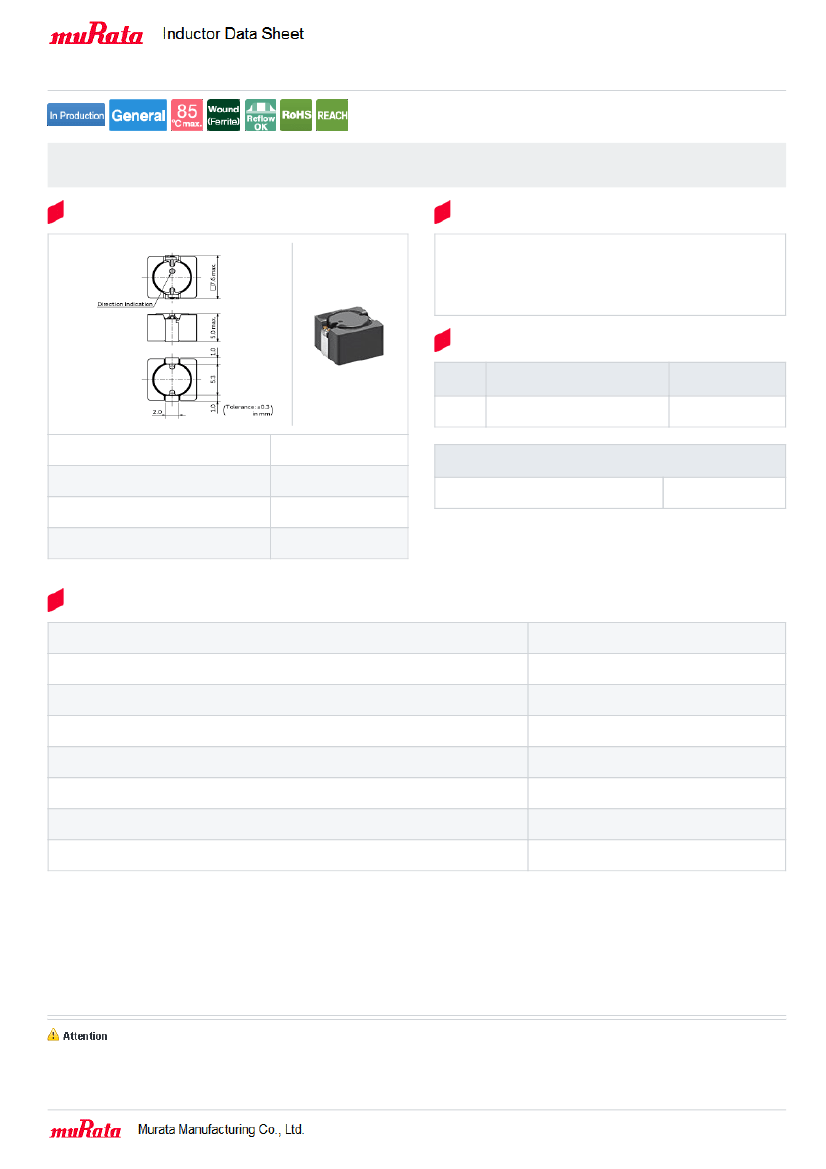

B1047AS-2R7N#

< List of part numbers with package codes >

“#” indicates a package specification code.

B1047AS-2R7N=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 30%. (The ambient reference temperature is 20℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 20℃.)

References

Packaging

code

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

1000

L size

W size

T size

Size code in inch (mm)

7.3 ±0.3mm

5.0 mm

2929 (7373)

Mass (Typ.)

1 piece

0.975g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Series

2.7µH ±30%

0.1MHz

5600mA

5100mA

0.018Ω

-40〜85℃

Ferrite Core

DS75LC

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2017/12/24
