54LS365A/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS365A/B2A

54LS365A/B2A: DescriptionBus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CQCC20,; Categorylogic logic; File Size181KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54LS365A/B2A Overview

Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CQCC20,

54LS365A/B2A Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	LS
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	24 mA
propagation delay (tpd)	29 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

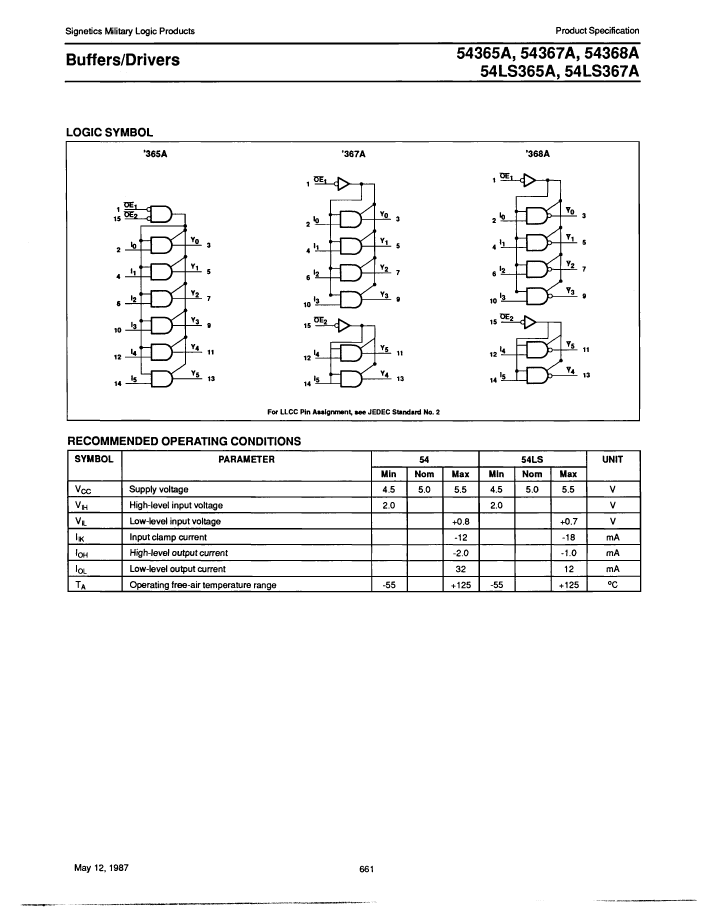

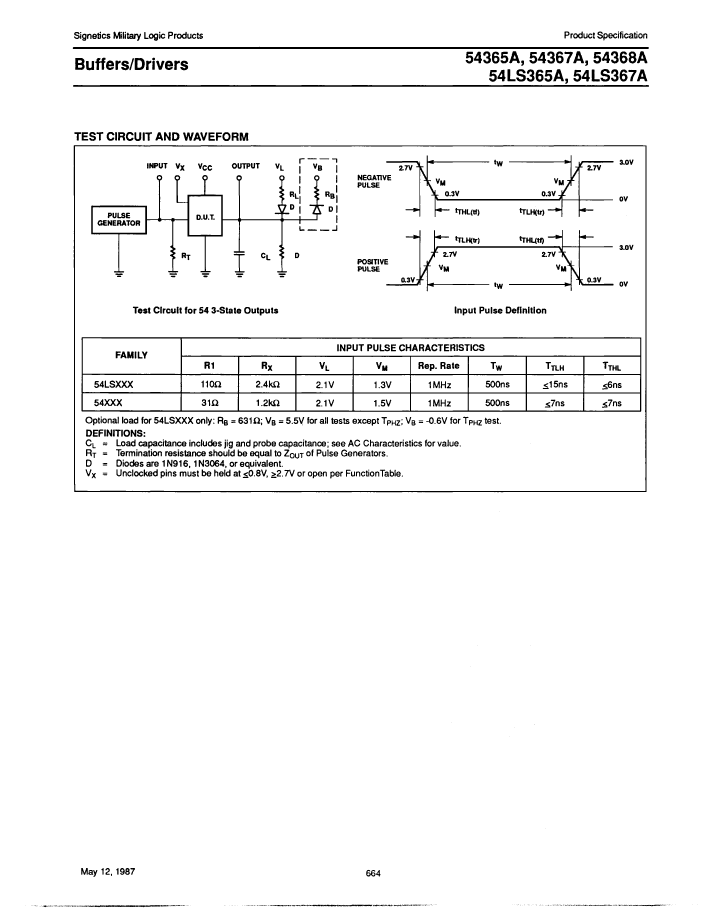

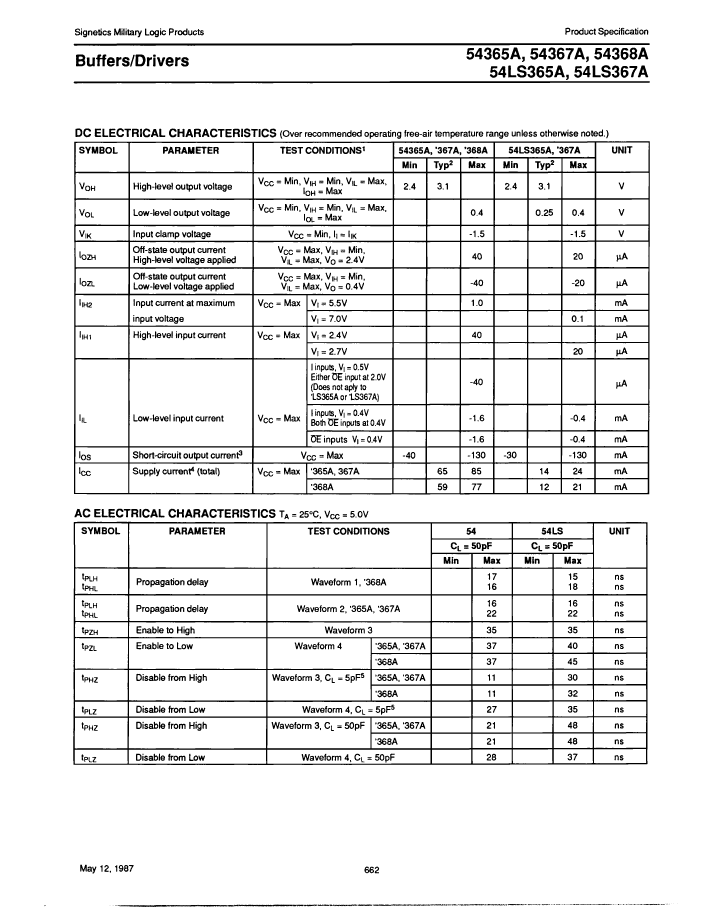

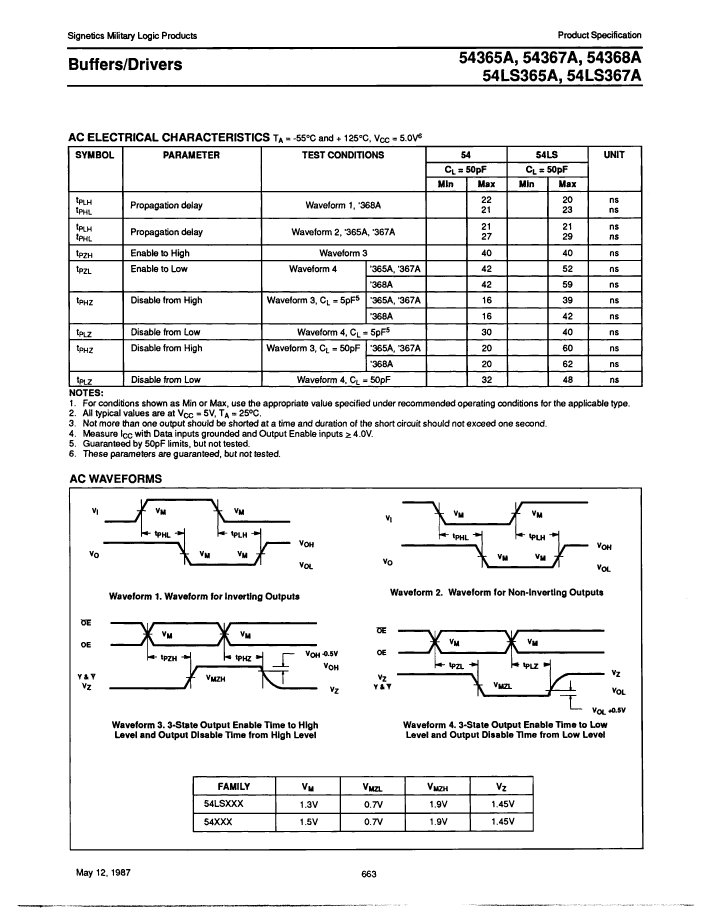

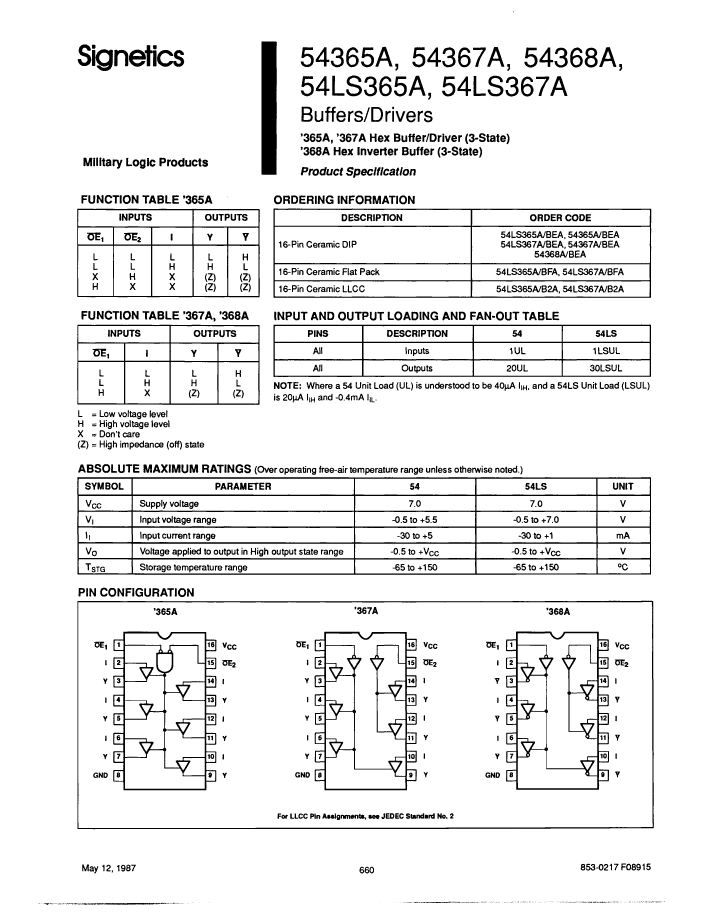

Preview

Download Datasheet

View All

54LS365A/B2A Related Products

	54LS365A/B2A	54LS367A/B2A	54368A/BEA	54LS367A/BEA	54LS365A/BEA	54367A/BEA	54LS367A/BFA	DIP1989SD021722DD	54365A/BEA
Description	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CQCC20,	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CQCC20,	Bus Driver, TTL/H/L Series, 2-Func, 4-Bit, Inverted Output, TTL, CDIP16	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDIP16,	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDIP16,	Bus Driver, TTL/H/L Series, 2-Func, 4-Bit, True Output, TTL, CDIP16	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDFP16,	Array/Network Resistor, Isolated, 0.2W, 17200ohm, 100V, 0.5% +/-Tol, -50,50ppm/Cel, 7025,	Bus Driver, TTL/H/L Series, 1-Func, 6-Bit, True Output, TTL, CDIP16
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	compliant	unknown
series	LS	LS	TTL/H/L	LS	LS	TTL/H/L	LS	1900	TTL/H/L
Number of terminals	20	20	16	16	16	16	16	14	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	150 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	DIP	IN-LINE
Other features	WITH DUAL OUTPUT ENABLE	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	WITH DUAL OUTPUT ENABLE	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	-	WITH DUAL OUTPUT ENABLE
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16	-	R-CDIP-T16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	-	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	-	BUS DRIVER
Number of digits	6	6	4	6	6	4	6	-	6
Number of functions	1	1	2	1	1	2	1	-	1
Number of ports	2	2	2	2	2	2	2	-	2
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE
Output polarity	TRUE	TRUE	INVERTED	TRUE	TRUE	TRUE	TRUE	-	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Maximum supply current (ICC)	24 mA	24 mA	77 mA	24 mA	24 mA	85 mA	24 mA	-	85 mA
propagation delay (tpd)	29 ns	29 ns	21 ns	29 ns	29 ns	27 ns	29 ns	-	27 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V
surface mount	YES	YES	NO	NO	NO	NO	YES	-	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	-	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	-	THROUGH-HOLE
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL
Base Number Matches	1	1	1	1	1	1	1	-	1
