AISC-1812H-331K-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> AISC-1812H-331K-T

AISC-1812H-331K-T: DescriptionFixed Inductors 330uH 10%; CategoryPassive components inductor; File Size836KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AISC-1812H-331K-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AISC-1812H-331K-T	-	-	View	Buy Now

AISC-1812H-331K-T Overview

Fixed Inductors 330uH 10%

AISC-1812H-331K-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	CHIP
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
uppercase and lowercase codes	1812
structure	Rectangular
DC Resistance	7.75 Ω
Nominal inductance(L)	330 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package height	2.6 mm
Package length	4.5 mm
Package form	SMT
Package width	3.2 mm
method of packing	TR, EMBOSSED, 13 INCH
Maximum rated current	0.1 A
self resonant frequency	3.6 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	10%

Preview

Download Datasheet

View All

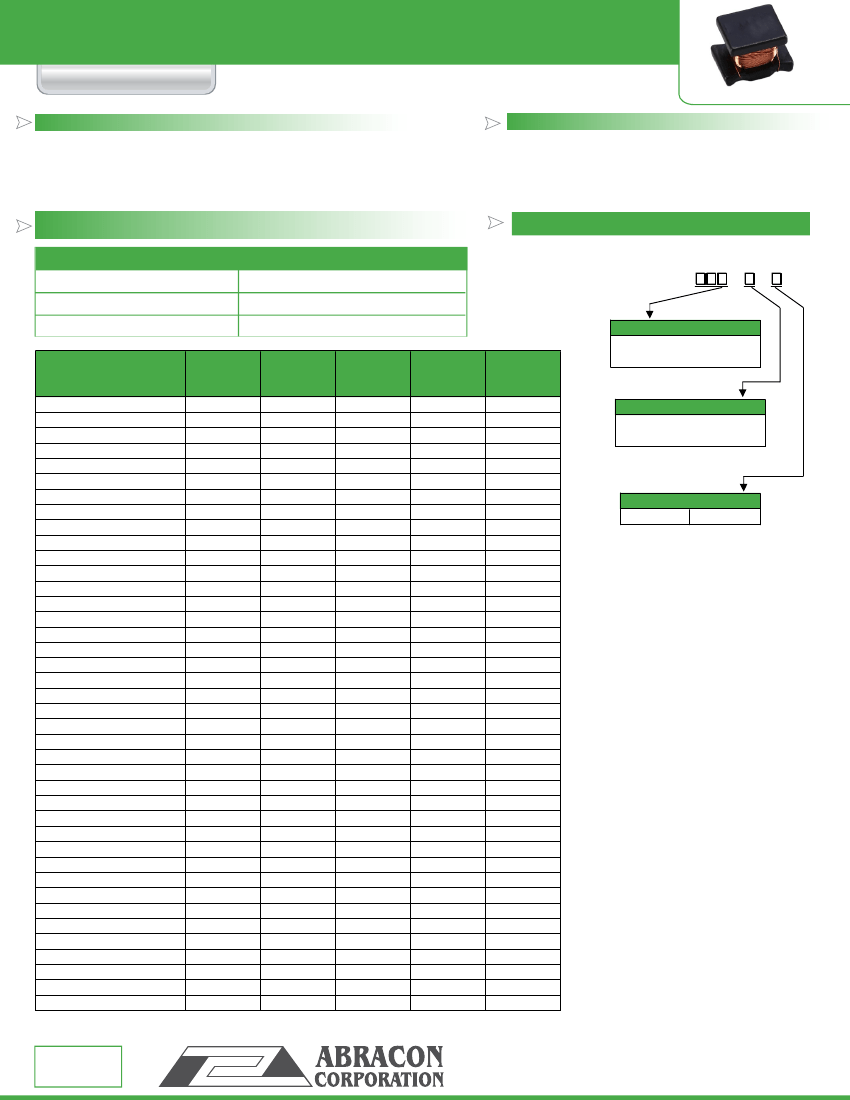

UNSHIELDED SMD POWER INDUCTOR

AISC-1812H

FEATURES:

• Excellent solderbility and resistance

• Suitable for flow and reflow soldering

• Packed in embossed carrier tape and can be used by

automatic mounting machines

RoHS

Compliant

4.5 x 3.2 x 2.6mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Excellent for power line DC/DC conversion application

• Used in hard disk, notebook computer and other

electronic equipment

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Operating temperature:

Storage temperature:

AISC-1812H-xxx Series

-25°C to + 85°C

-25°C to + 85°C, 70% RH max.

L (µH)

1.0

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

Resistance

(Ω) Max.

0.08

0.09

0.10

0.11

0.12

0.13

0.15

0.20

0.23

0.25

0.27

0.35

0.47

0.54

0.56

0.64

0.75

0.86

1.18

1.37

1.56

1.92

2.08

2.96

3.20

3.72

5.16

5.90

6.55

7.75

8.06

12.50

13.00

14.60

16.80

26.40

48.00

52.20

58.80

65.00

SRF

(MHz)

Min

120

9.3

8.4

7.5

6.8

6.2

5.5

4.5

3.6

3.3

2.7

2.5

2.2

1.8

1.6

1.5

1.3

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

AISC - 1812H -

Inductance Code

(A)

Max

1.08

1.00

0.96

0.90

0.87

0.80

0.78

0.75

0.73

0.72

0.68

0.65

0.62

0.57

0.48

0.42

0.37

0.31

0.30

0.28

0.25

0.22

0.20

0.19

0.17

0.13

0.12

0.11

0.105

0.100

0.095

0.090

0.070

0.065

0.060

0.050

0.045

0.040

0.035

0.030

Test

Part Number

Condition

(V/Hz)

1.0 / 1.0M

AISC-1812H-1R0N

1.0 / 1.0M

AISC-1812H-1R5N

AISC-1812H-1R8N

1.0 / 1.0M

AISC-1812H-2R2N

1.0 / 1.0M

AISC-1812H-2R7N

1.0 / 1.0M

AISC-1812H-3R3N

1.0 / 1.0M

AISC-1812H-3R9N

1.0 / 1.0M

AISC-1812H-4R7N

1.0 / 1.0M

AISC-1812H-5R6N

1.0 / 1.0M

AISC-1812H-6R8N

1.0 / 1.0M

AISC-1812H-8R2N

1.0 / 1.0M

AISC-1812H-100K

1.0 / 1.0M

AISC-1812H-120K

1.0 / 1.0M

AISC-1812H-150K

1.0 / 1.0M

AISC-1812H-180K

1.0 / 1.0M

AISC-1812H-220K

1.0 / 100K

AISC-1812H-270K

1.0 / 100K

AISC-1812H-330K

1.0 / 100K

AISC-1812H-390K

1.0 / 100K

AISC-1812H-470K

1.0 / 100K

AISC-1812H-560K

1.0 / 100K

AISC-1812H-680K

1.0 / 100K

AISC-1812H-820K

1.0 / 100K

AISC-1812H-101K

1.0 / 100K

AISC-1812H-121K

1.0 / 100K

AISC-1812H-151K

1.0 / 100K

AISC-1812H-181K

1.0 / 100K

AISC-1812H-221K

1.0 / 100K

AISC-1812H-271K

1.0 / 100K

AISC-1812H-331K

1.0 / 100K

AISC-1812H-391K

1.0 / 1.0K

AISC-1812H-471K

1.0 / 1.0K

AISC-1812H-561K

1.0 / 1.0K

AISC-1812H-681K

1.0 / 1.0K

AISC-1812H-821K

1.0 / 1.0K

AISC-1812H-102K

1.0 / 1.0K

AISC-1812H-122K

1.0 / 1.0K

AISC-1812H-152K

1.0 / 1.0K

AISC-1812H-182K

1.0 / 1.0K

AISC-1812H-222K

Inductance tolerance: N:

±30%;

K: ±10%

ABRACON IS

ISO9001:2008

CERTIFIED

Please refer to the Table

Tolerance Code

Please refer to the Table

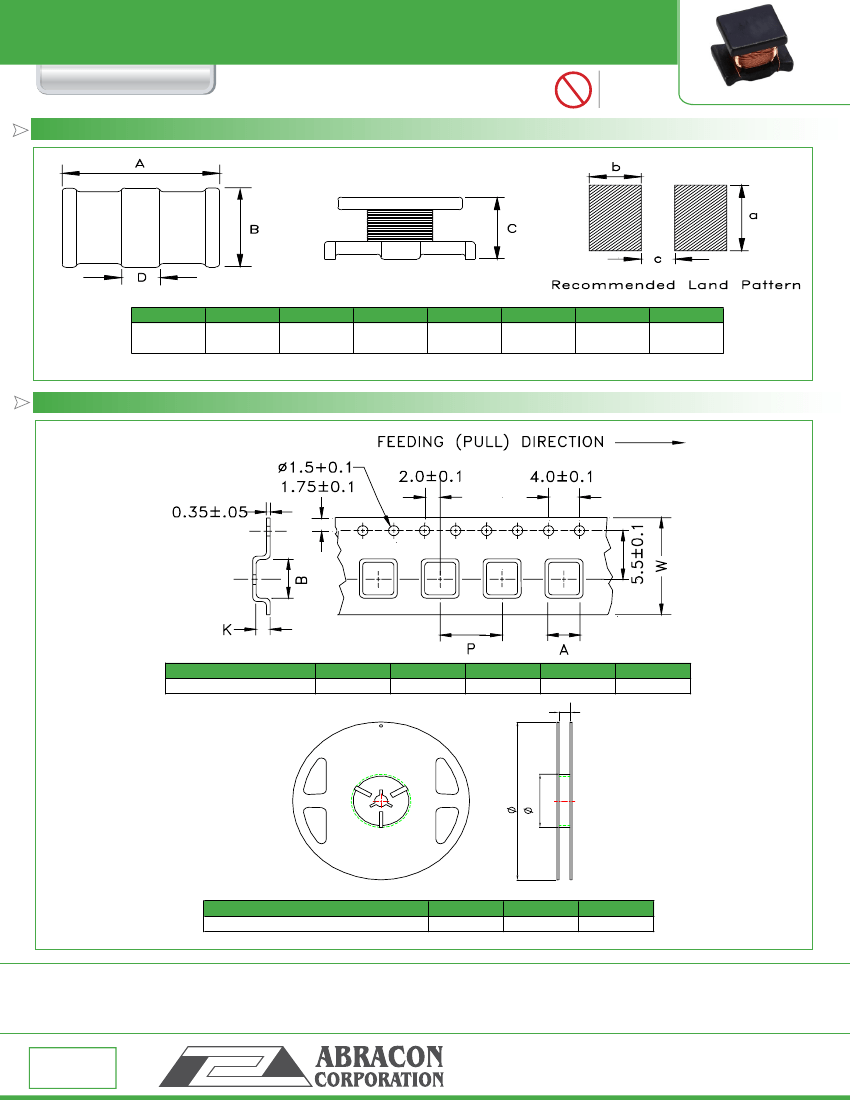

Packaging

Tape & Reel

Test Equipment and Conditions:

Ir:

Rated current that will cause initial inductance

value approximately 10% rolloff or coil

temperature rise by 40ºC without core loss,

which ever is smaller. (Reference ambient

temperature 2 ºC).

measured with CH-1061 with 1320

SRF:

measured with HP-8714C RF network

analyzaer

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

Revised: 07.15.10
