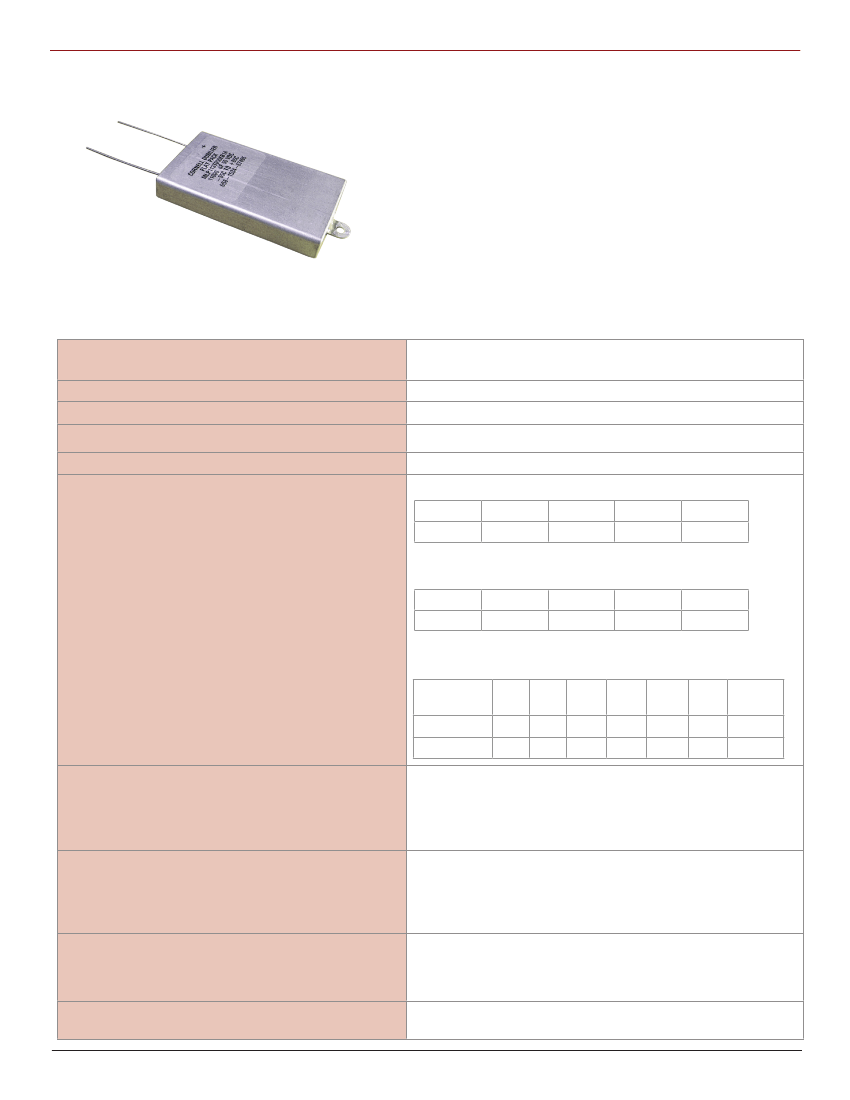

Type MLP 85 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Very Low Profile
The MLP’s high-energy storage and box-shape make it perfect for
voltage holdup or filtering in military SEM-E modules, telecom
circuit packs and computer cards. The MLP delivers up to 20 joules
of energy storage in a 1/2” height with 50 year’s life at +45 ºC. You
can readily heatsink it to double the ripple-current capability. The MLP
is the square-peg component that fits the square-holes in electronic
assemblies.
Highlights
- Low-profile replacement for snap-ins
- Double the ripple capability with a heatsink
- Nearly hermetic welded seal assures 50-year life
- Withstands more than 80,000 feet altitude
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
–55°C to +85°C ≤250 Vdc
–40°C to +85°C ≥300 Vdc
7.5 Vdc to 450 Vdc
110 µF to 47,000 µF
±20%
≤ 0.002 CV µA, @ 25 °C and 5 min.
Ambient Temperature, No Heatsink
45 °C
1.00
55 °C
0.90
65 °C
0.75
75 °C
0.56
85 °C
0.27
Case Temperature
45 °C
3.79
Frequency
50 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz
7.5 to 63 V
80 to 450 V
Low Temperature Characteristics
0.94
0.80
0.95
0.85
1.00
1.00
1.04
1.17
1.05
1.24
1.06
1.28
10 kHz
& up
1.06
1.29
55 °C
3.32
65 °C
2.77
75 °C
2.08
85 °C
1.00
Impedance ratio: Z
–55⁰C
∕ Z
+25⁰C
≤ 10 (7.5 - 20 Vdc)
≤ 2 (25 – 250 Vdc)
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 4 (300–450Vdc)
2000 h @ full load at +85 °C
∆ Capacitance ±10%
ESR 200% of limit
DCL 100% of limit
500 h at 85 °C
Capacitance 100% of limit
ESR 100% of limit
DCL 100% of limit
All case sizes: 10g.
MIL-STD-202, Meth. 204,Sine Swept, EIEC 60068-2-6
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type MLP 85 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Very Low Profile
Vibration Test
Level
The specimens, while deenergized or operating under the load conditions
specified, shall be subjected to the vibration amplitude, frequency range,
and duration specified for each case size.
Amplitude
The specimens shall be subjected to a simple harmonic motion having
an amplitude of either 0.06-inch double amplitude (maximum total
excursion) or peak level specified above (XXg peak), whichever is less. The
tolerance on vibration amplitude shall be ±10 percent.
Frequency Range
The vibration frequency shall be varied logarithmically between the
approximate limits of 10 to 2,000 Hz.
Sweep Time and Duration
The entire frequency range of 10 to 2,000 Hz and return to 10 Hz shall be
traversed in 20 minutes. This cycle shall be performed 12 times in each
of three mutually perpendicular directions (total of 36 times), so that
the motion shall be applied for a total period of approximately 12 hours.
Interruptions are permitted provided the requirements for rate of change
and test duration are met.
Large Sides
Heatsinked
one
both
Case Length
Insulation
None
Polyester
None
Polyester
1.5"
ºC/W
2.9
3.3
2.7
2.9
2.0"
ºC/W
2.1
2.4
1.9
2.1
3.0"
ºC/W
1.4
1.6
1.2
1.3
Thermal Resistance
ESL
Weight
<30 nH measured 1/4” from case at 1 MHz
Case EK 30 g typical
Case EA 42 g typical
Case EB 66 g typical
18 AWG copper wire with 60/40 tin-lead electroplate, 20 amps max
Attach the MLP to an external heatsink and you can easily double the ripple
current capability and assure long life through cooler operation. The broad,
flat top and bottom on the MLP are ideal for cooling the capacitor and
removing the heat caused by ripple current.
The ripple current capability is set by the maximum permissible internal
core temperature, 88 ºC. This assures that the case does not inflate beyond
0.5 inch height.
The ripple currents in the ratings tables are for 85 ºC case temperatures.
For air temperatures without a heatsink use the multipliers Ambient
Temperature, No Heatsink.
Temperature rise from the internal hottest spot, the core, to ambient air is
∆T = I
2
(ESR)(θcc + θca)
where θcc is the thermal resistance from core to case and θca from case to
ambient. To calculate maximum ripple capability with the MLP attached to
a heatsink use the maximum core temperature and the values for θcc.
Terminals
Double the Ripple Current
Ripple Current Capability
Air Cooled
Heatsink Cooled
Example
As an illustration, suppose you operate an insulated MLP332M080EB1C
in 65 ºC air and attach it to a commercial heatsink with a free-air thermal
resistance of 2.7 ºC/W. Use a good thermal grease between the MLP and
the heatsink, and the total thermal resistance is 2.7 +1.7 or 4.4 ºC/W. The
power which would heat the core to 88 °C is (88-65)/4.4 or 5.2 W. For an
ESR of 31 mΩ,5.2 W equates to a ripple current of 13 A.
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type MLP 85 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Very Low Profile
Part Numbering System
MLP
102
M
200
EB
0
A
Type
MLP
Capacitance
821=820
µF
102
= 1000 µF
Tolerance Rated Voltage
M=±20%
Vdc
Case Code
EK,
L=1.5 in.
EA,
L=2.0 in
EB,
L=3.0 in.
Insulation
0
= bare can
1
= polyester
Mounting Style
Outline Drawings
A =
mounting tabs
B
= four leads
C
= two leads/no tabs
D
= hook leads/tabs
E
= hook leads/no tabs
Note: The polyester tape wrap may add up to 0.020 inches to the thickness and width of the capacitor.
Style A: Mounting Tabs
L+.375
.188±.01
Φ.156
±0.01
±0.03
.156 ±0.01 SLOT
0.040 DIA, 18 AWG LEADS
(TYP)
1.00 1.75
±0.01
±0.01
Mounting tabs and negative
lead are welded to the case.
MAY BE SQUARE
.375±.01
L±.02
1.5 MIN
.036
.030
.50 MAX
Style B: Four Leads
0.040 DIA, 18 AWG LEADS
(TYP)
•
Three negative leads are
welded to the case.
+
1.00
±0.01
1.75
±0.01
•
1.5 MIN
L
±0.02
1.5 MIN
0.50 MAX
Style C: No Tabs
0.040 DIA, 18 AWG
(TYP)
•
The negative lead is welded
to the case.
L ±0.02
1.00
±0.01
+
1.75
±0.01
•
1.5 MIN
0.50 MAX
Style D: Hook Leads
L +0.375
.188 ±0.01
Φ.156
±0.03
Φ0.040,
18 AWG LEADS
(TYP)
Φ0.156
±0.01 SLOT
Mounting tabs and negative
lead are welded to the case.
±0.01
MAY BE SQUARE
.375
1.00
±0.01
1.75
±0.01
±0.
01
L
0.02
Case
Code
EK
.50 MAX
Length
L (in)
1.5
2.0
3.0
Weight
(g)
30
42
66
EA
EB
.036
.030
.260
±0.01
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type MLP 85 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Very Low Profile
Ratings
Cap.
(µF)
19,000
28,000
47,000
17000
26000
43000
13000
21000
38000
9600
14000
24000
8000
12000
20000
5600
8400
14000
4400
6600
11000
2200
3300
5600
1500
2100
3300
ESR max
Ripple (A)
25 ºC (mΩ)
Case @ 85 °C Length
Catalog
Part Number 120 Hz 20 kHz 120 Hz 20 kHz (Inches)
7.5 Vdc (10 Vdc Surge)
MLP193M7R5EK0A 76
66
4.2
4.5
1.5
MLP283M7R5EA0A 50
44
5.8
6.2
2.0
MLP473M7R5EB0A 30
26
9.1
9.8
3.0
10 Vdc (13 Vdc Surge)
MLP173M010EK0A 77
67
4.2
4.5
1.5
MLP263M010EA0A 51
45
5.8
6.1
2.0
MLP433M010EB0A 30
27
9.0
9.6
3.0
16 Vdc (20 Vdc Surge)
MLP133M016EK0A 81
69
4.1
4.4
1.5
MLP213M016EA0A 53
46
5.7
6.1
2.0
MLP383M016EB0A 31
27
9.0
9.6
3.0
20 Vdc (25 Vdc Surge)
MLP962M020EK0A 84
69
4.0
4.4
1.5
MLP143M020EA0A 56
46
5.5
6.1
2.0
MLP243M020EB0A 33
27
8.7
9.6
3.0
25 Vdc (30 Vdc Surge)
MLP802M025EK0A 87
69
3.9
4.4
1.5
MLP123M025EA0A 57
46
5.5
6.1
2.0
MLP203M025EB0A 34
27
8.6
9.6
3.0
35 Vdc (50 Vdc Surge)
4.4
1.5
MLP562M035EK0A 90
70
3.4
MLP842M035EA0A 59
46
5.4
6.1
2.0
MLP143M035EB0A 35
27
8.4
9.6
3.0
50 Vdc (63 Vdc Surge)
MLP442M050EK0A 97
70
3.7
4.4
1.5
MLP662M050EA0A 62
46
5.2
6.1
2.0
MLP113M050EB0A 36
27
8.3
9.6
3.0
63 Vdc (75 Vdc Surge)
MLP222M063EK0A 101
76
3.7
4.2
1.5
MLP332M063EA0A 64
50
5.2
5.8
2.0
MLP562M063EB0A 36
29
8.3
9.3
3.0
80 Vdc (100 Vdc Surge)
MLP152M080EK0A 106
77
3.6
4.2
1.5
MLP212M080EA0A 72
52
4.9
5.7
2.0
MLP332M080EB0A 44
31
7.5
9.0
3.0
ESR max
Ripple (A)
25 ºC (mΩ)
Case @ 85 °C Length
Catalog
Part Number 120 Hz 20 kHz 120 Hz 20 kHz (Inches)
100 Vdc (125 Vdc Surge)
MLP112M100EK0A 112
78
3.5
4.2
1.5
MLP162M100EA0A 76
54
4.7
5.6
2.0
MLP272M100EB0A 46
33
7.4
8.7
3.0
150 Vdc (180 Vdc Surge)
MLP501M150EK0A 355
248
1.9
2.3
1.5
MLP771M150EA0A 238
166
2.7
3.2
2.0
MLP132M150EB0A 143
100
4.2
5.0
3.0
200 Vdc (250 Vdc Surge)
MLP401M200EK0A 388
253
1.9
2.3
1.5
MLP601M200EA0A 261
168
2.6
3.2
2.0
MLP102M200EB0A 158
100
3.8
5.0
3.0
250 Vdc (300 Vdc Surge)
MLP331M250EK0A 426
258
1.8
2.3
1.5
MLP491M250EA0A 285
172
2.4
3.1
2.0
MLP821M250EB0A 172
103
3.8
4.9
3.0
300 Vdc (350 Vdc Surge)
MLP221M300EK0A 597
393
1.5
1.9
1.5
MLP331M300EA0A 399
262
2.1
2.5
2.0
MLP561M300EB0A 240
157
3.2
4.0
3.0
350 Vdc (400 Vdc Surge)
MLP151M350EK0A 1000 734
1.2
1.4
1.5
MLP221M350EA0A 683
503
1.6
1.8
2.0
MLP371M350EB0A 420
310
2.3
2.8
3.0
400 Vdc (450 Vdc Surge)
MLP131M400EK0A 1320 970
1.0
1.2
1.5
MLP201M400EA0A 882
648
1.4
1.6
2.0
MLP331M400EB0A 530
390
2.1
2.5
3.0
420 Vdc (475 Vdc Surge)
MLP131M420EK0A 1320 970
1.0
1.2
1.5
MLP201M420EA0A 882
648
1.4
1.6
2.0
MLP331M420EB0A 530
390
2.1
2.5
3.0
450 Vdc (500 Vdc Surge)
MLP111M450EK0A 1456 1190
0.96
1.1
1.5
MLP171M450EA0A 973
797
1.3
1.5
2.0
MLP281M450EB0A 585
480
2.0
2.3
3.0
300 V and Up, Operating Life in Kilohours vs Ripple Current
100
Cap.
(µF)
1100
1600
2700
500
770
1300
400
600
1000
330
490
820
220
330
560
150
220
370
130
200
330
130
200
330
110
170
280

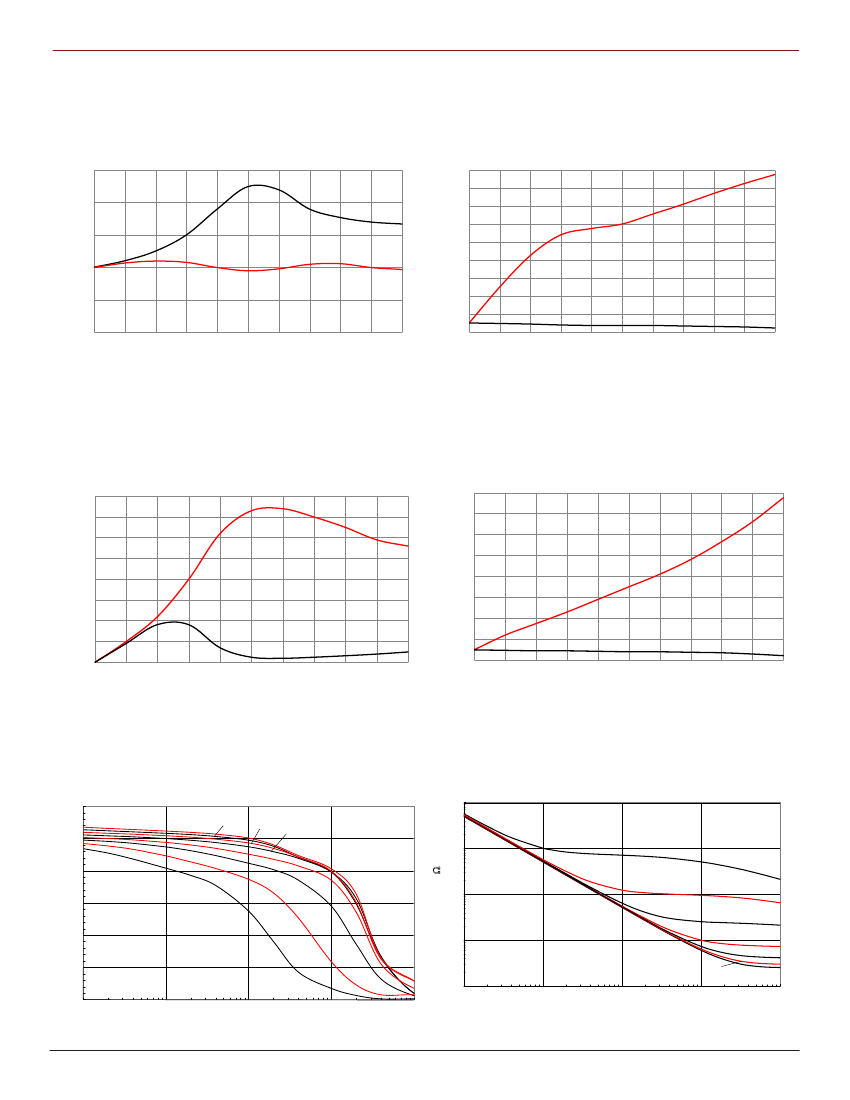

Typical Performance Curves
7.5 to 250 V, Operating Life in Kilohours vs Ripple Current
1000
45 ºC
Expected Operating Life, kh
45 ºC
55 ºC
65 ºC
75 ºC
85 ºC
10
0
0.1
0.2
0.3
0.4
Expected Operating Life, kh
55 ºC
65 ºC
75 ºC
85 ºC
100
10
1
Rated Ripple-Current Multiple
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
0
0.1
0.2
0.3
0.4
Rated Ripple-Current Multiple
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type MLP 85 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Very Low Profile
Typical Performance Curves
1.15
MLP 4400 µF 50 Vdc Ripple Life Test 85 ⁰C
ESR
2.7
2.5
2.3
MLP 300 µF 400 Vdc Life Test 105 ⁰C
ESR
1.1
Ratio to Initial Value
Ratio to Initial Value
2.1
1.9
1.7
1.5
1.3
1.1
0.9
1.05
1
Capacitance
0.95
Capacitance
0
200
400
600
800
1000
1200
1400
1600
1800
2000
0.9
0
200
400
600
800
1000
1200
1400
1600
1800
2000
Test Hours 48 V and 1 A @ 60Hz
Test Hours
1.08
1.07
MLP 4400 µF 50 Vdc Life Test 85 ⁰C
ESR
2.5
2.3
MLP 300 µF 400 Vdc Ripple Life Test 85 ºC
Ratio to Initial Value
Ratio to Initial Value
1.06
1.05
1.04
1.03
1.02
1.01
1
0
200
400
600
800
2.1
1.9
1.7
1.5
1.3
1.1
0.9
ESR
Capacitance
1000
1200
1400
1600
1800
2000
Capacitance
0
200
400
600
800
1000
1200
1400
1600
1800
2000
Test Hours
Test Hours 391 V and 0.5 A @ 60 Hz
Capacitance vs Temperature & Frequency MLP442M050EK1C
1.2
85 ºC
Ratio to 25 ºC, 120 Hz Value
100
Impedance vs Temperature and Frequency MLP331M400EB0A
65 ºC
45 ºC
1
25 ºC
10
–40 °C
0.8
0 ºC
–20 ºC
Impedance
(Ω)
0.6
1
–20 °C
0 °C
0.4
–40 ºC
0.1
25 °C
45 °C
65 °C
85 °C
100000
0.2
–55 ºC
0
10
100
1000
Frequency (Hz)
10000
100000
0.01
10
100
1000
10000
Frequency (Hz)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Test/Measurement
京公网安备 11010802033920号
EEWORLD
