PC0200WJ30136BF1

Description
Ceramic Capacitor, Ceramic, 14000V, 10% +Tol, 10% -Tol, 100ppm/Cel TC, 0.0003uF, Chassis Mount,
CategoryPassive components    capacitor
File Size101KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

PC0200WJ30136BF1 Online Shopping

Suppliers Part Number Price MOQ In stock
PC0200WJ30136BF1 - - View Buy Now

PC0200WJ30136BF1 Overview

Ceramic Capacitor, Ceramic, 14000V, 10% +Tol, 10% -Tol, 100ppm/Cel TC, 0.0003uF, Chassis Mount,

PC0200WJ30136BF1 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1104511000
Reach Compliance Codeunknown
Country Of OriginGermany
Factory Lead Time10 weeks
YTEOL6.83
capacitance0.0003 µF
Capacitor typeCERAMIC CAPACITOR
diameter200 mm
dielectric materialsCERAMIC
JESD-609 codee4
length50 mm
Installation featuresCHASSIS MOUNT
multi-layerNo
negative tolerance10%
Number of terminals2
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formScrew Ends
positive tolerance10%
Rated (DC) voltage (URdc)14000 V
surface mountNO
Temperature Coefficient100ppm/Cel ppm/°C
Terminal surfaceSilver (Ag)
Terminal shapeBINDING POST

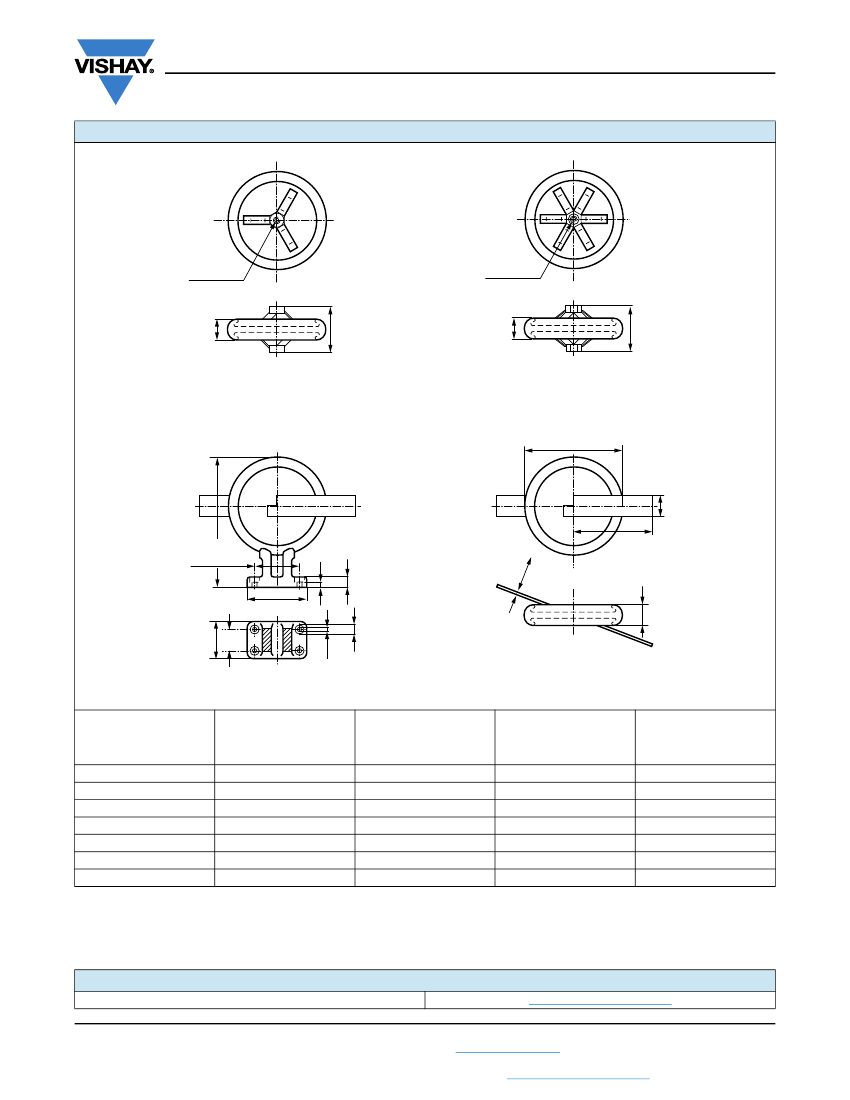

P. 70, P. 100, P. 140, P. 200
www.vishay.com
Vishay Draloric

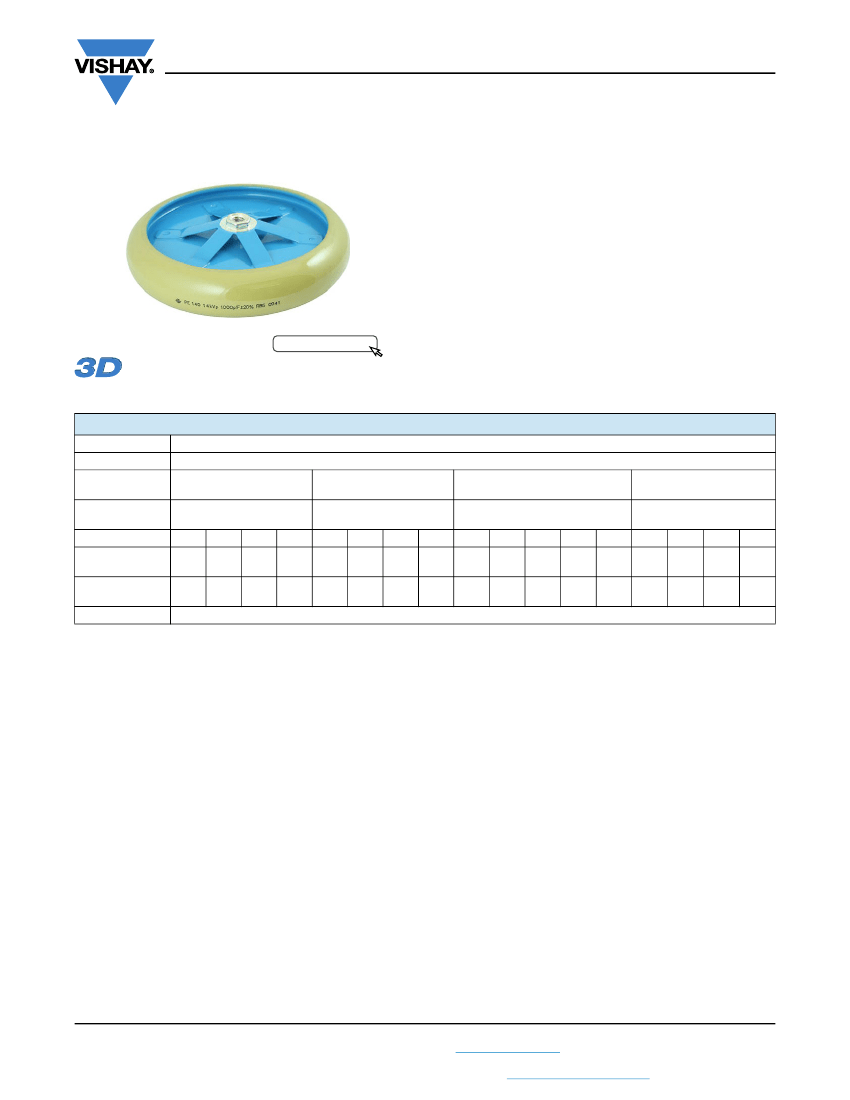

RF Power Plate Capacitors with Contoured Rim,
Class 1 Ceramic
FEATURES
• Low losses
• High reliability
• Wide range of capacitance values
APPLICATIONS
• Induction and dielectric heating
• Antenna units
• Filter, bypass and coupling circuits
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
QUICK REFERENCE DATA
DESCRIPTION
Ceramic class
Ceramic
dielectric
Type
Voltage (V
p
)
Min. capacitance
(pF)
Max. capacitance
(pF)
Mounting
R7, R16, R42, R85
PA 70, PD 70
R7, R16, R42, R85
PA 100, PD 100, PE 100
VALUE
1
R7, R16, R42, R85, R230
PA140, PC140, PD140, PE140
R7, R16, R42, R85
PA 200, PC 200, PD 200,
PE 200
11 000 12 000 13 000 14 000 11 000 13 000 14 000 15 000 12 000 13 000 14 000 15 000 16 000 12 000 13 000 14 000 15 000
800
800
80
600
120
500
25
300
1600
1600
160
1200
250
800
50
200
3000
3000
600
2500
300
1600
100
400
3000
3000
400
6000
4000
5000
300
3000
160
800
Screw terminal / band terminal
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Flexible connection terminals made from copper / brass,
silver plated, to allow for series and parallel interconnection
CERAMIC DIELECTRIC
R7 (TCC + 100 ppm/K)
R16 (TCC + 100 ppm/K)
R42 (TCC - 250 ppm/K)
R85 (TCC - 750 ppm/K)
R230 (TCC - 750 ppm/K)
• 14 kV
p
• 15 kV
p
• 16 kV
p
FINISH
Noble metal electrodes and terminals are protective
lacquered. The contoured insulating rim is additionally
glazed
RATED VOLTAGE
• 11 kV
p
• 12 kV
p
• 13 kV
p
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo.
DIELECTRIC STRENGTH TEST
200 % of rated voltage, 50 Hz
ACCESSORIES ADDED
Two screws and washers (PD, PE)
DISSIPATION FACTOR
R7: max. 0.07 %
R16: max. 0.04 %
R42, R85, R230: max. 0.05 %
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
CAPACITANCE RANGE
25 pF to 6.0 nF
CAPACITANCE TOLERANCE
10 pF: ± 2 pF; ± 1 pF; ± 0.5 pF
10 pF: ± 20 %; ± 10 %; ± 5 %
INSULATION RESISTANCE
Min. 10 000 M (at 25 °C)
OPERATING TEMPERATURE RANGE
-55 °C to +100 °C
Revision: 17-Jul-2018
Document Number: 22082
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
