Document 1111-1

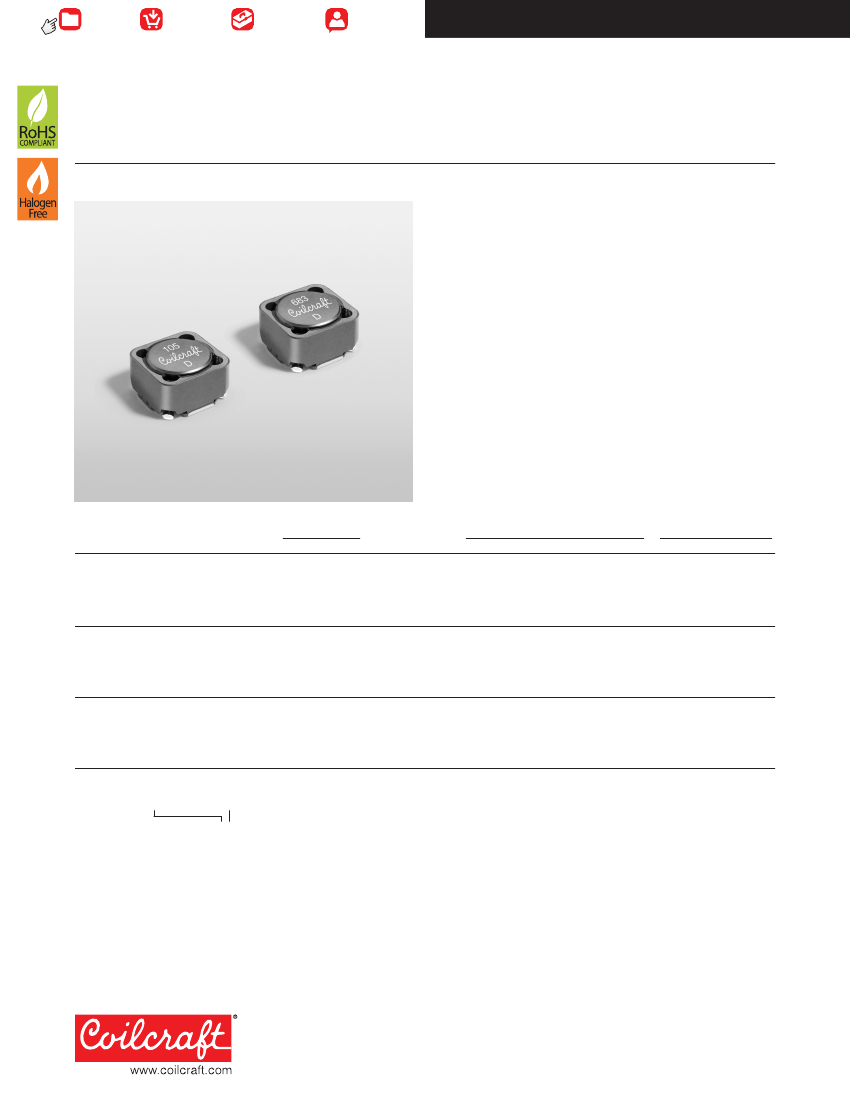

Shielded Power Inductors–MSS1583
• 14.8 × 14.8 mm footprint; 8.6 mm high shielded inductors
• 16 inductance values from 10 µH to 1 mH
• Low DCR and excellent current handling
Core material
Ferrite
Core and winding loss
See
www.coilcraft.com/coreloss
Environment
RoHS compliant, halogen free
Terminations
RoHS compliant matte tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight:
3.7 – 4.4 g
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
300/13″ reel; Plastic tape: 32 mm wide, 0.5 mm thick,
24 mm pocket spacing, 8.6 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part number
1
MSS1583-103ME_
MSS1583-123ME_
MSS1583-153ME_
MSS1583-183ME_
MSS1583-223ME_
MSS1583-333ME_
MSS1583-473ME_
MSS1583-683ME_
MSS1583-104KE_
MSS1583-154KE_
MSS1583-224KE_
MSS1583-334KE_
MSS1583-474KE_
MSS1583-684KE_
MSS1583-824KE_
MSS1583-105KE_
Inductance
2
(µH)
10 ±20%
12 ±20%
15 ±20%
18 ±20%
22 ±20%
33 ±20%
47 ±20%
68 ±20%
100 ±10%
150 ±10%
220 ±10%
330 ±10%
470 ±10%
680 ±10%
820 ±10%
1000 ±10%
DCR (Ohms)
3
typ
max
0.012
0.014
0.014
0.017
0.018
0.021
0.020
0.023
0.023
0.026
0.033
0.038
0.048
0.055
0.061
0.070
0.090
0.103
0.138
0.159
0.205
0.235
0.300
0.345
0.386
0.445
0.570
0.655
0.640
0.736
0.860
0.990
SRF typ
4
(MHz)
17.0
14.5
13.5
12.0
10.5
8.5
7.3
6.0
4.8
3.7
3.0
2.7
2.2
1.8
1.6
1.5
10% drop
12.0
11.7
10.1
9.2
8.2
7.0
5.9
4.7
3.9
3.1
2.6
2.0
1.8
1.4
1.3
1.1
Isat
(A)
5
20% drop
13.6
13.3
11.5
10.5
9.1
7.9
6.7
5.5
4.4
3.6
3.0
2.3
2.0
1.6
1.5
1.3
30% drop
14.7
14.2
12.4
11.2
10.4
8.6
7.3
6.0
4.8
3.9
3.3
2.5
2.2
1.8
1.6
1.4
Irms
(A)
6
20°C rise 40°C rise
5.0
7.4
4.4
6.3
4.3
6.1
3.9
5.5
3.7
5.3
3.4
4.8
2.7
3.7
2.5
3.4
2.0
2.8
1.55
2.20
1.30
1.80
1.00
1.45
0.96
1.35
0.78
1.10
0.74
1.0
0.63
0.86
1. Specify
termination
and
packaging
codes:
MSS1583-105KED
Termination: E
= RoHS compliant matte tin over nickel over phos
bronze.
Special order:
Q
= RoHS tin-silver-copper (95.5/4/0.5) or
P
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (300 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/
HP 4263B LCR meter or equivalent.
3. DCR measured on a micro-ohmmeter and a Coilcraft CCF858 test
fixture.
4. SRF measured using Agilent/HP 4191A or equivalent.
5. DC current at 25°C that causes the specified drop in inductance from
its value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise from 25°C ambient.
This information is for reference only and does not represent absolute
maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1111-1
Revised 07/10/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 1111-2
Shielded Power Inductors – MSS1583

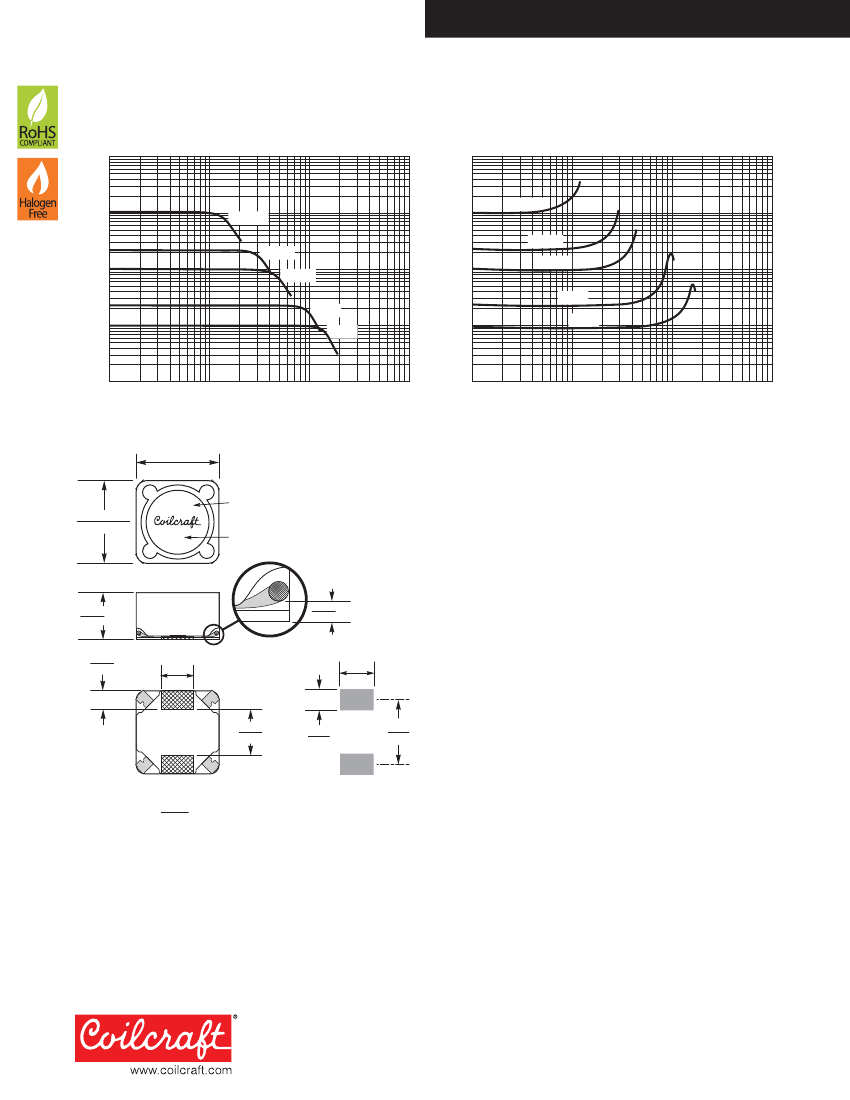

Typical L vs Current
10,000
10,000
Typical L vs Frequency
1000 µH
1000
1000 µH
220 µH
1000
Inductance (µH)
Inductance (µH)
220 µH
100
100 µH
100
100 µH
22 µH
22 µH
10
10 µH
10
10 µH
1
0.1
1
10
100
1
0.1
1
10
100
Current (A)
Frequency (MHz)
0.590 ±0.020
15,0 ±0,5
0.590 ±0.020
15,0 ±0,5
123
X
Dash number
Internal code
0.339 max
8,6
0.030
typ
0,76
0.130
3,3
0.220
5,6
0.236
6,0
0.323
8,2
0.150
3,8
0.453
11,5
Dimensions are in
inches
mm
Recommended
Land Pattern
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1111-2
Revised 07/10/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
