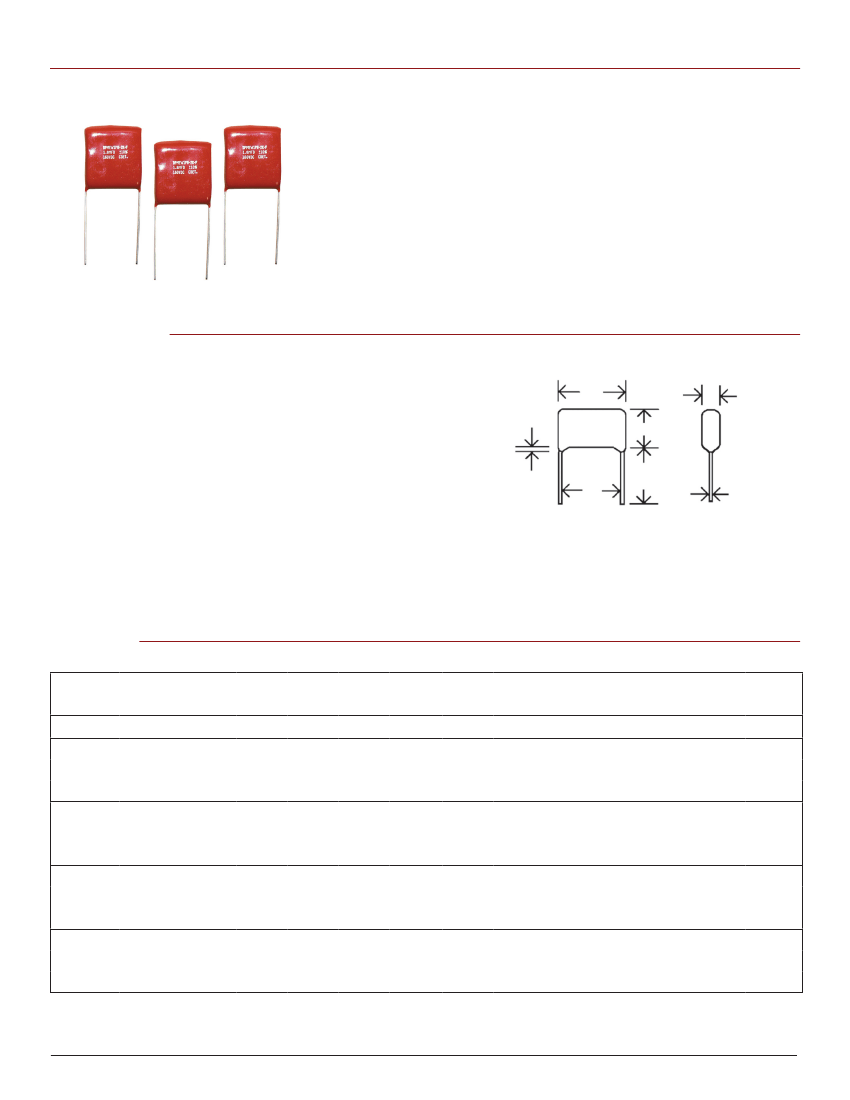

Type DPM
Polypropylene Film Capacitors
Metallized, Radial Leads
Great for High Frequency
Switching Power Supplies
Type DPM
radial-leaded, metallized polypropylene capacitors boast
non-inductive windings with welded lead terminations which handle
high continuous currents. The low ESR and low ESL are a glove fit for high
frequency and switching power supply applications.
Specifications
RoHS Compliant
Voltage Range:
250 to 630 Vdc (160 to 250 Vac, 60 Hz)
Capacitance Range:
.01 to 6.8 µF
Capacitance Tolerance:
±10% (K) standard
±5% (J) optional
Operating Temperature Range:
–55°C to 105°C*
*Full-rated voltage at 85°C–Derate linearly to 50%-rated voltage at 105°C
MAX.
(3.0mm)
L
H
.79”
MIN.
(20mm)
T
Dielectric Strength:
175% (1 minute)
Dissipation Factor:
.10% Max. (25 °C, 1 kHz)
Insulation Resistance:
10,000 M
Ω
x µF
30,000 M
Ω
Min.
Life Test:
1,000 hours at 85 °C at 125% rated voltage
S
d
NOTE:
Other capacitance values, sizes and performance
specifications are available. Contact us.
Ratings
Cap.
(µF)
.010
.015
.022
.033
.047
.068
.10
.15
.22
.33
.47
.68
Catalog
Part Number
DPM2S1K-F
DPM2S15K-F
DPM2S22K-F
DPM2S33K-F
DPM2S47K-F
DPM2S68K-F
DPM2P1K-F
DPM2P15K-F
DPM2P22K-F
DPM2P33K-F
DPM2P47K-F
DPM2P68K-F
T Max.
Inches(mm)
0.276(7.0)
0.276(7.0)
0.276(7.0)
0.276(7.0)
0.276(7.0)
0.276(7.0)
0.315(8.0)
0.315(8.0)
0.315(8.0)
0.354(9.0)
0.394(10.0)
0.394(10.0)
H Max.
Inches(mm)
0.433(11.0)
0.433(11.0)
0.433(11.0)
0.433(11.0)
0.433(11.0)
0.433(11.0)
0.433(11.0)
0.512(13.0)
0.512(13.0)
0.591(15.0)
0.630(16.0)
0.630(16.0)
L Max.
Inches(mm)
0.512(13.0)
0.512(13.0)
0.512(13.0)
0.512(13.0)
0.512(13.0)
0.512(13.0)
0.512(13.0)
0.709(18.0)
0.709(18.0)
0.709(18.0)
1.024(26.0)
1.024(26.0)
S ±.06 (±1.5)
Inches(mm)
0.394(10.0)
0.394(10.0)
0.394(10.0)
0.394(10.0)
0.394(10.0)
0.394(10.0)
0.394(10.0)
0.591(15.0)
0.591(15.0)
0.591(15.0)
0.886(22.5)
0.886(22.5)
d
Inches(mm)
0.024(0.6)
0.024(0.6)
0.024(0.6)
0.024(0.6)
0.024(0.6)
0.024(0.6)
0.024(0.6)
0.032(0.8)
0.032(0.8)
0.032(0.8)
0.032(0.8)
0.032(0.8)
dV/dt
V/μs
34
34
34
34
34
34
34
23
23
23
19
19
250 Vdc (160 Vac)
