T520D477M004ATE015 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T520D477M004ATE015

T520D477M004ATE015: DescriptionTantalum Capacitors - Polymer SMD 470uF 4V ESR=15; CategoryPassive components capacitor; File Size70KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T520D477M004ATE015 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T520D477M004ATE015	-	-	View	Buy Now

T520D477M004ATE015 Overview

Tantalum Capacitors - Polymer SMD 470uF 4V ESR=15

T520D477M004ATE015 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
capacitance	470 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	15 mΩ
high	2.8 mm
JESD-609 code	e3
leakage current	0.188 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	4 V
ripple current	975 mA
size code	2917
surface mount	YES
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal shape	J BEND
width	4.3 mm
Base Number Matches	1

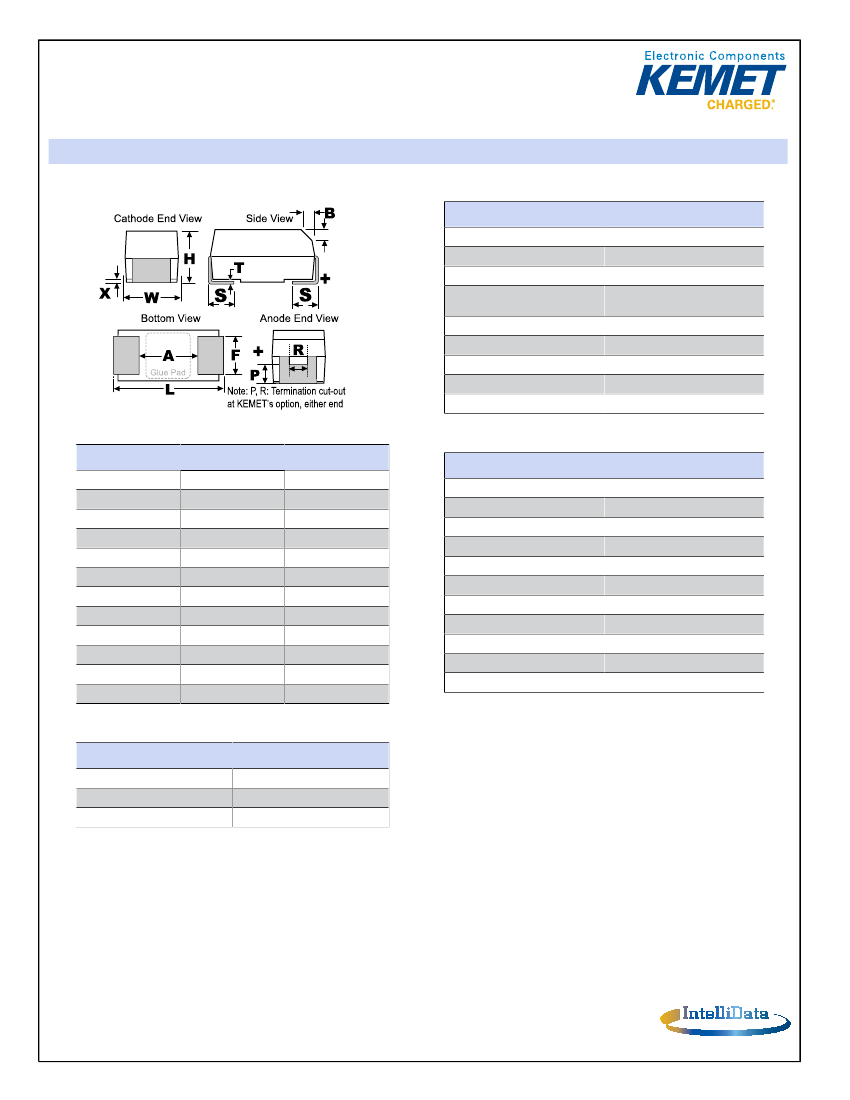

Preview

Download Datasheet

View All

KEMET Part Number: T520D477M004ATE015

Capacitor, Tantalum, SMD, Polymer, Molded, Low ESR, Non-Combustible, 470 uF, 7343, +/-20% Tol, -55/+105C, 4 VDC (105C)

General Information

Supplier:

Application:

Sub Application:

Part Type Description:

Construction:

Body Type:

Footprint:

Weight:

RoHS:

KEMET

Low ESR

(NonCombustibleCathode)

SMD, Polymer, Molded, Low

ESR, Non-Combustible

Standard Chip-Polymer

SMD Chip

7343

434.83 mg

Yes

Symbol

Dimensions (mm)

Dimension

7.3

4.3

2.8

2.4

1.3

0.5

0.1

0.9

0.13

3.6

Tolerance

+/-0.3

+/-0.1

+/-0.3

+/-0.15

+/-0.1

REF

MIN

Specifications

Capacitance:

Tolerance:

Voltage:

Temperature Range:

Current/Ripple Current:

Resistance/ESR:

Failure Rate:

Leakage Current:

Dissipation Factor:

470 uF

+/-20%

4 VDC (105C)

-55/+105C

3900 mAmps (100kHz 45C)

2730 mAmps (85C)

1852.5 mAmps (105C)

15 mOhms (100kHz 25C)

N/A

188 uA

10%

Packaging Specifications

Package Kind:

Package Size:

Package Quantity:

T&R

7 in/180 mm

500

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/12/2017 - 64f2c6c4-93b8-46ab-9641-3793eadd4be2
