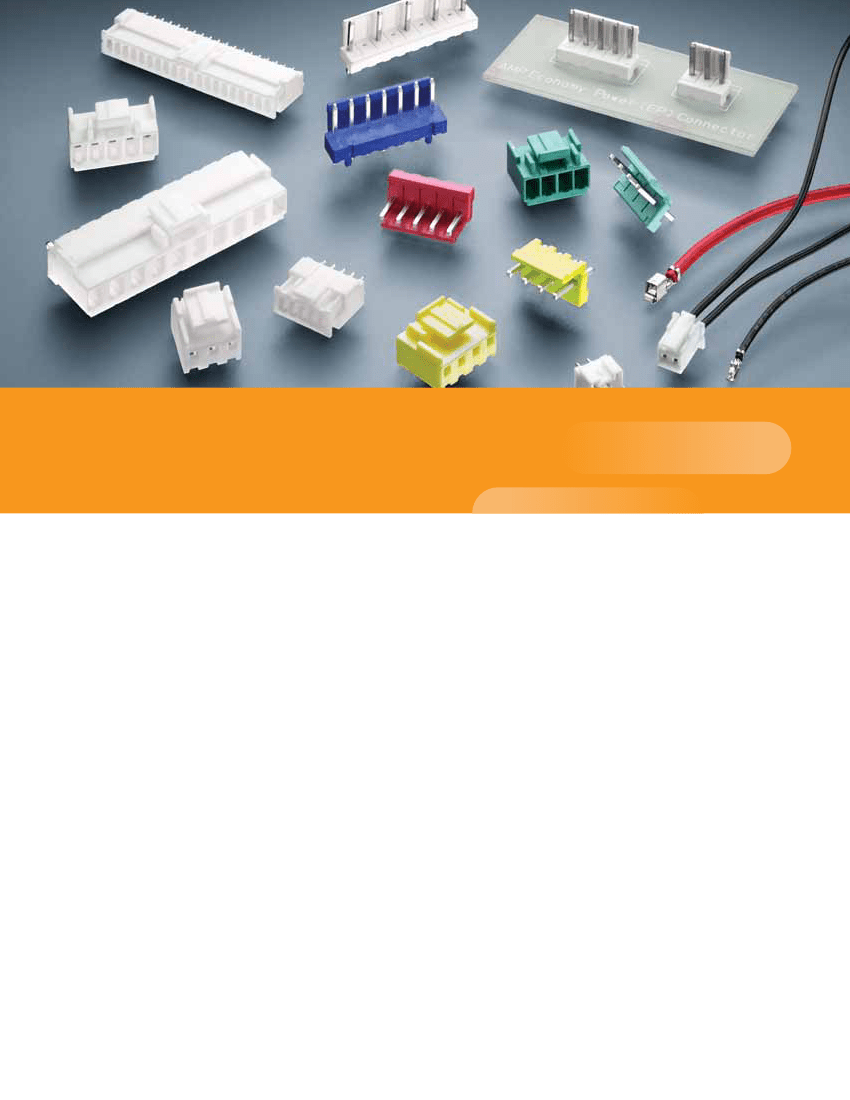

Economy Power Connector System
TE Connectvity’s (TE) Economy Power (EP) wire-to-board connector family is widely used for power circuit
applications. Based on the proven EP version the new and advanced EP II and EP 2.5 lines offer additional
benefits. EP II connectors are rated for 600VAC at up to 11A and thus offer potential for a larger range of
applications. Still their electric properties make it an option to mix signal and power in one connector.
EP II connectors offer two levels of mechanical and electrical reliability: A true locking latch prevents
the plug housing and post header from vibrating apart, while a Terminal Position Assurance (TPA) device
produces a tangible click once a receptacle contact is fully seated. A visual aid confirms that the contact
is home plus it provides easy access to a probe tip for continuity testing. The new EP 2.5 family is a
compact version based on a .100” [2.5mm] pitch ideally suited for PC board space restraints. Up to
20 positions make it the perfect choice for combining power and signal.
FEATURES AND BENEFITS
• Positive
audible latch designed for easier
mating & unmating
• Polarization
tabs help prevent post misalignment
• Complete
product offering with color coded
housings
• End
to end stackable
• Intermateable
to similar competitive products
for retrofit applications
• Broad
portfolio includes .100, .156, .200 and .312
centerline families.
PRODUCT APPLICATIONS
• Household
appliances
• Commercial
& building equipment
• HVAC
& vending controls
• Industrial
machinery & equipment:
generators
• Coin
changers/vending machines
• Lighting
te.com/products/EP
TE Connectivity
Economy Power Connector System
Electrical and Mechanical Specifications
Product
Economy Power (EP)
Economy Power II (EP II)
Ecomony Power 2.5 (EP 2.5)
Pos
1-12
2-12
2-20
Current Rating
7.5
11
3
Centerline
.156 (3.96)
.156 (3.96)
.100 (2.50)
Voltage Rating
250 VAC
600 VAC
250 VAC
Operating Temperature
-25°C to 105°C
-55°C to 105°C
-55°C to 105°C
Housing Rating
UL 94V-0
UL 94V-0
UL 94V-0
Wire Size
18-22 AWG
16-22 AWG
22-26 AWG

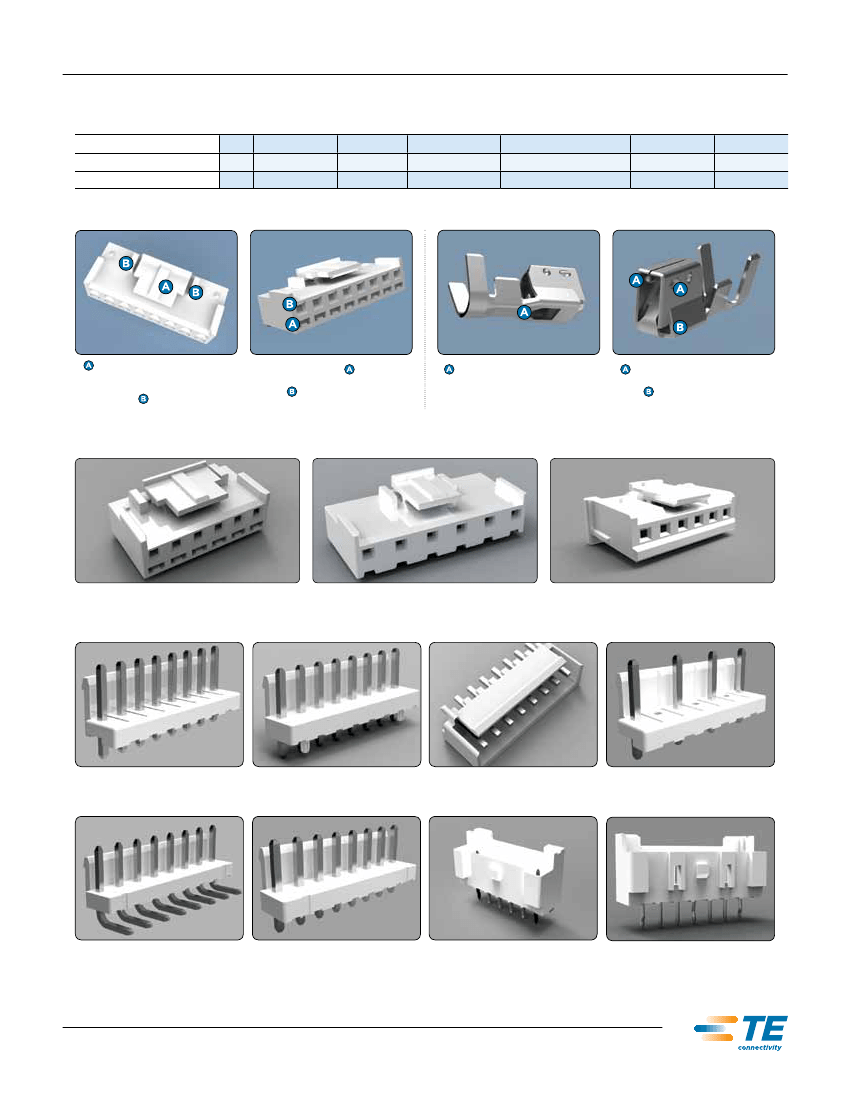

Housing Features
Contact Features (EP II)
: Positive audible latch on housing
helps to ensure complete system mating
and provides durability in high vibration
applications.
: Anti-snag features
prevent wires from snagging on the latch.
window slots
EP II Housing contains
for continuity testing simultaneously
with
contact back-out check.
: Lanceless contact design on EP II
to ensure reliable contact seating
: EP II additional points of contact
for increased current rating.
: Asymmetrical design
prevents mis-insertion.
Housing*
.156 (3.96 mm) EP II Housing
2132781
.200 (5.0 mm) EP Housing
1744036
.100 (2.5 mm) EP 2.5 Housing
2110992
Headers*
.156 (3.96 mm) low profile header
(EP and EP II)
1123723
.156 (3.96 mm) low profile post
header w/ pegs (EP and EP II)
1744057
.156 (3.96 mm) Vertical shrouded
headers (EP and EP II)
1877285
.312 (7.92 mm) straight post header
(EP)
1123724
.156 (3.96 mm) right angle post
header (EP and EP II)
647676
.200 (5.0 mm) straight post header
(EP)
1744037
.100 (2.5 mm) vertical shrouded
header w/ boss
(EP 2.5)
2132230
.100 (2.5 mm) vetical shrouded
header w/o boss
(EP 2.5)
2132415
*Base
part numbers shown. See following page for specific part numbers.
te.com/products/EP
TE Connectivity
Economy Power Connector System
Economy Power 2.5 mm (EP 2.5)
.100 EP 2.5 CRIMP RECEPTACLE CONTACTS
Phos Bronze, Pre-Tin
26-22 AWG
8000/reel
2110989-1
Part Number Ordering : Example for X-2110992-Y Housing*
-2 thru -9
Substitute dash number listed for “Y”, therefore a -2 signifies PN 2110922-2
1- -0 thru 2- -0
Substitute first number for “X” and second number listed for “Y”, therefore a
1- -2 signifies PN 1-2110922-2
* Follow same numbering scheme throughout for other part numbers listed
.100 EP 2.5 PLUG HOUSINGS
Position size
Housing
X-2110992-Y
2
-2
3
-3
4
-4
5
-5
6
-6
7
-7
8
-8
9
-9
10
11
12
13
14
15
16
17
18
19
20
1- -0 1- -1 1- -2 1- -3 1- -4 1- -5 1- -6 1- -7 1- -8 1- -9 2- -0
.100 EP 2.5 VERTICAL SHROUDED HEADERS
Position size
With Boss
Without Boss
X-2132230-Y
X-2132415-Y
2
-2
-2
3
-3
-3
4
-4
-4
5
-5
-5
6
-6
-6
7
-7
-7
8
-8
-8
9
-9
-9
10
11
12
13
14
15
16
17
18
19
20
1- -0 1- -1 1- -2 1- -3 1- -4 1- -5 1- -6 1- -7 1- -8 1- -9 2- -0
1- -0 1- -1 1- -2 1- -3 1- -4 1- -5 1- -6 1- -7 1- -8 1- -9 2- -0
Economy Power (EP) and EP II
.156 ECONOMY POWER CRIMP, RECEPTACLE CONTACTS, BREAKAWAY TPA DEVICE
Material/Finish
Economy Power
Economy Power II
Phos Bronze,Pre-Tin
Brass,Pre-Tin
Phos Bronze,Pre-Tin
Wire Size
18-22 AWG
18-22 AWG
18-22 AWG
16-20 AWG
Strip Form
1123721-1
1123721-2
1744144-1
1744201-1
Loose Piece
1318912-1
1318912-2
1744395-1
1744396-1
TPA
NA
NA
1-2132782-2
TPA Type
NA
NA
12 Pos Breakaway
.156 ECONOMY POWER LOW-PROFILE PLUG HOUSINGS
Position size
Economy Power
Economy Power II
X-1123722-Y
X-2132781-Y
2
1- -2
2132813-2
3
1- -3
-3
4
1- -4
-4
5
1- -5
-5
6
1- -6
-6
7
1- -7
-7
8
1- -8
-8
9
1- -9
-9
10
1- -0
1- -0
11
1- -1
1- -1
12
1-647690-2
1- -2
.156 ECONOMY POWER STRAIGHT LOW-PROFILE HEADERS
Position size
Bulk Pack
Tube Loaded
Bulk with Pegs
Bulk, High Temperature
Vertical Shrouded
X-1123723-Y
X-1318300-Y
X-1744057-Y
X-1744055-Y
X-1877285-Y
Note : Additional colors available upon request.
2
1- -2
1- -2
-2
-2
-2
3
1- -3
1- -3
-3
-3
-3
4
1- -4
1- -4
-4
-4
-4
5
1- -5
1- -5
-5
-5
-5
6
1- -6
1- -6
-6
-6
-6
7
1- -7
1- -7
-7
-7
-7
8
1- -8
1- -8
-8
-8
-8
9
1- -9
1- -9
-9
-9
-9
10
1- -0
1- -0
1- -0
1- -0
1- -0
11
1- -1
1- -1
1- -1
1- -1
1- -1
12
1-647689-2
--
1- -2
--
1- -2
.156 ECONOMY POWER RIGHT-ANGLE LOW-PROFILE POST HEADERS
Position size
Bulk Pack
Bulk, High Temperature
X-647676-Y
X-1744056-Y
Note : Additional colors available upon request.
2
-2
-2
3
-3
-3
4
-4
-4
5
-5
-5
6
-6
-6
7
-7
-7
8
-8
-8
9
-9
-9
10
1- -0
1- -0
11
1- -1
1- -1
12
1- -2
1- -2
.312 ECONOMY POWER STRAIGHT POST HEADERS
Position size
Bulk Pack
Tube Loaded
X-1123724-Y
X-1318301-Y
Note : Additional colors available upon request.
2
1- -2
1- -2
3
1- -3
1- -3
4
1- -4
1- -4
5
1- -5
1- -5
6
1- -6
--
7
--
--
8
--
--
9
--
--
10
--
--
11
--
--
12
--
--
.200 ECONOMY POWER PLUG HOUSINGS
Position size
Economy Power
X-1744036-Y
Note : Additional colors available upon request.
2
-2
3
-3
4
-4
5
-5
6
-6
7
-7
8
-8
9
-9
10
1- -0
11
1- -1
12
1- -2
.200 ECONOMY POWER POST HEADERS
Position size
Straight
Right angle
X-1744037-Y
X-1744048-Y
Note : Additional colors available upon request.
2
-2
-2
3
-3
-3
4
-4
-4
5
-5
-5
6
-6
-6
7
-7
-7
8
-8
-8
9
-9
-9
10
1- -0
1- -0
11
1- -1
1- -1
12
1- -2
1- -2
