Part Number

Search

52559-3370

Description

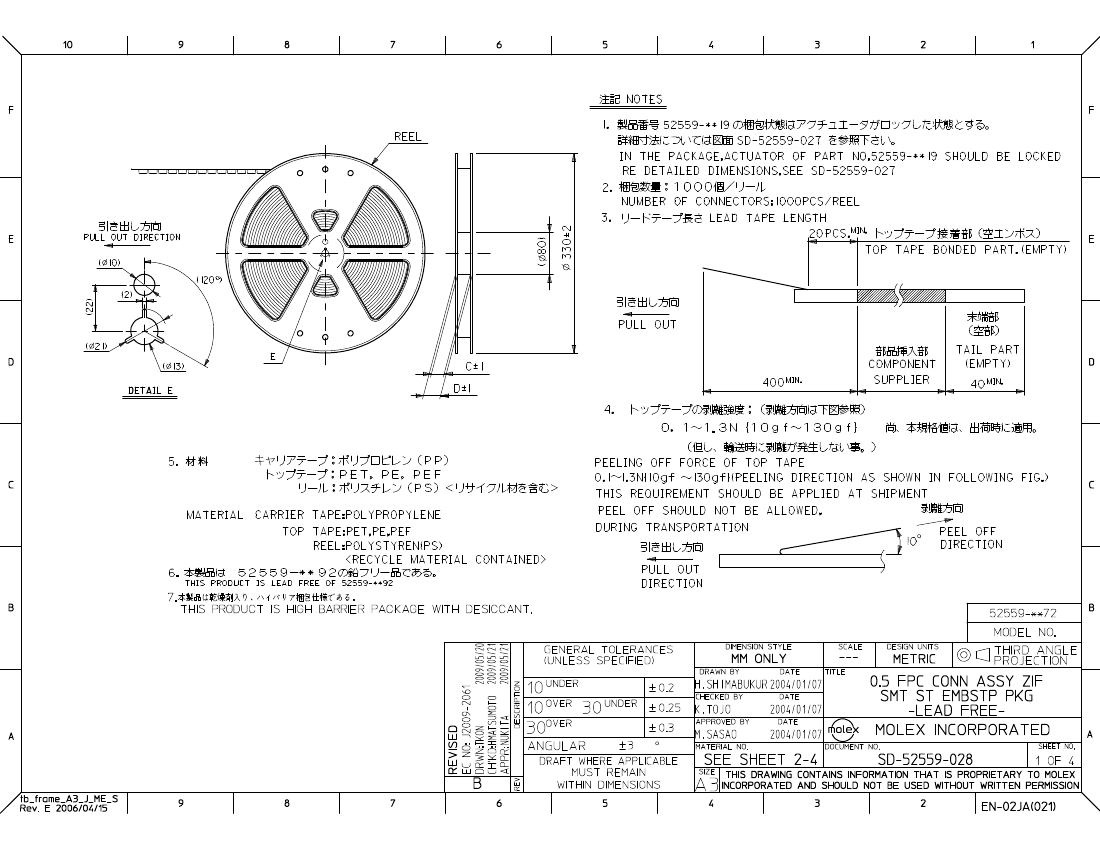

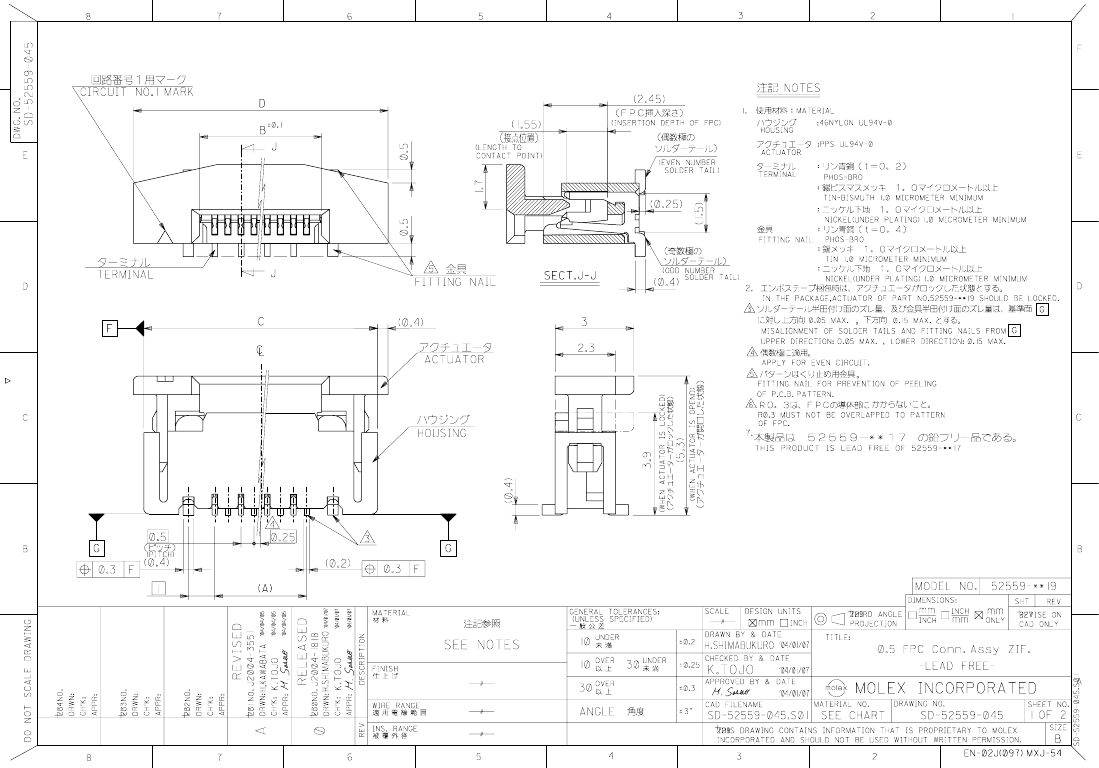

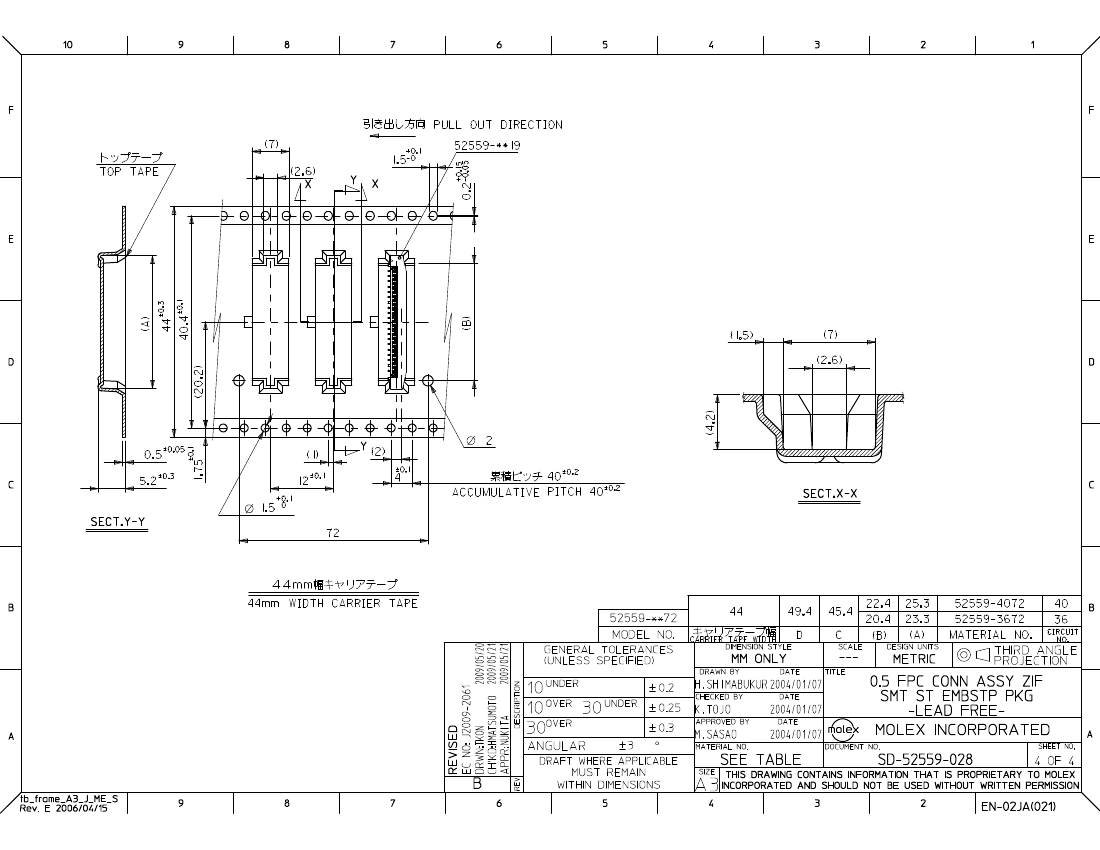

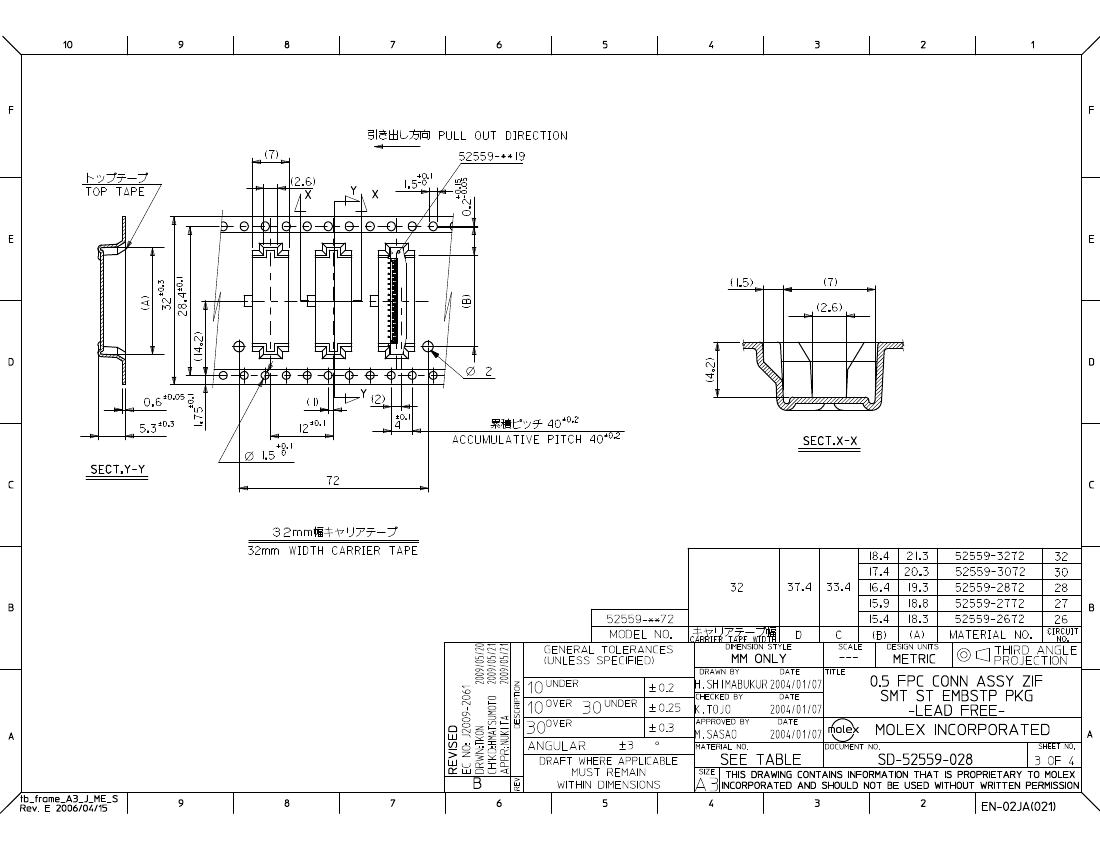

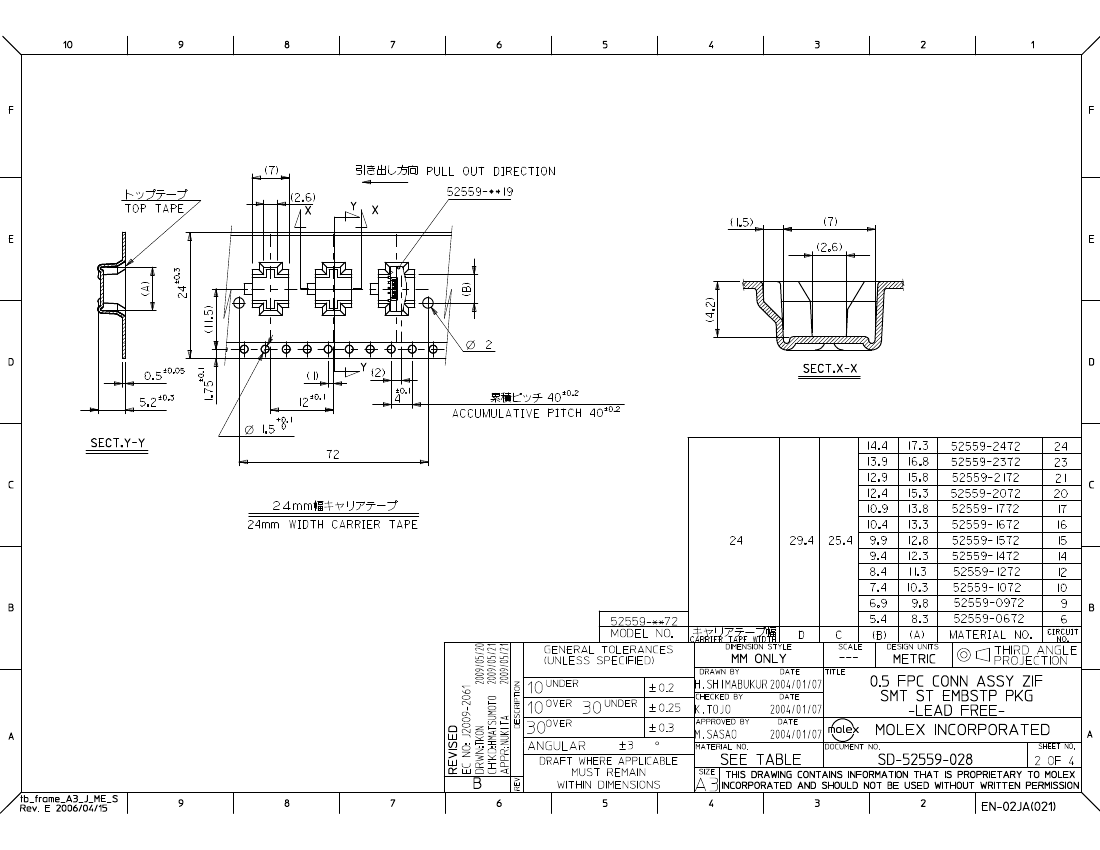

FFC u0026 FPC Connectors 0.5 FPC ZIF Hsg Assy SMT 33Ckt EmbsTpPkg
CategoryThe connector    The connector
File Size521KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

52559-3370 Online Shopping

Suppliers Part Number Price MOQ In stock
52559-3370 - - View Buy Now

52559-3370 Overview

FFC u0026 FPC Connectors 0.5 FPC ZIF Hsg Assy SMT 33Ckt EmbsTpPkg

52559-3370 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresROHS, ELV COMPL & EMBOSSED PKG
Board mount optionsFITTING NAIL
body width0.091 inch
subject depth0.154 inch
body length0.874 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSINGLE PRONG
DIN complianceNO
Dielectric withstand voltage250VAC V
Durability20 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance50000000 Ω
Insulator colorBEIGE
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.02 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.794 mm
Plating thickness39u inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts33
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N
Base Number Matches1

52559-3370 Related Products

52559-3370 52559-3692 52559-0972 52559-2092 52559-1492 52559-2090
Description FFC u0026 FPC Connectors 0.5 FPC ZIF Hsg Assy SMT 33Ckt EmbsTpPkg FFC u0026 FPC Connectors .50 MM FFC/FPC CONNE FFC u0026 FPC Connectors VERTICAL SMT ZIF 20P FFC u0026 FPC Connectors VERTICAL SMT ZIF 14P FFC u0026 FPC Connectors FPC ZIF SMT HSG 20
Is it Rohs certified? conform to incompatible conform to incompatible incompatible incompatible
Maker Molex Molex Molex Molex Molex Molex
Reach Compliance Code compliant compliant compliant unknown unknown unknown
Other features ROHS, ELV COMPL & EMBOSSED PKG ZIF, STAGGERED CONFIGURATION ZIF ZIF, STAGGERED CONFIGURATION ZIF, STAGGERED CONFIGURATION ZIF, STAGGERED CONFIGURATION
Connector type FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO NO NO NO NO
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
maximum insertion force ZIF N ZIF N ZIF N ZIF N ZIF N ZIF N
MIL compliance NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 1 1 1 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 33 36 9 20 14 20
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
body width 0.091 inch - 0.091 inch - 0.118 inch 0.118 inch
body length 0.874 inch - 0.402 inch - 0.5 inch 0.618 inch
contact mode RECTANGULAR - RECTANGULAR - RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ - 20 mΩ - 20 mΩ 20 mΩ
Dielectric withstand voltage 250VAC V - 250VAC V - 200VAC V 250VAC V
Insulation resistance 50000000 Ω - 50000000 Ω - 50000000 Ω 50000000 Ω
insulator material NYLON - NYLON - NYLON NYLON
Plug contact pitch 0.02 inch - 0.02 inch - 0.02 inch 0.02 inch
Installation option 1 LOCKING - LOCKING - LOCKING MECH FCC RETNN DVC
PCB row number 2 - 2 - 2 2
Maximum operating temperature 85 °C - 85 °C - 85 °C 85 °C
Minimum operating temperature -20 °C - -40 °C - -40 °C -20 °C
PCB contact pattern STAGGERED - STAGGERED - STAGGERED STAGGERED
PCB contact row spacing 2.794 mm - 2.794 mm - 2.794 mm 2.794 mm
Rated current (signal) 0.5 A - 0.5 A - 0.5 A 0.5 A
Guideline UL - UL - UL UL
reliability COMMERCIAL - COMMERCIAL - COMMERCIAL COMMERCIAL
Base Number Matches 1 - 1 - 1 1
