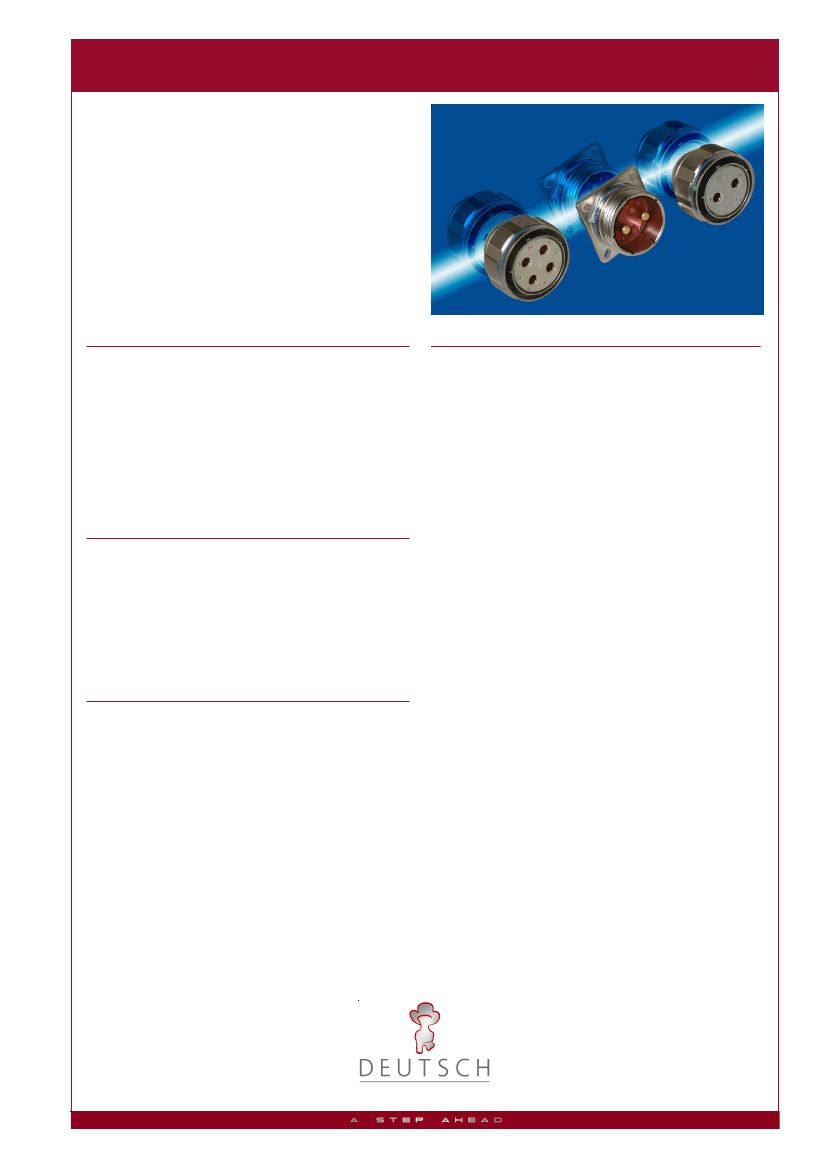

High Current Circular Connectors (DTS-HC)
The Deutsch DTS-HC series connector is
ideally suited for power control systems
for military vehicles using a 8mm
2
, 16mm
2
or 25mm
2
cable. With both high electrical
power and signal contacts within the
same body. The power contacts are rated
to 150 amps and are suitable for power
ring main supplies.
FEATURES
Dual contact design
High current contacts
100% scoop proof design
Grounding fingers
Elastomer interface
RFI fingers at mating interface
Removable rear crimp contacts
Dedicated back fitting and grommet
GENERAL SPECIFICATION
Material:
Shell/coupling ring:
Plating:
High Strength Aluminium Alloy
Nickel (RoSH compliant) (standard)
Olive Drab Cadmium (optional)
Zinc Cobalt (optional)
Gold plated Copper Alloy
Size 4 service rating 150 Amp
Size 20 service rating in accordance
with MIL-C-38999
Crimp
8mm
2
, 16mm
2
& 25mm
2
cable
CENELEC Specification HD516
20-04 AWG cable
Dubius Tool D51
31040
31041
Thermoplastic
Fluorinated Silicone
-65°C to +175°C
It is highly recommended for the
correct installation that the dedicated
back fitting and rear grommet is
used with this connector
Plug & receptacle caps are available
No electrical or mechanical defects
after 500 cycles
As per Mil-DTL-38999
As per Mil-DTL-38999
Contacts:
Material:
Current Rating:
Type:
BENEFITS
Space saving with integral power and signal wires
Provides superior contact retention under severe vibration
Standard Mil-C-39029 contacts as used in Mil-DTL-38999
connectors
Threaded coupling with self locking mechanism for anti-vibration
Enhanced cable support and sealing
Cable Size:
Size 4:
Size 20:
Crimp Tool:
Dieset:
16mm
2
cable
25mm
2
cable
Insulators:
Interface Seal:
Temperature:
Backshell:
COMPANY QUALITY APPROVALS
Civil Aviation Authority A8-1
BS EN ISO 9001
Military Spec Approvals 38999
BS9000 and CECC
Underwriters Laboratories
With 30 years experience in designing and
manufacturing at its own facilities, Deutsch UK
can provide interconnection solutions for the
most demanding of environments
Deutsch UK
Castleham Industrial Estate
4 Stanier Road, St Leonard-On-Sea
East Sussex TN38 9RF England
Telephone +44 (0) 1424 852721
Fax
+44 (0) 1424 851726
Email
marketinguk@deutsch.net
www.deutsch.net
Protective Caps:
Durability:
Vibration:
Thermal Shock:
INSERT ARRANGEMENTS
Shell Size 23
Shell Size 25
23-24320
2 x Size 4 contacts
3 x Size 20 contacts
25-44420
4 x Size 4 contacts
4 x Size 20 contacts
DIMENSIONAL INFORMATION
Please refer to the Deutsch UK D38999 Series 3 & DTS Dimensional Information datasheet
ORDERING INFORMATION
CONNECTOR
Range ref
Shell Style:
20 = Square flange receptacle
24 = Round flange receptacle
26 = Free plug
Finish:
F = Nickel
W = Olive Drab Cadmium
Z = Zinc Colbalt
Shell Size:
23, 25
DTS 26 F 23 - 24320 S N - 025
Cable Size:
025 = 25mm
2
cable
016 = 16mm
2
cable
008 = 8mm
2
cable
Keyway:
N = Normal, A, B
Contact Type:
P = Pin
S = Socket
Insert Arrangement:
24320, 44420
(see above)
ACCESSORIES
Basic Part Number:
610312 - Backshell & grommet
610317 - Plug protective cap
610316 - Receptacle protective cap
Shell Size:
23, 25
610312 - 25 - 58 - 025
Cable Size:
(only required for backshell)
025 = 25mm
2
cable
016 = 16mm
2
cable
008 = 8mm
2
cable
Finish:
58 = Nickel
12 = Olive Drab Cadmium
93 = Zinc Colbalt
CONTACTS AND TOOLING
Contacts & Tooling
Contact pin size 4 for 25mm
2
cable
Contact socket size 4 for 25mm
2
cable
Contact pin size 4 for 16mm
2
cable
Contact socket size 4 for 16mm
2
cable
Contact pin size 4 for 8mm
2
cable
Contact socket size 4 for 8mm
2
cable
Contact pin size 20
Contact socket size 20
Contact removal tool size 4 contacts
Insertion/Extraction tool size 20 contact
Part Number
605660
605654
605734
605739
610151
610152
38941-20
38943-20
610136-TOOL
M81969/29-03
REAR GROMMETS
Rear Grommet
Shell size 23 for 25mm
2
cable
Shell size 25 for 25mm
2
cable
Shell size 23 for 16mm
2
cable
Shell size 25 for 16mm
2
cable
Shell size 23 for 8mm
2
cable
Shell size 25 for 8mm
2
cable
Part Number
605845
605846
610314
610315
to be assigned
to be assigned
Subject to change without prior notification
©2007 Deutsch UK DTS-HC 150Amp Issue 2 05/08
