39752-0007: CategoryThe connector; File Size152KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39752-0007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39752-0007	-	-	View	Buy Now

39752-0007 Parametric

Parameter Name	Attribute value
Product Category	Pluggable Terminal Blocks
Manufacturer	Molex
RoHS	Not Applicable
Product	Headers
Number of Positions	7 Position
Pitch	3.5 mm
Factory Pack Quantity	800

Preview

Download Datasheet

View All

10

9

8

7

6

5

4

3

2

1

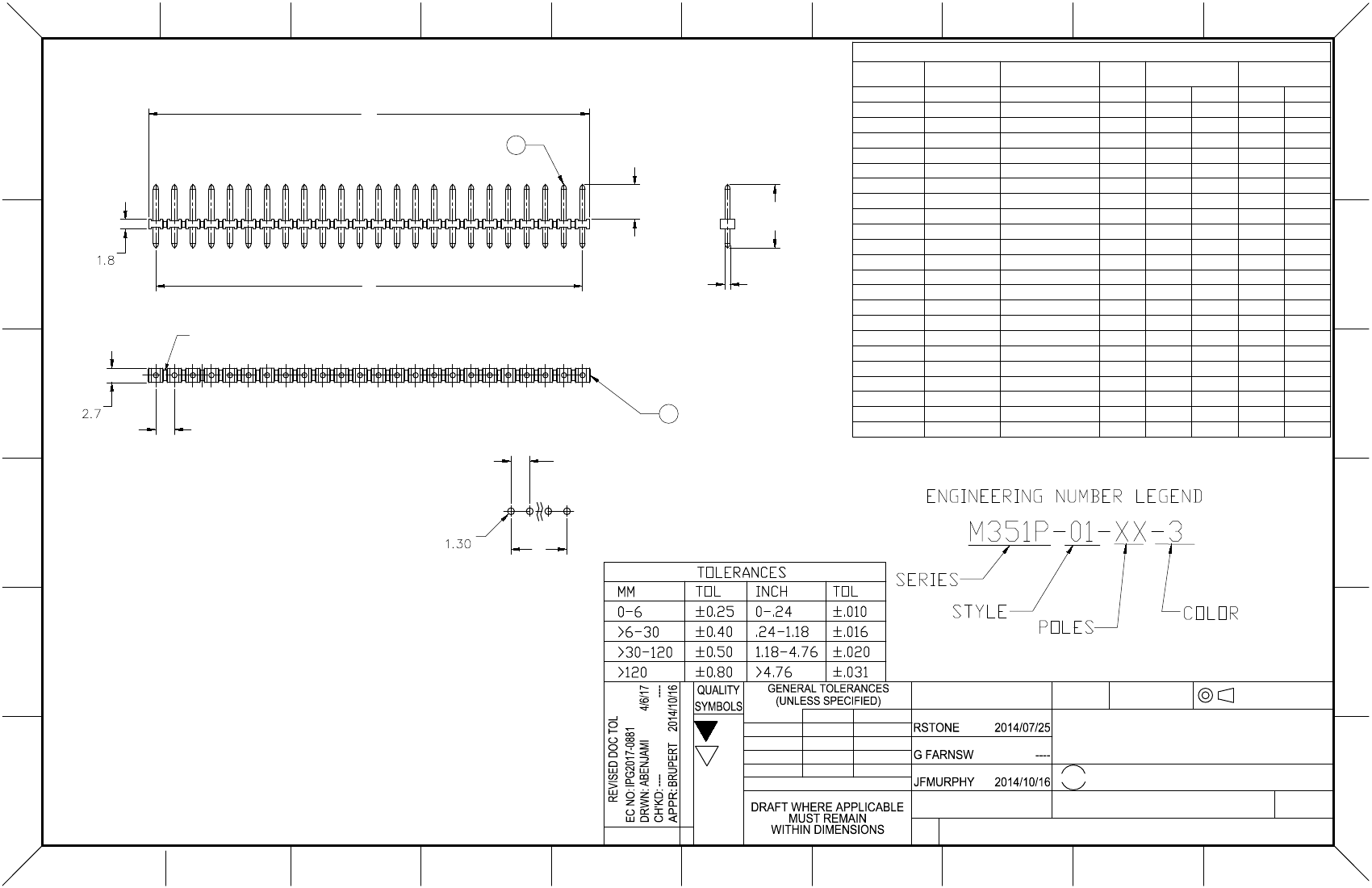

PART NUMBER DATA

CIRCUITS

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PART

NUMBER

397520002

397520003

397520004

397520005

397520006

397520007

397520008

397520009

397520010

397520011

397520012

ENGINEERING

NUMBER

M351P-01-02-3

M351P-01-03-3

M351P-01-04-3

M351P-01-05-3

M351P-01-06-3

M351P-01-07-3

M351P-01-08-3

M351P-01-09-3

M351P-01-10-3

M351P-01-11-3

M351P-01-12-3

M351P-01-13-3

M351P-01-14-3

M351P-01-15-3

M351P-01-16-3

M351P-01-17-3

M351P-01-18-3

M351P-01-19-3

M351P-01-20-3

M351P-01-21-3

M351P-01-22-3

M351P-01-23-3

M351P-01-24-3

COLOR

GREEN

A IN mm

.26

.39

.53

.67

.81

.94

1.08

1.22

1.36

1.50

1.63

1.77

1.91

2.05

2.18

2.32

2.46

2.60

2.74

2.87

3.01

3.15

3.29

6.5

10.0

13.5

17.0

20.5

24.0

27.5

31.0

34.5

38.0

41.5

45.0

48.5

52.0

55.5

59.0

62.5

66.0

69.5

73.0

76.5

80.0

83.5

B IN mm

.138

.276

.413

.551

.689

.827

.965

1.102

1.240

1.378

1.516

1.654

1.791

1.929

2.067

2.205

2.343

2.480

2.618

2.756

2.894

3.031

3.169

3.50

7.00

10.50

14.00

17.50

21.00

24.50

28.00

31.50

35.00

38.50

42.00

45.50

49.00

52.50

56.00

59.50

63.00

66.50

70.00

73.50

77.00

80.50

A

F

B

F

.26

6.6

.07

.47

12.0

E

B

1.00

BREAK FEATURE

D

.11

.138

3.50

.138

3.50

A

D

REF. THE LAST 2 DIGITS OF THE PART NUMBER EQUAL CIRCUIT COUNT

C

B

PCB LAYOUT

B

DESCRIPTION

SPECIFICATIONS

1.MATERIAL:

A. BODY: PA66, UL94V-0

B. TERMINAL: BRASS.TIN PLATED

2.RATING: 125V, 8A

CONTACT FACTORY FOR OPTIONAL COLORS

DIMENSION STYLE

SCALE

DESIGN UNITS

B

IN/MM

---

TITLE

METRIC

THIRD ANGLE

PROJECTION

=

0

C

=

0

A

4 PLACES

3 PLACES

2 PLACES

1 PLACE

mm

---

INCH

---

DRAWN BY

DATE

PIN HEADER-BREAKABLE

CHECKED BY

DATE

APPROVED BY

DATE

molex

3.50MM, VERTICAL

----

MOLEX INCORPORATED

SHEET NO.

A

MATERIAL NO.

DOCUMENT NO.

5.DIMS SHOWN ARE FOR REFERENCE ONLY

2

SEE CHART

SIZE

SD-39752-001

2

1

1 OF 1

B

5

4

10

9

8

7

6

REV

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

3
