498100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 498100

498100: DescriptionElectric Fuse, 100A, 32VDC, 1000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size128KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

498100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	498100	-	-	View	Buy Now

498100 Overview

Electric Fuse, 100A, 32VDC, 1000A (IR), Inline/holder,

498100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	12 mm
body height	8 mm
Body length or diameter	16 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	16mm x 12mm x 8mm
Rated breaking capacity	1000 A
Rated current	100 A
Rated voltage (DC)	32 V
Guideline	UL
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

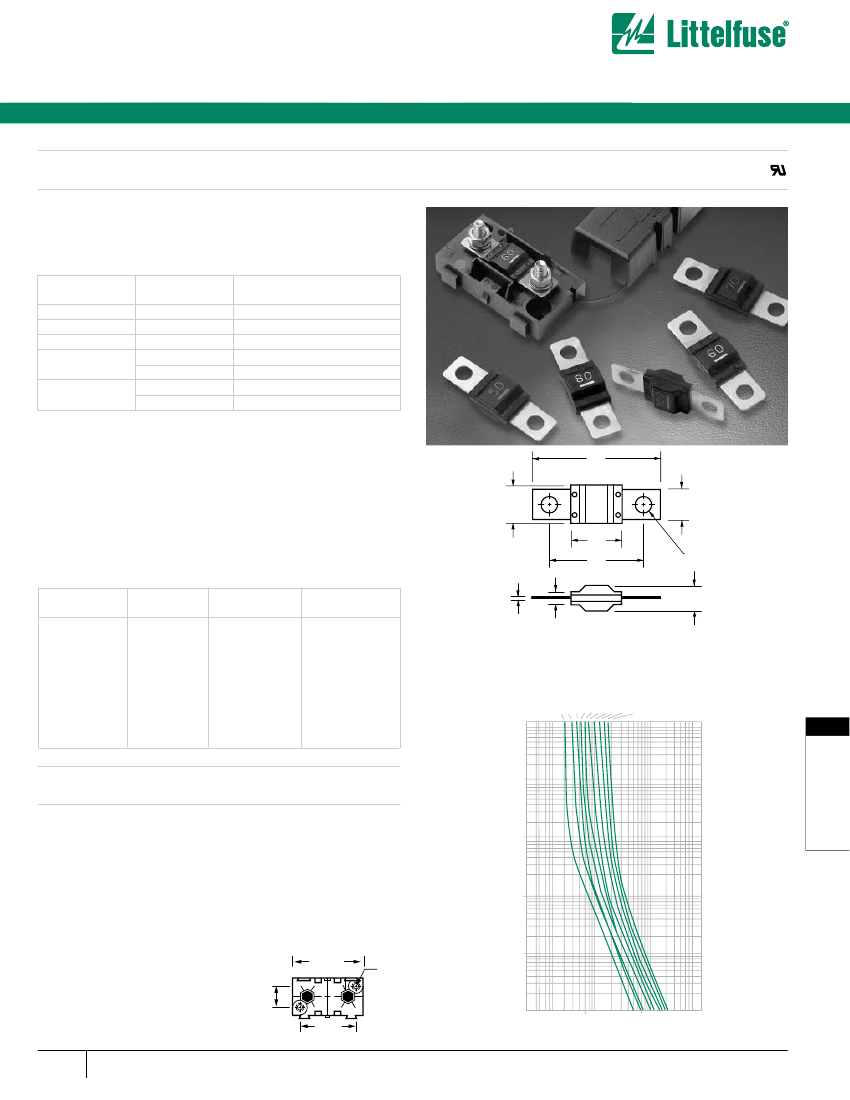

Blade Terminal & Special Purpose Fuses

Low Voltage

MIDI

FUSE

The MIDI

Fuse offers a bolt-on space saving fuse for high current wiring

protection and provides time delay characteristics with “Diffusion Pill

Technology”. The MIDI Fuse was designed and patented by Littelfuse.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

110%

150%

200%

300%

Ampere

Rating

30-125A

150-200A

30-125A

150-200A

Opening Time

100 hours,

Minimum

4 hours,

Minimum

90 sec.,

Min.;

3600 sec.,

Max.

5 sec.,

Min.;

100 sec.,

Max.

1 sec.,

Min.;

15 sec.,

Max.

.5 sec.,

Min.;

15 sec.,

Max.

.3 sec.,

Min.;

3 sec.,

Max.

AGENCY APPROVALS:

Recognized under the components program

of Underwriters Laboratories.

AGENCY FILE NUMBERS:

E71611

INTERRUPTING RATINGS:

1000 amperes at 32 VDC

VOLTAGE RATINGS:

32 VDC

AMBIENT TEMP.:

–40°C to +125°C

PATENTED

INTERRUPTING RATING:

1000A @ 32 VDC

(1.61)

(.47)

(.63)

(.1.18)

(.394)

ORDERING INFORMATION:

Catalog

Number

0498

030

0498

040

0498

050

0498

060

0498

070

0498

080

0498

100

0498

125

0498

150

0498

200

Ampere

Rating

100

125

150

200

Voltage

Rating (VDC)

Nominal Cold

Resistance (mΩ)

2.1

1.3

1.04

0.87

0.72

0.56

0.45

0.40

0.33

0.25

0.4

(.016)

(.157)

Ø 5.5

(.217)

(.315)

Average Time Current Curves

30A

40A

50A

60A

70A

80A

100A

125A

150A

200A

1000

BLADE TERMINAL AND

SPECIAL PURPOSE FUSES

100

1000

CURRENT IN AMPERES

10000

MIDI

FUSE

Fuseholders

ORDERING INFORMATION:

Catalog Number 498900.

SPECIFICATIONS:

Electrical:

Use with MIDI

Fuses from 40 to 150 amps. (32V)

Body:

Glass Filled Thermoplastic

Body Color:

Black

Cover With Tether:

Glass Filled Thermoplastic

Cover Color:

Black

Ambient Temp.:

–

40°C to +125°C

Fuse Mounting:

M5 Threaded Stud and Hex Nuts

51.35

Cable Positions:

Optional

(2.022)

Side Stackable Feature

15.2

(.60)

100

TIME IN SECONDS

0.1

3.8

(.15)

(2 Holes)

0.01

41.0

(1.61)

441

w w w. l i t t e l f u s e . c o m
