3-6450160-7: DescriptionBoard Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Black Insulator, Receptacle; CategoryThe connector The connector; File Size2MB，16 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-6450160-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-6450160-7	-	-	View	Buy Now

3-6450160-7 Overview

Board Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Black Insulator, Receptacle

3-6450160-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8000816414
Reach Compliance Code	compliant
Samacsys Description	MBXL R/A RCPT 4P+24S+4P
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-09 20:32:13
YTEOL	9.1
Other features	WITH GUIDES
Board mount options	BOARD LOCK
body width	0.47 inch
subject depth	0.82 inch
body length	3.25 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P8
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Durability	250 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	42A
Match contact row spacing	0.1 inch
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	BOARDLOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	3u inch
Rated current (signal)	42 A
Rated voltage	200 V
Guideline	UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECO-15-000526

19JAN2015

LAW

DIM L

# .010

OPTIONAL CENTER MODULE, WITH

n .150 THRU HOLE OR HOLD DOWN FEATURE.

"AMP", PART NUMBER, AND DATE CODE TO BE MARKED IN AREA SHOWN.

MATERIAL: HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, BLACK, UL94 V-O

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

CONTACT PLATING: NOBLE PLATING ON CONTACT FUNCTIONAL AREA OF POWER

AND SIGNAL CONTACTS

MECHANICAL CONNECTOR KEEP OUT ZONE.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

PCB- ALL HOLE DIAMETERS ARE FINISHED DIMENSIONS.

PCB- n .0453 +/-.0010 DRILLED HOLES PLATED WITH .0003 MIN Sn

OVER .001-.003 CU PLATING TO ACHIEVE A n .040 # .003 HOLE.

DIM R

DIM W

DIM T

TYP

DIM K

.100

TYP

DIM S

TYP

.278

2 PLC

.470

.820

.448

.155

2 PLC

.335

TAIL LENGTH

TYP

# .015

.059

SECTION

Z-Z

DIM U

.260

3 PLC

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DIM M

R.GRZYBOWSKI

M.PERCHERKE

108-1973

21FEB05

NAME

TE Connectivity

INCHES

APVD

DIM D

.150

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.002

PRODUCT SPEC

APPLICATION SPEC

2 $

WEIGHT

114-13038

4805 (3/11)

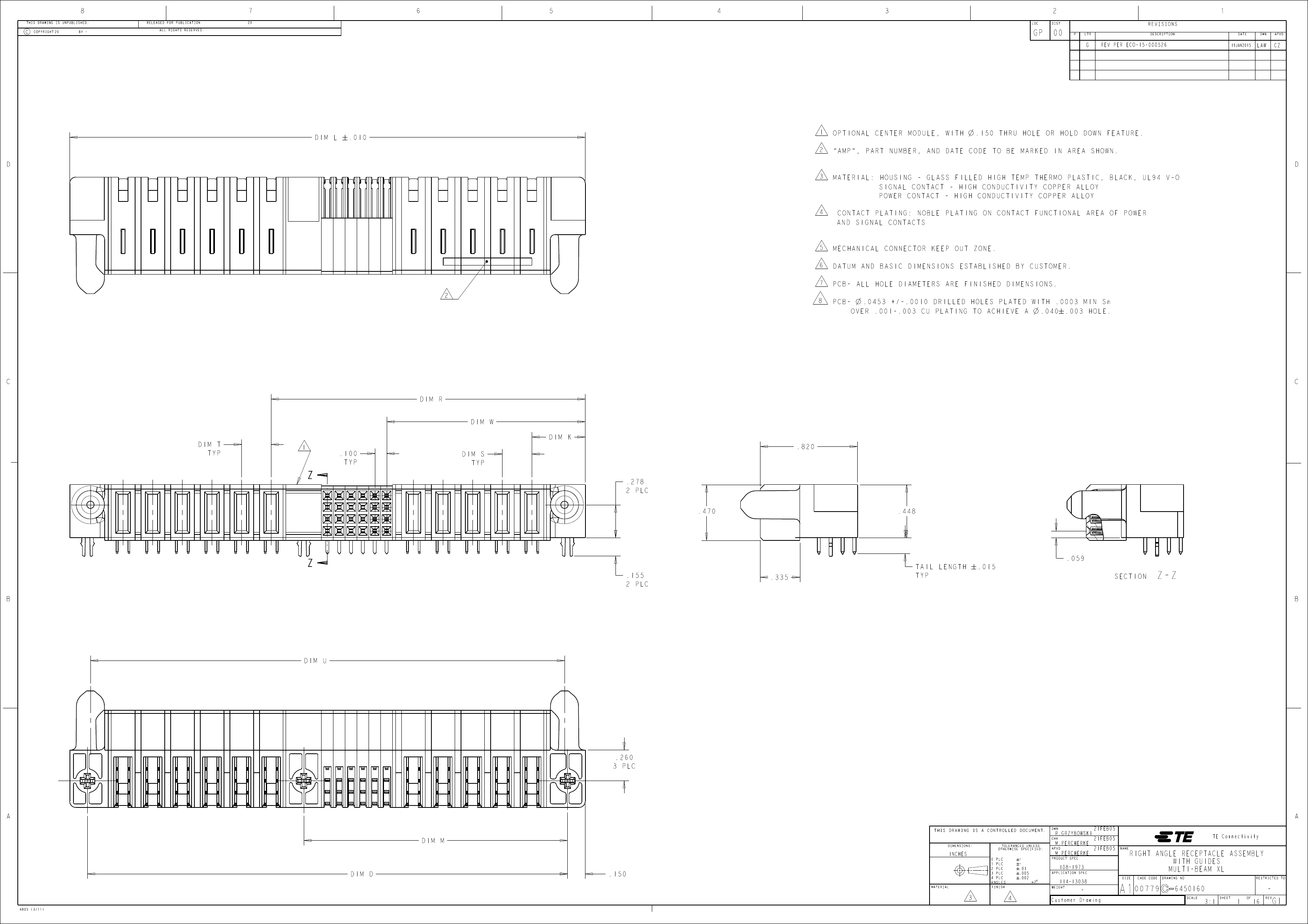

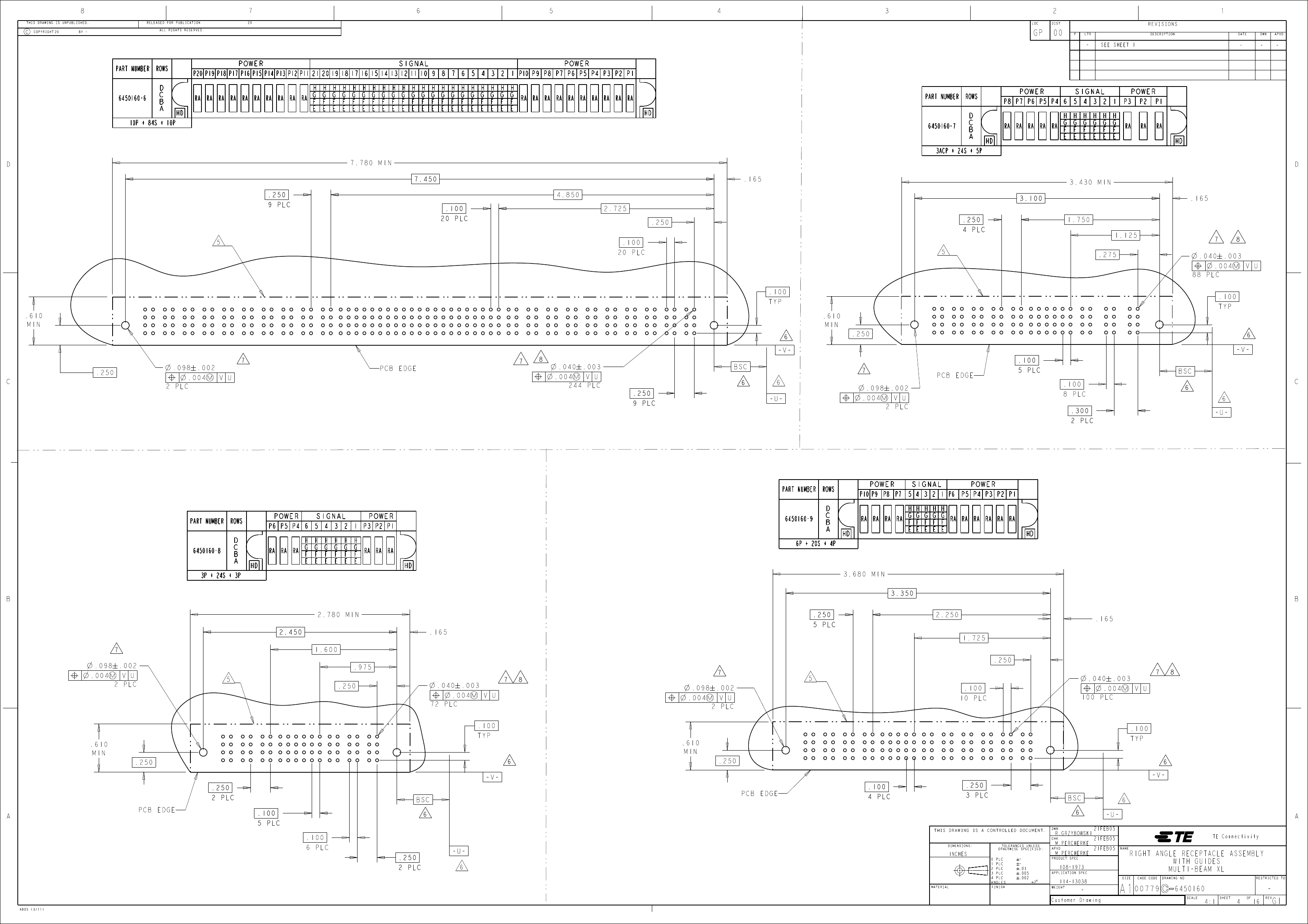

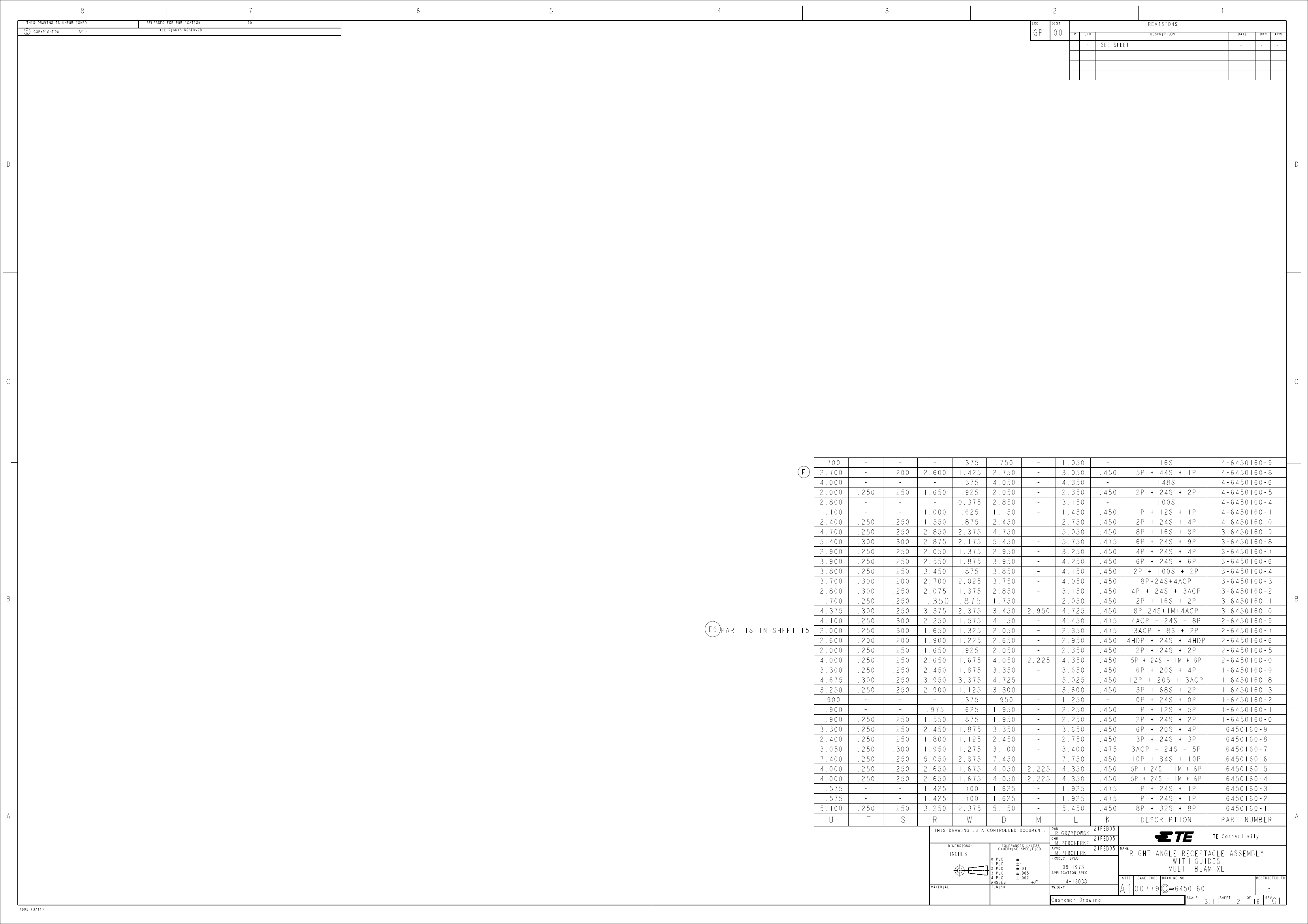

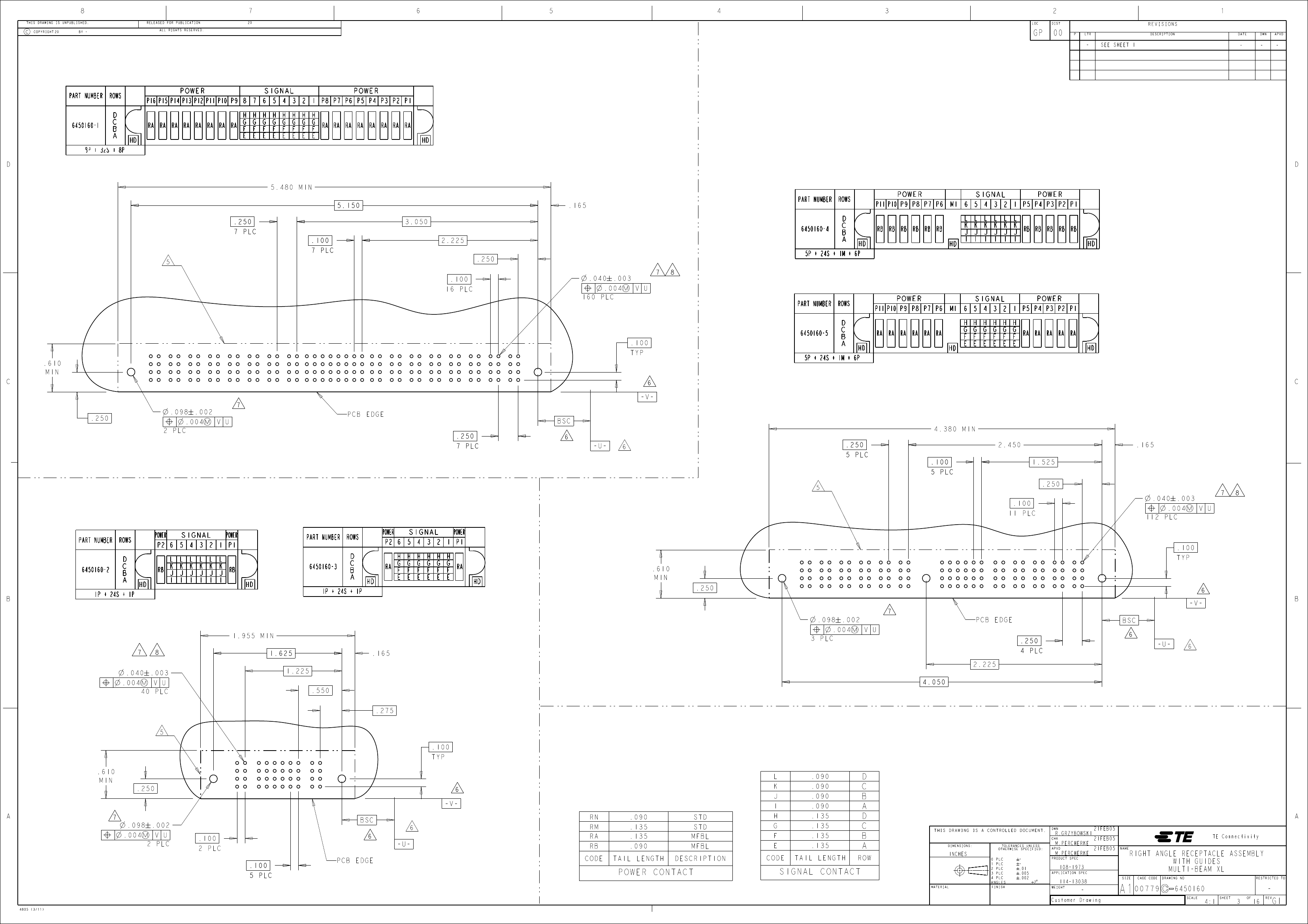

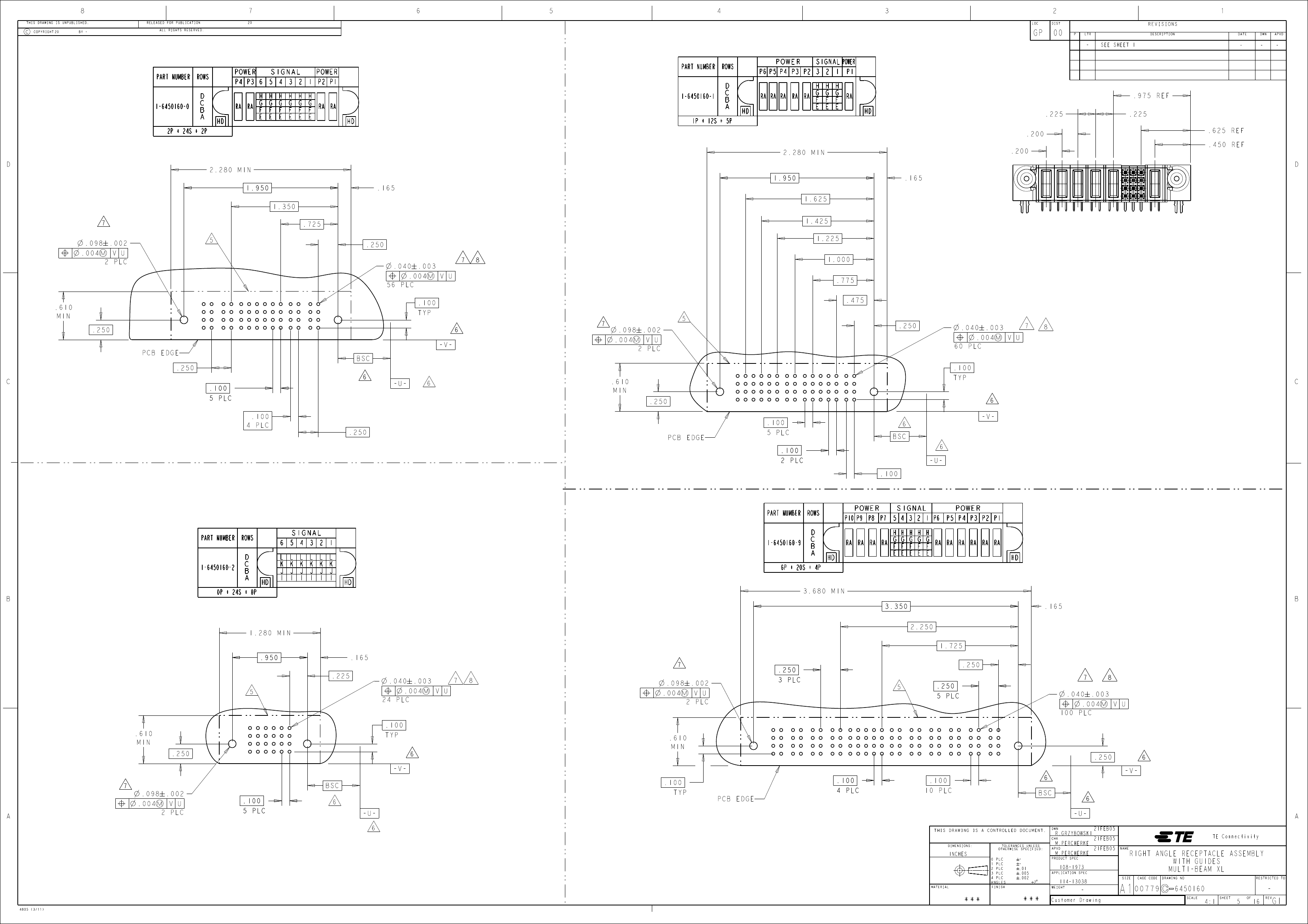

Customer Drawing

00779

SIZE

RIGHT ANGLE RECEPTACLE ASSEMBLY

WITH GUIDES

MULTI-BEAM XL

CAGE CODE

DRAWING NO

RESTRICTED TO

6450160

SCALE

3:1

SHEET

REV
