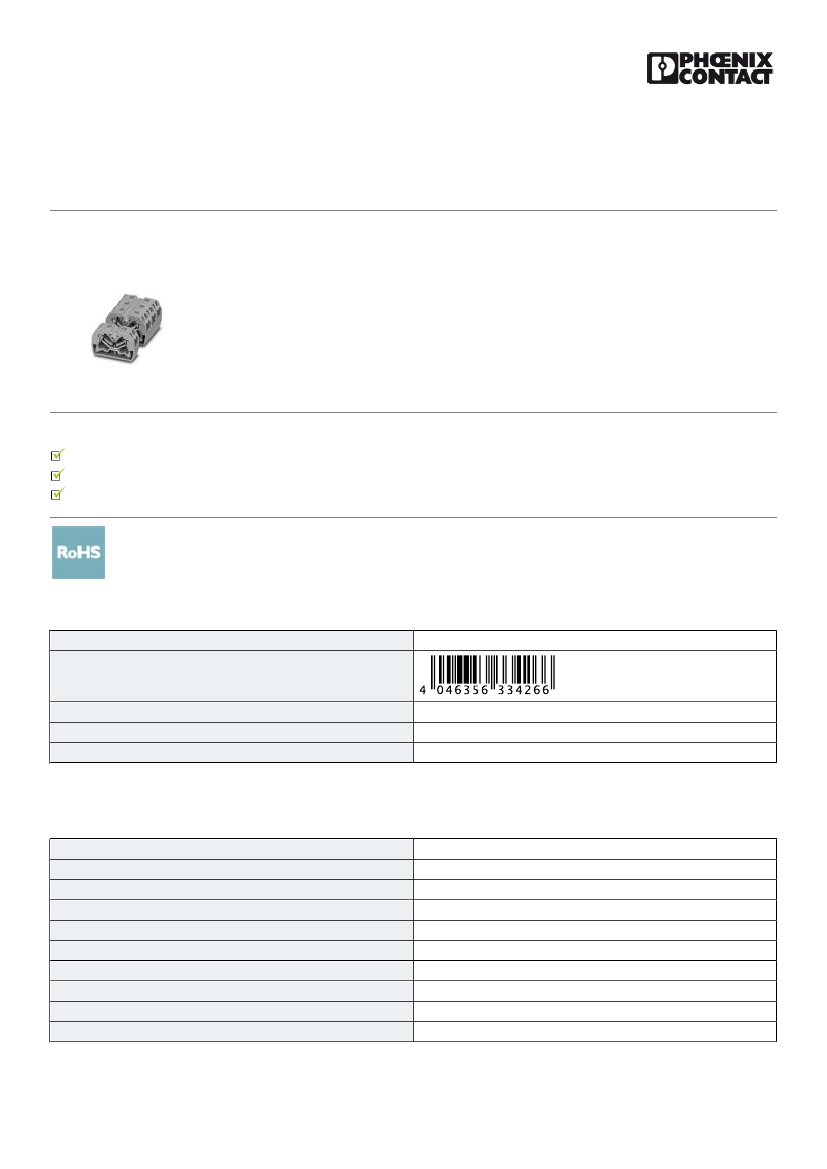

Mini feed-through terminal block - MSDBV 2,5-M OG - 3073254
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Mini feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4
mm², AWG: 28 - 12, Width: 10.4 mm, Height: 22 mm, Color: orange, Mounting type: Direct mounting with
flange
The figure shows a version of the
article
Why buy this product
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356334266
85369010
Made to Order (non-returnable)
50 STK
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
1
4
2.5 mm²
orange
PA
V0
8 kV
3
III
I
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3073254
Mini feed-through terminal block - MSDBV 2,5-M OG - 3073254
Technical data
General
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
30 A (with 4 mm² conductor cross section)
24 A
800 V
Yes
Dimensions
Width
End cover width
Length
Height
10.4 mm
4 mm
32 mm
22 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Connection in acc. with standard
Stripping length
Spring-cage connection
IEC 60947-7-1
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
0.14 mm²
2.5 mm²
0.5 mm²
IEC/EN 60079-7
8 mm
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3073254
Mini feed-through terminal block - MSDBV 2,5-M OG - 3073254
Circuit diagram
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / VDE Zeichengenehmigung / IECEE CB Scheme / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-12
20 A
300 V
C
28-12
20 A
300 V
D
28-12
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-12
20 A
300 V
C
28-12
20 A
300 V
D
28-12
5A
600 V
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
28-12
20 A
600 V
C
28-12
20 A
600 V
D
28-12
20 A
600 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3073254
Mini feed-through terminal block - MSDBV 2,5-M OG - 3073254
Approvals
VDE Zeichengenehmigung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-Search.aspx 40029769
0.2-2.5
24 A
800 V
IECEE CB Scheme
mm²/AWG/kcmil
Nominal voltage UN
http://www.iecee.org/ DE1-50526
0.2-2.5
800 V
EAC 7500651.22.01.00246
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
