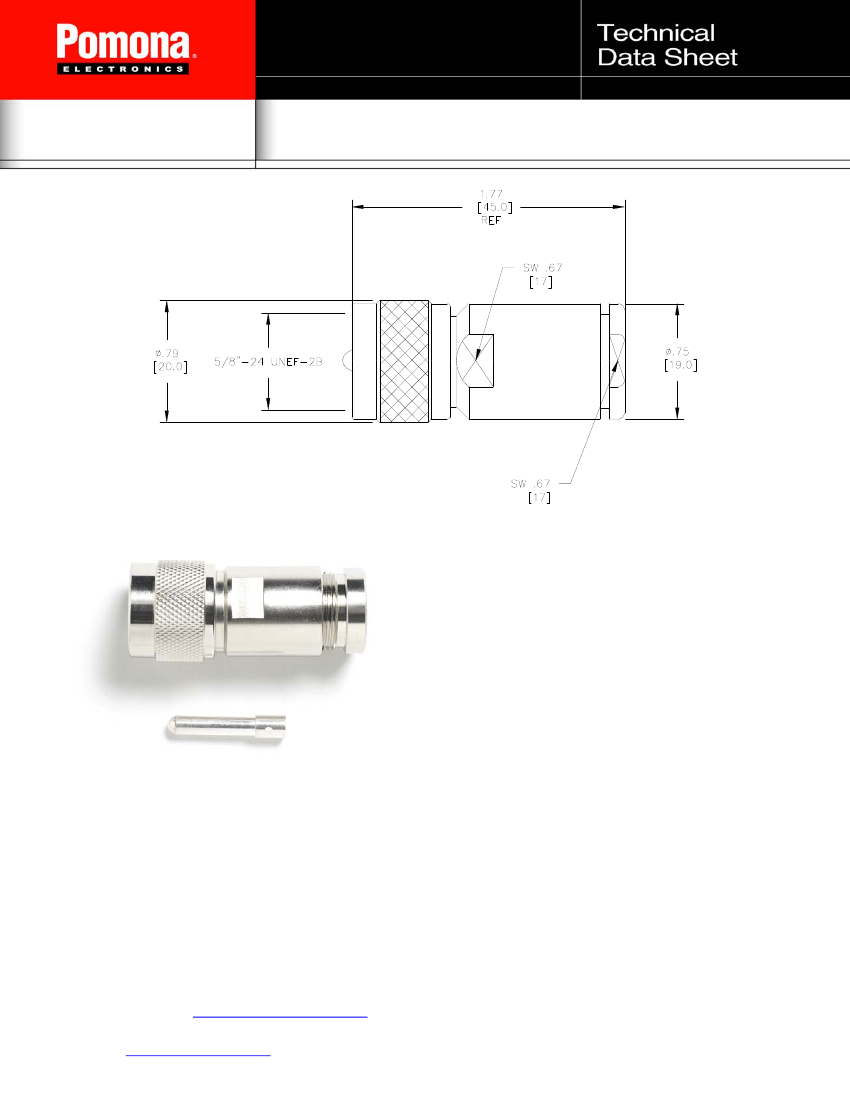

Model 73059
UHF Plug, Clamp Type, RG8, 9, 11, 63, 87A, 213, 214, 225
Materials
Center Conductor, Male:
Phosphor Bronze, Gold Plated
Connector Body: Brass, Nickel Plated
Insulators: PTFE
Specifications
Model 73059
UHF Plug, Clamp Type,
RG8, 9, 11, 63, 87A, 213, 214, 225
Frequency Range:
DC – 300MHz
Contact Resistance:
Center Conductor:
≤1.0
mΩ
Outer Conductor:
≤0.2
mΩ
Insulation Reistance:
≥
300 MΩ
Dielectric Withstand Voltage:
750V
For CE compliance,
do not hold in hand when
voltages exceed 33 Vrms / 70 Vdc.
Number of Insertions:
500 cycles minimum
Features
•
•
•
•
DC – 300MHz bandwidth.
Connectors are precision machined.
Meets interface requirements MIL-C-39012.
Connector accepts cable types RG/U: 8, 9, 11, 63,
87A, 213, 214, 225
Ordering Information
Model:
73059
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D2018813 Rev. 001
Page 1 of 2
Model 73059
UHF Plug, Clamp Type, RG8, 9, 11, 63, 87A, 213, 214, 225
Cable Types
Connector Model #
73059
Cable Groups
RG8, 9, 11, 63, 87A, 213, 214, 225

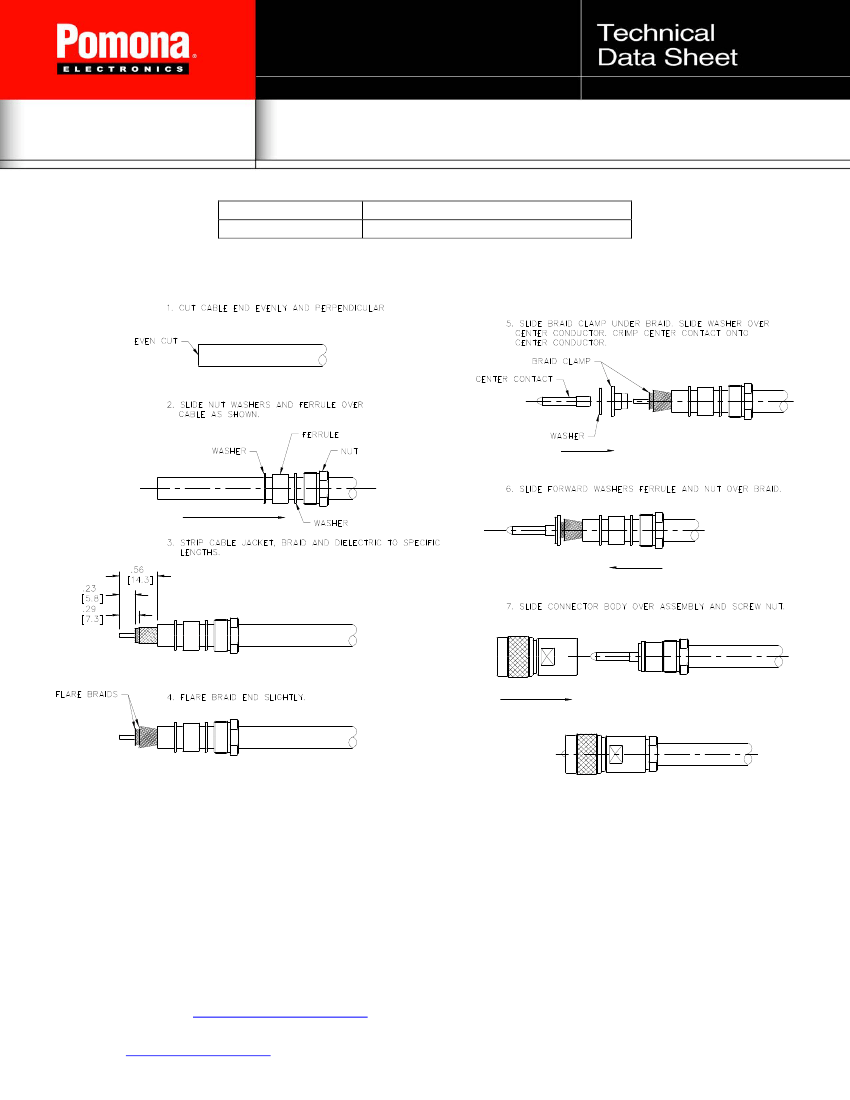

Cable Assembly Instructions
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D2018813 Rev. 001
Page 2 of 2
