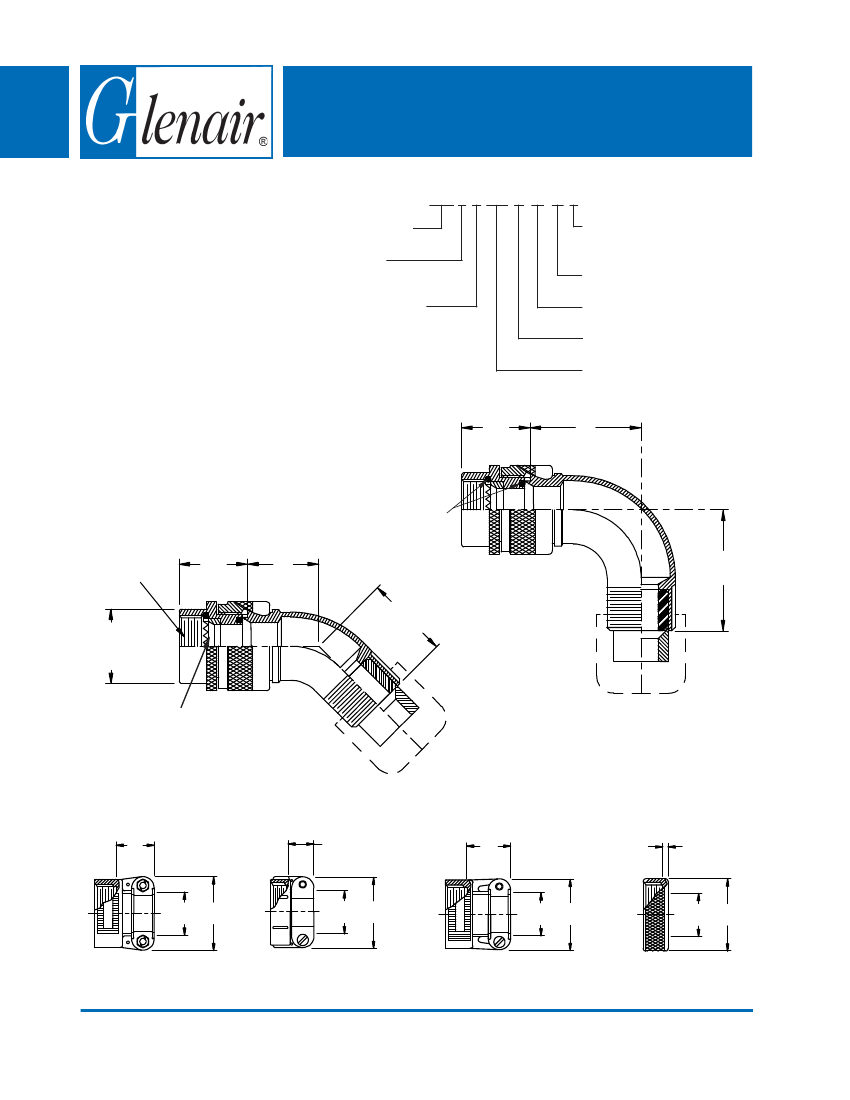

with Strain Relief
Full Radius Profile - Direct Coupling
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
C
J-H-L-S
D-B-G-K
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6) 1.735 (44.1)
1.180 (30.0) 1.440 (36.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
See inside back cover fold-out or
pages 13 and 14 for unabridged
Tables I and II.
TABLE IV: ELBOW DIMENSIONS
Elbow
E
F
G
Size
Max
Max
Max
03 .817 (20.8) 1.127 (28.6) 1.125 (28.6)
04 .861 (21.9) 1.181 (30.0) 1.250 (31.8)
06 .911 (23.1) 1.231 (31.3) 1.375 (34.9)
08 .965 (24.5) 1.285 (32.6) 1.500 (38.1)
10 1.014 (25.8) 1.334 (33.9) 1.625 (41.3)
12 1.064 (27.0) 1.384 (35.2) 1.750 (44.5)
16 1.172 (29.8) 1.492 (37.9) 2.000 (50.8)
20 1.325 (33.7) 1.645 (41.8) 2.375 (60.3)
24 1.325 (33.7) 1.645 (41.8) 2.375 (60.3)
28 1.428 (36.3) 1.748 (44.4) 2.625 (66.7)
H
Max
1.445 (36.7)
1.570 (39.9)
1.695 (43.1)
1.820 (46.2)
1.945 (49.4)
2.070 (52.6)
2.320 (58.9)
2.695 (68.5)
2.695 (68.5)
2.945 (74.8)
1. Metric dimensions (mm) are indicated in
parentheses.
2. Cable range is defined as the
accomodation range for the wire bundle
or cable.
Dimensions
TABLE XI: CABLE ENTRY
shown are not
X
Y
Dash
Z
W
Cable Range
intended for
Max
Min **
Max
No.
Max
Max
Max
inspection
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
criteria.
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1) 3. When using
Connector
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
Designator B
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
refer to pages
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
18 and 19 for
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
part number
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
development.
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3)
* Not available in Style M clamp.
** Not Applicable Style D
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
Dash
No.
04
06
08
10
12
16
20
24
28
32
TABLE X: CABLE ENTRY
V
Cable Range
T
Max
Max
Min
Max
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.145 (29.1)
.780 (19.8) 1.332 (33.8)
.387 (9.8) .562 (14.3)
.780 (19.8) 1.332 (33.8)
.350 (8.9) .625 (15.9)
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
C
G
M
NF
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 37 - Page 13
37
370-002
Submersible Cable Sealing Backshell
