399-41-017-21-300000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 399-41-017-21-300000

399-41-017-21-300000: DescriptionHeaders u0026 Wire Housings; CategoryThe connector The connector; File Size457KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

399-41-017-21-300000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	399-41-017-21-300000	-	-	View	Buy Now

399-41-017-21-300000 Overview

Headers u0026 Wire Housings

399-41-017-21-300000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD (10) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	399-41-017-21-300000
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	17
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

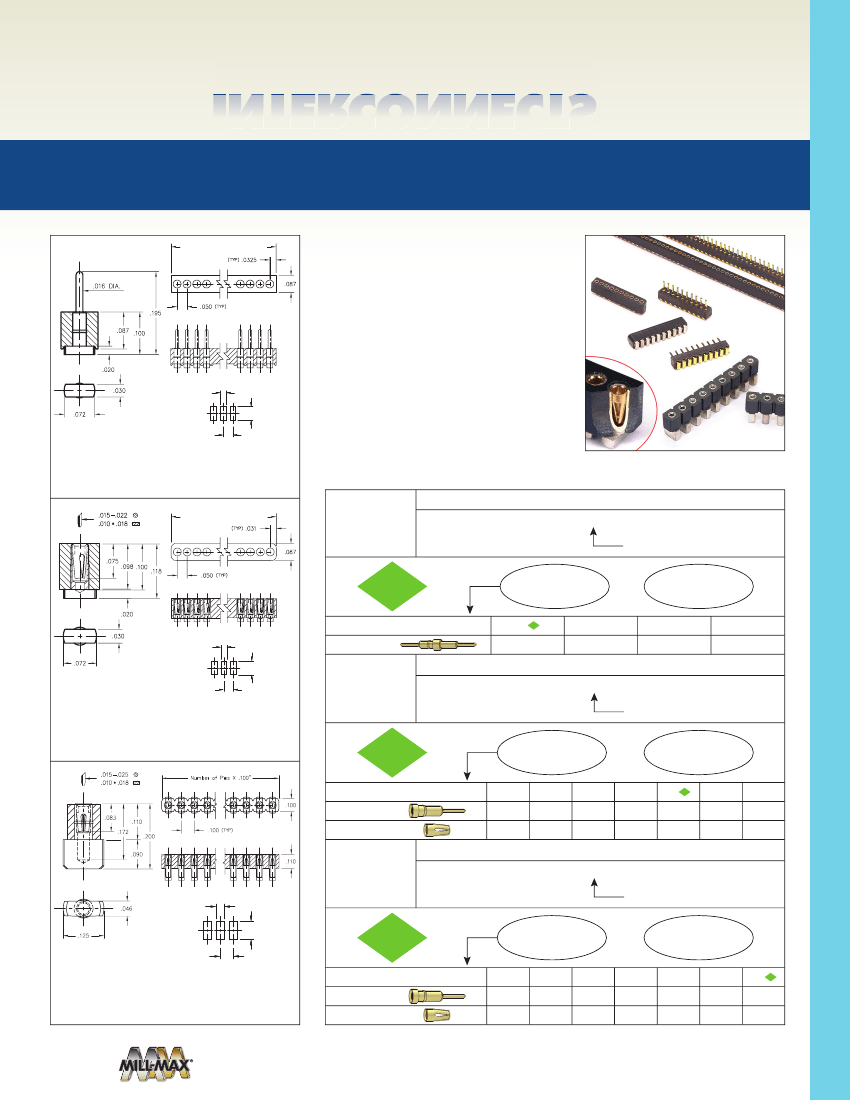

SERIES 340 & 399 • .050” AND .100” GRID SURFACE MOUNT

HEADERS & SOCKETS • SINGLE ROW STRIPS

•

Series 340 and 399 interconnects are single

(Number of Pins X .050”) + .015”

row headers & sockets having unique surface

mount “block” terminals

“self standing”. This also minimizes pro le and

reduces the footprint compared with

traditional “gullwing” designs

•

“Block” termination makes the interconnects

•

Series 399 is a matched pair of .050” pitch

.040

sockets and headers with a mated height of

only .218”

Hi-Rel, 4- nger BeCu #30 contact rated at

3 amps. See page 253 for details

suitable for all soldering processes

•

Series 340 is a .100” pitch SIP socket using a

•

Insulators are high temperature thermoplastic,

Footprint

.080

.050

Coplanarity .005”. For pin counts >20 positions, consult

Technical Support.

FIG. 1

.015-.022

.010 * .018

ORDERING INFORMATION

Series 399...310

(Number of Pins X .050”) + .012”

FIG. 1

RoHS - 2

Single Row .050” Grid Header

399 10 0_ _ 00 310000

02-50

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

XX=Plating Code

See Below

µ”

2011/65/EU

SPECIFY PLATING CODE XX=

.040

Pin Plating

Footprint

.080

.050

Series 399...300

FIG. 2

RoHS - 2

Single Row .050” Grid Socket

399 XX 0_ _ 21 300000

02-50

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Coplanarity .005”. For pin counts >20 positions, consult

Technical Support.

Specify number of pins

XX=Plating Code

See Below

200

µ”

Sn/Pb

FIG. 2

.015-.025

.010 * .018

2011/65/EU

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

FIG. 3

.056

Specify number of pins

RoHS - 2

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Footprint

.130

2011/65/EU

.100

XX=Plating Code

See Below

200

µ”

Sn/Pb

100

µ”

Sn/Pb

Coplanarity .005”. For pin counts >10 positions, consult

Technical Support.

FIG. 3

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

100

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 41 | INTERCONNECTS

Series 340...780

Single Row .100” Grid Socket

340 XX 1_ _ 30 780100

399-41-017-21-300000 Related Products

	399-41-017-21-300000	399-10-016-00-310000
Description	Headers u0026 Wire Housings	Headers u0026 Wire Housings 1R, 16P PIN HDR SURFACE MOUNT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (150)
Contact point gender	FEMALE	MALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	399-41-017-21-300000	399
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	17	16
Base Number Matches	1	1
