390-059
Splash-Proof EMI/RFI Cable Sealing Backshell
Light-Duty with Strain Relief
Type C - Self-Locking Rotatable Coupling - Standard Profile
39
CONNECTOR
DESIGNATORS
390 F S 059 M 16 05 L 6
Product Series
Connector
Designator
Angle and Profile
J = 90°
H = 45°
S = Straight
Basic Part No.
Length *
A Thread
(Table I)
O-Rings
* Length
± .060 (1.52)
Minimum Order
Length 2.0 Inch
(See Note 4)
H
(Table III)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
TYPE C OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.5 Inch
(See Note 4)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (L, G)
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)

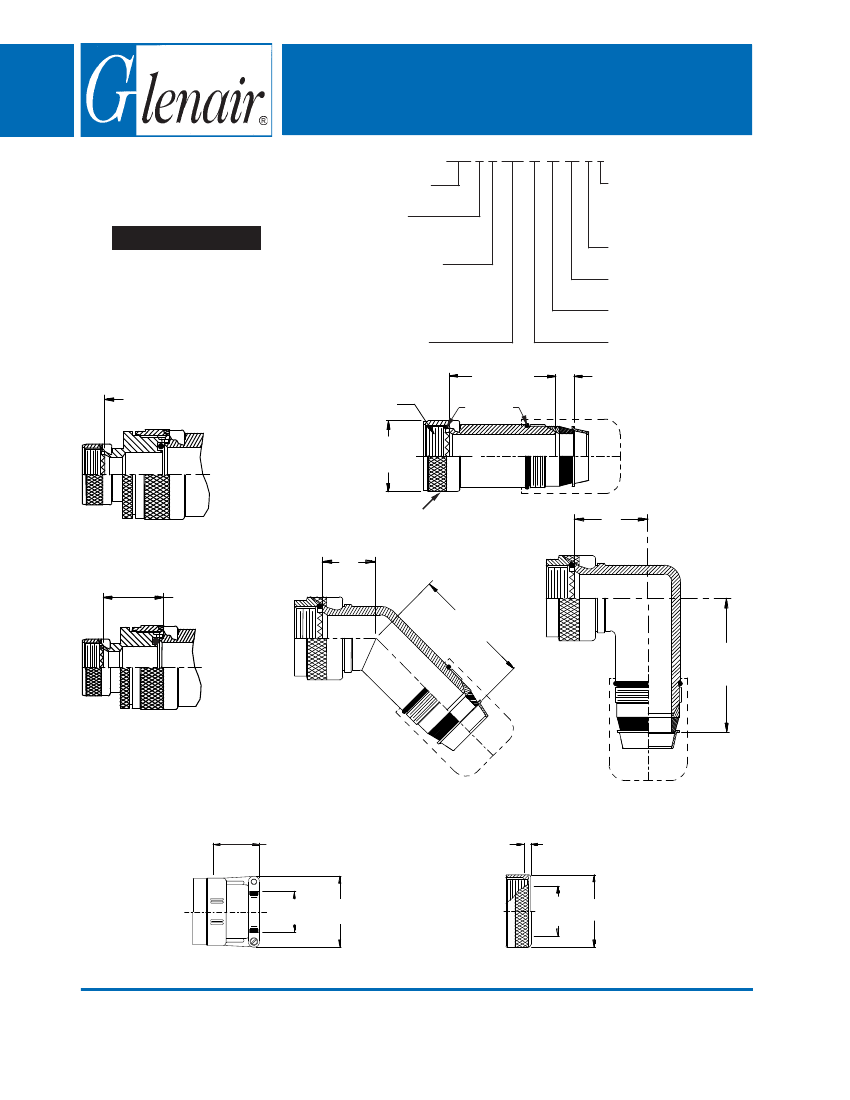

.312 (7.9)
Max
E Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
1.00 (25.4)
Max
Anti-Rotation
Device
F
(Table III)
G (Table III)
J
(Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE L
Light Duty
(Table IV)
.850 (21.6)
Max
STYLE G
Light Duty
(Table IV)
.072 (1.8)
Max
Cable
Range
K
Cable
Range
L
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 44
Light-Duty with Strain Relief
Type C - Self-Locking Rotatable Coupling - Standard Profile
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S
H
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
28
32
36
F
Max
.795 (20.2)
.820 (20.8)
.844 (21.4)
.861 (21.9)
.888 (22.6)
.904 (23.0)
.929 (23.6)
.956 (24.3)
.979 (24.9)
1.197 (30.4)
1.280 (32.5)
1.294 (32.9)
G
Max
2.210 (56.1)
2.270 (57.7)
2.330 (59.2)
2.420 (61.5)
2.530 (64.3)
2.720 (69.1)
2.720 (69.1)
2.870 (72.9)
2.870 (72.9)
3.020 (76.7)
3.270 (83.1)
3.500 (88.9)
H
Max
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.076 (27.3)
1.136 (28.9)
1.176 (29.9)
1.236 (31.4)
1.296 (32.9)
1.356 (34.4)
1.636 (41.6)
1.780 (45.2)
1.876 (47.7)
J
Max
2.080 (52.8)
2.120 (53.8)
2.090 (53.1)
2.090 (53.1)
2.130 (54.1)
2.250 (57.2)
2.180 (55.4)
2.240 (56.9)
2.170 (55.1)
2.320 (58.9)
2.570 (65.3)
2.800 (71.1)
Dash
No.
01
02
03
04
05
06
07
08
09
10
K
Max
.781 (19.8)
.968 (24.6)
1.046 (26.6)
1.156 (29.4)
1.218 (30.9)
1.343 (34.1)
1.468 (37.3)
1.593 (40.5)
1.718 (43.6)
1.843 (46.8)
TABLE IV: CABLE ENTRY
Cable
L
Max
Min
.593 (15.1)
.062 (1.6)
.718 (18.2)
.125 (3.2)
.843 (21.4)
.250 (6.4)
.968 (24.6)
.375 (9.5)
1.109 (28.2)
.500 (12.7)
1.218 (30.9)
.625 (15.9)
1.343 (34.1)
.750 (19.1)
1.468 (37.3)
.875 (22.2)
1.593 (40.5) 1.000 (25.4)
1.718 (43.6) 1.125 (28.6)
Range
Max
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions F, G, H and J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
5. Interface O-Ring not supplied with Connector Designator A.
