3-6450830-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-6450830-1

3-6450830-1: Description(3-6450830-1) MBXL R/A HDR 2LP + 8S + 2LP; CategoryThe connector The connector; File Size5MB，42 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-6450830-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-6450830-1	-	-	View	Buy Now

3-6450830-1 Overview

(3-6450830-1) MBXL R/A HDR 2LP + 8S + 2LP

3-6450830-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Objectid	8000816426
Reach Compliance Code	unknown
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2021-06-06 00:49:13
YTEOL	0
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

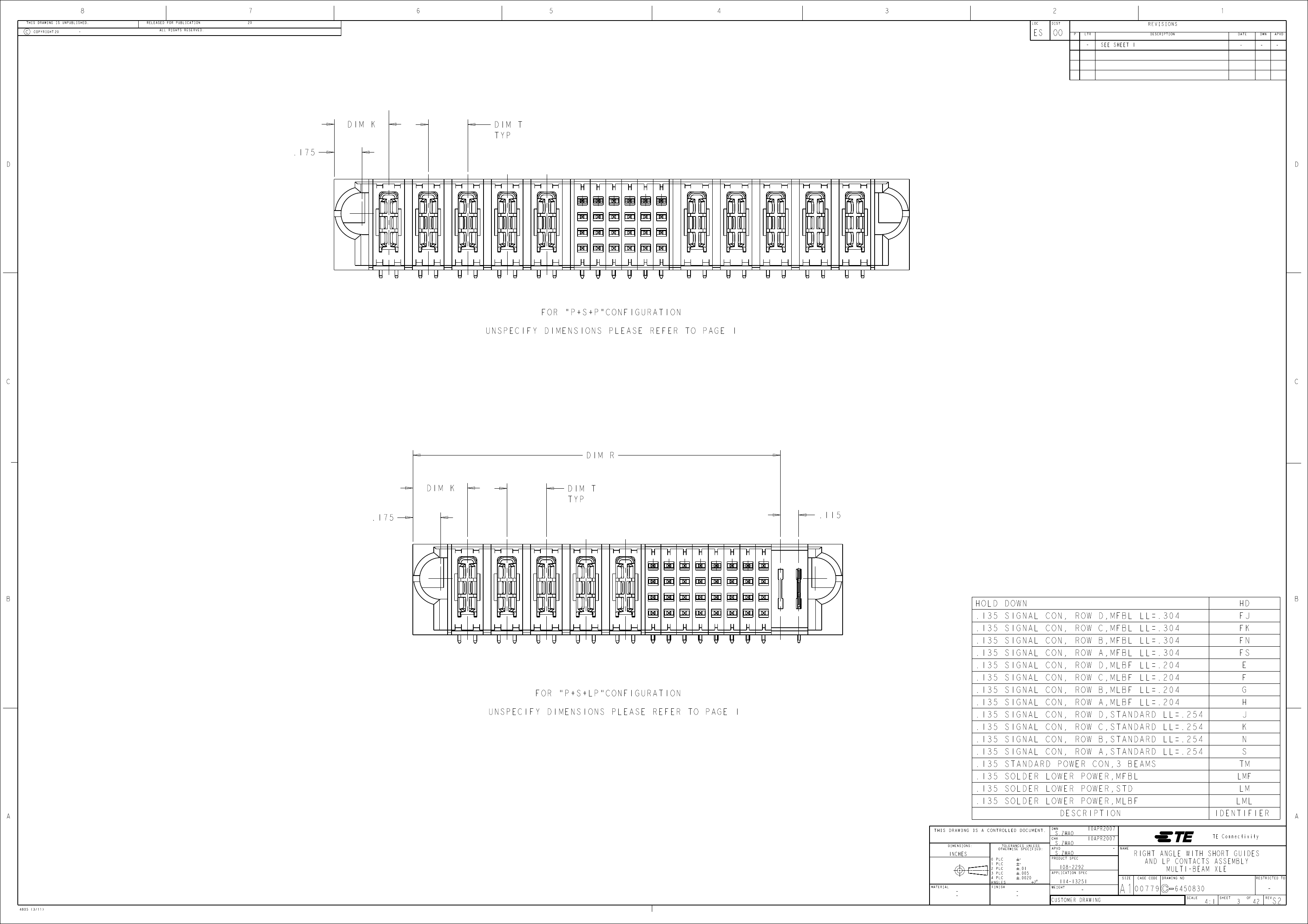

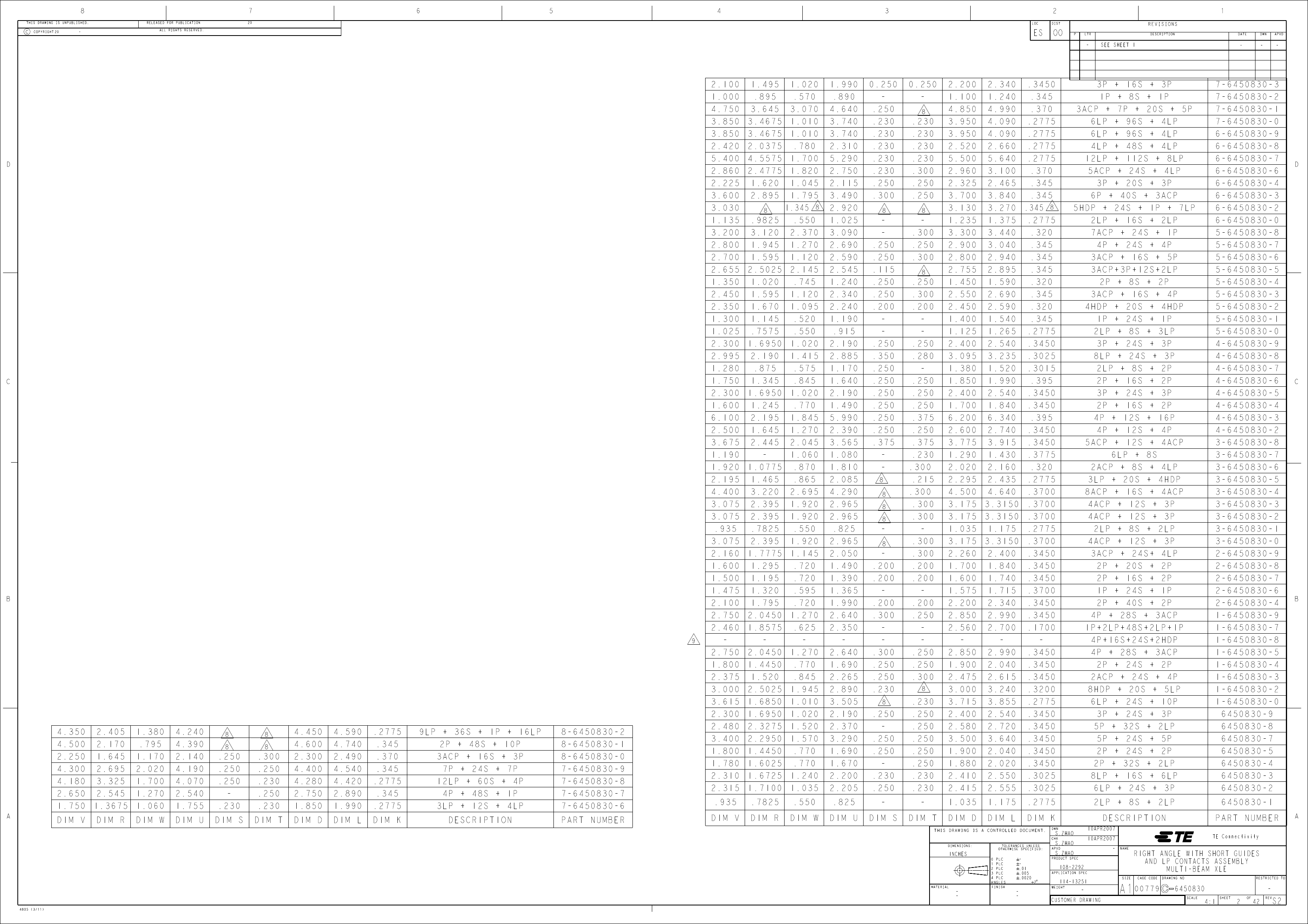

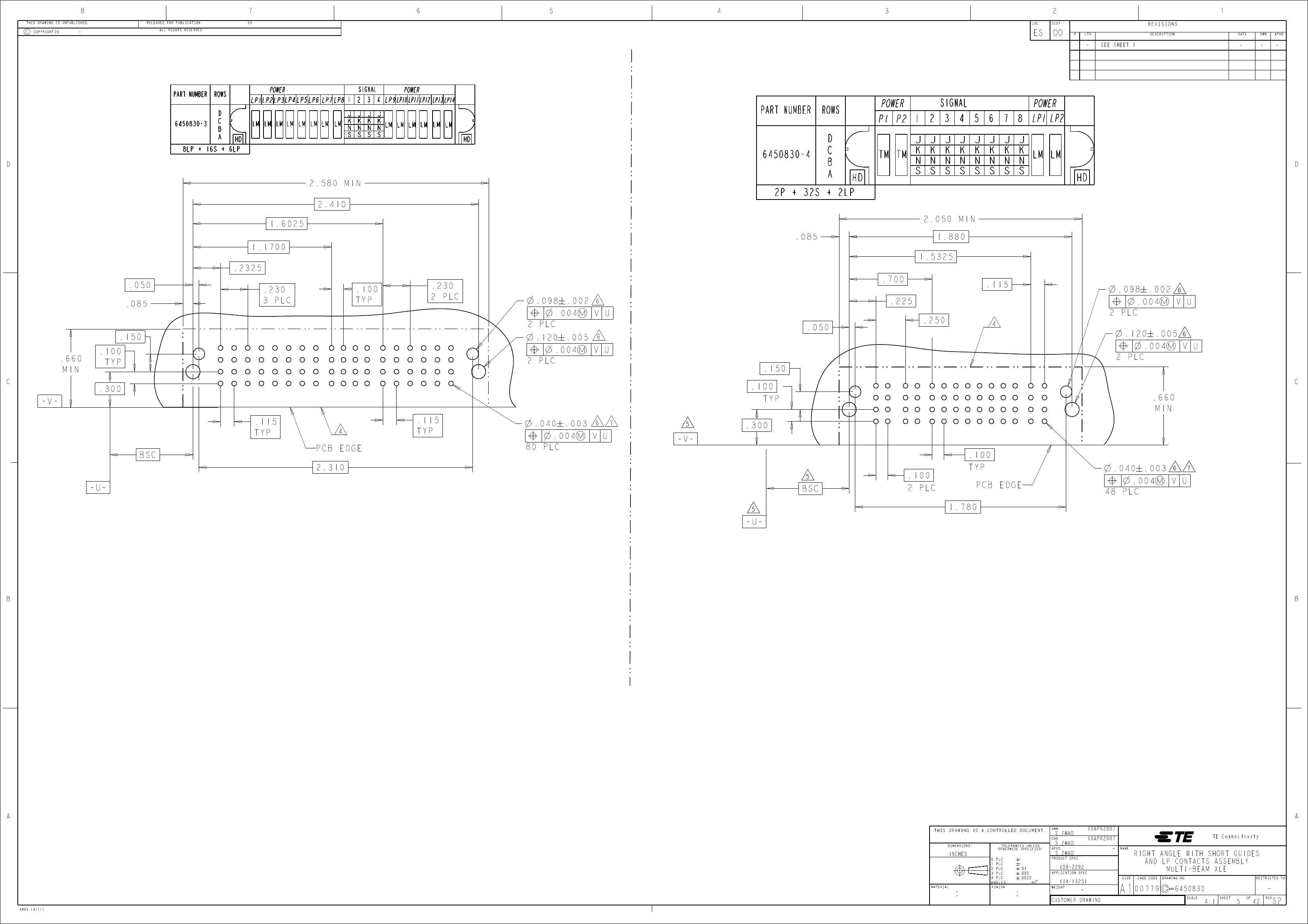

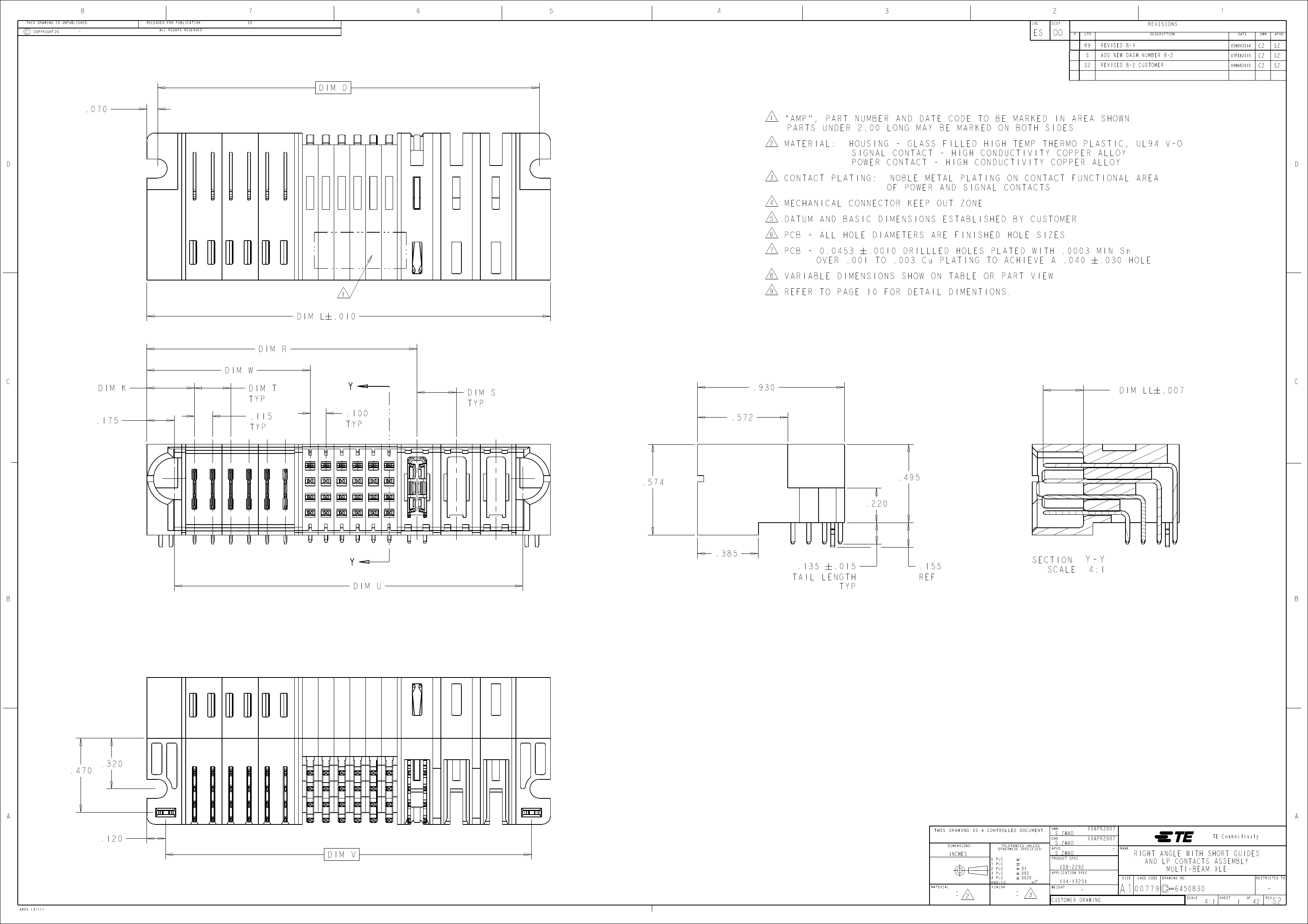

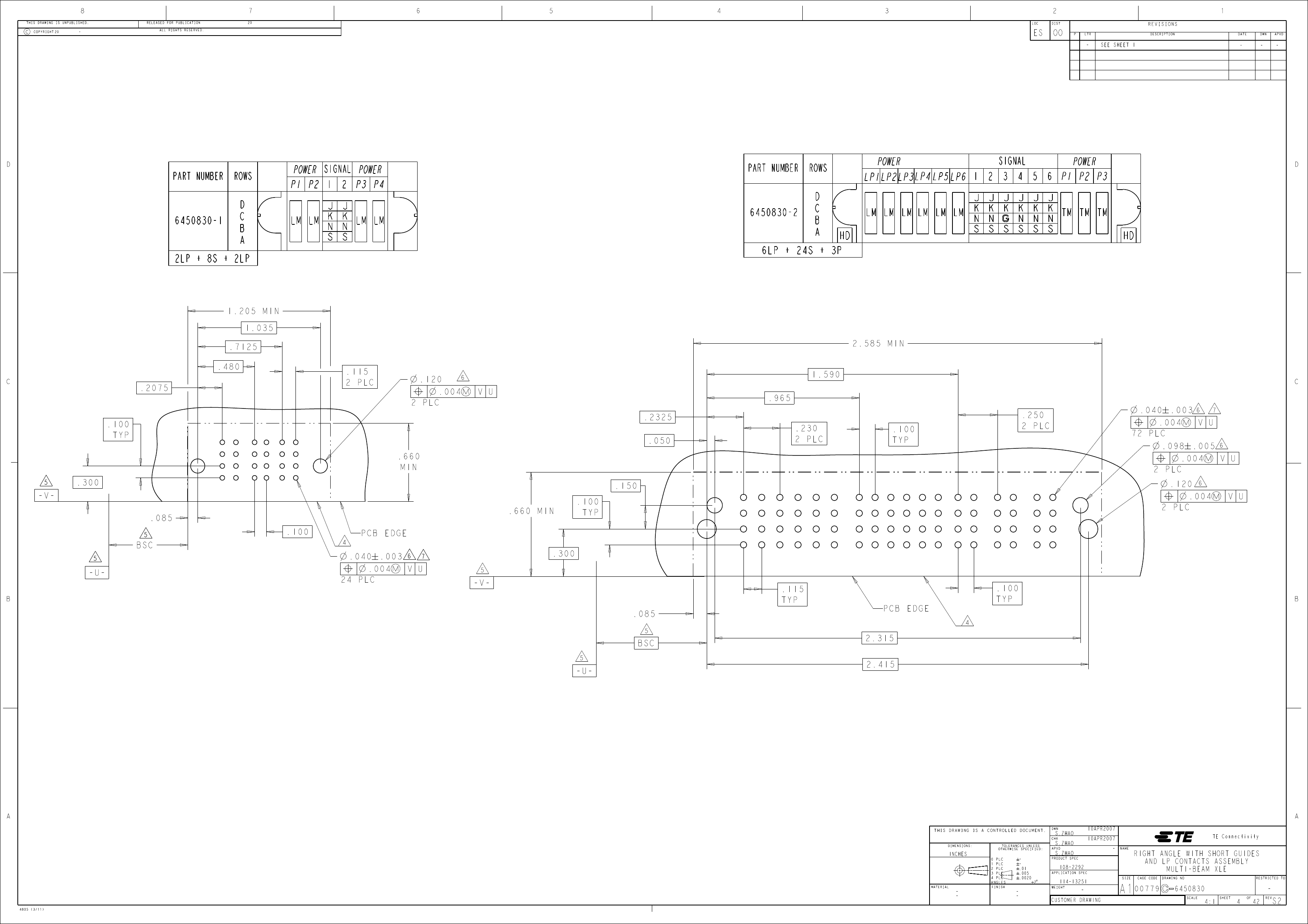

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED 8-1

ADD NEW DASH NUMBER 8-2

REVISED 8-2 CUSTOMER

05NOV2014

07FEB2015

09MAR2015

DIM D

.070

"AMP", PART NUMBER AND DATE CODE TO BE MARKED IN AREA SHOWN

PARTS UNDER 2.00 LONG MAY BE MARKED ON BOTH SIDES

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS

CONTACT PLATING:

MECHANICAL CONNECTOR KEEP OUT ZONE

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES

PCB - 0.0453 # .0010 DRILLLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 Cu PLATING TO ACHIEVE A .040 # .030 HOLE

VARIABLE DIMENSIONS SHOW ON TABLE OR PART VIEW

REFER TO PAGE 10 FOR DETAIL DIMENTIONS.

DIM L # .010

DIM R

DIM W

DIM K

.175

DIM T

TYP

.115

TYP

.100

TYP

DIM S

TYP

.572

.930

DIM LL # .007

.574

.220

.495

.385

DIM U

.135 # .015

TAIL LENGTH

TYP

.155

REF

SECTION

SCALE

Y-Y

4:1

.470

.320

.120

DIM V

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

S.ZHAO

10APR2007

NAME

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2292

2 $

WEIGHT

114-13251

CUSTOMER DRAWING

00779

SIZE

RIGHT ANGLE WITH SHORT GUIDES

AND LP CONTACTS ASSEMBLY

MULTI-BEAM XLE

CAGE CODE

DRAWING NO

RESTRICTED TO

6450830

SCALE

4805 (3/11)

4:1

SHEET

REV
