8
7
6
5
4
3
* MILITARY (WITH 3M'S N3518 POLARIZING KEY)
AND CENTERBUMP POLARIZATION.
* OPTIONAL EJECTOR LATCHES.
* MOUNTING HOLES FOR SECURING HEADER TO BOARD.
* DEPENDABLE EYE-OF-THE NEEDLE PIN DESIGN.
* OPTIONAL POLARIZING POSTS AVAILABLE.
* HIGH TERMERATURE INSULATOR.
2
NOTES
1
1. REGULATORY INFORMATION:
ROHS COMPLIANT. SEE THE
REGULATORY INFORMATION
APPENDIX (RIA) IN THE
"ROHS COMPLIANCE" SECTION
OF WWW.3MCONNECTORS.COM FOR
COMPLIANCE INFORMATION.
2 IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND THAT
CONTAINED IN THE PRODUCT
SPECIFICATION, THE PRODUCT
SPECIFICATION TAKES PRECEDENT.
3
NOTCHES A & C WILL ACCOMODATE
3M POLARIZING KEY: N3518.
MOUNTING HARDWARE:
REAR ENTRY:
#4-24 THREAD CUTTING SCREW
(3M PART #3341-5) WITH
.116 [2.95] MOUNTING HOLE.
FRONT ENTRY:
(PRIOR TO INSTALLATION OF LATCH)
#2-56 BOLT AND NUT (3M PART
#3341-6) WITH
.106 [2.69]
MOUNTING HOLE.
3M
TM

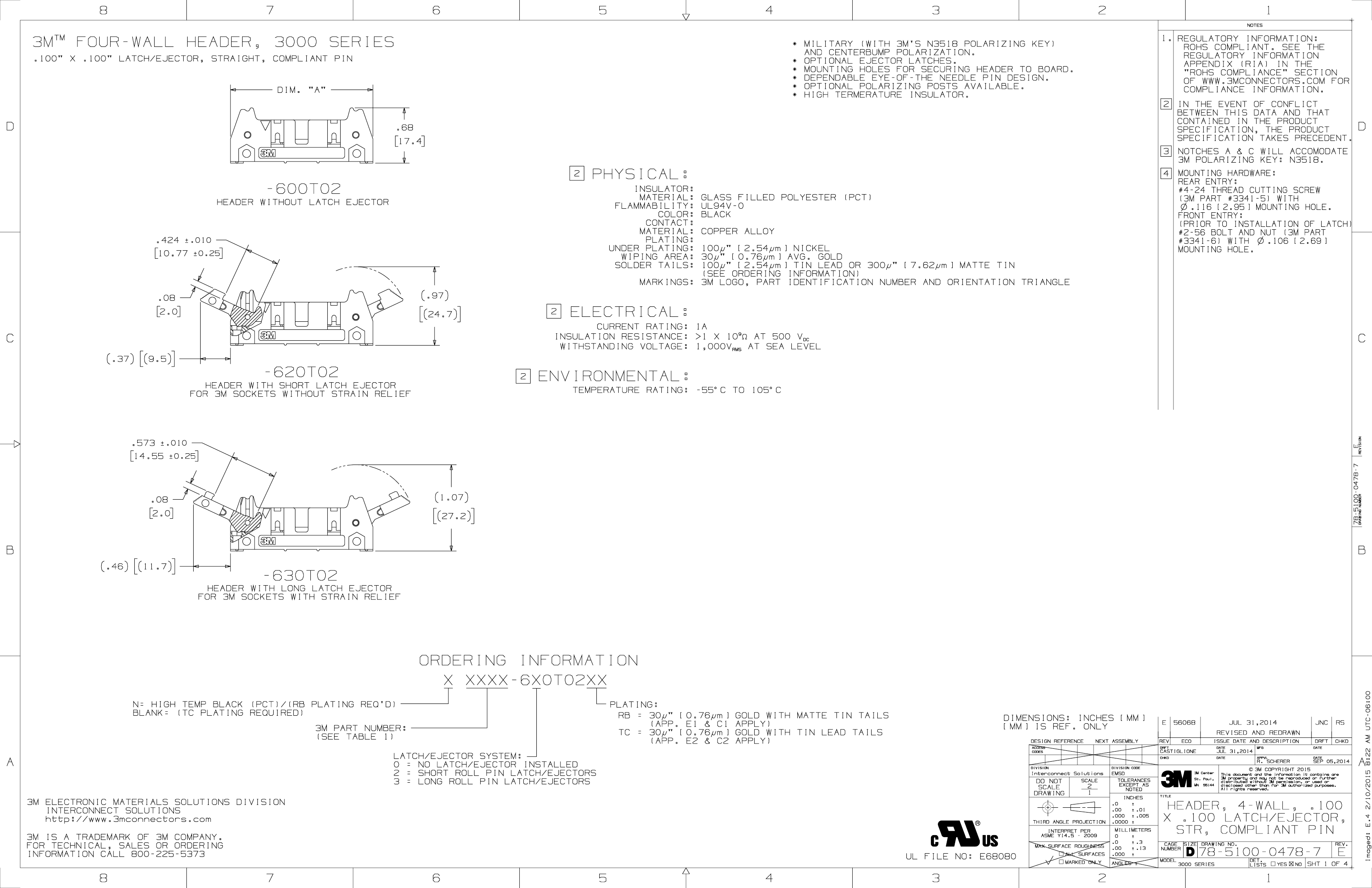

FOUR-WALL HEADER, 3000 SERIES
DIM. "A"
.100" X .100" LATCH/EJECTOR, STRAIGHT, COMPLIANT PIN
D
.68
17.4
D
2
PHYSICAL:
INSULATOR:
MATERIAL:
FLAMMABILITY:
COLOR:
CONTACT:
MATERIAL:
PLATING:
UNDER PLATING:
WIPING AREA:
SOLDER TAILS:
GLASS FILLED POLYESTER (PCT)
UL94V-0
BLACK
COPPER ALLOY
4
-600T02
HEADER WITHOUT LATCH EJECTOR
.424
10.77
.010
0.25
100 " [2.54 m] NICKEL
30 " [0.76 m] AVG. GOLD
100 " [2.54 m] TIN LEAD OR 300 " [7.62 m] MATTE TIN
(SEE ORDERING INFORMATION)
MARKINGS: 3M LOGO, PART IDENTIFICATION NUMBER AND ORIENTATION TRIANGLE
.08
2.0
.97
24.7
2
ELECTRICAL:
C
C
.37
9.5
CURRENT RATING: 1A
INSULATION RESISTANCE: >1 X 10
9
AT 500 V
DC
WITHSTANDING VOLTAGE: 1,000V
RMS
AT SEA LEVEL
-620T02
HEADER WITH SHORT LATCH EJECTOR
FOR 3M SOCKETS WITHOUT STRAIN RELIEF
2
ENVIRONMENTAL:
TEMPERATURE RATING: -55 C TO 105 C
14.55
0.25
.08
2.0
1.07
27.2
B
.46
11.7
-630T02
HEADER WITH LONG LATCH EJECTOR
FOR 3M SOCKETS WITH STRAIN RELIEF
ORDERING INFORMATION
X XXXX-6X0T02XX
N= HIGH TEMP BLACK (PCT)/(RB PLATING REQ'D)
BLANK= (TC PLATING REQUIRED)
3M PART NUMBER:
(SEE TABLE 1)
PLATING:
RB = 30 " [0.76
(APP. E1 &
TC = 30 " [0.76
(APP. E2 &
m]
C1
m]
C2
GOLD WITH MATTE TIN TAILS
APPLY)
GOLD WITH TIN LEAD TAILS
APPLY)
DIMENSIONS: INCHES [MM]
[MM] IS REF. ONLY
DESIGN REFERENCE
ACCESS
CODES
78-5100-0478-7
E
REV
DRFT
B
DRAWING NUMBER
E
56068
ECO
.573
.010
REVISION
JUL 31,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
NEXT ASSEMBLY
A
LATCH/EJECTOR SYSTEM:
0 = NO LATCH/EJECTOR INSTALLED
2 = SHORT ROLL PIN LATCH/EJECTORS
3 = LONG ROLL PIN LATCH/EJECTORS
3M ELECTRONIC MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
CASTIGLIONE
CHKD
JUL 31,2014
DATE
APPVL
R. SCHERER
DIVISION
DIVISION CODE
SEP 05,2014
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
2
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
R
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
UL FILE NO: E68080
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 4-WALL, .100
X .100 LATCH/EJECTOR,
STR, COMPLIANT PIN
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0478-7
DET.
LISTS
YES
NO
E
3000 SERIES
SHT 1 OF 4
8
7
6
5
4
3
2
1
Imaged: E.4 2/10/2015 8:22 AM UTC-06:00
8
7
6
5
4
3
2
1
3M
TM

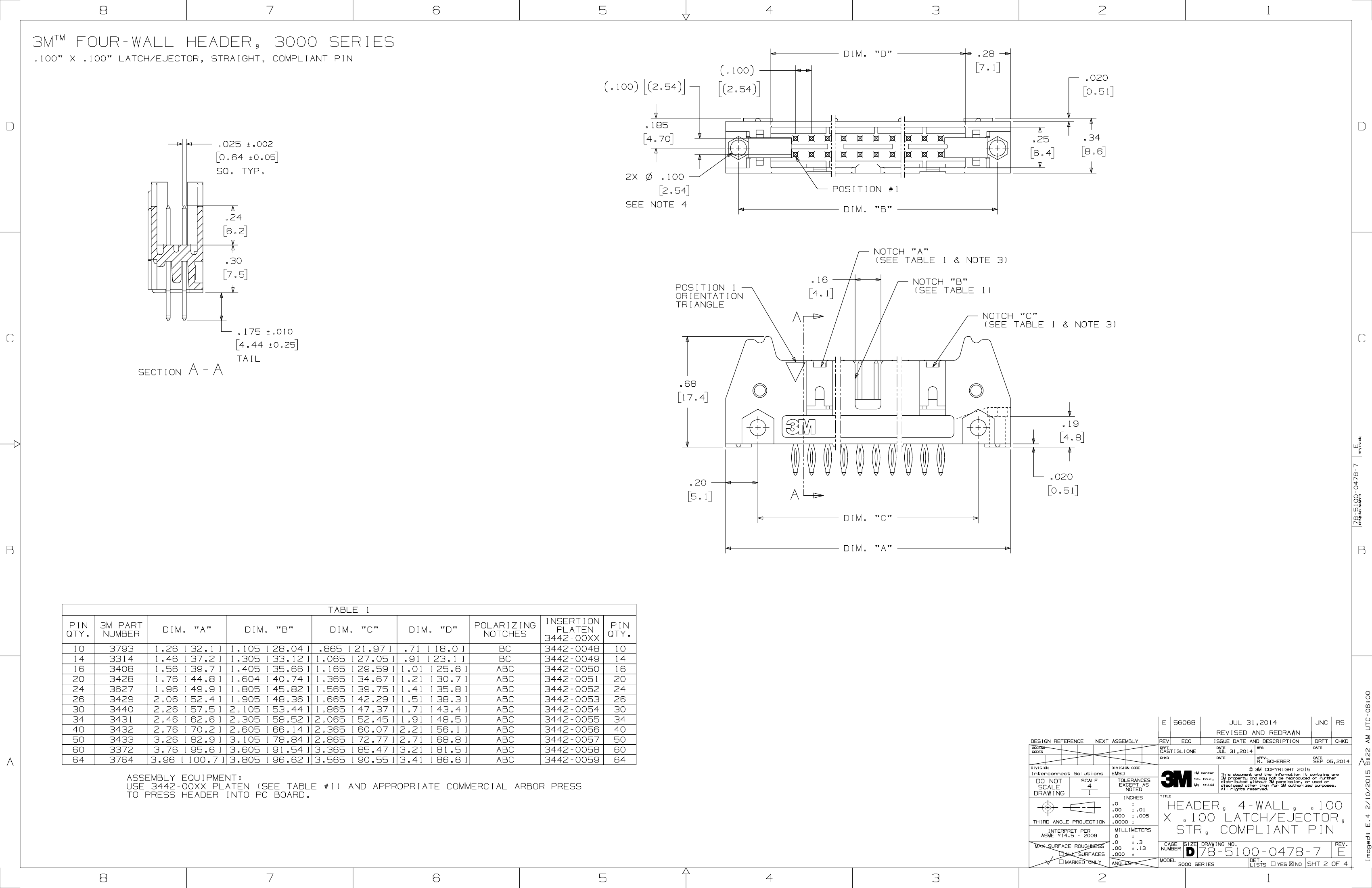

FOUR-WALL HEADER, 3000 SERIES
DIM. "D"
.100
.100
2.54
2.54
.28
7.1
.020
0.51
.100" X .100" LATCH/EJECTOR, STRAIGHT, COMPLIANT PIN
D
.025
0.64
.002
0.05
.185
4.70
.25
6.4
2X
.100
2.54
SEE NOTE 4
.24
6.2
NOTCH "A"
(SEE TABLE 1 & NOTE 3)
POSITION 1
ORIENTATION
TRIANGLE
.16
4.1
NOTCH "B"
(SEE TABLE 1)
NOTCH "C"
(SEE TABLE 1 & NOTE 3)
POSITION #1
DIM. "B"
.34
8.6
D
SQ. TYP.
.30
7.5
A
C
SECTION
.175
4.44
TAIL
.68
17.4
.010
0.25
C
A-A
.19
REVISION
DRAWING NUMBER
4.8
.20
5.1
.020
A
DIM. "C"
0.51
B
DIM. "A"
TABLE 1
PIN
QTY.
10
14
16
20
24
26
30
34
40
50
60
64
3M PART
NUMBER
3793
3314
3408
3428
3627
3429
3440
3431
3432
3433
3372
3764
DIM. "A"
1.26 [32.1]
1.46 [37.2]
1.56 [39.7]
1.76 [44.8]
1.96 [49.9]
2.06 [52.4]
2.26 [57.5]
2.46 [62.6]
2.76 [70.2]
3.26 [82.9]
3.76 [95.6]
3.96 [100.7]
DIM. "B"
1.105
1.305
1.405
1.604
1.805
1.905
2.105
2.305
2.605
3.105
3.605
3.805
[28.04]
[33.12]
[35.66]
[40.74]
[45.82]
[48.36]
[53.44]
[58.52]
[66.14]
[78.84]
[91.54]
[96.62]
DIM. "C"
.865 [21.97]
1.065 [27.05]
1.165 [29.59]
1.365 [34.67]
1.565 [39.75]
1.665 [42.29]
1.865 [47.37]
2.065 [52.45]
2.365 [60.07]
2.865 [72.77]
3.365 [85.47]
3.565 [90.55]
DIM. "D"
.71 [18.0]
.91 [23.1]
1.01 [25.6]
1.21 [30.7]
1.41 [35.8]
1.51 [38.3]
1.71 [43.4]
1.91 [48.5]
2.21 [56.1]
2.71 [68.8]
3.21 [81.5]
3.41 [86.6]
POLARIZING
NOTCHES
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
INSERTION
PIN
PLATEN
QTY.
3442-00XX
3442-0048
10
3442-0049
14
3442-0050
16
3442-0051
20
3442-0052
24
3442-0053
26
3442-0054
30
3442-0055
34
3442-0056
40
3442-0057
50
3442-0058
60
3442-0059
64
78-5100-0478-7
E
56068
ECO
E
JUL 31,2014
REVISED AND REDRAWN
DESIGN REFERENCE
ACCESS
CODES
B
JNC
DRFT
DATE
DATE
RS
CHKD
NEXT ASSEMBLY
REV
DRFT
ISSUE DATE AND DESCRIPTION
DATE
MFG
CASTIGLIONE
CHKD
JUL 31,2014
DATE
APPVL
A
R. SCHERER
DIVISION
DIVISION CODE
SEP 05,2014
ASSEMBLY EQUIPMENT:
USE 3442-00XX PLATEN (SEE TABLE #1) AND APPROPRIATE COMMERCIAL ARBOR PRESS
TO PRESS HEADER INTO PC BOARD.
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
4
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 4-WALL, .100
X .100 LATCH/EJECTOR,
STR, COMPLIANT PIN
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0478-7
DET.
LISTS
YES
NO
E
3000 SERIES
SHT 2 OF 4
8
7
6
5
4
3
2
1
Imaged: E.4 2/10/2015 8:22 AM UTC-06:00
8
7
6
5
4
3
2
1
3M
TM
FOUR-WALL HEADER, 3000 SERIES
.100" X .100" LATCH/EJECTOR, STRAIGHT, COMPLIANT PIN

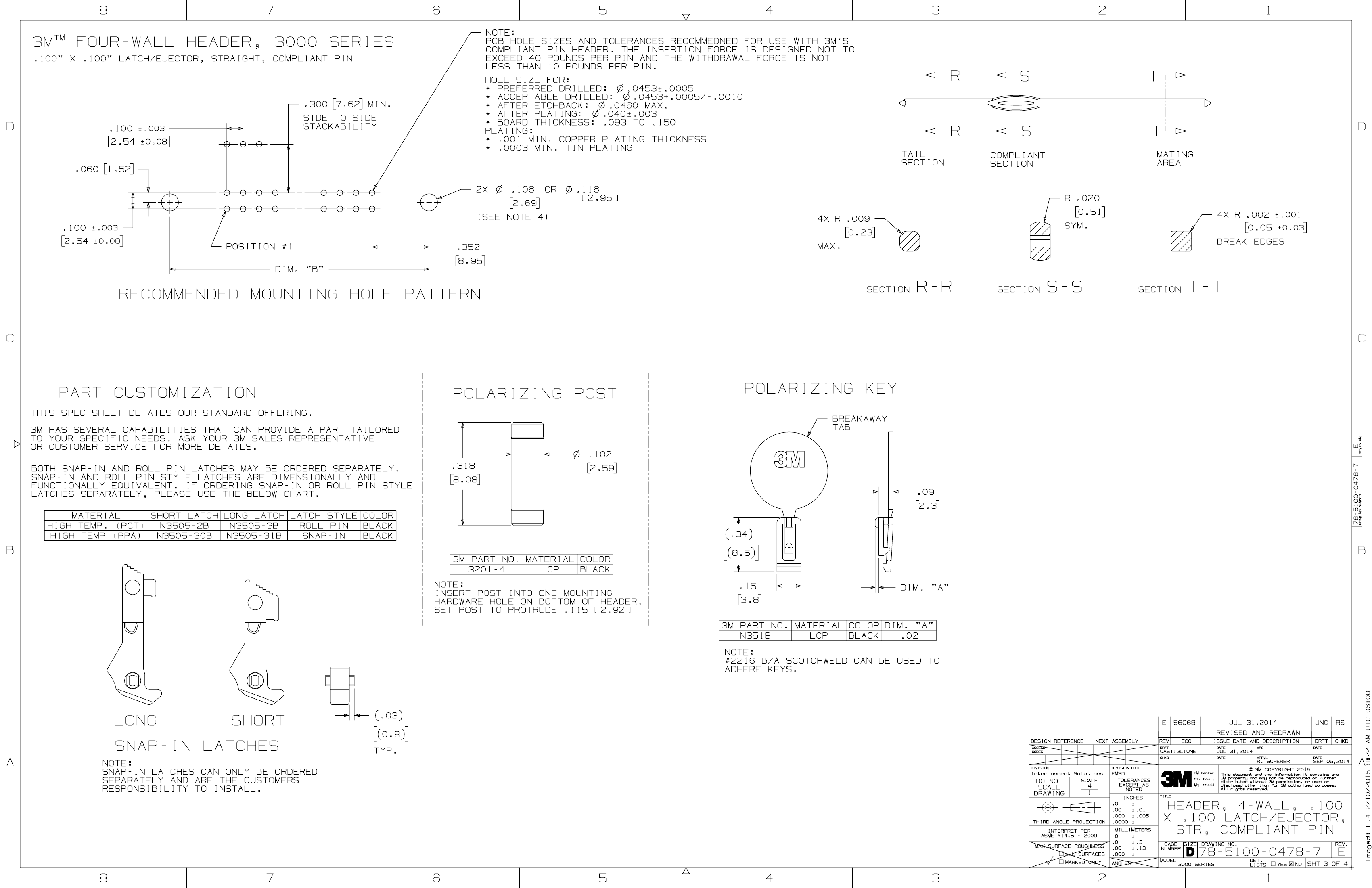

NOTE:
PCB HOLE SIZES AND TOLERANCES RECOMMEDNED FOR USE WITH 3M'S
COMPLIANT PIN HEADER. THE INSERTION FORCE IS DESIGNED NOT TO
EXCEED 40 POUNDS PER PIN AND THE WITHDRAWAL FORCE IS NOT
LESS THAN 10 POUNDS PER PIN.
HOLE SIZE FOR:
* PREFERRED DRILLED:
.0453 .0005
* ACCEPTABLE DRILLED:
.0453+.0005/-.0010
* AFTER ETCHBACK:
.0460 MAX.
* AFTER PLATING:
.040 .003
* BOARD THICKNESS: .093 TO .150
PLATING:
* .001 MIN. COPPER PLATING THICKNESS
* .0003 MIN. TIN PLATING
R
S
T
D
.300 7.62 MIN.
D
.100
2.54
.060 1.52
.003
0.08
SIDE TO SIDE
STACKABILITY
R
TAIL
SECTION
S
COMPLIANT
SECTION
T
MATING
AREA
2X
.106
2.69
OR
.116
[2.95]
4X R .009
0.23
MAX.
R .020
0.51
SYM.
4X R .002
0.05
.001
0.03
(SEE NOTE 4)
.100
2.54
.003
0.08
POSITION #1
DIM. "B"
.352
8.95
BREAK EDGES
RECOMMENDED MOUNTING HOLE PATTERN
C
SECTION
R-R
SECTION
S-S
SECTION
T-T
C
PART CUSTOMIZATION
THIS SPEC SHEET DETAILS OUR STANDARD OFFERING.
3M HAS SEVERAL CAPABILITIES THAT CAN PROVIDE A PART TAILORED
TO YOUR SPECIFIC NEEDS. ASK YOUR 3M SALES REPRESENTATIVE
OR
CUSTOMER SERVICE FOR MORE DETAILS.
BOTH SNAP-IN AND ROLL PIN LATCHES MAY BE ORDERED SEPARATELY.
SNAP-IN AND ROLL PIN STYLE LATCHES ARE DIMENSIONALLY AND
FUNCTIONALLY EQUIVALENT. IF ORDERING SNAP-IN OR ROLL PIN STYLE
LATCHES SEPARATELY, PLEASE USE THE BELOW CHART.
MATERIAL
SHORT LATCH LONG LATCH LATCH STYLE COLOR
HIGH TEMP. (PCT)
N3505-2B
N3505-3B
ROLL PIN
BLACK
HIGH TEMP (PPA)
N3505-30B
N3505-31B
SNAP-IN
BLACK
POLARIZING POST
POLARIZING KEY
BREAKAWAY
TAB
.102
.318
8.08
.09
2.3
.34
3M PART NO. MATERIAL COLOR
3201-4
LCP
BLACK
NOTE:
INSERT POST INTO ONE MOUNTING
HARDWARE HOLE ON BOTTOM OF HEADER.
SET POST TO PROTRUDE .115 [2.92]
8.5
2.59
B
.15
3.8
DIM. "A"
3M PART NO. MATERIAL COLOR DIM. "A"
N3518
LCP
BLACK
.02
NOTE:
#2216 B/A SCOTCHWELD CAN BE USED TO
ADHERE KEYS.
Imaged: E.4 2/10/2015 8:22 AM UTC-06:00
LONG
A
SHORT
.03
E
56068
ECO
JUL 31,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
0.8
SNAP-IN LATCHES
NOTE:
SNAP-IN LATCHES CAN ONLY BE ORDERED
SEPARATELY AND ARE THE CUSTOMERS
RESPONSIBILITY TO INSTALL.
DESIGN REFERENCE
NEXT ASSEMBLY
REV
DRFT
TYP.
ACCESS
CODES
CASTIGLIONE
CHKD
JUL 31,2014
DATE
APPVL
R. SCHERER
DIVISION
DIVISION CODE
SEP 05,2014
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
4
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 4-WALL, .100
X .100 LATCH/EJECTOR,
STR, COMPLIANT PIN
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0478-7
DET.
LISTS
YES
NO
E
3000 SERIES
SHT 3 OF 4
8
7
6
5
4
3
2
1
78-5100-0478-7
B
A
DRAWING NUMBER
REVISION
E
8
7
6
5
4
3
2
1
3M
TM

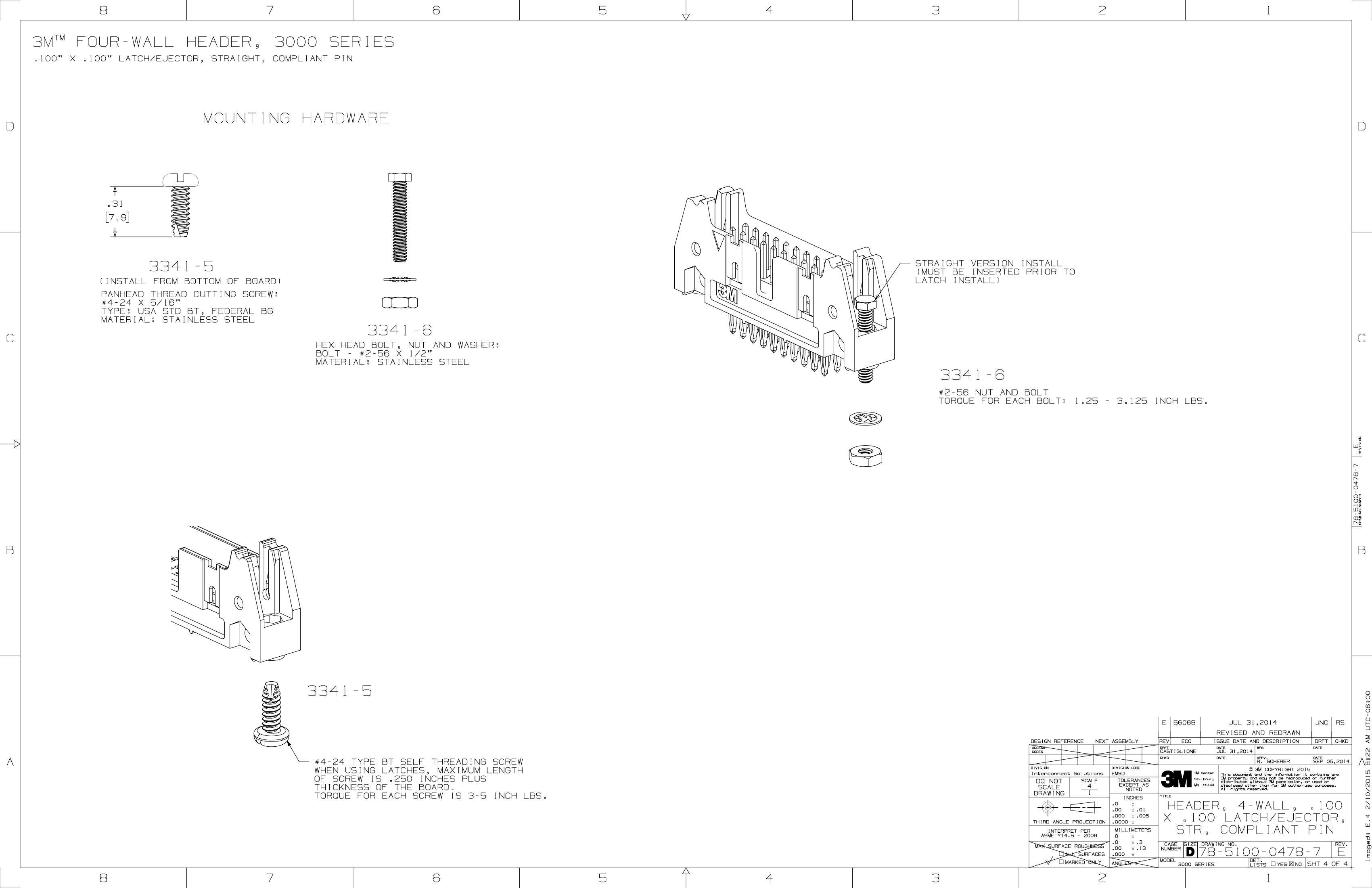

FOUR-WALL HEADER, 3000 SERIES
.100" X .100" LATCH/EJECTOR, STRAIGHT, COMPLIANT PIN
D
MOUNTING HARDWARE
D
.31
7.9
3341-5
(INSTALL FROM BOTTOM OF BOARD)
PANHEAD THREAD CUTTING SCREW:
#4-24 X 5/16"
TYPE: USA STD BT, FEDERAL BG
MATERIAL: STAINLESS STEEL
STRAIGHT VERSION INSTALL
(MUST BE INSERTED PRIOR TO
LATCH INSTALL)
C
3341-6
HEX HEAD BOLT, NUT AND WASHER:
BOLT - #2-56 X 1/2"
MATERIAL: STAINLESS STEEL
C
3341-6
#2-56 NUT AND BOLT
TORQUE FOR EACH BOLT: 1.25 - 3.125 INCH LBS.
B
E
DESIGN REFERENCE
ACCESS
CODES
56068
ECO
JUL 31,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
NEXT ASSEMBLY
REV
DRFT
CASTIGLIONE
CHKD
JUL 31,2014
DATE
APPVL
A
#4-24 TYPE BT SELF THREADING SCREW
WHEN
USING LATCHES, MAXIMUM LENGTH
OF SCREW IS .250 INCHES PLUS
THICKNESS OF THE BOARD.
TORQUE FOR EACH SCREW IS 3-5 INCH LBS.
R. SCHERER
DIVISION
DIVISION CODE
SEP 05,2014
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
4
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 4-WALL, .100
X .100 LATCH/EJECTOR,
STR, COMPLIANT PIN
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0478-7
DET.
LISTS
YES
NO
E
3000 SERIES
SHT 4 OF 4
8
7
6
5
4
3
2
1
Imaged: E.4 2/10/2015 8:22 AM UTC-06:00
3341-5
78-5100-0478-7
B
DRAWING NUMBER
REVISION
E
京公网安备 11010802033920号
EEWORLD
