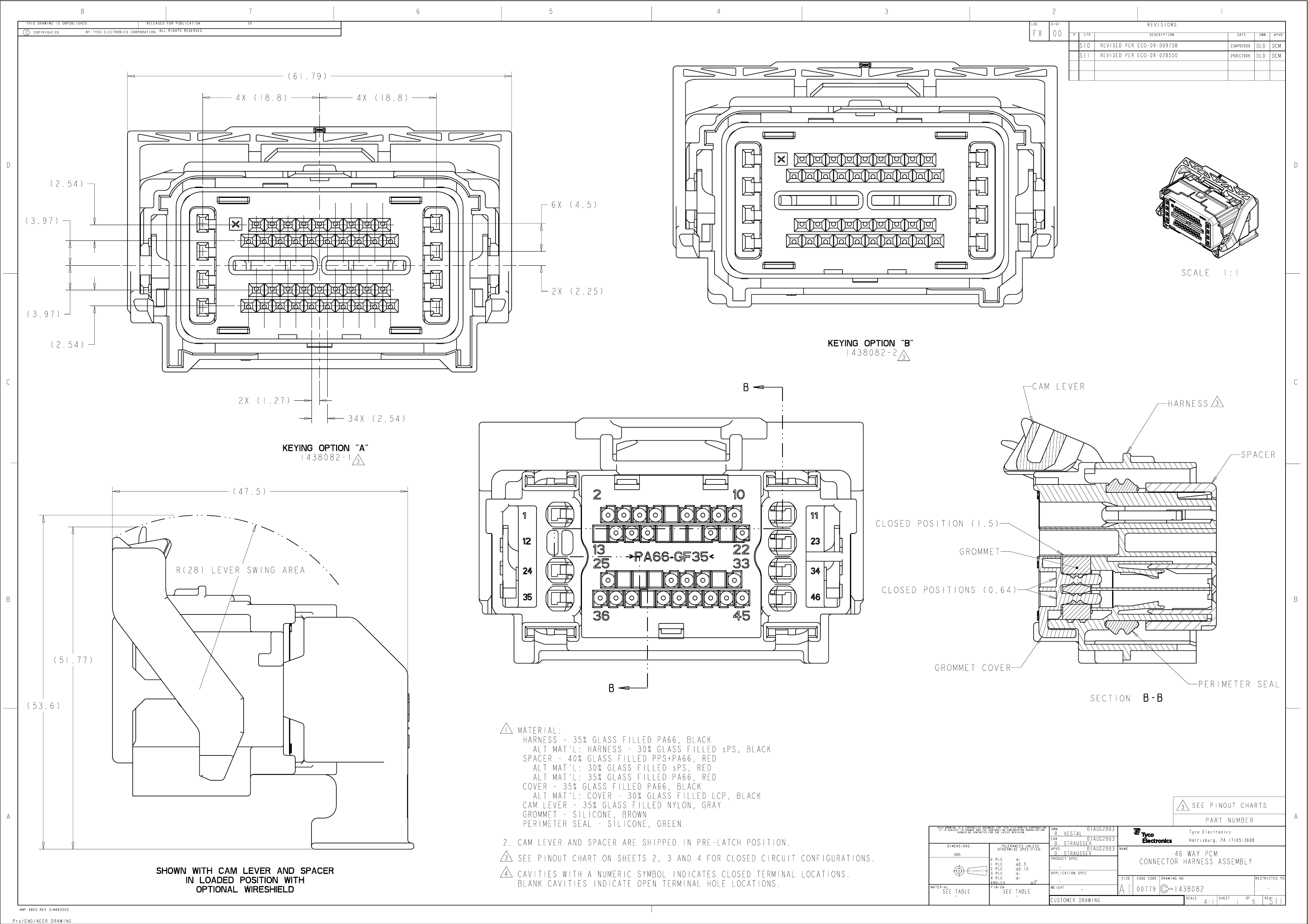

46 WAY HARNESS ASSEMBLY

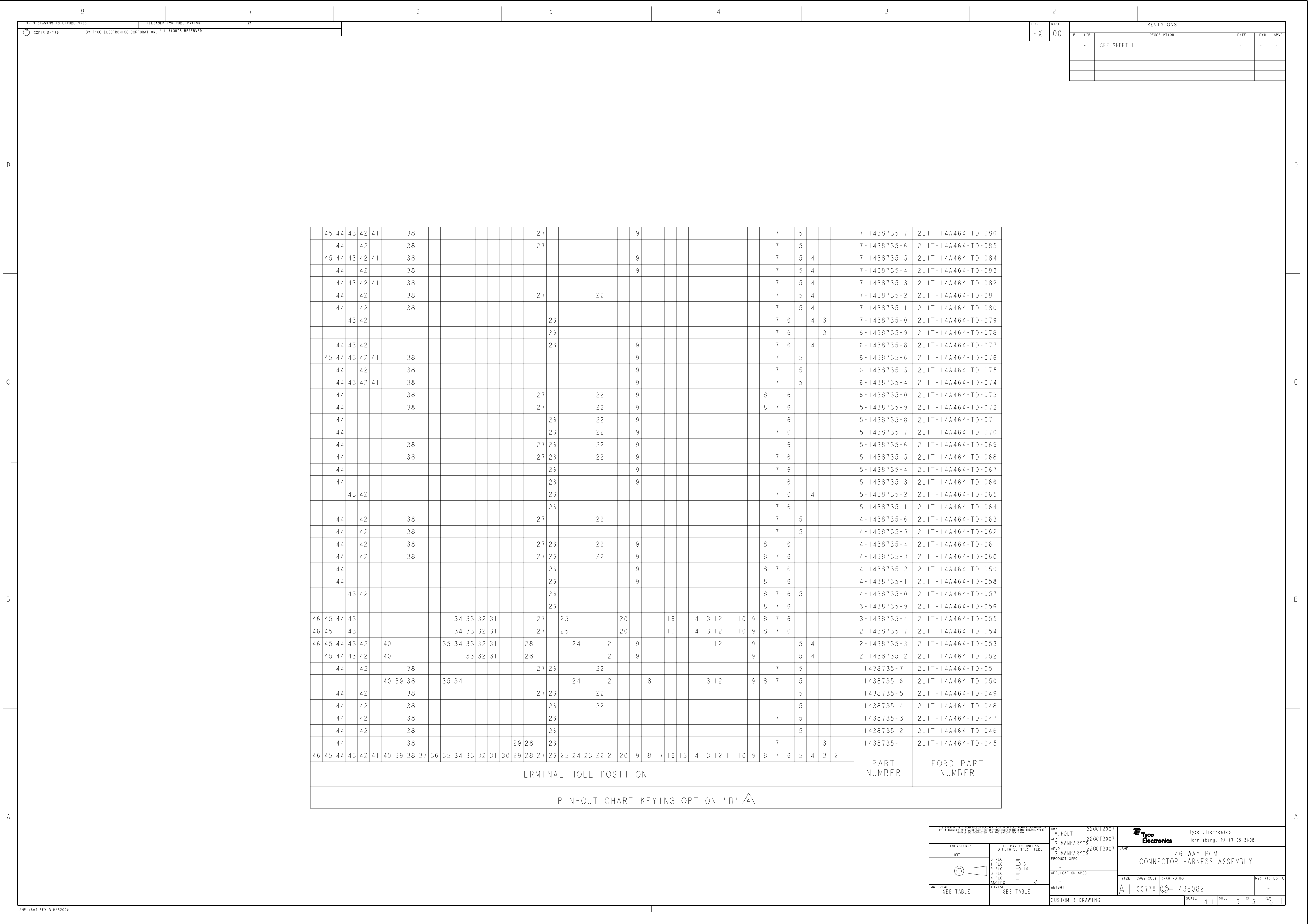

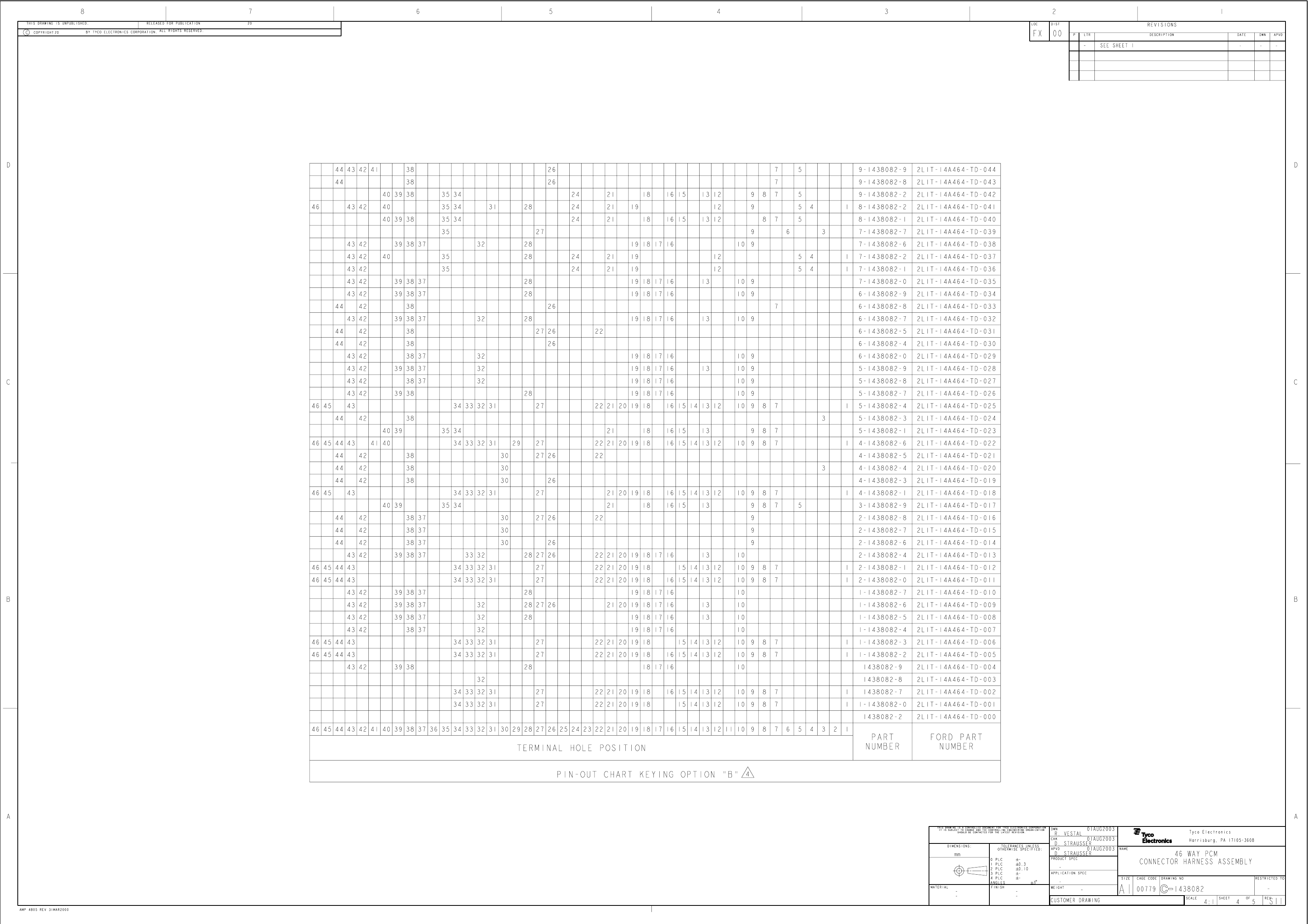

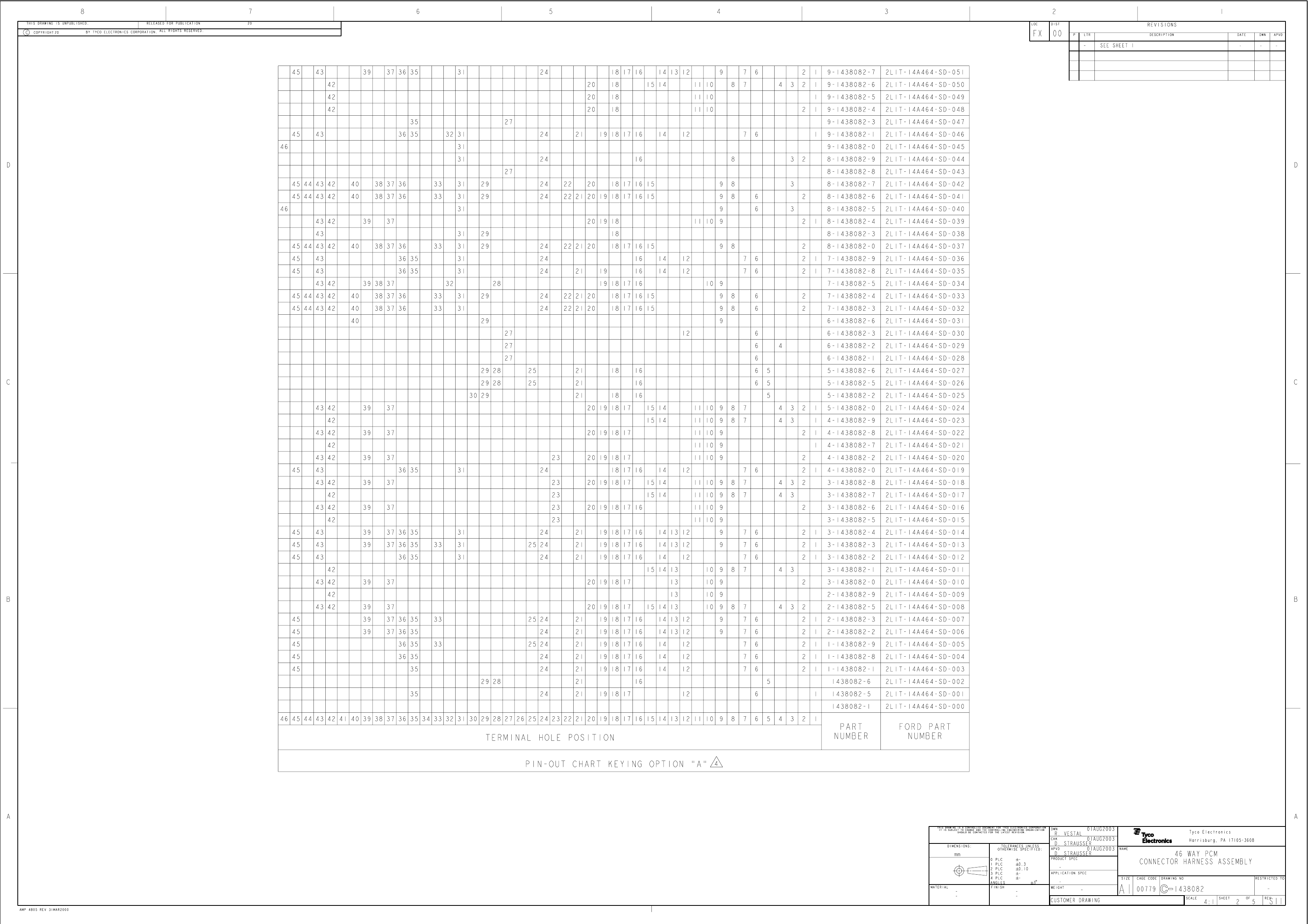

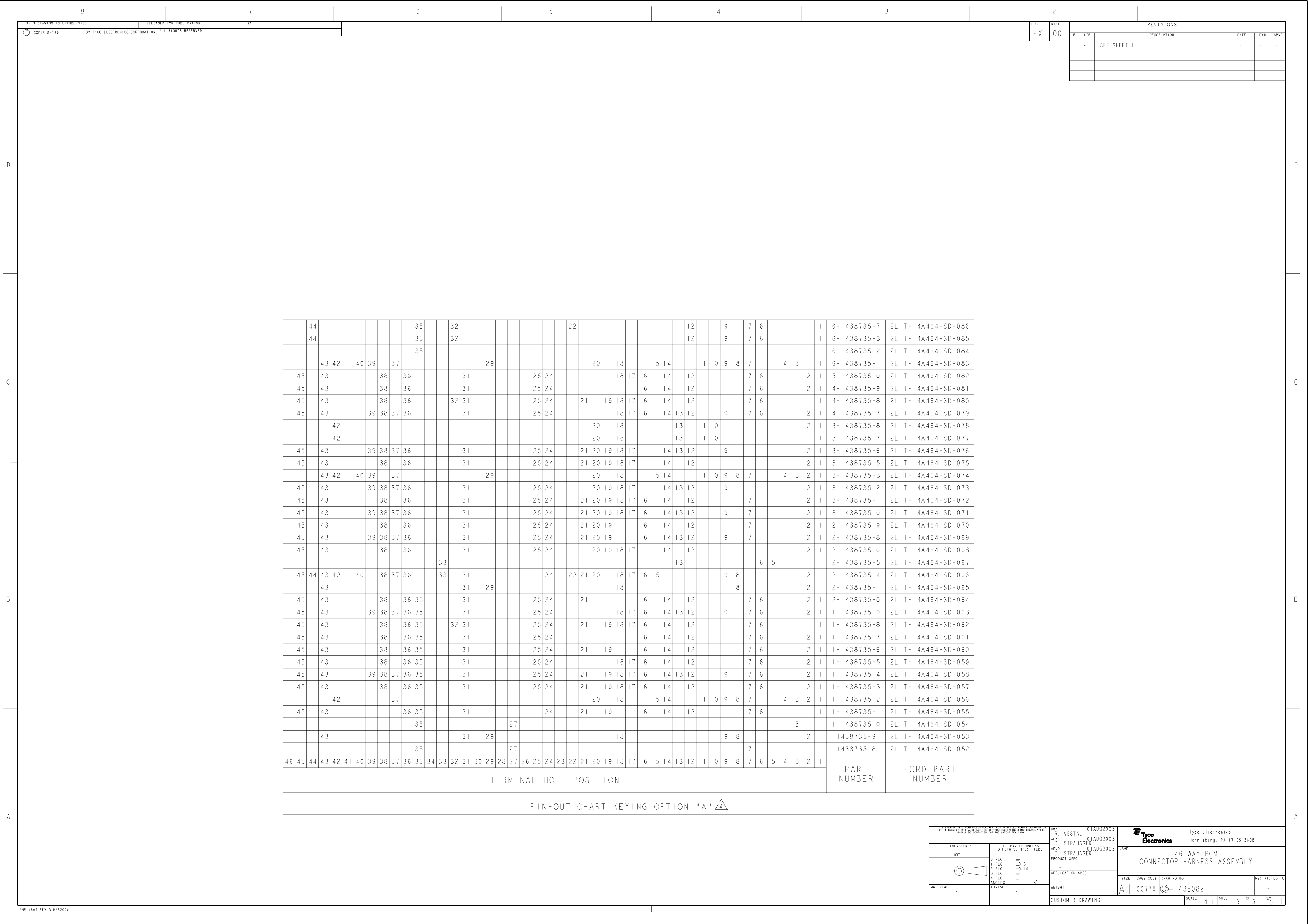

| Parameter Name | Attribute value |
| Connector type | Female terminal housing |
| Connector System | Wire to board, wire to device |
| Sealable | yes |
| Hybrid connector | yes |
| Main locking features | Housing integration |
| strain relief | Add according to attachment |
| Line spacing | 3 mm [ .118 in ] |
| Number of Positions | 46 |
| Rows | 2, 4 |
| Blank hole position | 13, 15, 16, 18, 21, 34, 35, 39, 40, 5, 7, 8, 9 |
| color | black |
| Cable exit angle | 180° |
| Main material | PA GF |
| Butt male end width (mm) | .64, 1.5 |
| Butt nipple width (in) | .025, .059 |
| Installation features | Without |
| Terminal position guarantee | yes |
| polarization | yes |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| width | 61.8 mm [ 2.433 in ] |
| high | 39.4 mm [ 1.551 in ] |
| length | 34.6 mm [ 1.362 in ] |
| Working group temperature range | -40 – 125 °C [ -40 – 257 °F ] |
| Circuit Application | Signal |
| protection level | IP67 |
| Encapsulation method | Package |
| Package quantity | 48 |
| Able to ensure connector position | no |
| Repairable | yes |
