Features

•

Small size

•

SMT-compatible

•

Easily formed leads

•

Sputtered ruthenium contacts

•

Hermetically sealed contacts

•

Fast switching speed — up to 500Hz

•

Wide range of available magnetic sensitivities

Description

Clare’s DYAD

®

dry reed switches are ideally suited for

small switching signal applications. This switch has

sputtered ruthenium contacts and an extraordinary seal

strength, achieved by a patented laser sealing of the glass.

In low level or dry switching environments, both switches

typically provide >1 billion operations. The switches have

hermetically sealed contacts and offer a wide range of

available magnetic sensitivities.

Applications

•

Security

•

Proximity sensing

•

Smoke alarms

•

Automotive

•

Level sensor

•

Lamp current sensor

•

Relays

Ordering Information

A complete part number is represented by the digits to the right. For example, FR2S1030 is a

DYAD

®

with a minimum operate value of 10 and a maximum of 30. Refer to the switch operating

specification charts for available ranges. Special ranges are available upon request.

FR2 S XX XX

Minimum Operate Value (NI)

Maximum Operate Value (NI)

Surface Mount Dyad

Refer to operating characteristics table for complete part number.

Approvals

•

UL listed

DYAD

®

Part #

FR2S1015

FR2S1020

FR2S1030

FR2S1520

FR2S1525

FR2S2025

Operate Range (NI)

1

10 to 15

10 to 20

10 to 30

15 to 20

15 to 25

20 to 25

Standard Test Coil

The magnetic force (expressed in NI, AT or Ampere Turns) required to cause the reed switch contacts to

close is called the pull-in or operate value.

FR2

Part #

Coil definition

Coil resistance

Number of turns

Wire size (nom. diameter)

Bobbin diameter (inside coil)

Winding length

Coil - 1

NARM1 CTC01

1200Ω

5,000

0.0399mm (AWG 46)

3.96mm

10.4mm

DYAD

®

Surface Mount

Part #

FR2024

FR2259

FR2282

FR2025

FR2249

FR2026

1

2

Operate Range (NI)

1,2,3

10 to 15

10 to 20

10 to 30

15 to 20

15 to 25

20 to 25

(1)

Consult factory for test procedure.

The reed switch shall be placed in the test coil with the gap centered in the core of the coil winding.

Test leads and their clips must be non-magnetic.

The longitudinal axis of the test coil and the test switch shall be vertical.

Tolerance =

±

1.5NI

Full Blade Sensitivity

3

Surface Mount Switches are packaged 3,000 parts per reel

DS-FR2-R2

www.clare.com

1

Dyad

®

FR2

Ratings (@ 25˚ C)

Parameter

Switching Voltage

FR2 - DYAD

®

Switching Current

FR2 - DYAD

®

Carry Current

FR2 - DYAD

®

Switching Frequency

FR2 - DYAD

®

Contact Resistance

FR2 - DYAD

®

(See detailed specifications for more information.)

Min

Typ Max Units

200

0.5

1.5

500

150

Volts

Amps

Hz

mΩ

Absolute Maximum Ratings are stress ratings. Stresses

in excess of these ratings can cause permanent damage

to the device. Functional operation of the device at these

or any other conditions beyond those indicated in the

operational sections of this data sheet is not implied.

Exposure of the device to the absolute maximum ratings

for extended period may degrade the device and effect

its reliability.

Specifications

All parameters are at 25°C unless otherwise stated.

PARAMETER

Contact Ratings

Operate ampere turns range

Release ampere turns range

Switching Voltage

Switching Current

Carry Current

Contact Rating

Life Expectancy

CONDITIONS

Full Blade Tolerance =

±

1.5NI

Full Blade Tolerance =

±

1.5NI

Max DC/PeakAC Resistive

1V, 10mA Signal Level

10V, 10mA Low Level

50V, 100mA Telecom Load

100V, 100mA Rated Loads

50mV, 10mA

(1)

SYMBOL

AT

V

L

I

L

I

C

-

CR

-

IR

-

T

OP

T

REL

T

A

T

O

-

G

S

-

MIN

10

5

-

10

9

-

250

-

-40

-

TYP

-

1000

500

2

80

Ru

10

11

0.3

300

-

0.13

MAX

30

200

500

1.5

10

-

150

-

0.5

0.2

+125

+240

20

100

-

UNITS

NI

VDC

mAmps

Amps

VA

x10

6

Ops

x10

6

Ops

x10

6

Ops

x10

6

Ops

mΩ

-

Ω

pF

VDC/Peak AC

ms

°C

Gs

grams/unit

Static Contact Resistance

Contact Material

Switch Specifications

Insulation Resistance

(2)

Capacitance

Dielectric Strength

(5)

Operate Time,

including bounce

Release Time

Environmental Ratings

Storage Temperature

Operating Temperature

Soldering Temperature

Vibration Resistance

Shock Resistance

Weight

(1)

(2)

100V, 25°C, 40% RH

Across Open Contacts

Between Contacts

At nominal coil voltage,

10Hz Square Wave

Zener-Diode Suppression

(3)

5Hz - 200Hz

11±1ms,

1

/

2

Sine Wave

Contact resistance measured with 4 terminal method, 1.1" between test leads

>10

12

Ω

is available upon request

(3)

A 24V zener in series with a diode across the coil

(4)

Use caution not to exceed vibration resistance limits while ultrasonically cleaning. Contact Clare Engineering for more details/recommendations

(5)

15 ampere turn minimum

2

www.clare.com

Rev. 2

Dyad

®

FR2

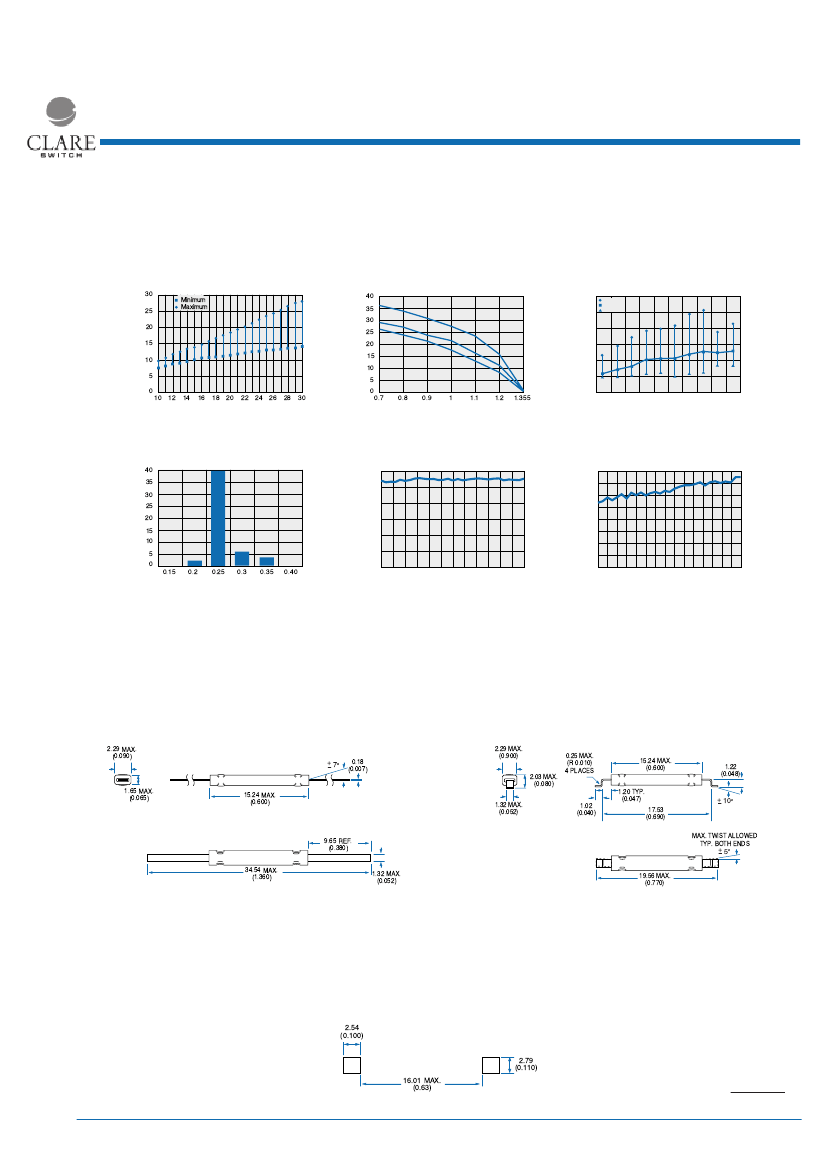

Performance Data*

DYAD

®

CM15 Series

Operate NI vs. Release NI

Test Coil: NARM 1; Full Length Terminals

Percent Operate Increase

After Lead Cut

30

DYAD

®

Operate Shift After Lead Trimming

40

35

30

25

20

15

10

5

0

0.7

0.8

0.9

1

1.1

1.2

1.355

DYAD

®

Dielectric Breakdown vs.

Operate Sensitivity

1200

Dielectric Breakdown (VDC)

1000

800

600

400

200

0

8-9

12-13

16-17

20-21

24-2526-32

Min.

Avg.

Max.

25

Release NI

Minimum

Maximum

20

15

10

5

0

10 12 14

16 18 20 22 24 26 28 30

Operate NI

Overall Length in Inches

Average Operate (NI)

DYAD

®

Capacitance Across Open Contacts

Average Resistance (mOhms)

40

35

DYAD

®

Contact Resistance Throughout Life

10V, 12mA Resistive Load

Average Resistance (mOhms)

60

50

40

30

20

10

0

0 10 20 30 40 50 60 70 80 90 100 110 120

Operations (Millions)

80

70

60

50

40

30

20

10

0

DYAD

®

Contact Resistance Throughout Life

50V, 100mA Resistive Load

Number of Units

30

25

20

15

10

5

0

0.15

0.2

0.25

0.3

0.35

0.40

0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0

Operations (Millions)

Capacitance (pF)

*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications,

please contact our application department.

Mechanical Dimensions

DYAD®

2.29 MAX.

(0.090)

+ 7

o

0.18

(0.007)

DYAD® SMT

2.29 MAX.

(0.900)

0.25 MAX.

(R 0.010)

4 PLACES

2.03 MAX.

(0.080)

15.24 MAX.

(0.600)

1.22

(0.048)

1.65 MAX.

(0.065)

15.24 MAX.

(0.600)

1.20 TYP.

(0.047)

1.32 MAX.

(0.052)

1.02

(0.040)

17.53

(0.690)

+ 10

o

9.65 REF.

(0.380)

MAX. TWIST ALLOWED

TYP. BOTH ENDS

+ 5

o

34.54 MAX.

(1.360)

1.32 MAX.

(0.052)

19.56 MAX.

(0.770)

Recommended Pad Sizes

DYAD® SMT

2.54

(0.100)

2.79

(0.110)

16.01 MAX.

(0.63)

DIMENSIONS

mm

(inches)

Rev. 2

www.clare.com

3

Dyad

®

FR2

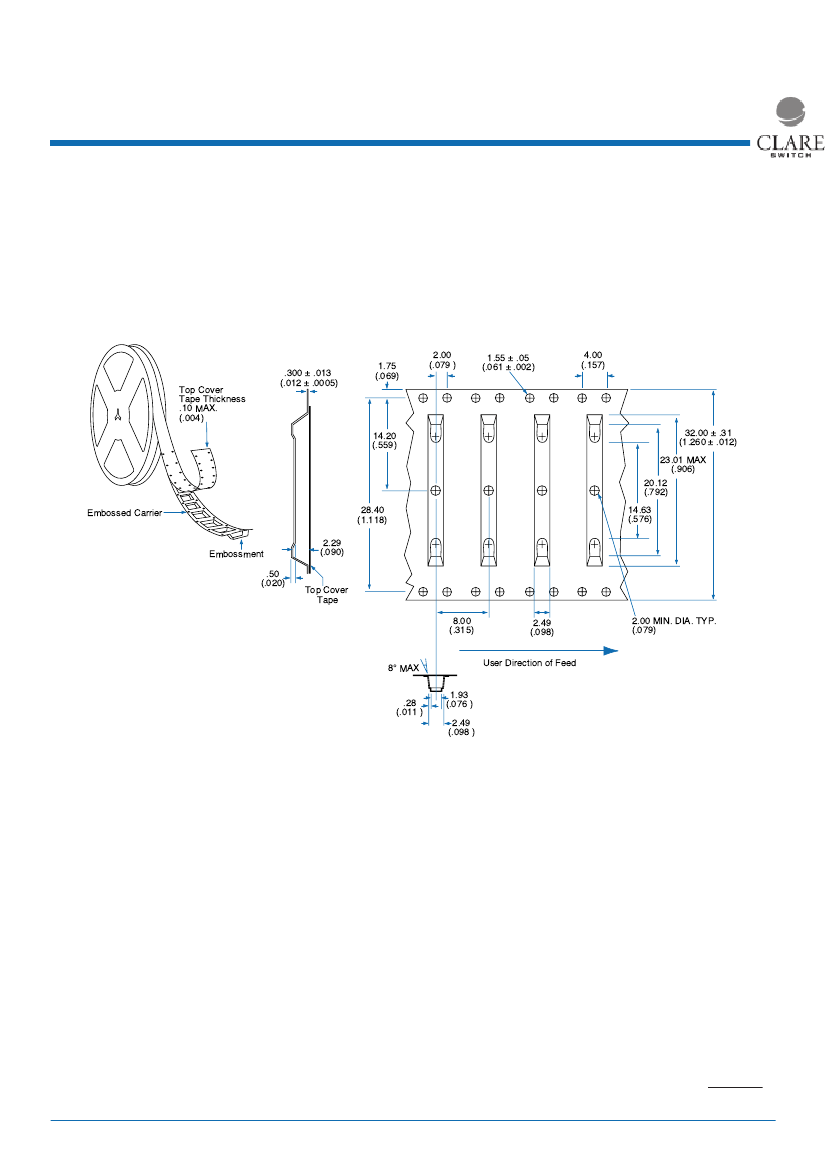

Tape & Reel Packaging

Tape and Reel Packaging for DYAD®-Gull Wing Terminals

2.00

.300 ± .013

Top Cover

Tape Thickness

.10 MAX.

(.004)

14.20

(.559)

(.012 ± .0005)

1.75

(.069)

(.079 )

1.55 ± .05

(.061 ± .002)

4.00

(.157)

32.00 ± .31

(1.260 ± .012)

23.01 MAX

(.906)

20.12

(.792)

Embossed Carrier

28.40

(1.118)

2.29

Embossment

.50

(.020)

Top Cover

Tape

8.00

(.315)

2.49

(.098)

(.090)

14.63

(.576)

2.00 MIN. DIA. TYP.

(.079)

8¡ MAX

User Direction of Feed

1.93

.28

(.011 )

2.49

(.098 )

(.076 )

DIMENSIONS

mm

(inches)

4

www.clare.com

Rev. 2

Worldwide Sales Offices

CLARE LOCATIONS

Clare Headquarters

78 Cherry Hill Drive

Beverly, MA 01915

Tel: 1-978-524-6700

Fax: 1-978-524-4900

Toll Free: 1-800-27-CLARE

Clare Switch Division

4315 Earth City Expresssway

St. Louis, MO 63045

Tel: 1-314-770-1832

Fax: 1-314-770-1812

Clare Micronix Division

145 Columbia

Aliso Viejo, CA 92656-1490

Tel: 1-949-831-4622

Fax: 1-949-831-4628

EUROPE

European Headquarters

CP Clare nv

Bampslaan 17

B-3500 Hasselt (Belgium)

Tel: 32-11-300868

Fax: 32-11-300890

France

Clare France Sales

Lead Rep

99 route de Versailles

91160 Champlan

France

Tel: 33 1 69 79 93 50

Fax: 33 1 69 79 93 59

Germany

Clare Germany Sales

ActiveComp Electronic GmbH

Mitterstrasse 12

85077 Manching

Germany

Tel: 49 8459 3214 10

Fax: 49 8459 3214 29

Italy

C.L.A.R.E.s.a.s.

Via C. Colombo 10/A

I-20066 Melzo (Milano)

Tel: 39-02-95737160

Fax: 39-02-95738829

Sweden

Clare Sales

Comptronic AB

Box 167

S-16329 Spånga

Tel: 46-862-10370

Fax: 46-862-10371

United Kingdom

Clare UK Sales

Marco Polo House

Cook Way

Bindon Road

Taunton

UK-Somerset TA2 6BG

Tel: 44-1-823 352541

Fax: 44-1-823 352797

ASIA PACIFIC

Asian Headquarters

Clare

Room N1016, Chia-Hsin, Bldg II,

10F, No. 96, Sec. 2

Chung Shan North Road

Taipei, Taiwan R.O.C.

Tel: 886-2-2523-6368

Fax: 886-2-2523-6369

SALES OFFICES

AMERICAS

Americas Headquarters

Clare

78 Cherry Hill Drive

Beverly, MA 01915

Tel: 1-978-524-6700

Fax: 1-978-524-4900

Toll Free: 1-800-27-CLARE

Eastern Region

Clare

P.O. Box 856

Mahwah, NJ 07430

Tel: 1-201-236-0101

Fax: 1-201-236-8685

Toll Free: 1-800-27-CLARE

Central Region

Clare Canada Ltd.

3425 Harvester Road, Suite 202

Burlington, Ontario L7N 3N1

Tel: 1-905-333-9066

Fax: 1-905-333-1824

Western Region

Clare

1852 West 11th Street, #348

Tracy, CA 95376

Tel: 1-209-832-4367

Fax: 1-209-832-4732

Toll Free: 1-800-27-CLARE

Canada

Clare Canada Ltd.

3425 Harvester Road, Suite 202

Burlington, Ontario L7N 3N1

Tel: 1-905-333-9066

Fax: 1-905-333-1824

http://www.clare.com

Clare cannot assume responsibility for use of any circuitry other

then circuitry entirely embodied in this Clare product. No circuit

patent licenses nor indemnity are expressed or implied. Clare re-

serves the right to change the specification and circuitry, without

notice at any time. The products described in this document are not

intended for use in medical implantation or other direct life support

applications where malfunction may result in direct physical harm,

injury or death to a person.

Specification: PB-FR2-R2

Ultra-Mini Dyad™, Mini Dyad™, and Dyad

®

are

trademarks of Clare, Inc.

3/7/01
