776275-2: Description8 POS AMPSEAL VERTICAL HDR; CategoryThe connector; File Size292KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

776275-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	776275-2	-	-	View	Buy Now

776275-2 Overview

8 POS AMPSEAL VERTICAL HDR

776275-2 Parametric

Parameter Name	Attribute value
Connector System	Wire to board, wire to device
Sealable	yes
Connectors and terminals terminate to	A printed circuit board
shield	no
mixing head	no
Number of signal positions	8
Number of Positions	8
Rows	3
Section number	1
Nominal Voltage Structure (V)	12, 24, 42, 48, 240
Rated voltage (max) (VAC)	250
Operating voltage (VAC)	250
color	Khaki
Width of male end	1.3 mm [ .051 in ]
Thickness of male end	1.3 mm [ .051 in ]
Pin diameter	1.3 mm [ .051 in ]
Contact surface plating	Tin (Sn)
Termination method	Through Hole - Solder
PCB mounting fixation type	Solder tail
PCB installation and fixation	Without
Panel mount features	Without
Mounting holes	with
PCB mounting alignment	Without
Installation direction	Vertical/180°
lock interface	with
Centerline (Pitch)	4 mm [ .157 in ]
width	32.1 mm [ 1.264 in ]
PCB profile height	34.3 mm [ 1.35 in ]
PCB thickness (recommended)	1.57 mm [ 0.062 in ]
length	40.8 mm [ 1.6063 in ]
Working group temperature range	-40 – 105 °C [ -40 – 221 °F ]
Operating temperature (max) (°C)	100, 105, 65, 70, 75, 80, 85, 90
Operating Temperature (Max) (°F)	149, 158, 167, 176, 185, 194, 212, 221
Circuit Application	Power and Signal
protection level	IP6K9K
UL flammability rating	UL 94V-0

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

B6

B7

REVISED PER ECO-15-003872

REVISED PER ECO-16-003526

25MAR2015

09MAR2016

DD

JM

DS

1

2

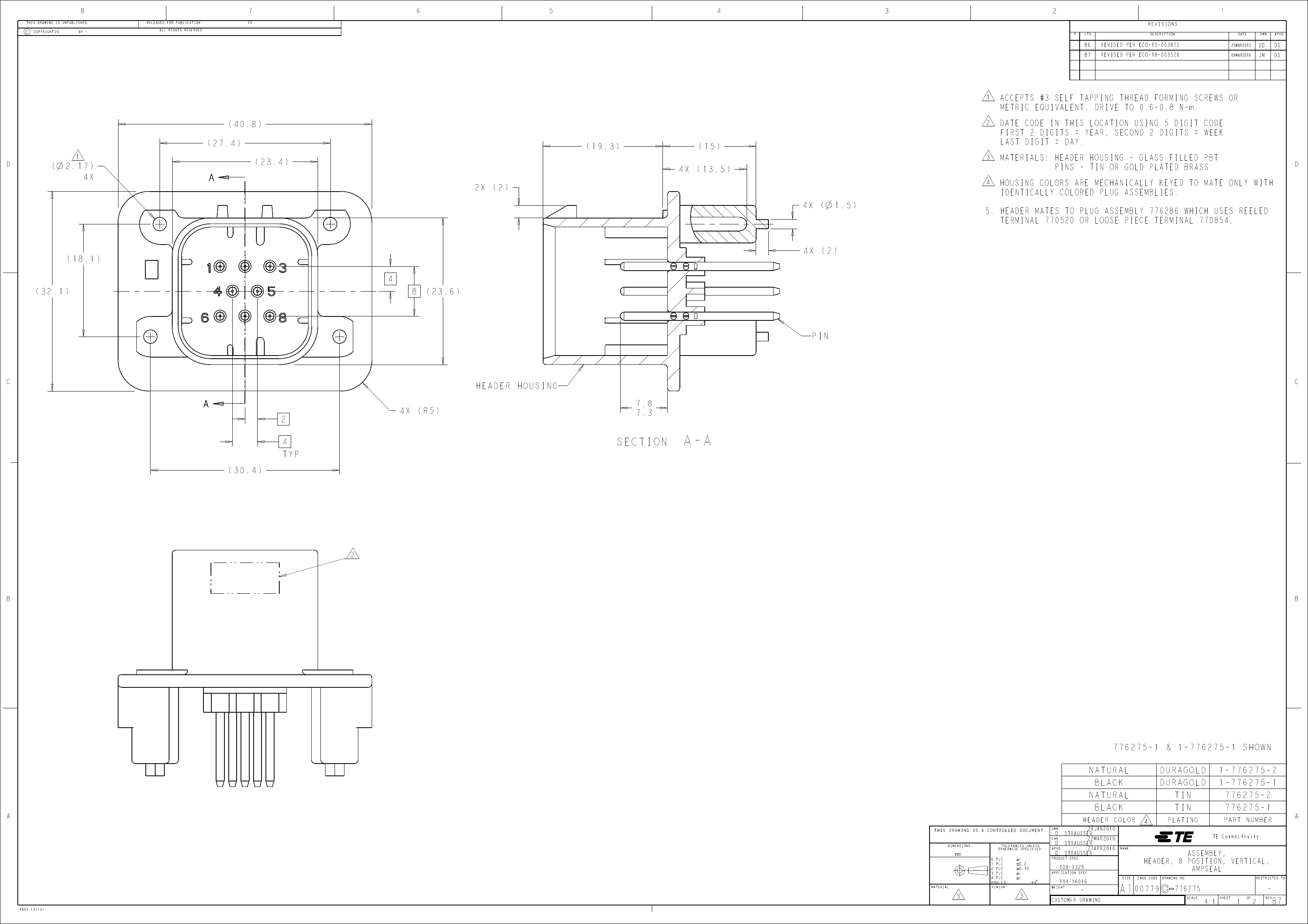

ACCEPTS #3 SELF TAPPING THREAD FORMING SCREWS OR

METRIC EQUIVALENT. DRIVE TO 0.6-0.8 N-m.

DATE CODE IN THIS LOCATION USING 5 DIGIT CODE

FIRST 2 DIGITS = YEAR, SECOND 2 DIGITS = WEEK

LAST DIGIT = DAY.

MATERIALS: HEADER HOUSING - GLASS FILLED PBT

PINS - TIN OR GOLD PLATED BRASS

HOUSING COLORS ARE MECHANICALLY KEYED TO MATE ONLY WITH

IDENTICALLY COLORED PLUG ASSEMBLIES.

D

( 40.8 )

( 27.4 )

D

1

( 19.3 )

( 23.4 )

2X ( 2 )

( 15 )

4X ( 13.5 )

(

2.17 )

4X

3

4

4X (

1.5 )

5. HEADER MATES TO PLUG ASSEMBLY 776286 WHICH USES REELED

TERMINAL 770520 OR LOOSE PIECE TERMINAL 770854.

( 18.1 )

( 32.1 )

4

8

( 23.6 )

4X ( 2 )

C

HEADER HOUSING

2

4

( 30.4 )

4X ( R 5 )

7.8

7.3

C

TYP

SECTION

A-A

2

B

776275-1

NATURAL

A

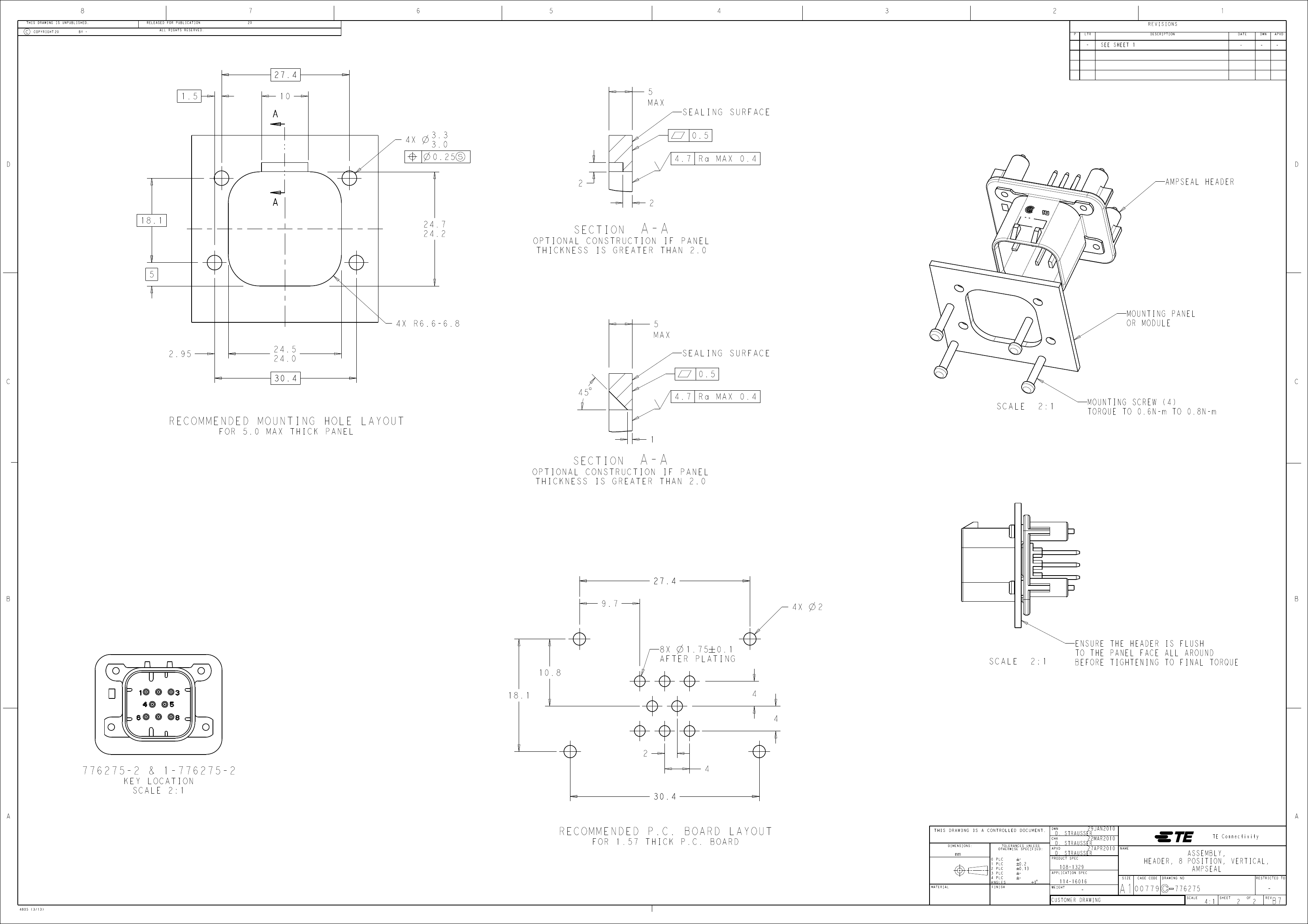

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

& 1-776275-1 SHOWN

DURAGOLD

TIN

1-776275-2

1-776275-1

776275-2

776275-1

BLACK

HEADER COLOR

D. STRAUSSER

108-1329

29JAN2010

22MAR2010

27APR2010

NAME

4

PLATING

PART NUMBER

TE Connectivity

A

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.2

0.13

-

PRODUCT SPEC

APPLICATION SPEC

1 $

WEIGHT

114-16016

3

4805 (3/13)

3

-

CUSTOMER DRAWING

A1

00779

SIZE

CAGE CODE

ASSEMBLY,

HEADER, 8 POSITION, VERTICAL,

AMPSEAL

DRAWING NO

RESTRICTED TO

776275

SCALE

4:1

SHEET

1

OF

2

REV

-

B7
