KF66X-B44S-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KF66X-B44S-N

KF66X-B44S-N: CategoryThe connector The connector; File Size654KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

KF66X-B44S-N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KF66X-B44S-N	-	-	View	Buy Now

KF66X-B44S-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.646 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of rows loaded	3
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Housing size	3/B
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KF66X-E15P-N30

Part Number Builder

LR78160

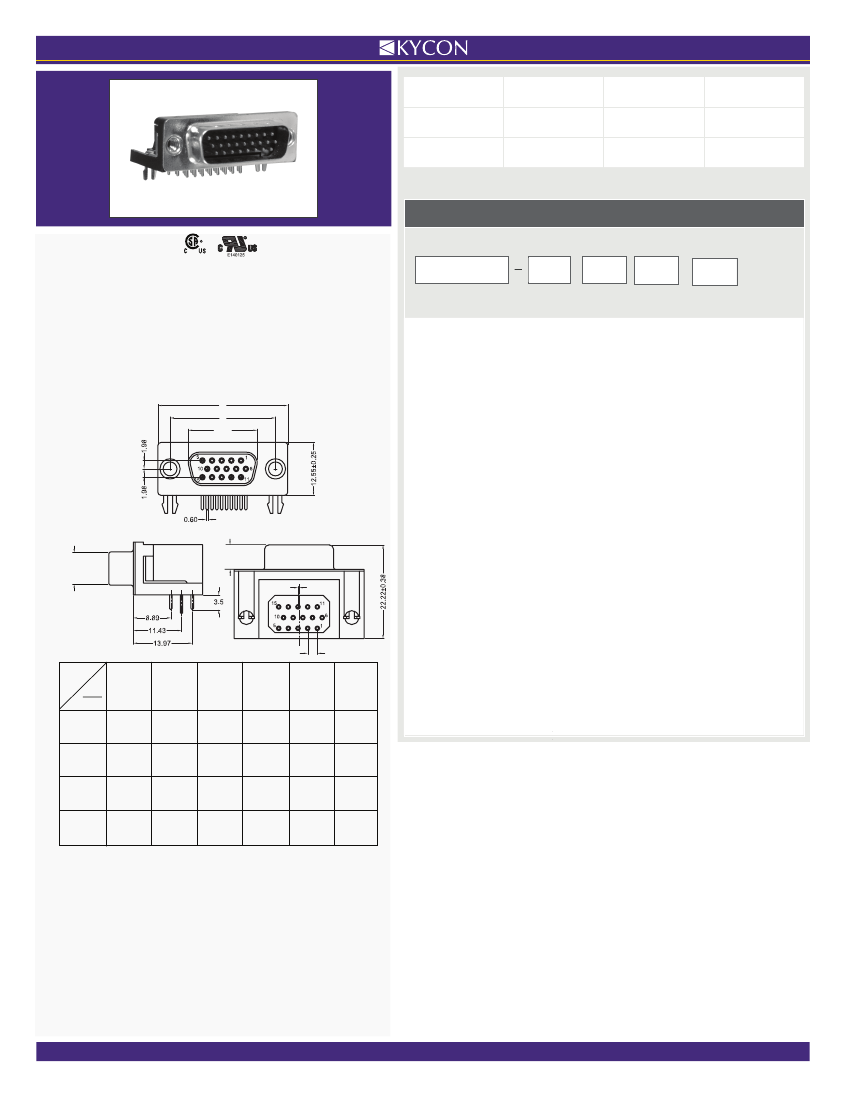

D-SUBMINIATURE CONNECTORS:

KF66X

Series

Right Angle PCB Mount With Ferrite

KF66X

Series Dimensions

Dimensions in mm

C, C1

KF66X

Series

E15

Shell Size

Contact

Type

Mounting

Option

Plating

Option

Series

KF66X

High Density D-Subminiature Connector, Right Angle

PCB Termination, 0.350” Footprint, with Ferrite

Shell Size-Contact Option

- 15 Contacts

- 26 Contacts

- 44 Contacts

- 62 Contacts

Contact Type

Pin Contact (Plug)

Socket Contact (Receptacle)

6.1 Plug

5.8 Socket

8.36 Plug Interior

7.90 Socket Exterior

Mounting Option

With Boardlocks and

#4-40 UNC Threaded Insert

With Boardlocks and

#4-40 Jackscrews Installed

Plating Option

Blank

Gold Flash

30µ” Gold

Shell

Size

.015

0.38

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

.005

0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

.010

0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.010

0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

.005

0.13

.090

2.29

.090

2.29

.090

2.29

.095

2.41

.005

0.13

.010

0.25

.020

0.51

.020

0.51

.023

0.58

(E)

(A)

(B)

(C)

Contact Kycon for VESA and Other Options

C = Exterior of Female Shell (S)

C1 = Interior of Male Shell (P)

Note: Please check D and E dimensions on 62 contacts.

Electrical Characteristics

Rated Current:

1.5A

Rated Voltage:

29Vac

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

0615
